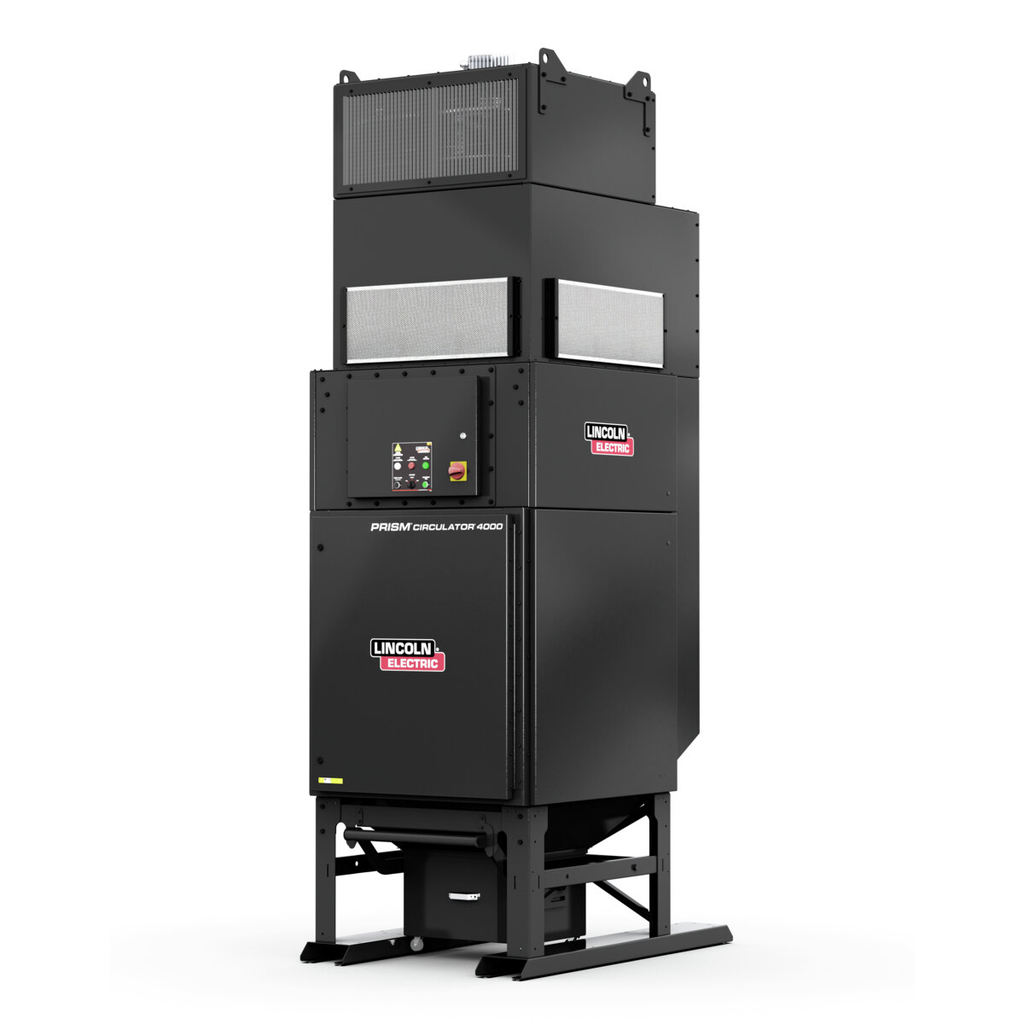

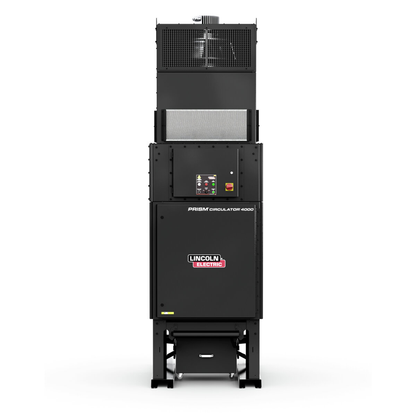

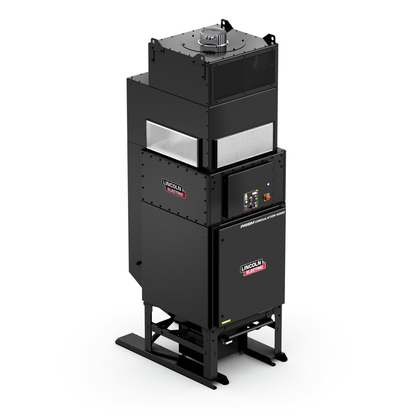

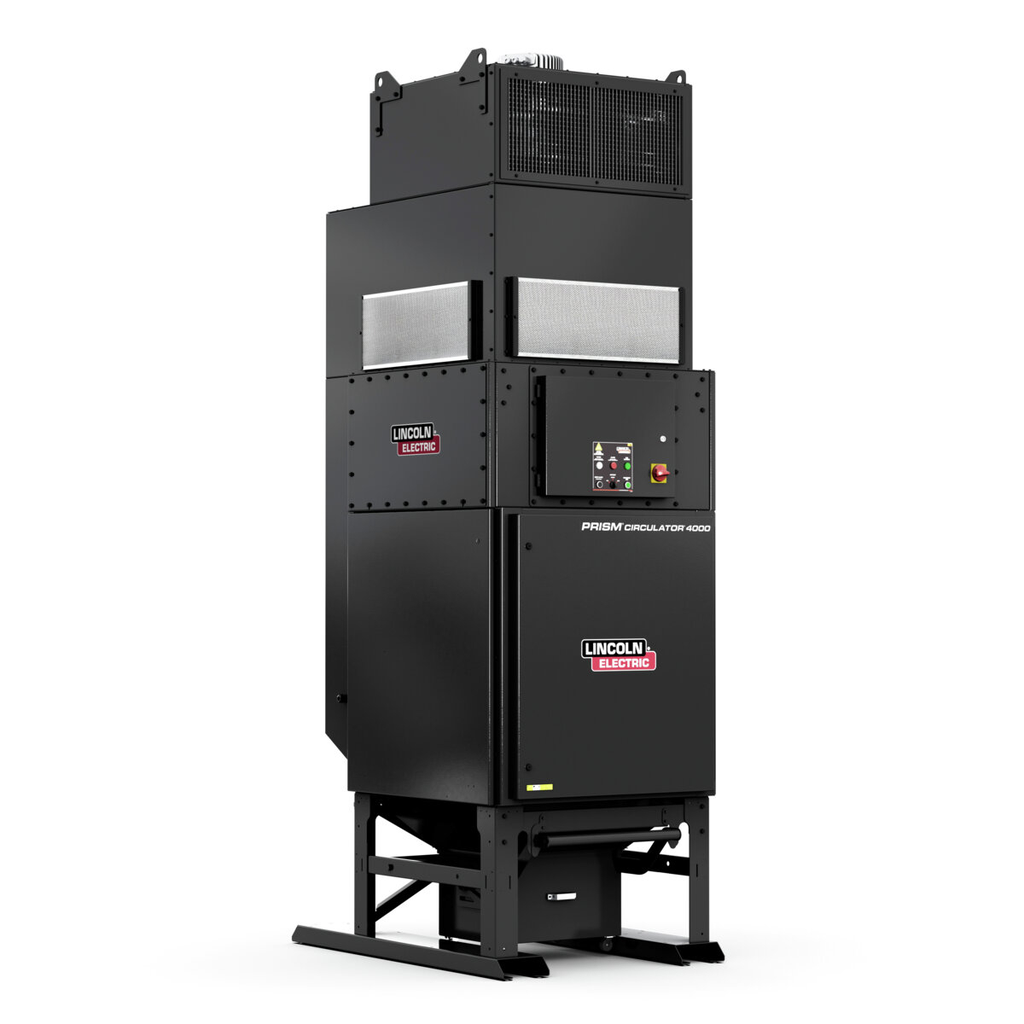

Lincoln Electric, K5140-3, Circulator, 480 V, 7.5 hp, MERV 16; 4000 SCFM, Plug and Play

Designed for facilities where additional ductwork is not an option, the Prism Circulator family helps to extract welding fumes by continuously circulating and filtering ambient air. Ideal for large and small shop environments, the Prism® Circulator delivers up to 4000 SCFM of high air flow, allowing for 40,000 cu. ft. of ambient air to be filtered every 10 minutes, and can be easily transported and installed in 1 hour.

Features

• Easy filter change – Quick front door access to the filters for easy change out. All tools included for the filter change process.
• Cost effective – A more economical solution than traditional circulators.
• Multiple air flow settings - Low, medium and high
• 4 PTFE Filters - For heavier applications like cutting and grinding
• Energy efficient – Energy efficient fan that maintains the SCFM throughout filter life.

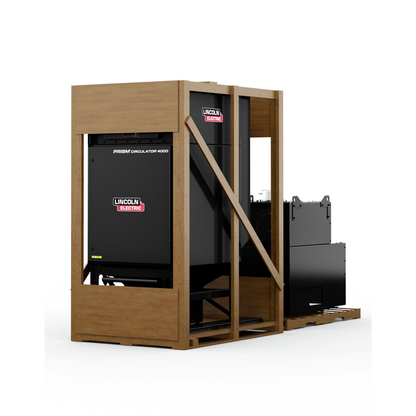

• Transportable – Ships in two pieces and designed to be easily moved with a tow motor.
• Intuitive operation – Easy to find and operate start/stop button.
• Quick and easy installation – Can be easily installed in 1 hour. Simply hook up power and compressed air then manually adjust the outlet grid to accommodate the airflow direction required for your facility.

What's Included?

• (1) Prism Circulator (480 V), (4) KP4519-3 MERV 16 PTFE Filters

• Voltage: 460 V
• Phase: 3 Phase
• Frequency: 60 Hz
• Air Flow: 4000 SCFM @ 6.5 in. WG
• Motor Power: 7.5 HP EC Motor
• Duty Cycle: 100%
• Filter Type: PTFE (MERV 16)
• Filter Quantity: 4
• Filter Area: 1280 sq ft
• Width: 45 in. (1143 mm)
• Depth: 65 in. (1651 mm)
• Height: 147 in. (3733.8 mm)
• Weight: 1830 lbs (830 kg)
• Style: Circulator
• Product Type: Plug and Play
• Input Current: 9 A
• Protection Class: IP55
• Sound Level: 72 dB
• Cleaning Type: Pulse Jet
• Duty Cycle: 100%
• Minimum Operating Temperature: -4 F (-20 C)
• Maximum Operating Temperature: 113 F (45 C)
• Warranty Length: 3 Year
• Country of Origin: United States
