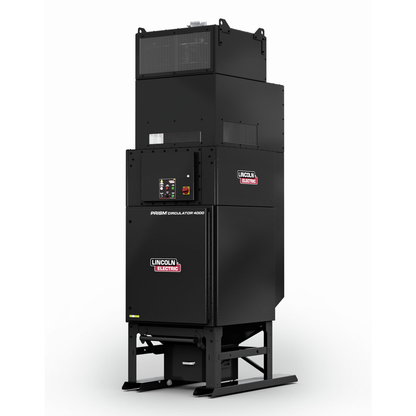

Lincoln Electric, K5140-1, Circulator, 480 V, 4000 SCFM, MERV 16, 7.5 EC Motor

Designed for facilities where additional ductwork is not an option, the Prism Circulator family helps to extract welding fumes by continuously circulating and filtering ambient air. Ideal for large and small shop environments, the Prism® Circulator delivers up to 4000 SCFM of high air flow, allowing for 40,000 cu. ft. of ambient air to be filtered every 10 minutes, and can be easily transported and installed in 1 hour.

Features

• Easy filter change – Quick front door access to the filters for easy change out. All tools included for the filter change process.
• Quick and easy installation – Can be easily installed in 1 hour. Simply hook up power and compressed air then manually adjust the outlet grid to accommodate the airflow direction required for your facility.
• Cost effective – A more economical solution than traditional circulators.
• Intuitive operation – Easy to find and operate start/stop button.
• Energy efficient – Energy efficient fan that maintains the SCFM throughout filter life.
• Multiple air flow settings - Low, medium and high

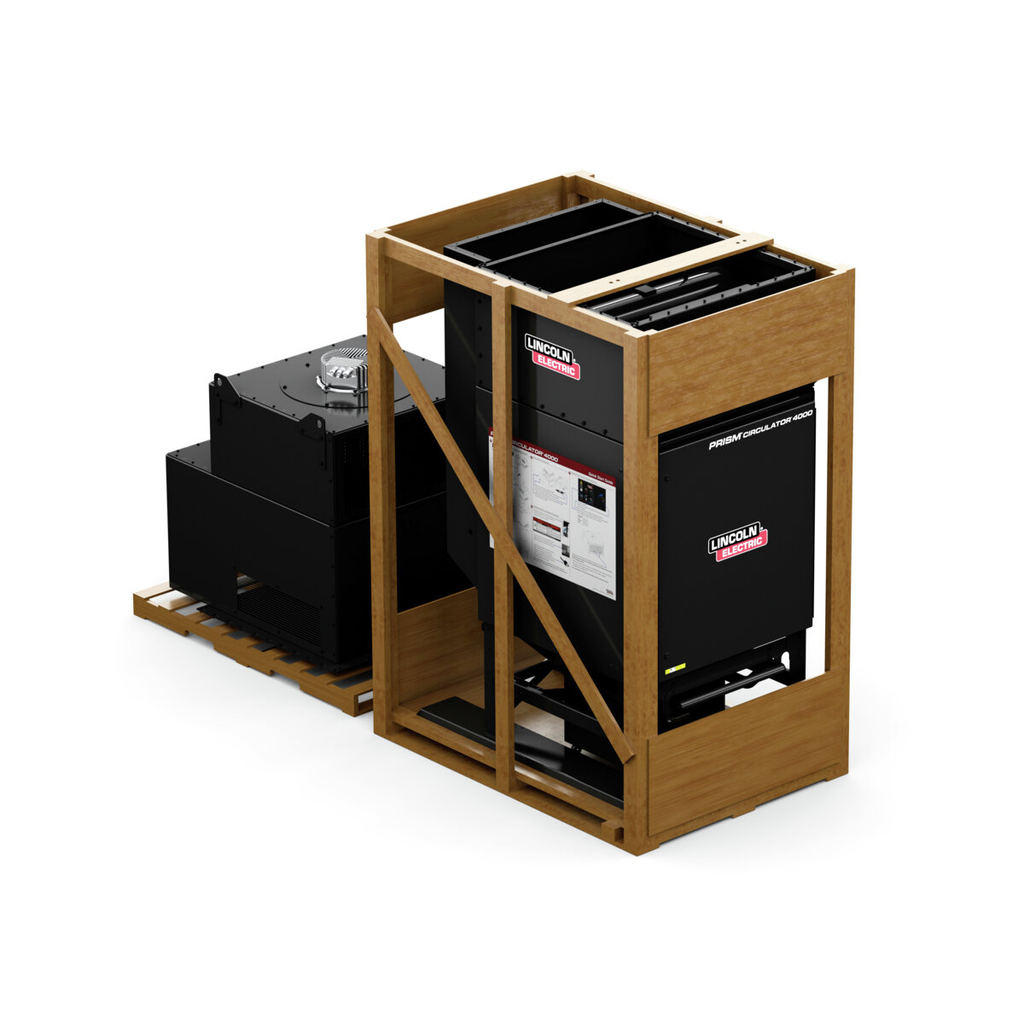

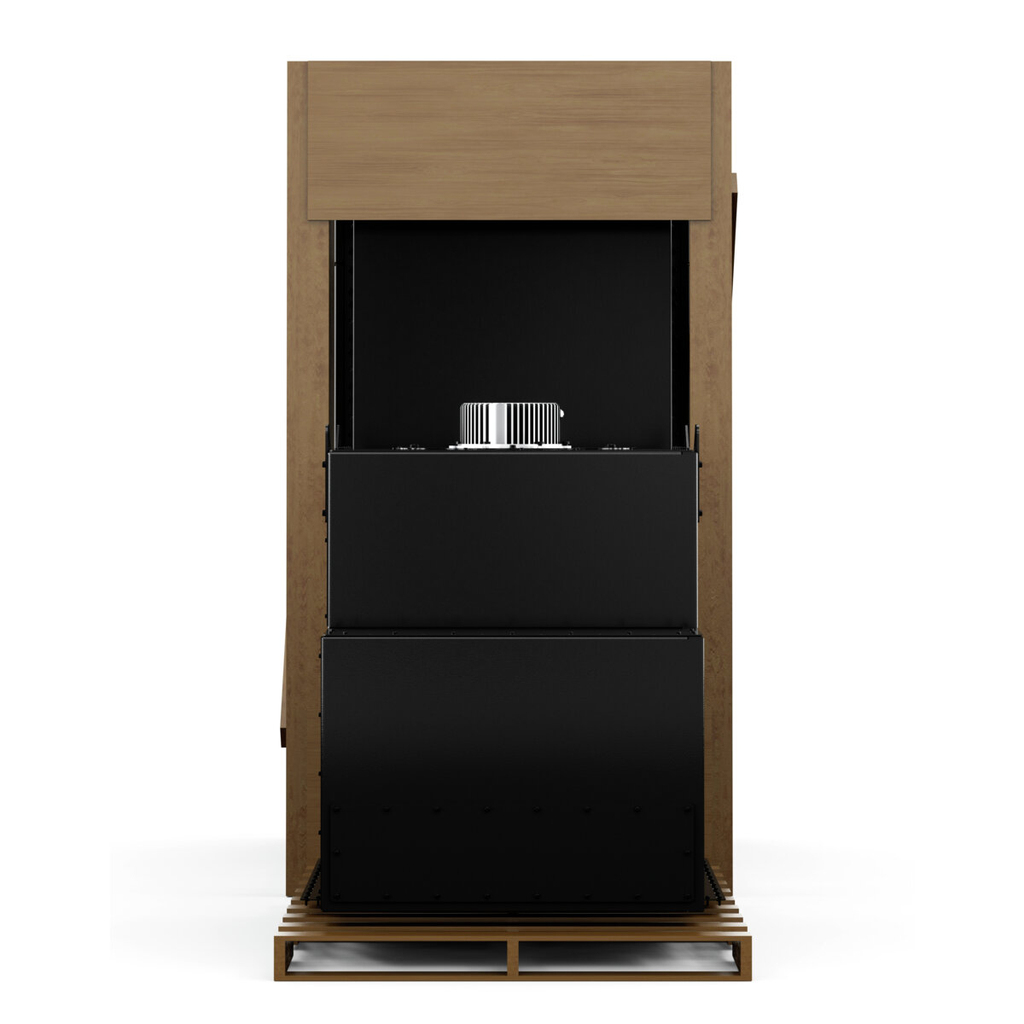

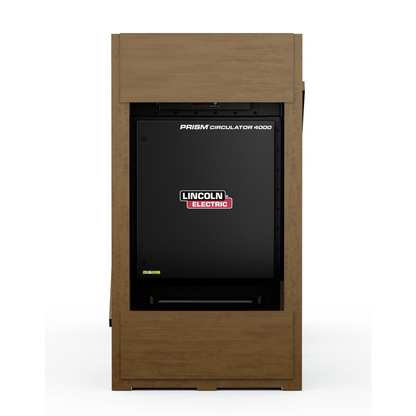

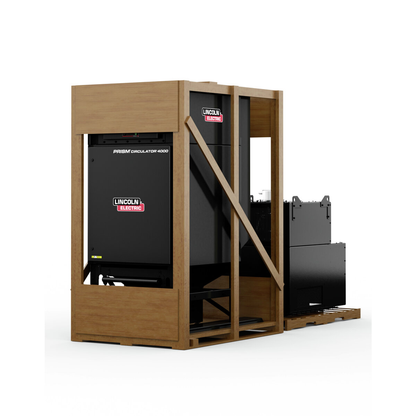

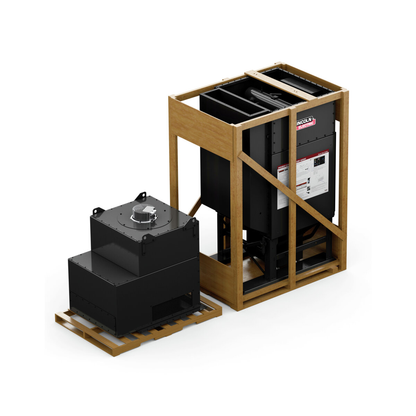

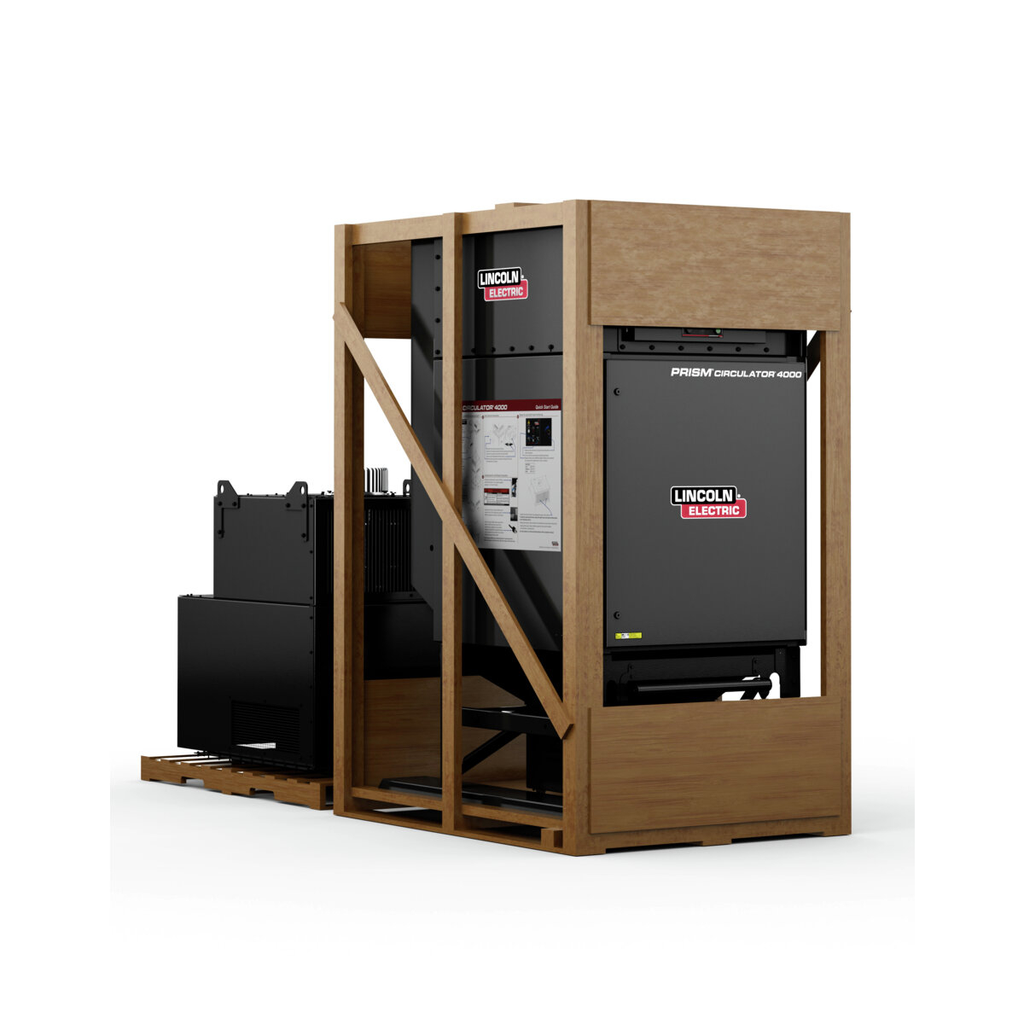

• Transportable – Ships in two pieces and designed to be easily moved with a tow motor.
• 4 Nano Filters - For typical applications

What's Included?

• (1) Prism Circulator (480 V), (4) KP4519-2 MERV 16 Nano Filters

• Voltage: 460 V
• Motor Power: 7.5 HP EC Motor
• Air Flow: 4000 SCFM @ 6.5 IN WG
• Input Current: 9 Amps
• Input Phase: 3 Phase
• Input Frequency: 60 Hz
• Duty Cycle: 100%
• Temperature Range: -4 to 113 F (-20 to 45 C)
• Size / Dimensions: 45 in W x 65 in D x 147 in H (1143 x 1651 x 3733.8 mm)
• Weight: 1830 lbs (830 kg)
• Filter Area: 1280 sq ft (118 sq m)
• Filter Type: MERV 16 Nano
• Number of Filters: 4 KP4519-2 Nano Filters
• High Vac or Low Vac: Low Vac
• Protection Class: IP55
• Sound Level: 72 dB
• Compressed Air Requirement: 72-87 psi (5-6 bar)
• Cleaning Type: Pulse Jet
• Country of Origin: United States
• Style: Circulator
• Product Type: Plug and Play
