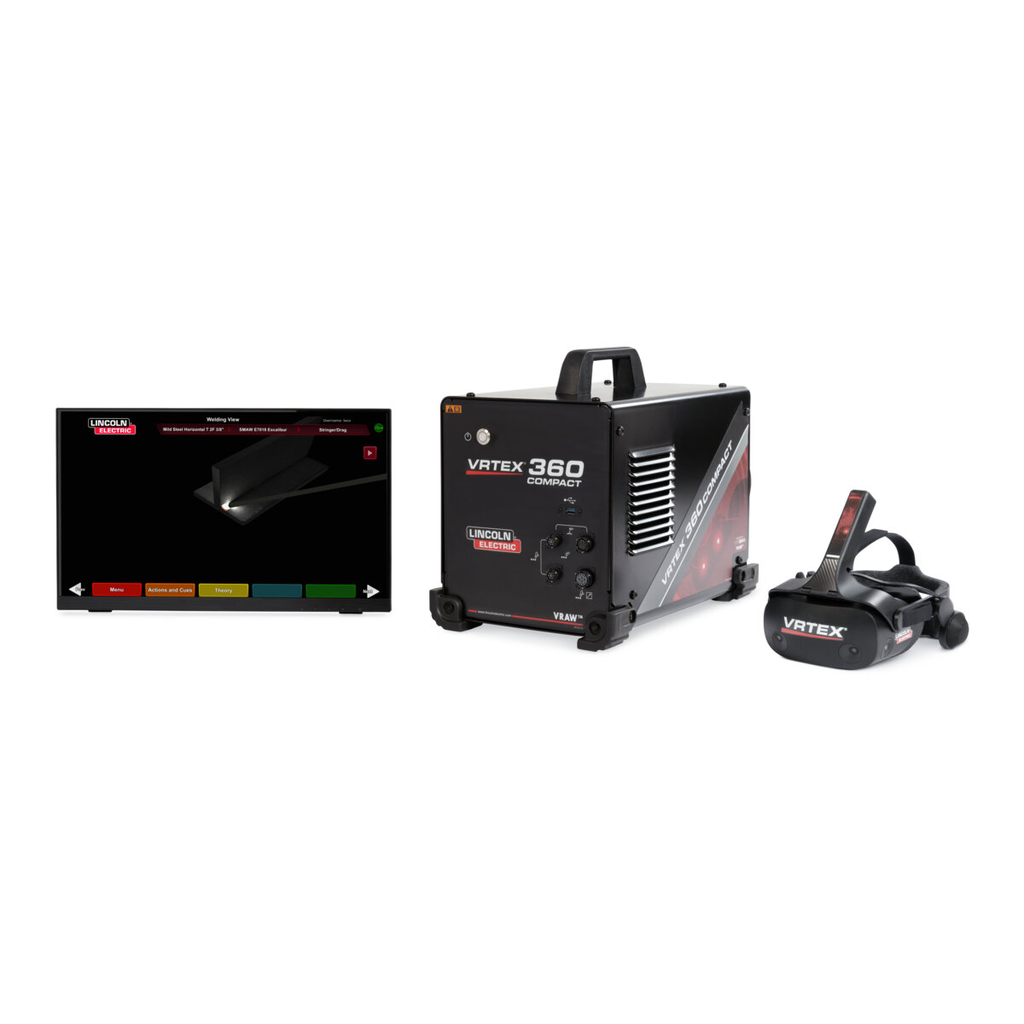

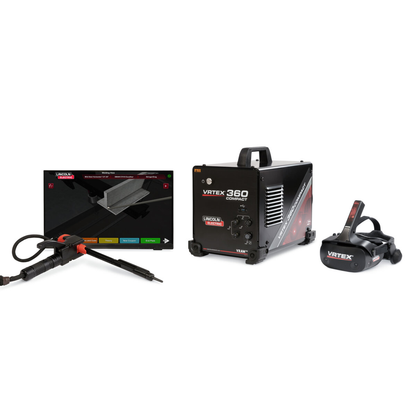

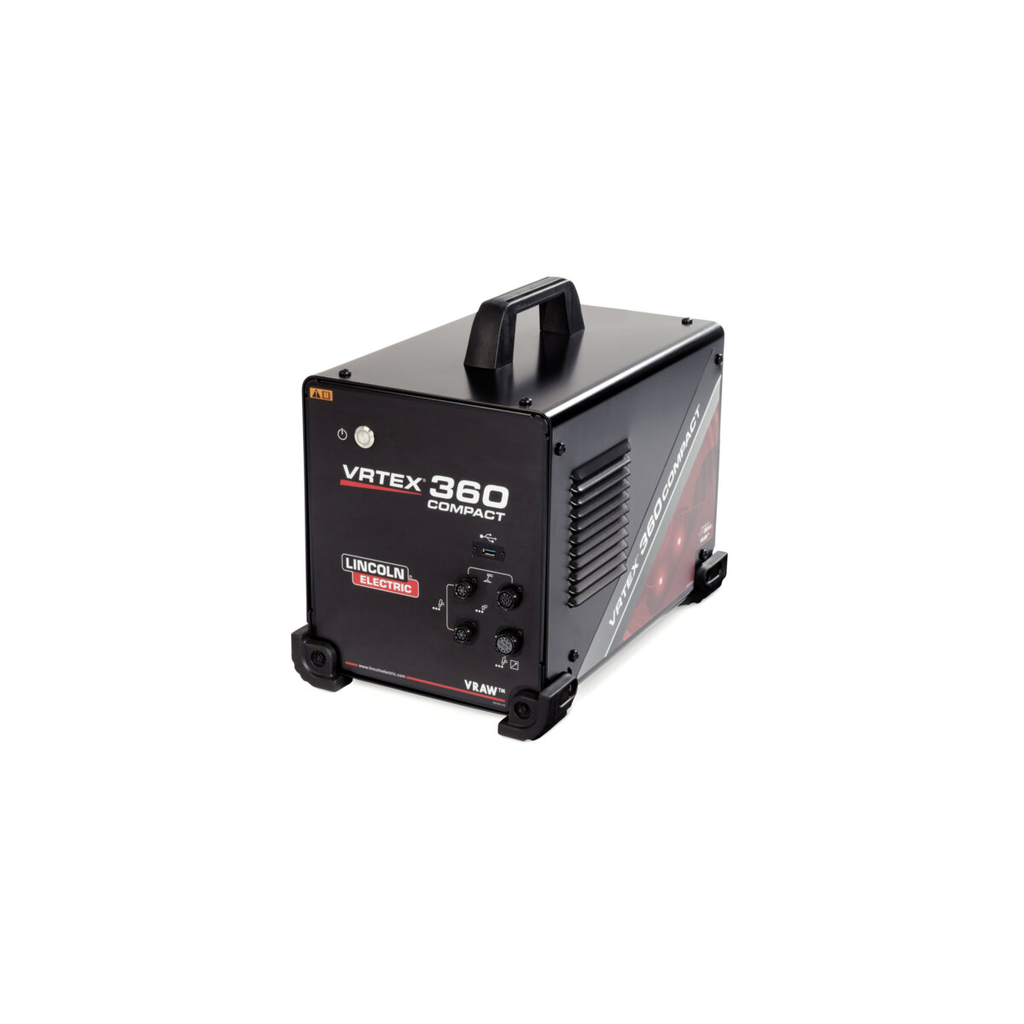

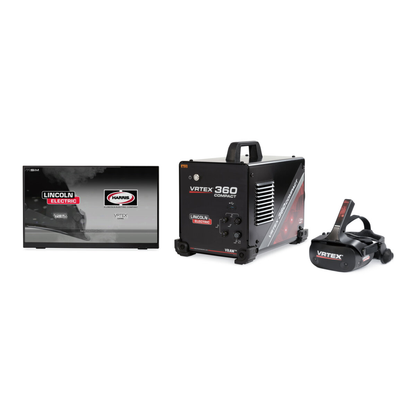

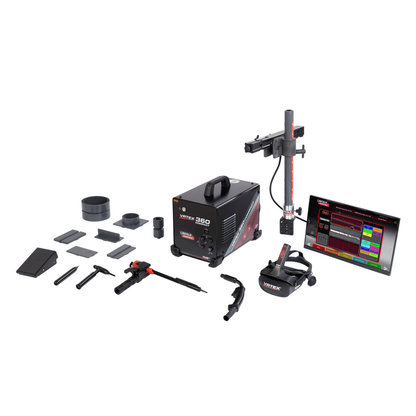

Lincoln Electric, K4914-20, Virtual Welding Trainer, Includes SMAW, GMAW/FCAW, Realistic Simulation

Life-like Welding Environment: Realistic puddle and actual welding sound helps welders learn to respond and adjust welding technique. Simulates sparks, slag, grinding and weld cooling. Welding discontinuities appear when improper welding technique is used. Virtual bend test provides results instantly and reveals what causes a weld to pass or fail. Reinforcement for Students: Demos of successful welds. Replicates proper machine set-up using a Welding Procedure Specification. Students must select gas type, process, gas flow, amperage/voltage and wire-feed speed in the system. Tracks and scores key weld parameters including work angle, travel angle, travel speed, distance and position.

Features

• Practice flat, horizontal, vertical and overhead 5G and 6G on mild steel, aluminum, stainless steel.
• Included on USB:K3205-1 First Edition-SMAW Welding Training Curriculum,K3206-1 First Edition-GMAW/FCAW Welding Training Curriculum,K4057-1 VRTEX Project Based Lesson 1-Student Workbook,K4057-2 VRTEX Project Based Lesson 1-Instructor Guide(Table shown in image is not included)
• Demo, Replay& Lesson Mode mode helps instructors and welders identify what went wrong or well.
• Extremely realistic weld puddle is visually and audibly responsive to operator behavior, helping welders learn when to adjust welding technique. Welding discontinuities appear when improper technique is used.
• Simulates sparks, slag, grinding and weld cooling.
• Tracks and scores key weld parameters including work angle, travel angle, travel speed, distance and position.
• Virtual bend test provides results instantly and reveals what causes a weld to pass or fail.

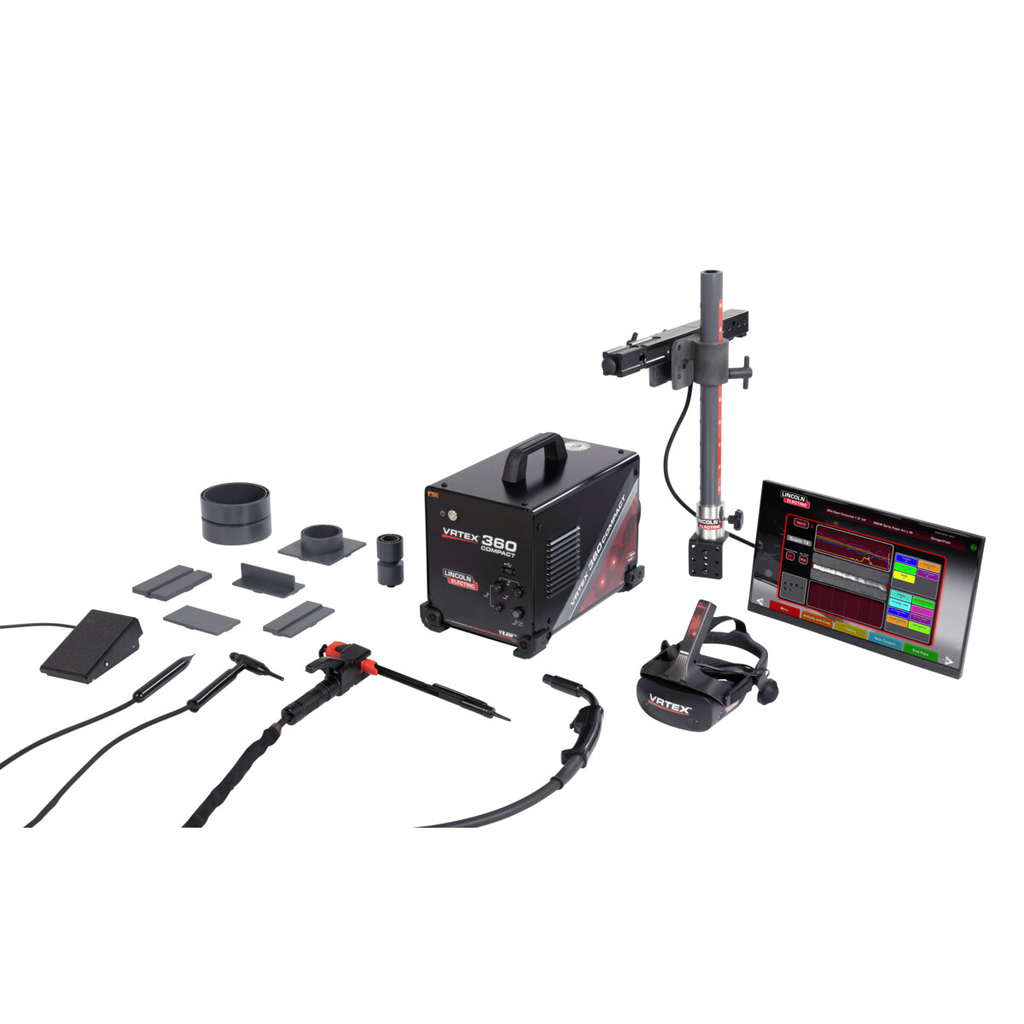

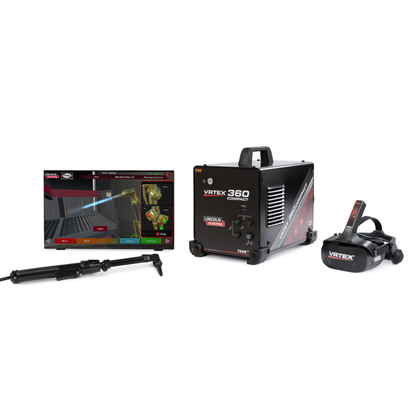

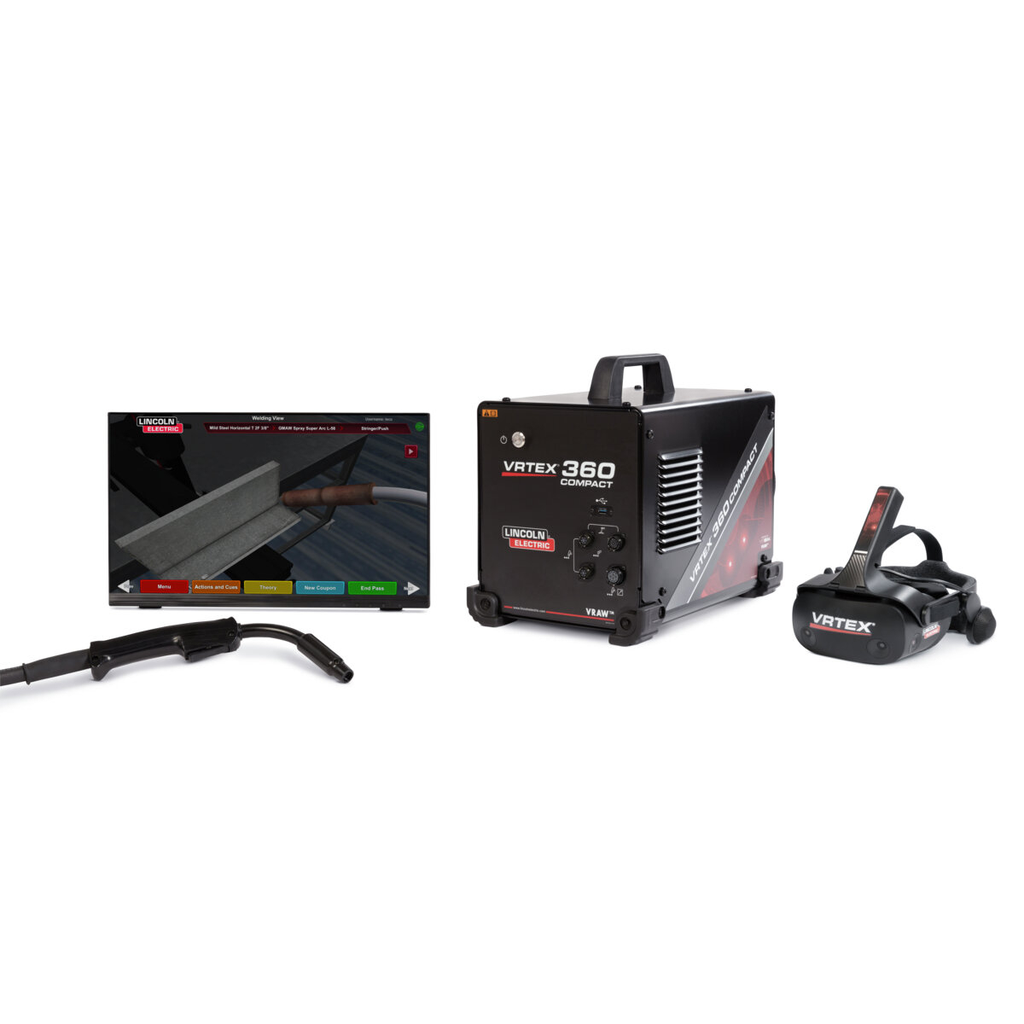

• Retractable SMAW stick stinger, GMAW/FCAW gun and GTAW TIG torch, filler metal and adaptive foot pedal devices realistically simulate the look, feel and action of actual guns and torches.

• Power Supply: 115-230 VAC, 1 phase, 50/60 Hz
• Display Size: 22 in.
• Display Resolution: 1920x1080 HD LCD
• Vision Module Resolution: 2160x2160 per eye
• Processor: Intel Core i7
• Chipset: Intel Q370
• RAM: 4GB DDR4-1600
• Graphics Card: NVIDIA GeForce GTX 1050 Ti
• Hard Disk: 120 GB SSD NVMe SATA 2.5 in.
• Audio: Realtek ALC888 High Definition
• Operating System: Windows 10 Pro
• Dimensions: 16.6 x 11.6 x 15.1 in (42.1 x 29.5 x 38.4 cm)
• Weight: 23 lbs (10.4 kg) without helmet
• Operating Temperature: 0-45 C
• Humidity: 10-80%
• Compliance: CE, CSA, RCM, EAC, ISO 9001, ISO 14001
• Simulated Welding Processes: GMAW Short Arc, GMAW Axial Spray, GMAW Pulse, FCAW Gas-Shielded, FCAW Self-Shielded, SMAW E6013, SMAW E7018, SMAW E6010, GTAW with/without Filler Metal
• Positions: 2F/PB, 3F/PF, 4F/PD, 5F/PH, 1G/PA, 2G/PC, 3G/PF, 4G/PE, 5G/PH/PJ, 6G/H-L045/J-L045
• Technique: Push, Drag, Straight Stringer, Weave, Whip
• Joint Configurations/Coupons: Flat Plate, Tee Joint, Lap Joint, 6 in. Diameter Pipe, 2 in. Diameter Pipe, 3 in. Pipe on 6 mm Plate, V-Groove Joint
• Simulated Materials: Mild Steel, Stainless Steel, Aluminum
• Languages Available: 15 languages including English, French, Spanish, German, Russian, Portuguese, Polish, Japanese, Chinese, Turkish, Finnish, Italian, Korean, Swedish, Norwegian
• Filler Materials: Stick Electrodes E6010, E6013, E7018; Mild Steel Solid Wire ER70S-6 (0.9-1.4 mm); Flux-Cored Wire E71T-1, E71T-8; Stainless Steel Solid Wire ER308LSI (1.2 mm); Aluminum Solid Wire ER4043 (1.2 mm)
• Filler Rods: Carbon Steel ER70S-6 (1.6 mm), Stainless Steel ER308L (1.6 mm), Aluminum ER4043 (2.4 mm), TIG Pure and Thoriated Tungsten
• Power Source Features: AC, DC+/- polarity, Voltage Trim (GMAW), Amperage, Wire Feed Speed, Pulse, Arc Striking Modes: Scratching, Lift Arc, High Frequency
• Shielding Gases: CO2, Argon-CO2, Argon
• Analysis and Diagnostic: Live Action Student Evaluation Report, Demo, Replay, Virtual Bend Test (Mild Steel, Grooved, 150 mm Pipe)
• Country of Origin: United States
