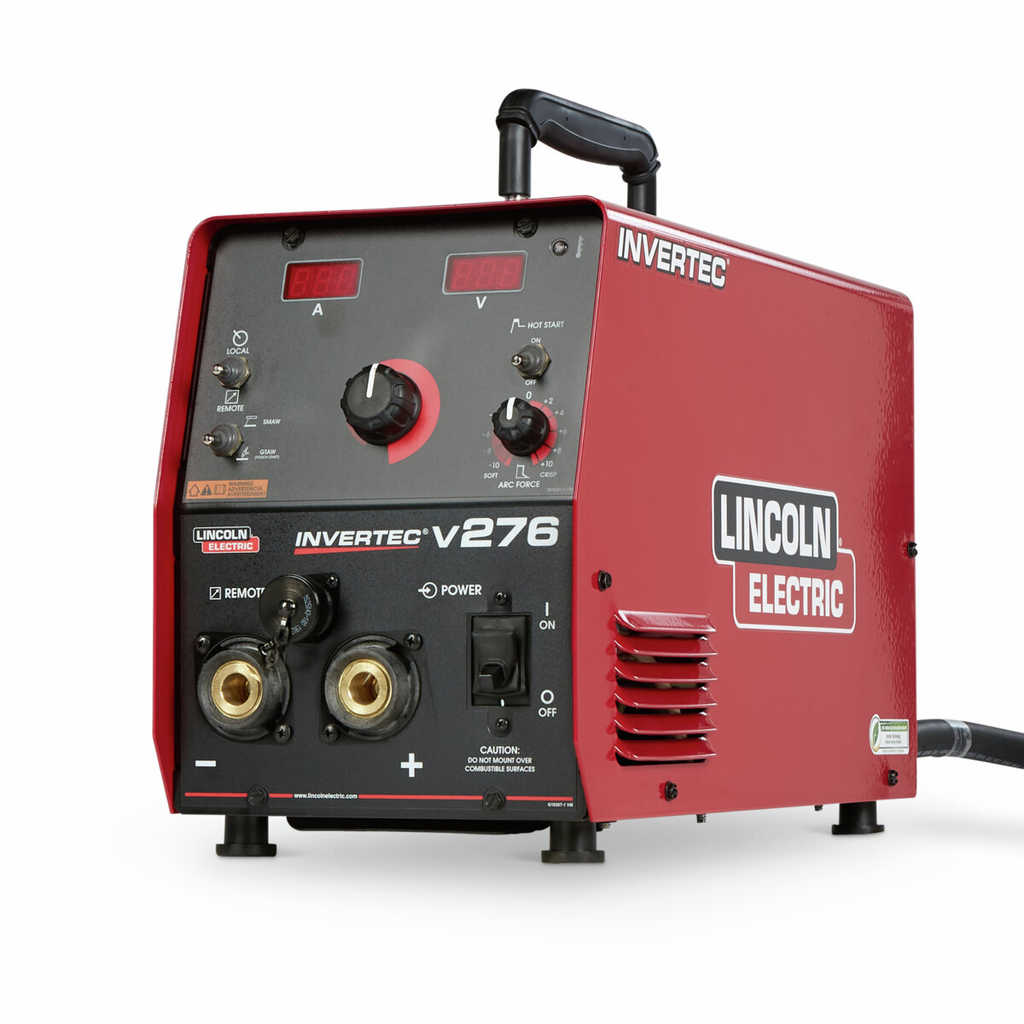

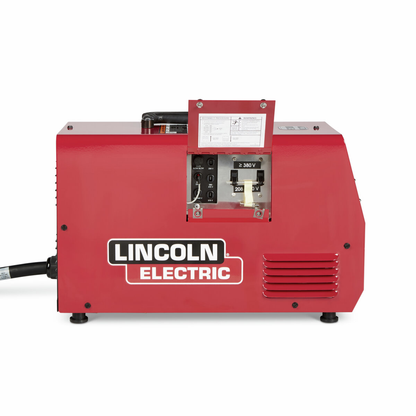

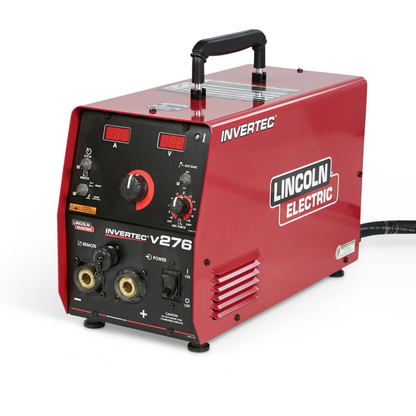

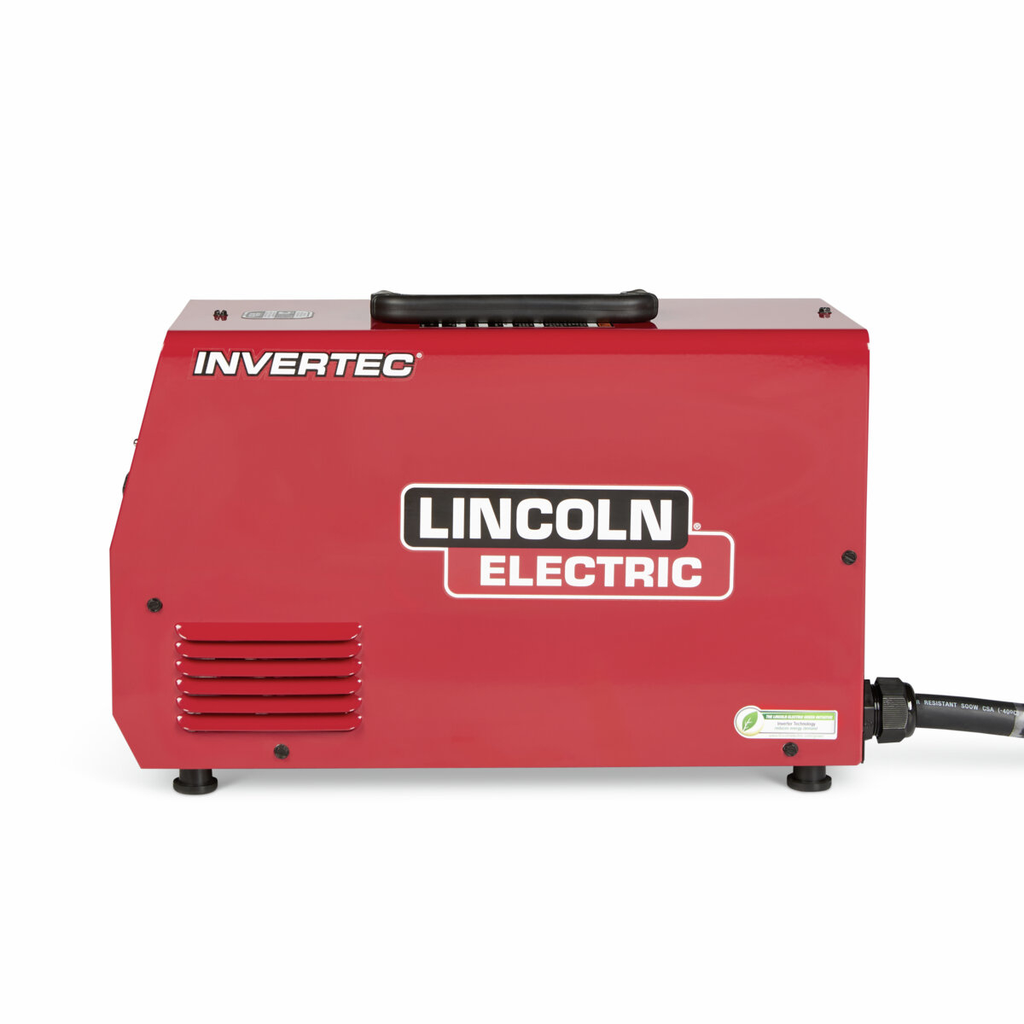

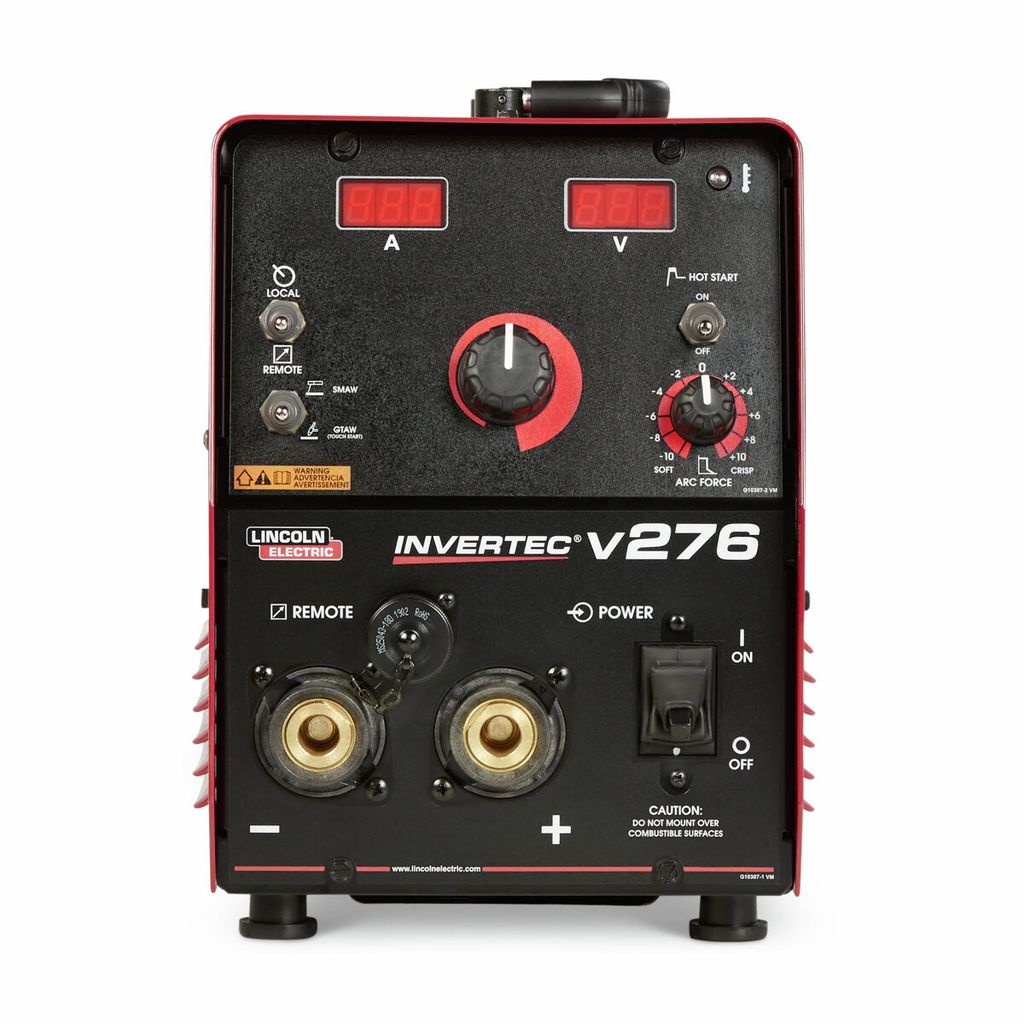

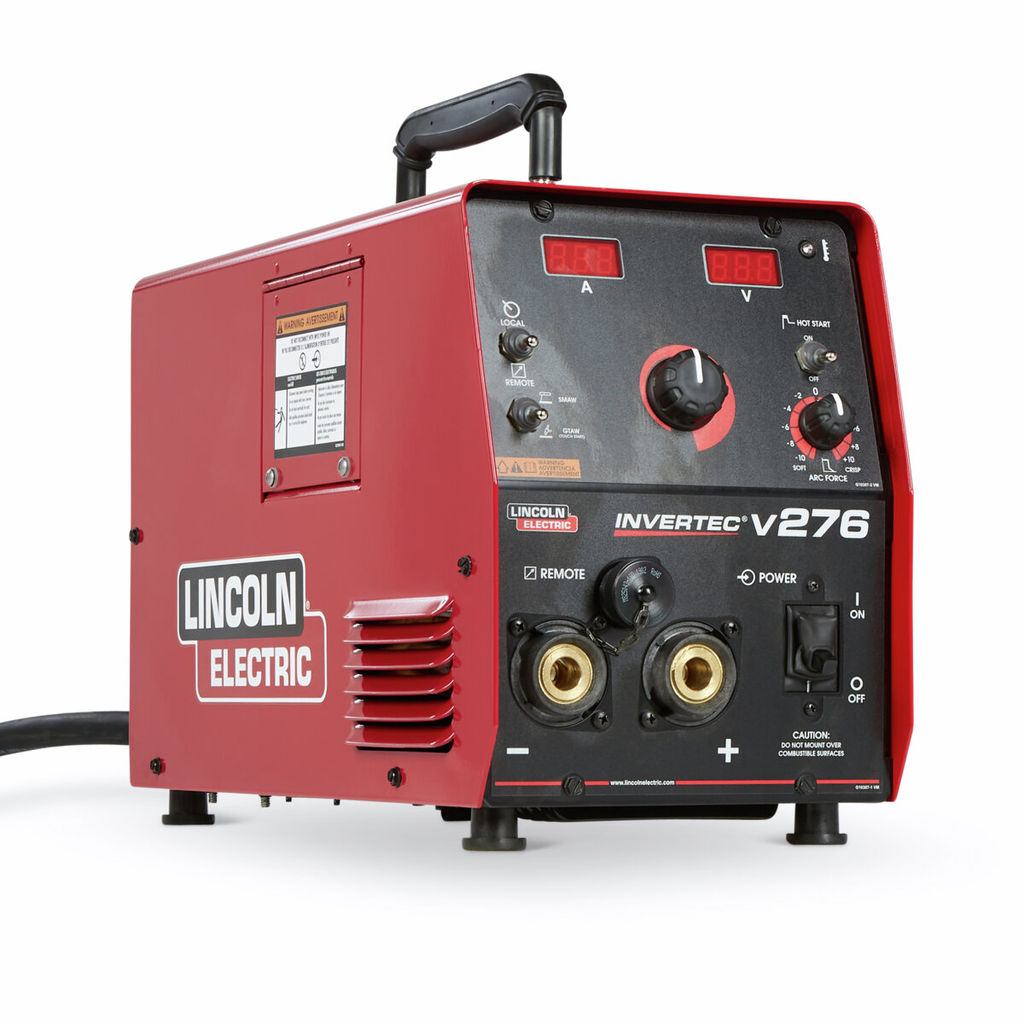

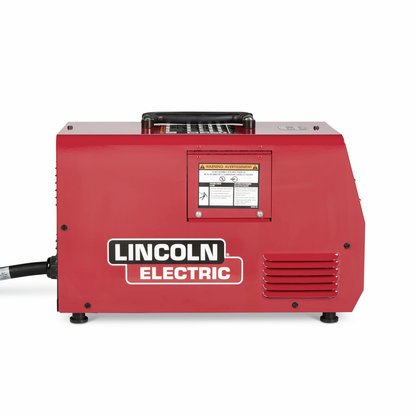

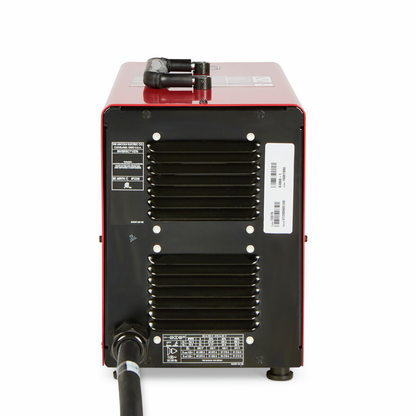

Lincoln Electric, K4868-1, Welding Power Source, 275 A; Inverter/Chopper; 1Ph/3Ph, IP23, CC

The Invertec® V276 stick and TIG power source is ideal for outdoor construction applications. This small package delivers outstanding performance on a wide range of electrode types and sizes. Plus it is built rugged enough to handle the toughest construction sites.

Features

• Selectable Hot Start Turn it on for an extra boost of output to help you fire off and prevent sticking to the work piece.
• Outstanding AWS E6010 and E7018 performance - using up to 7/32 in. (5.5 mm) diameter electrode that enables both whip and drag techniques.
• Touch Start TIG® - allows the welding arc to be established without high frequency starting
• Air carbon arc cutting and gouging - with up to 3/16 in. (4.8 mm) diameter carbon electrode.

What's Included?

• (1) Invertec V276 Power Source, (1) Input Power Cable 10 ft

• Rated Output Current: 275A (35% duty cycle), 250A (60%), 200A (100%)
• Output Voltage: 31V (35% duty cycle), 30V (60%), 28V (100%)
• Output Range: 20-275 A
• Input Voltage: 208/230/380/415/460/575 V
• Input Phase: Single or Three Phase
• Input Frequency: 50/60 Hz
• Processes: Stick (SMAW), Gouging (CAC-A), TIG (GTAW)
• Weight: 54.5 lbs (24.7 kg)
• Dimensions (H x W x D): 13.6 x 9.0 x 20.25 in (345 x 229 x 514 mm)
• Amphenol Pins (Type of Connector): 6
• Input Voltage Type: Multiple
• Output Mode: CC
• Output Polarity: DC
• Ingress Protection Rating: IP23
• Welding Technology: Inverter/Chopper
• Temperature Rating at Rated Output: 40 C
• Work Lead Connector Type: Tweco
• Country of Origin: United States
• Carbon Electrode Diameter: 3/16 in (4.8 mm)
• Electrode Diameter: 7/32 in (5.5 mm)
