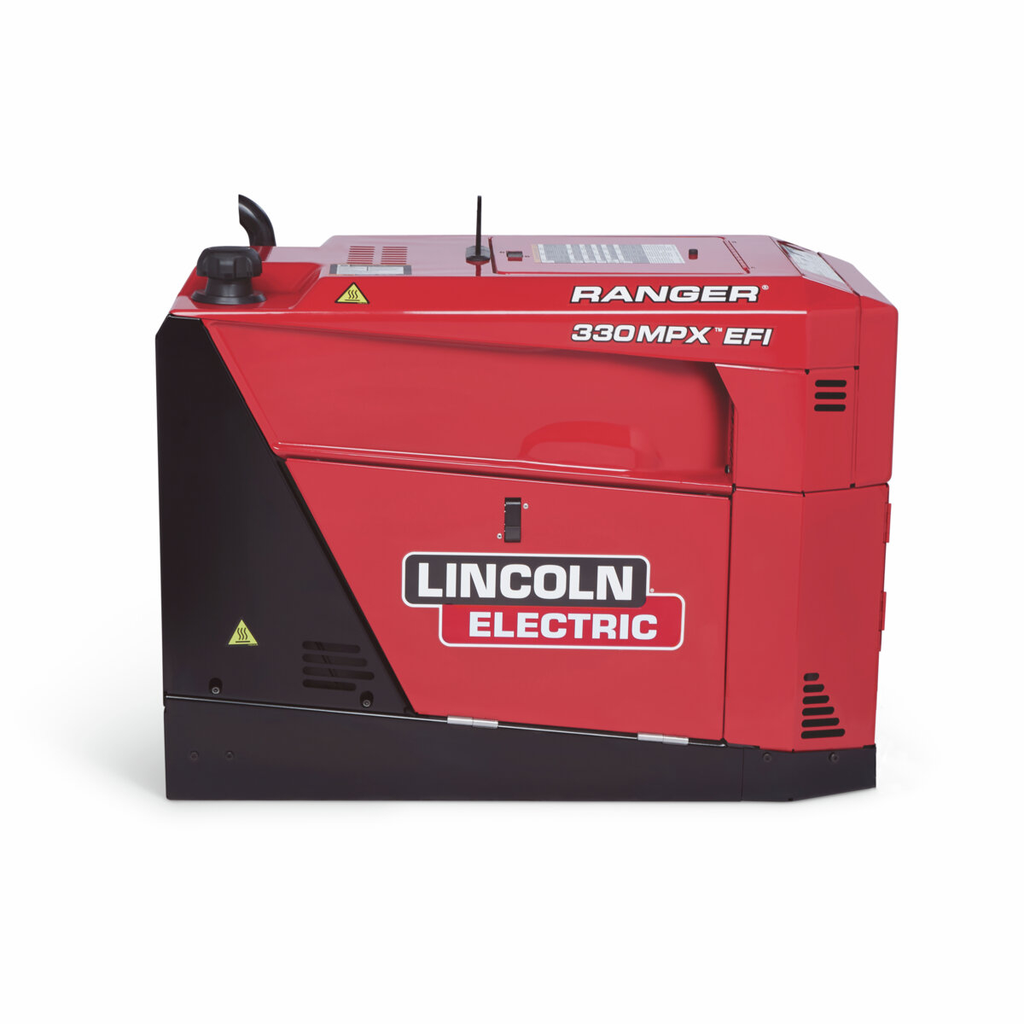

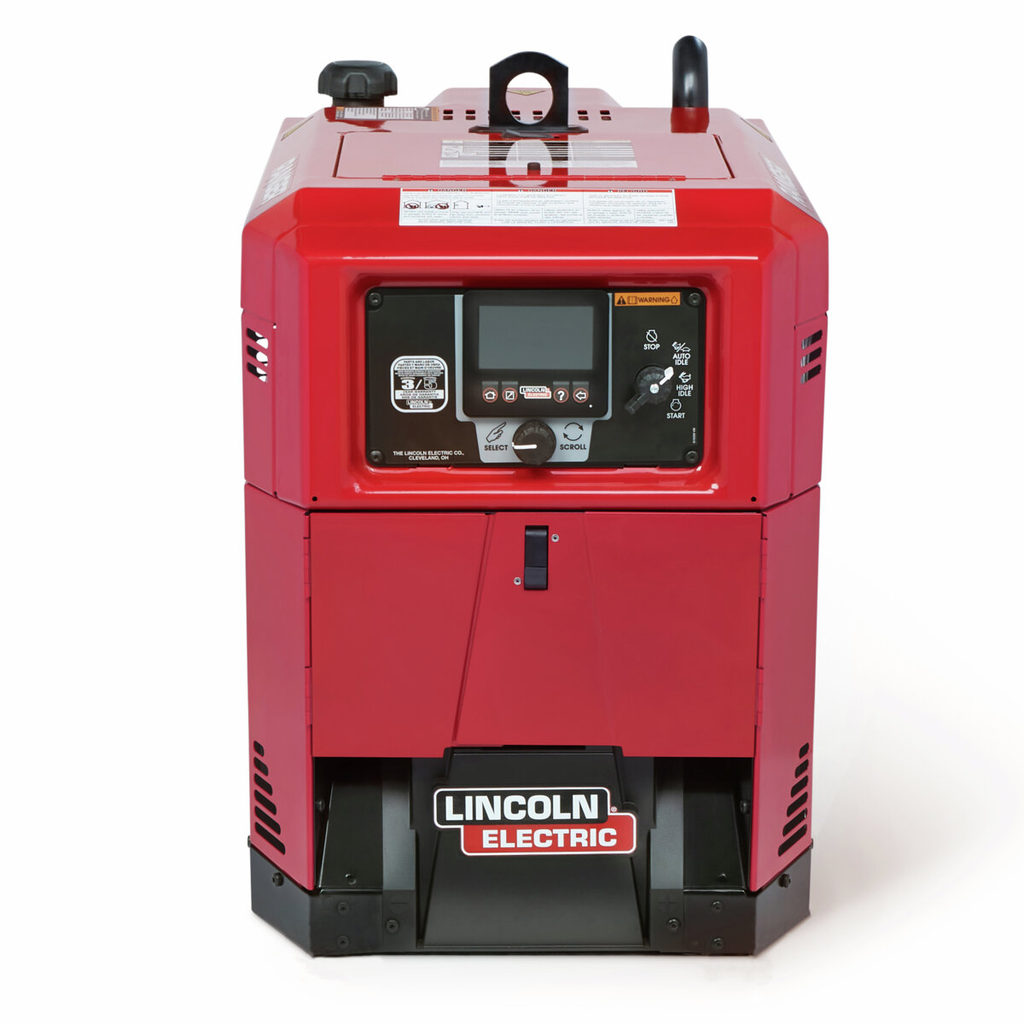

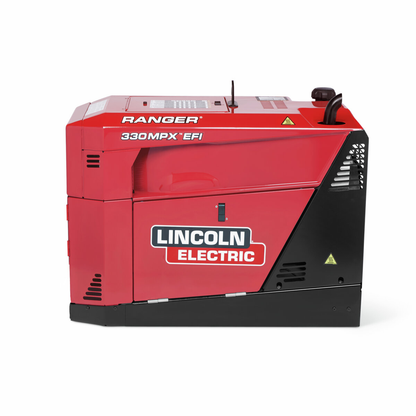

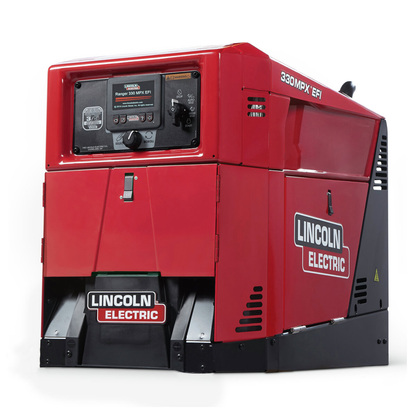

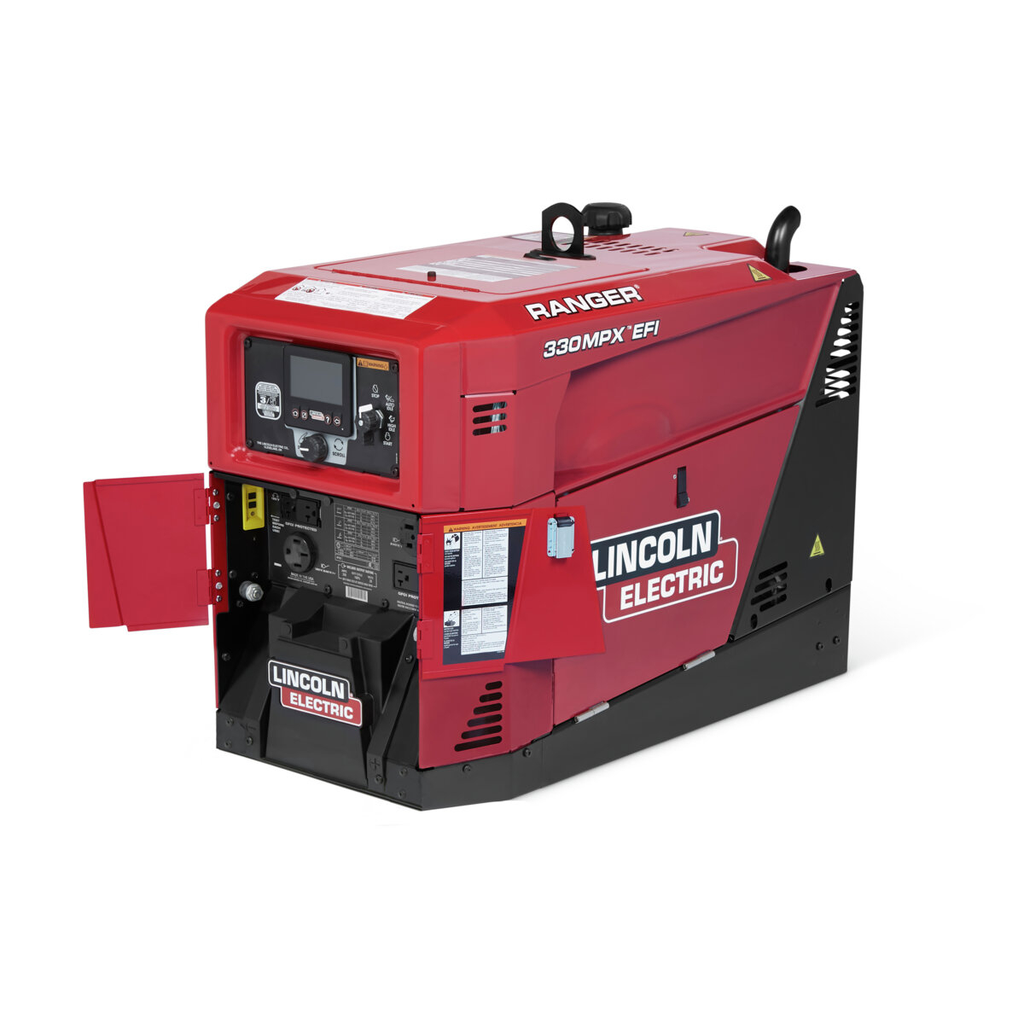

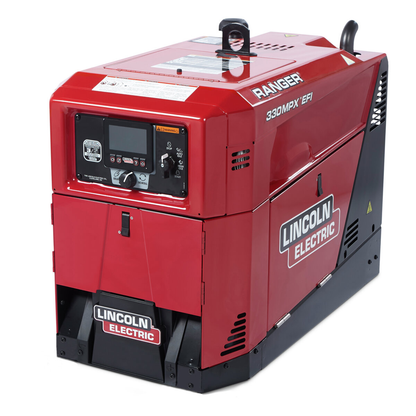

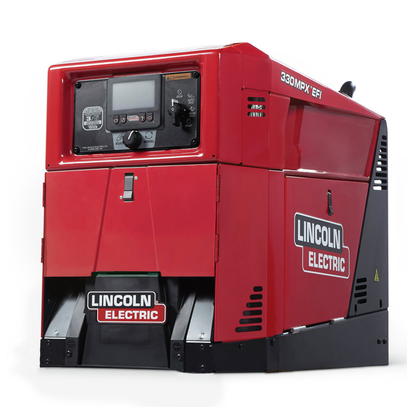

Lincoln Electric, K4779-1, Engine Driven Welder, 330A/28V; 25 HP Kohler Gas Engine; Inverter/Chopper Technology

The Ranger® 330MPX™ EFI welder/generator is built for all seasons. The advanced EFI (Electronic Fuel Injection) engine delivers quick starts, improved fuel efficiency, and optimal performance in high altitude applications and extreme temperatures. In addition to the engine, the modern design and advanced features allow this machine to streamline welding operations and improve efficiency at the job site. The Ranger 330MPX has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class. It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site. The Ranger 330MPX’s digital user interface offers a suite of advanced technology that improves weld performance and productivity. Enhanced remote control capabilities offer operators the ability to select their preferred remote amperage scale along with fine tune adjustments available on hot start, arc force, and pinch controls. The Ranger 330MPX is up to 60% quieter than other machines in its class to enhance safety and comfort in the workplace.

What's Included?

• (1) Ranger 330MPX EFI Engine Driven Welder

Features

• Kohler® Gasoline Engine - 25 HP EFI (Electronic Fuel Injection) for easier starts in cold weather and lower fuel use! Electric fuel pump to avoid vapor lock at high-altitude operation.
• Chopper Technology® - Provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance.
• ArcFX™ Technology - Provides instant graphical feedback on how settings affect the weld outcome.
• The maintenance screens allows the machine to record engine hours for proper service and maintenance.
• Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruption.
• Engine Driven Weld Modes: downhill pipe, touch-start pulse TIG, and pulse spool gun.
• Enable the supervisor and operator passcode protection to lock settings and weld modes.
• CrossLinc™ Remote Technology - Communicates voltage control to the welding power source through one common weld cable.
• Plenty of power at 330A/28V for 100% duty cycle to weld 1/4 in. 7018 electrode. Arc gouging capabilities up to 3/16 in. carbon electrode.
• Ready.Set.Weld® - Intuitive push-and-turn digital controls make setup a breeze.

• Engine Type: 2 Cylinder Air-Cooled Gasoline Engine, EFI
• Engine Brand & Model: Kohler OHV Command ECH740
• Engine Power: 25 HP
• Fuel Injection: Electronic Fuel Injection (EFI)
• Fuel Capacity: 11 gal (41.6 L)
• Oil Capacity: 2.0 qts (1.9 L)
• Output Current: 330A
• Output Voltage: 28V
• Duty Cycle: 100% @ 104 F (40 C)
• AC Generator Power: 10 kW continuous, 11.5 kW peak
• Weld Modes: Downhill Pipe; Touch Start TIG; CC-Stick; CV-Wire; Arc Gouging; Spool Gun; Pulse TIG; Pulse Spool Gun
• Arc Gouging Capability: up to 3/16 in (5.0 mm) carbon electrode
• Noise Level: 74.7 dBA
• Dimensions: 36 x 20 x 26 in (Length x Width x Height)
• Weight: 446 lb (202 kg)
• Spark Arrestor: Optional
• Welding Technology: Inverter/Chopper
• Auxiliary Output Frequency: 60 Hz
• VRD: No
• Engine Controller: Mechanical
• Case Type: Painted
• Welding Controls: Chopper
• Output Meters: Digital
• IEC Rating: 292A/31.7V/100% @ 104 F (40 C)
• User Interface Type: Display Screen
• Arclink Connector: No
• Work Clamp Included: No
• Multifunctional Equipment: Welder; Generator
• Engine Cylinders: 2
• Ingress Protection Rating: IP23
• Country of Origin: United States
• High Idle Operating Speed @ Rated Output: 3600 RPM
• Auxiliary Output Type (Phase): Single Phase
• Single Phase Auxiliary Output: 10,000 Watts Continuous, 120/240V
• Cooling: Air
• Fuel Consumption (High Idle): 0.7 gallons/hour (2.6 L/hour)
• Equipment Technologies: CrossLinc; Digital UI; Direct-Connect Spool Gun
• Rated Gouging Carbon Diameter: 3/16 in (5.0 mm)
• Tap or Continuous Control: Continuous
• Output Mode: CC; CV; CC/CV
• Receptacle Types: NEMA 5-20R; NEMA 6-50R; NEMA 14-50R
• Fuel Consumption (Low Idle): 0.5 gallons/hour (2.0 L/hour)
• Temperature Rating at Rated Output: 40 C
• Max Rating: 330A/28V/100% @ 104 F (40 C)
• Max Output: 300-399
• Oil Capacity (L): 1.9 L
• Fuel Type: Gasoline
• Output Polarity: DC
• IEC Amperage Class: 300
• Length: 36 in (914 mm)
• Width: 20 in (508 mm)
• Height: 26 in (660 mm)
• Jumper Terminals: No
• Oil Capacity (qts.): 2.0 qts
• Engine Starting: EFI
• Input Voltage Type: Engine
• Input Icon: G
• Output Icon: DC; CC/CV
• Remote Control Options: CrossLinc; Wired
• Warranty Length: 3 Years Parts and Labor, Engine warranted separately
