Lincoln Electric, K4727-2, 6-Pack Rack, 35.5 in; 48 in; 71.22 in, Rugged Construction, CrossLinc Technology

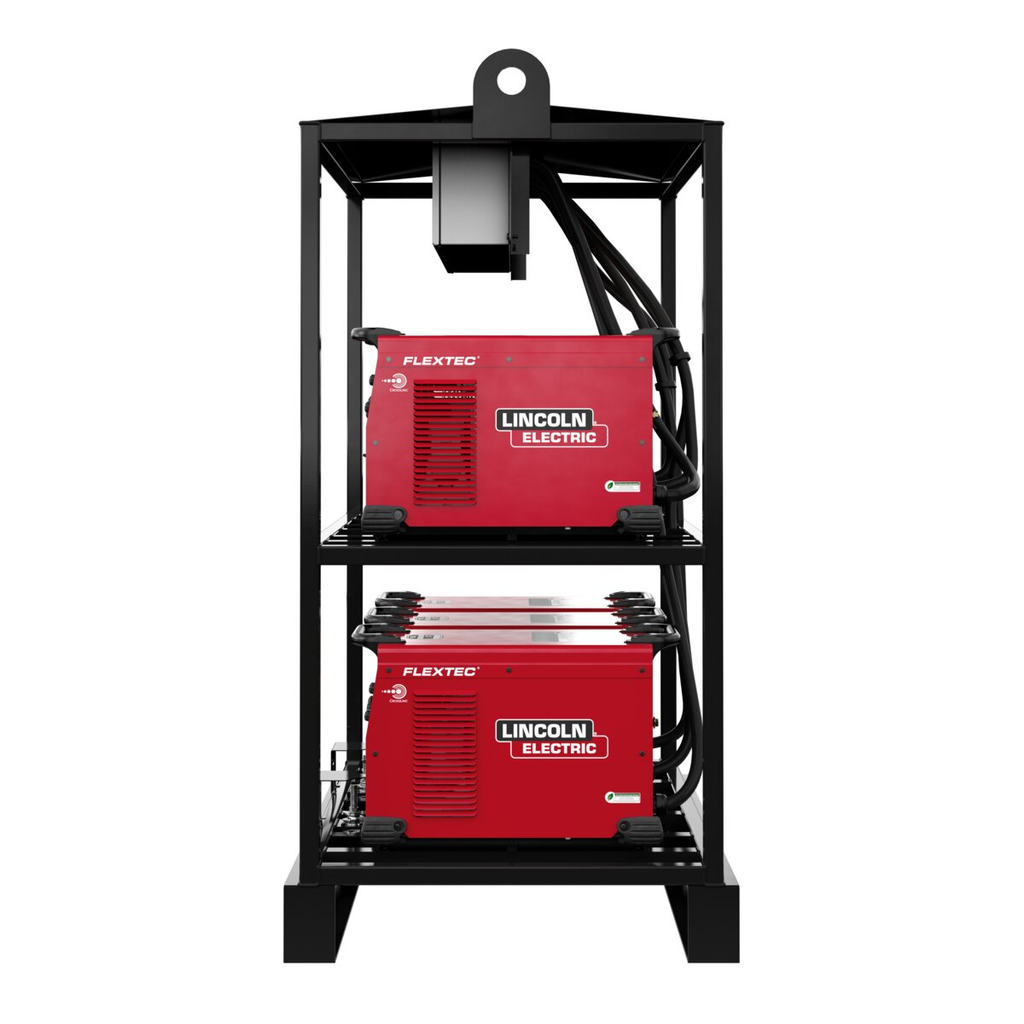

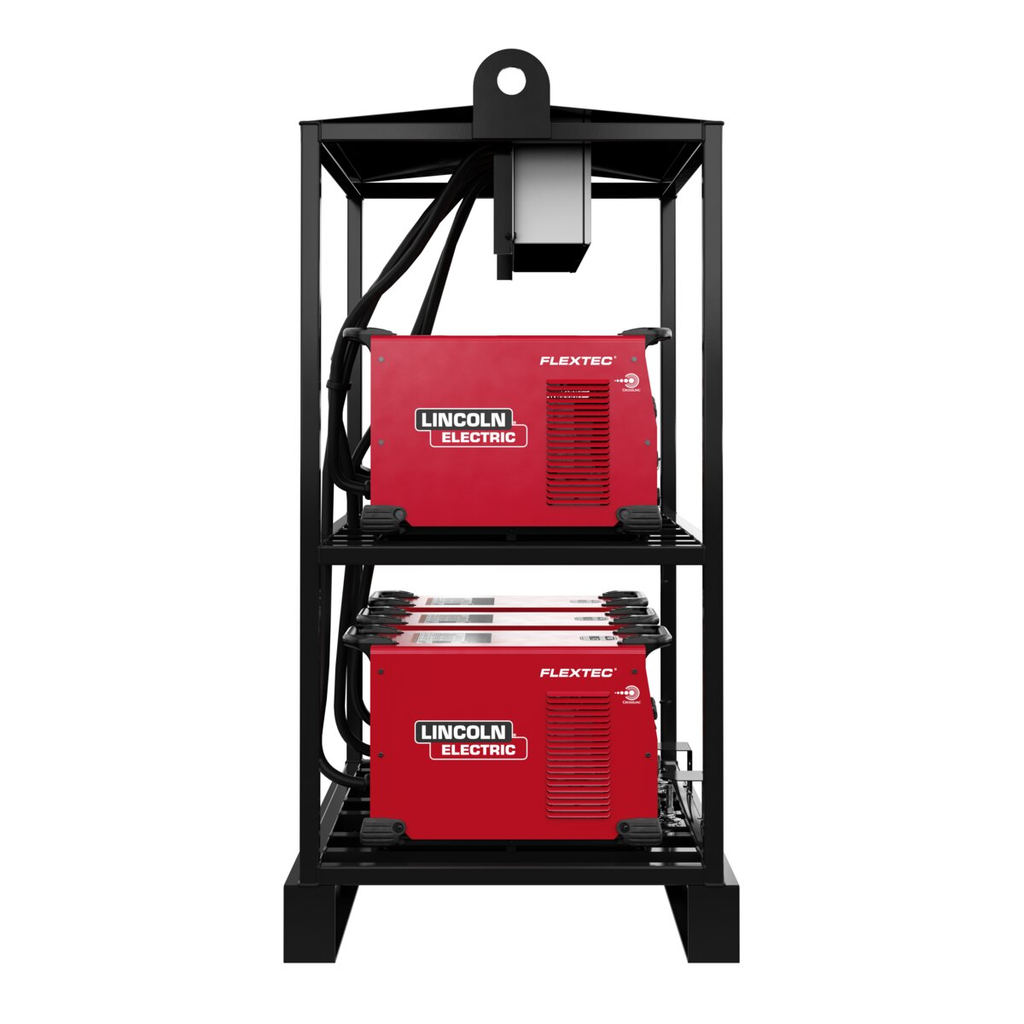

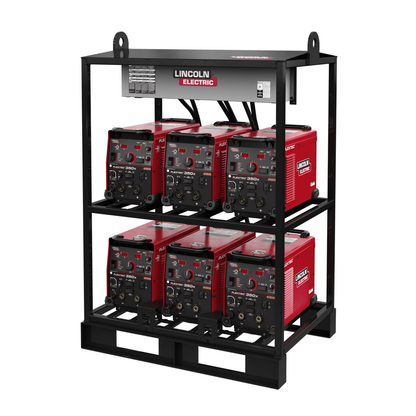

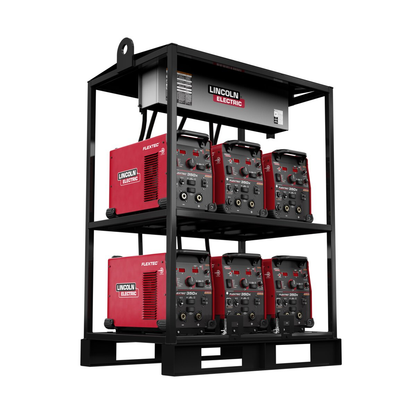

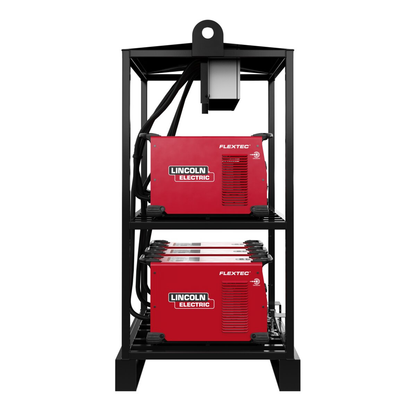

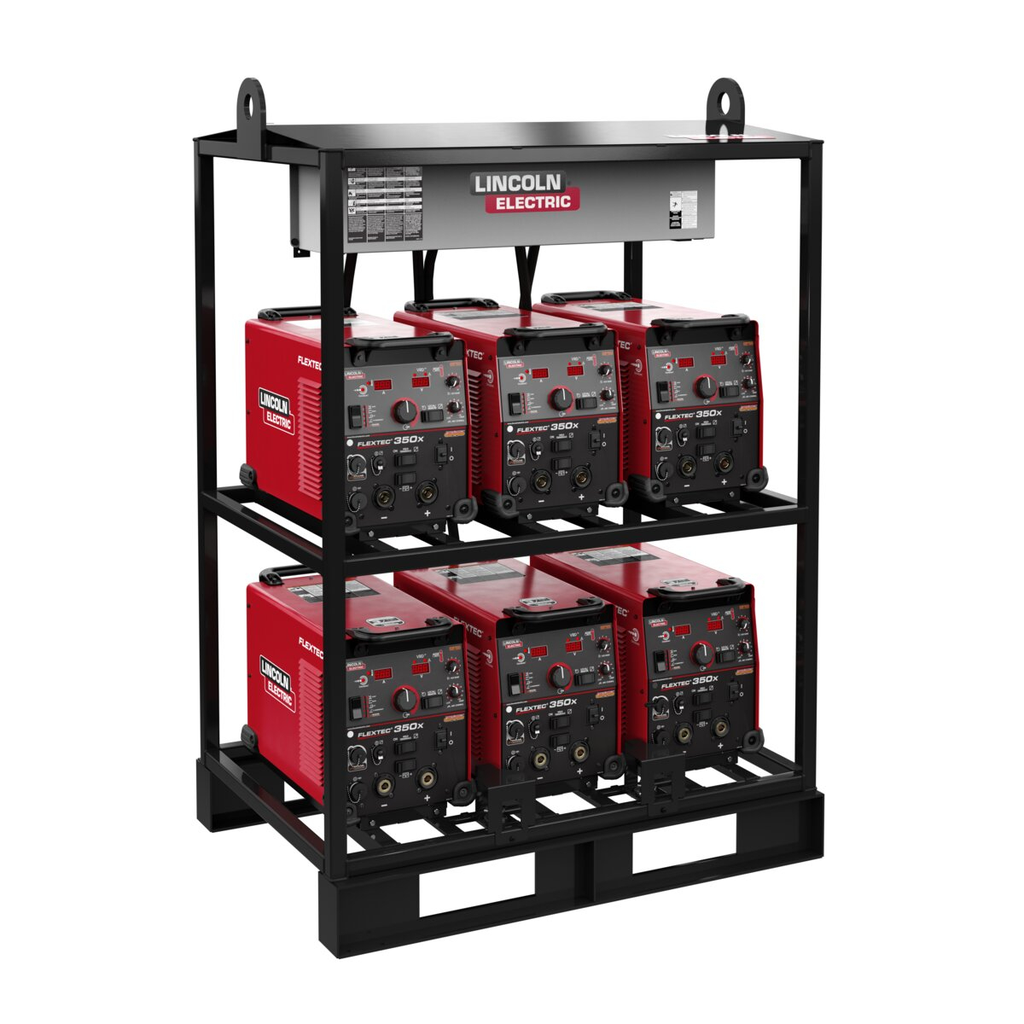

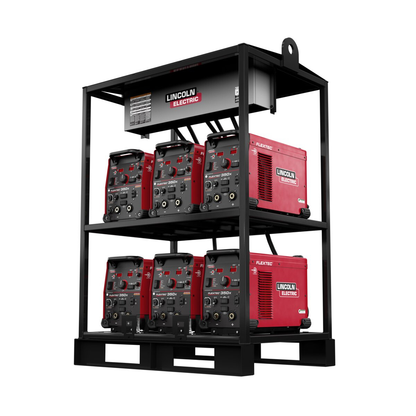

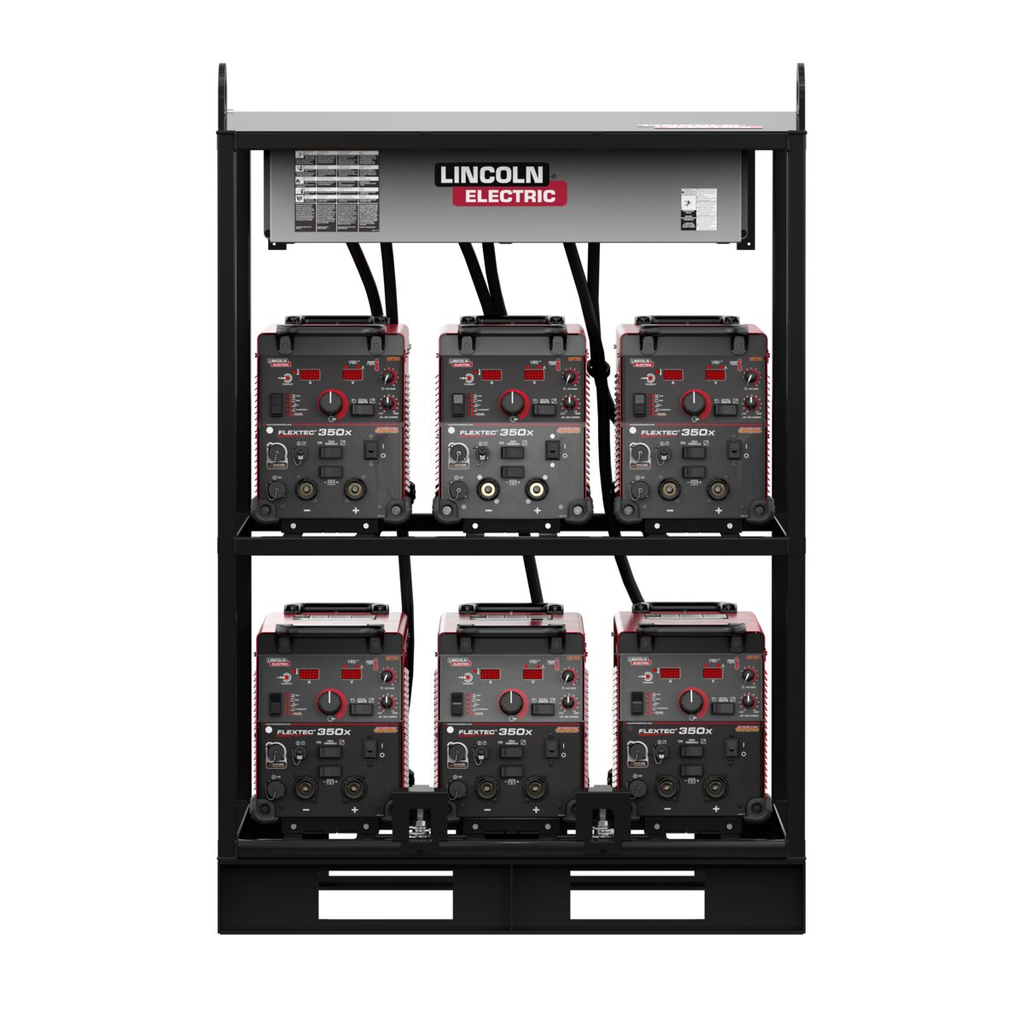

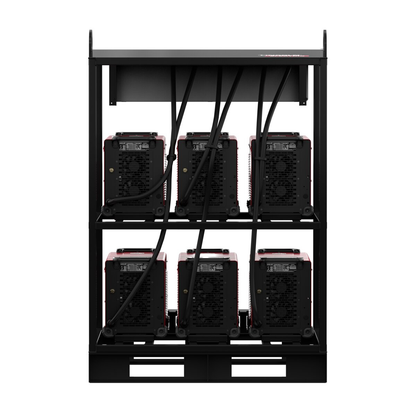

COMPACT, RUGGED AND COMPLETE. Equipped with CrossLinc® technology, the Flextec 350X family of machines can be controlled from hundreds of feet away without expensive and inconvenient control cables. Desert Duty® and IP23 rated, these welders can withstand harsh outdoor conditions and outperform other welders in their class. The Flextec PowerConnect model adds the ability to weld using any input voltage between 200 and 600 volts. It is also compatible with Arclink® digital feeders to provide synergic modes, memories, and basic pulsed MIG for seamless connectivity and improved weld performance. Lincoln Electric's inverter racks are ideal for field construction where multiple arcs are needed. Benefit from more portability, smaller footprint and a single primary input connection for multiple welders. This 6-pack rack stores six Flextec 350XP power sources on a sturdy storage unit designed to be easily transported throughout a jobsite and maximize organization.

Features

• Meets National Electrical Code (NEC) when properly installed
• Simple Installation - The power sources are factory installed in the rack and wires to the main power distribution panel
• Durable Construction - Constructed with a square tube frame that supports more weight and stands up to rugged jobsite use
• Neat Input Cable Routing - Maintains all rack cabling inside the rack to avoid pinching or cutting during operation
• One Easy Connection - Allows power sources to be connected with one primary power drop
• Ease of Portability - Designed with two overhead lifting eyes, forklifts slots, and optional heavy duty casters (K2665-1)
• Individual Fuses - Provide overcurrent protection for each power source
• Fold Down Fuse Panel - Allows convenient access to wiring and change fuses

• Output Current: 350A at 34V, 60% duty cycle
• Output Current (100% duty): 300A at 32V
• Maximum Open Circuit Voltage: 80V DC
• Input Voltage: 200-600V
• Length: 35.5 in
• Width: 48 in
• Height: 71.22 in
• Weight: 912 lbs
• Enclosure Rating: IP23
• Environmental Rating: Desert Duty (55 C/131 F)
• Compliance: Meets National Electrical Code (NEC)
• Country of Origin: United States
