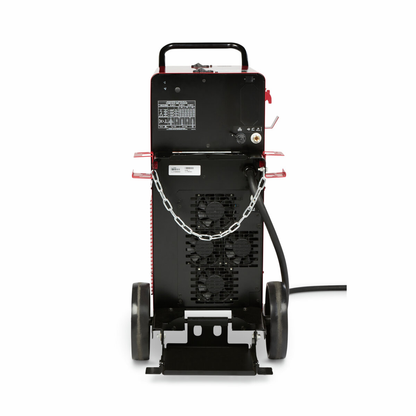

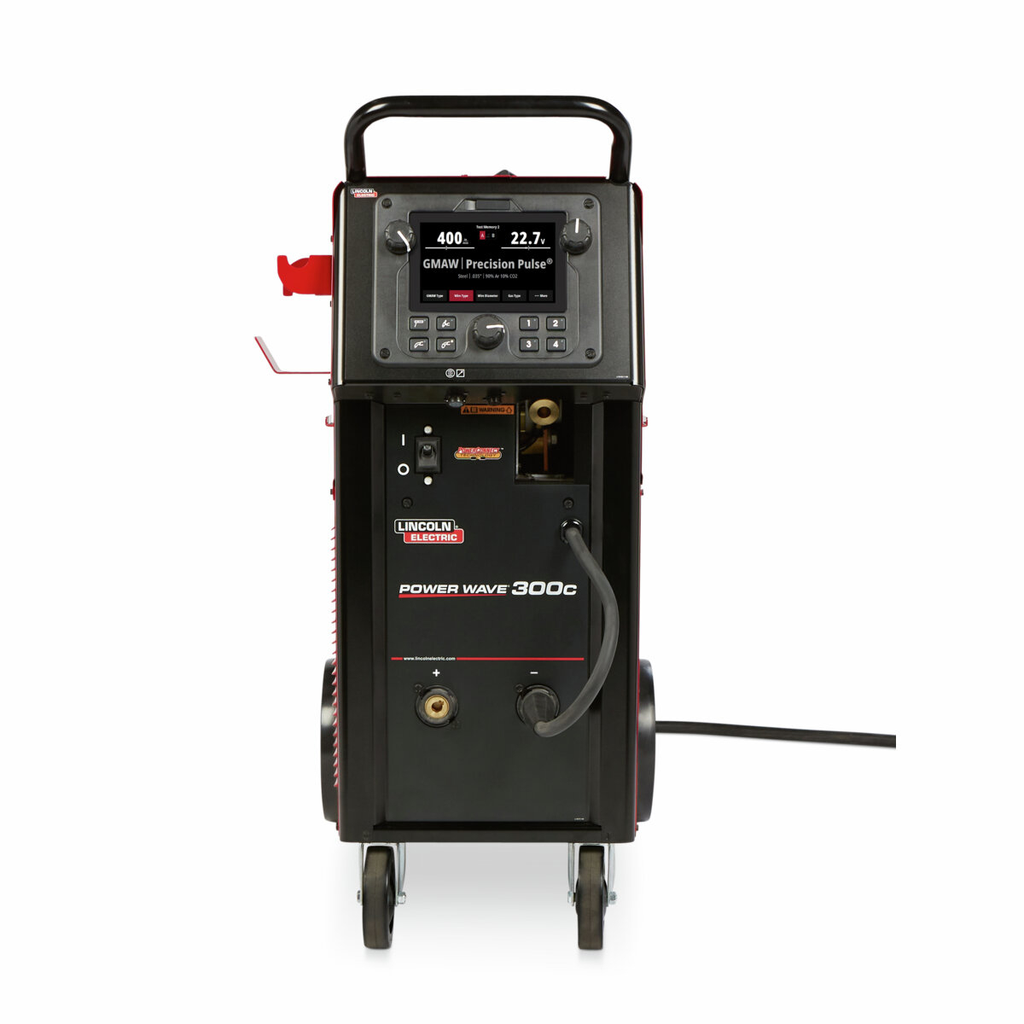

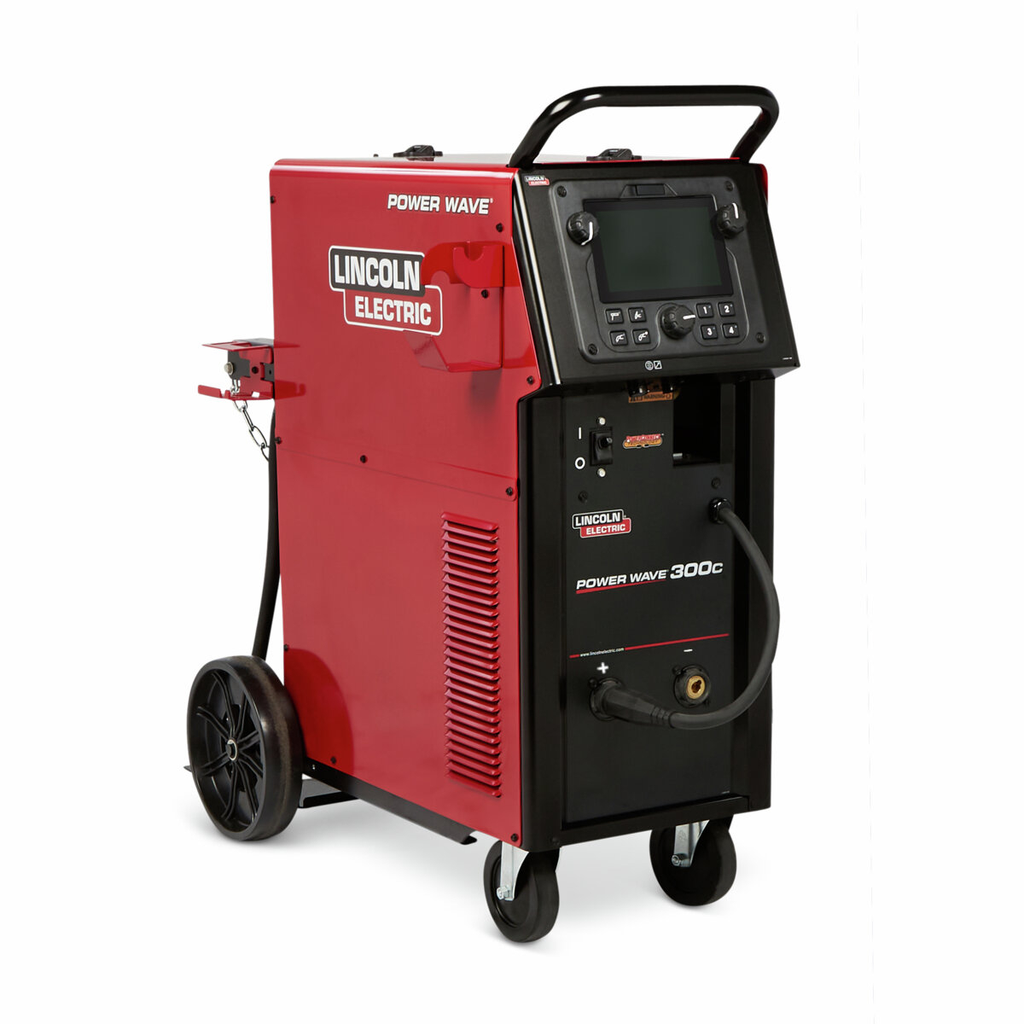

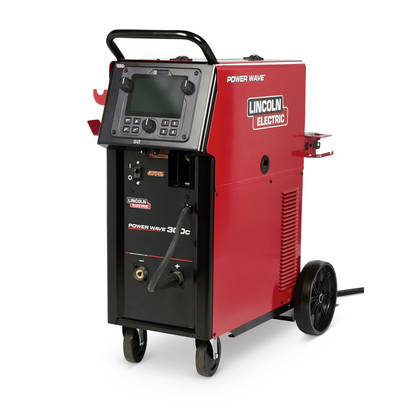

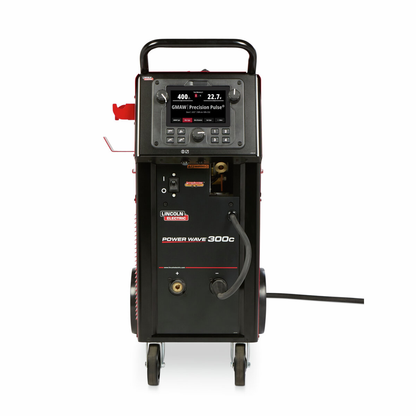

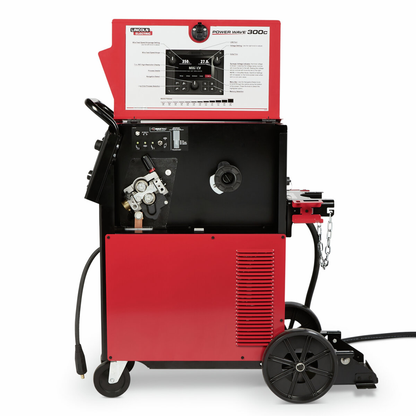

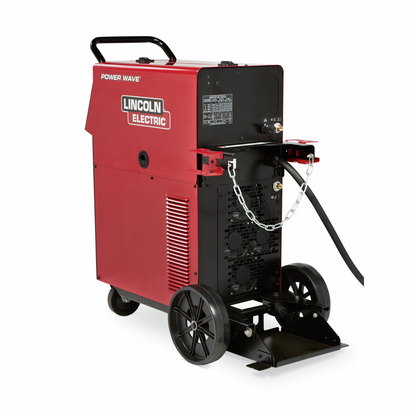

Lincoln Electric, K4487-1, Power Wave Welder, 300 A; All-Process; Input Voltage 200-600V; 5-Year Warranty

From technical training to industrial fabrication, Lincoln Electric is introducing an all-new industrial 300 Amp, Do-Everything Power Wave. Packed with all of the performance and leading-edge technology you expect from a Power Wave system, now completely revamped to take the industrial “all-in-one” class of welders to the next level.

Features

• Ready-to-Run™ - Design features for simple and straightforward operation, including cable management hooks, integrated cart with tilting bottle rack, and Twist-Mate™ TIG connection and gas solenoid.
• Smart Fan Operation - Only runs when needed to minimize noise and energy consumption.
• All-Process Versatility - SMAW, GTAW, GMAW, FCAW, CAG processes
• Tribrid® Power Module - Exceptional welding performance with high power factor and efficiency.
• Patented PowerConnect® Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.
• Optional 115V (10A) AC Duplex Auxiliary Power Receptacle - Features Surge Blocker™ Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
• Best-in-Class Performance - Industry’s only true 300 Amp, 100% Duty Cycle, All- Process Machine.
• Industry Leading 5 Year Warranty
• Advanced Connectivity and Control - All Power Wave systems come standard with access to Lincoln Electric Power Wave Manager and Lincoln Electric Checkpoint® Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
• For a full list of available welding processes and waveforms as well as software update details for Power Wave®advanced process welding systems, please visit: www.PowerWaveSoftware.com

What's Included?

• Power Wave 300C Standard (K4487-1),10ft (3.0m) Input Power Cord,Magnum PRO Curve 300 Gun Ready-Pak (K2951-2-6-45),Harris Flowmeter/Regulator and Hose Kit (3100856),10ft Work Lead,.035/.045 Combination V Groove Drive Rolls (Included in Wire Drive Assembly) (KP1696-1)

• Amperage: 300A
• Duty Cycle: 100%
• Input Voltage: 200-208/220-230/380-415/460/575 V
• Input Phase: Single phase, Three phase
• Input Frequency: 50/60 Hz
• Output Range: 5-350 A
• Mode: CC/CV
• Polarity: DC
• Processes: Stick (SMAW), Gouging (CAC-A), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), CAG
• Drive Rolls: 2 rolls, 0.035/0.045 in Combination V-Groove
• Cable Length: 10 ft (3 m)
• Weight: 193 lb (87.5 kg)
• Dimensions: 39.7 x 20.5 x 39.4 in (1008 x 521 x 1001 mm)
• Input Power: 208/230/380/415/460/575 V, Single/Three Phase, 50/60 Hz
• Work Lead Connector Type: Dinse
• Communication Technology: ArcLink
• Accessories Communication Connector Type: 12-pin
• Amphenol Pins (Type of Connector): 12
• Welding Technology: Inverter/Chopper
• Warranty: 5 Year
• Country of Origin: United States
