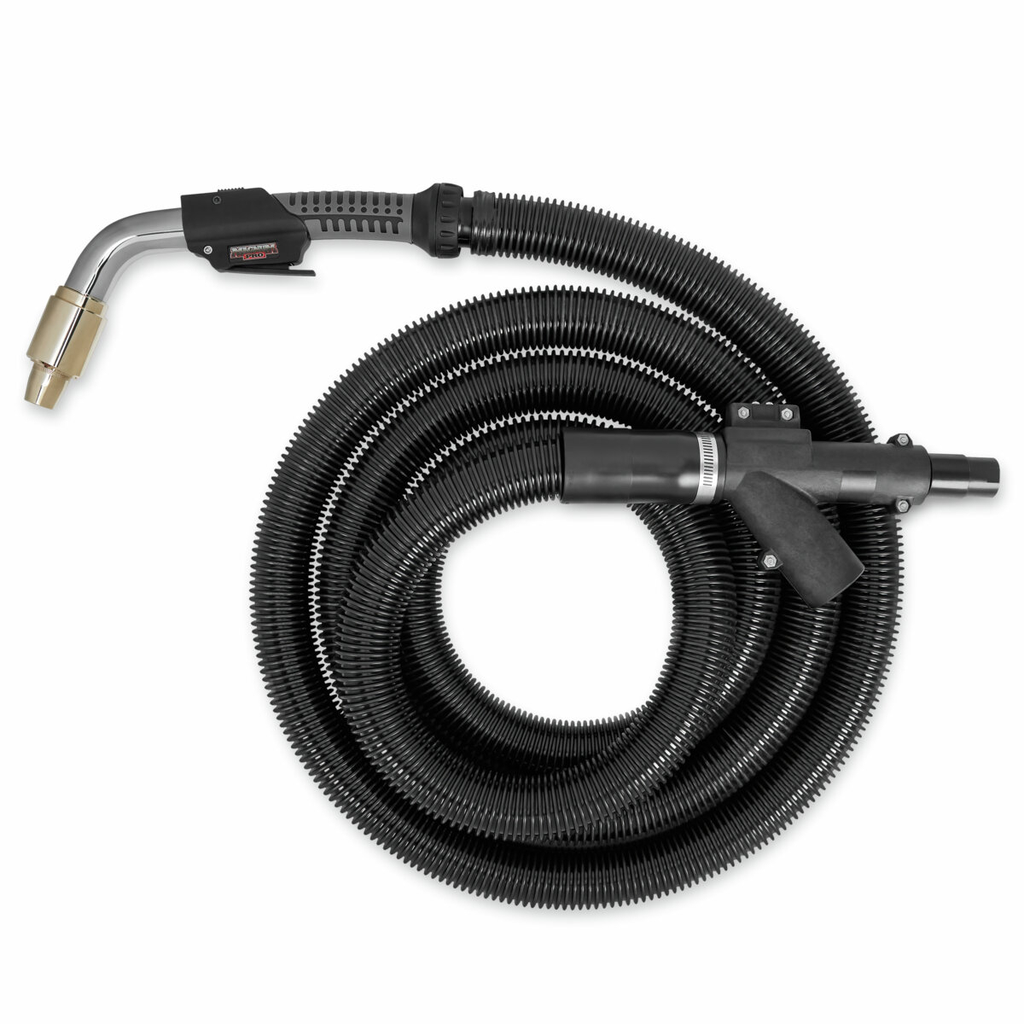

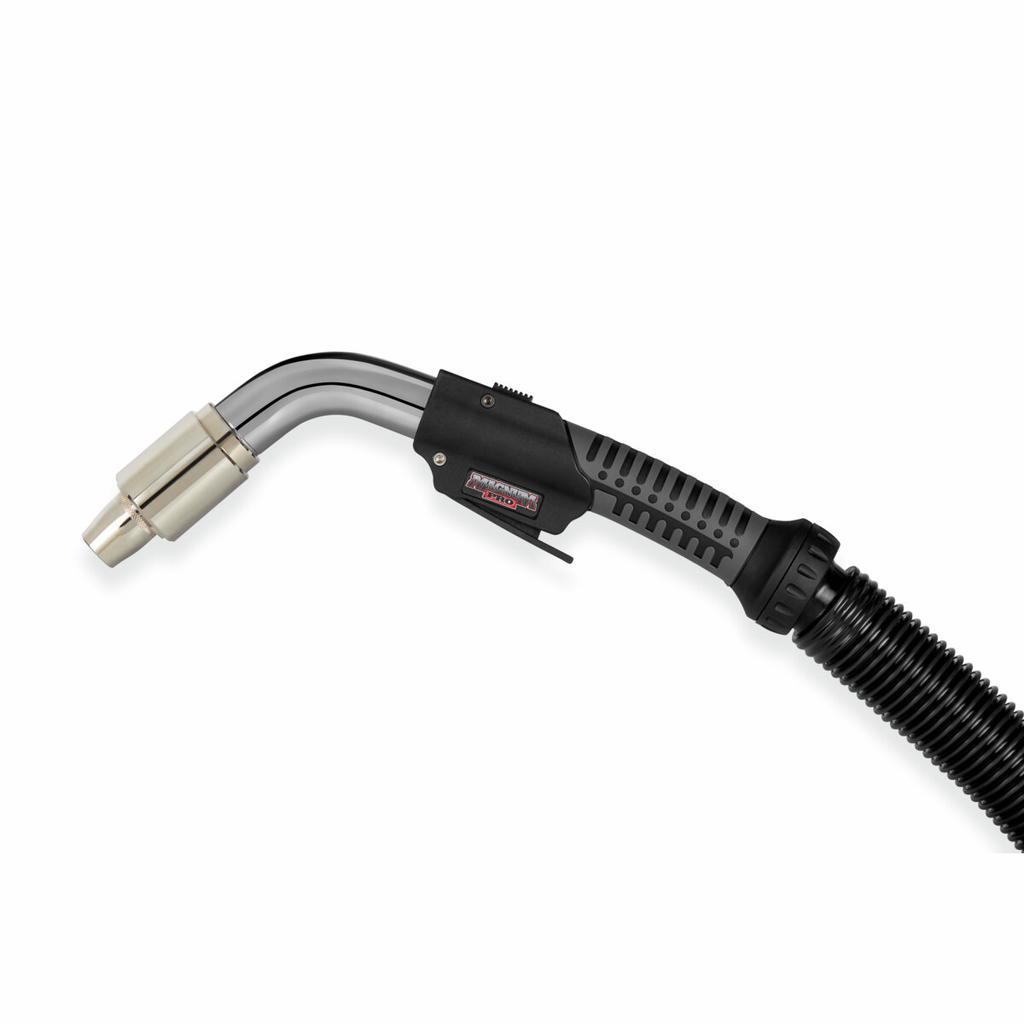

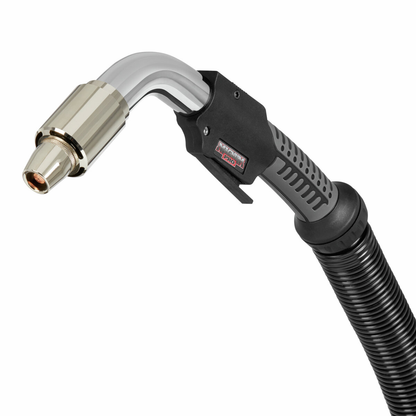

Lincoln Electric, K4464-2, Fume Gun, 300A-400A, Lightweight, Air Cooling

The Magnum PRO LFG Fume Gun is super lightweight and designed with comfort in mind. Features such as the over-molded handle and swivel ball-joint strain relief keep the operator able to weld for longer periods of time. With tailor made front end fume capture parts, the Magnum PRO Fume Gun is sure to provide quality welds while keeping your operators safe from welding fume!

Features

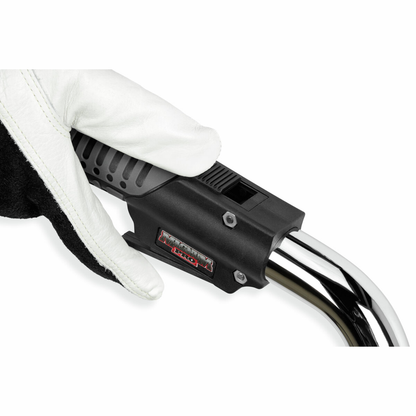

• Maximum Operator Comfort – The over-molded handle and ball joint strain relief reduce hand and wrist fatigue
• Premium Expendable Performance – Compatible with 550A Magnum PRO expendables for extended life on front end parts
• Tailor Made Fume Solution – Multiple Fume Nozzles to choose from in order to capture the right amount of fume. Use our Fume Nozzle Selection Matrix to choose the right nozzle for your application
• Customizable Fume Capture – Bypass Valve allows the operator to back off the fume suction when welding into tight joint fit ups
• Lightweight Set-Up – Welding for entire shift is made more comfortable with the lightweight material used in the Magnum PRO Fume Gun

• Amperage: 350A
• Cooling: Air
• Wire Diameter Range: 0.035 - 0.052 in
• Material: Lightweight composite
• Cable Length: 15 ft, 20 ft, 25 ft
• Fume Extraction Hose Diameter: 1-3/4 in ID
• Fume Extraction Hose Length: 8 ft, 16 ft
• Nozzle Sizes: 3/8 in, 1/2 in, 5/8 in ID
• Contact Tip Sizes: 0.035 in to 1/16 in diameter
• Gas Nozzle Types: Recessed, Flush, Stickout
• Gas Diffuser Material: Brass, Copper
• Heavy Duty Nozzle Option: Available, 5/8 in and 3/4 in ID
• Handle: Over-molded
• Strain Relief: Ball joint swivel

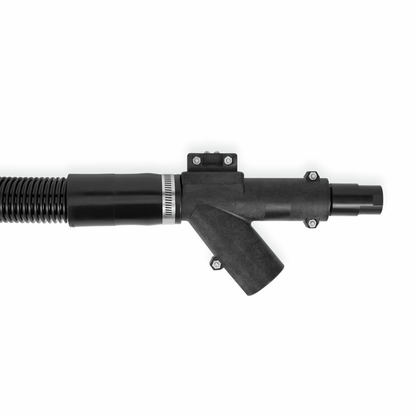

• Fume Valve: Spring loaded bypass valve
• Fume Capture: Tailor made with multiple nozzles
• Compatibility: Magnum PRO 550A expendables
• Expendable Performance: Extended life front end parts
• Exhaust Gun Compatibility: X-Tractor 1, 2, 4, 6 Fume Guns with Y-adapter K3492-4
• Country of Origin: Mexico
