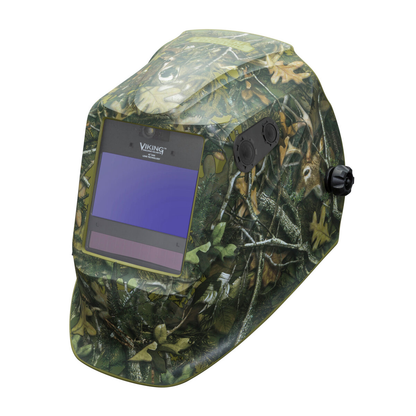

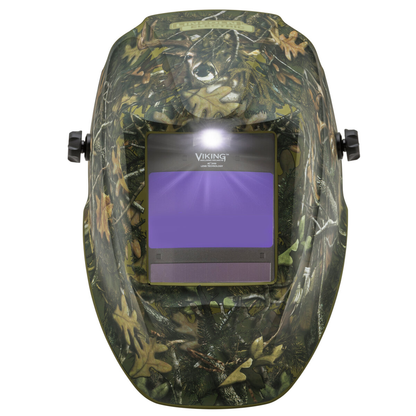

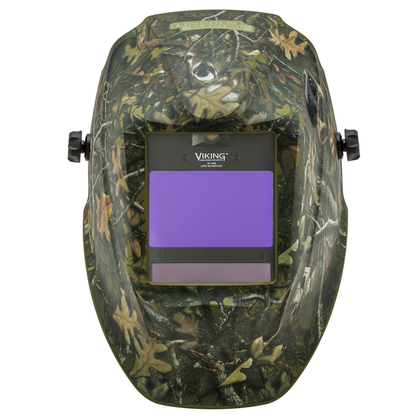

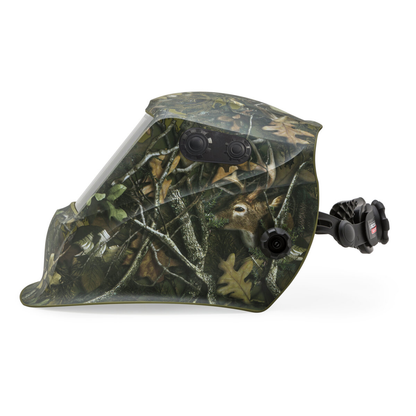

Lincoln Electric, K4411-5, Welding Helmet, VIKING 2450 Series, Digital Controls, 4C Lens Technology, Shade 5-13, X6 Headgear, 9.3 sq. in Viewing Area

The Lincoln Electric VIKING 2450, our lightweight premium helmet series, offers an excellent blend of industry leading optics, all-day comfort & versatility. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 5-13 shade range, low profile external grind control, and large 9.3 sq. in. viewing area. The digital user interface has moisture and abrasion resistant push button LED UI controls that allow for intuitive adjustments for precise performance. The innovative X6 Headgear™ distributes weight, reduces pressure and optimizes balance.

Features

• Digital User Interface with moisture and abrasion resistant push button LED UI controls that promote simple, intuitive adjustments for precise and consistent performance.
• 9.3 sq. inch (3.82 x 2.44 in.) wide viewing area
• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
• X6 Headgear features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.
• Variable 5-13 shade range and low profile, external grind control provides an expanded versatility and consistent indoor & outdoor performance.
• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.
• Replaceable CR2450 batteries ensure increased battery life.
• External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.

What's Included?

• (1) VIKING 2450ADV Welding Helmet, (1) Bandana, (5) KP2898-1 Outside Cover Lenses, (2) KP2931-1 Inside Cover Lenses, (1) Decal Sheet

• Auto Darkening: Yes
• Lens Shade Rating: 5 - 13
• TIG Amp Rating: DC 2 Amp; AC 2 Amp
• Light to Dark Switch Time: 1/25,000 sec
• Viewing Area: 3.82 x 2.44 in (9.3 sq. in)
• Number of Sensors: 4
• External Controls: Grind Button
• Grind Mode: Yes
• Grinding Mode Control: External low profile
• Control Type: Digital
• Power Supply: 1 CR 2450 Battery with Solar Assist and AA Battery for LED
• Battery Type: CR2450 replaceable
• Operating Temperature Range: 14 F to 131 F (-10 C to 55 C)
• Storage Temperature Range: -4 F to 158 F (-20 C to 70 C)
• Headgear Type: X6 Headgear
• Sweatband & Headgear: KP2930-1 Super Soft Knit Cotton Sweatband; KP4541-1 Soft Cotton Back Pad for X6 Headgear; KP4470-1 X6 Headgear; K3908-1 Pivot Headgear; K4100-1 Traditional Headgear
• Quick Adjust Ratchet: Yes
• Hard Hat Capable: Yes
• Hard Hat Adapters: KP3047-1 Halo Style; KP3486-1 Slotted Style
• Cheater Lens Compatible: Yes
• Cheater Lenses: KP3046-XXX Magnifying Cheater Lenses - 1.00 MAG - 2.50 MAG
• Magnifying Lens Holder: Yes
• ADF Viewing Area: 3.82 x 2.44 in (97 x 62 mm)
• Shell Type: Graphic
• Replacement Shells: KP4560-2 Glossy Black 2450 5th Gen; KP4561-2 Matte Black 2450
• Manufacturer Color/Finish: White Tail Camo
• Optical Clarity: 1/1/1/1
• Lens Technology: 4C LCD
• Compliance: ANSI Z87.1
• Warranty Length: 3 Years
• Country of Origin: China
• Communication: None
• Product Series: VIKING 2450 Series
• Product Types: Auto-Darkening
