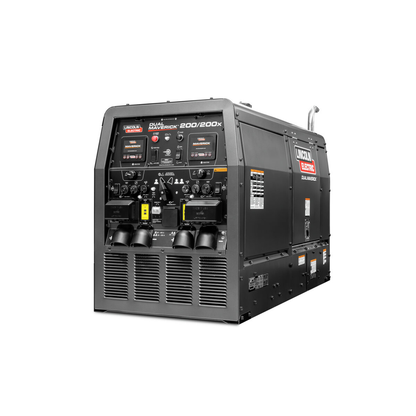

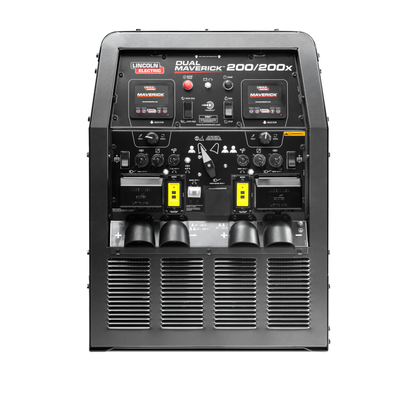

Lincoln Electric, K4382-2-RP3, Engine Driven Welder, 200 A Dual Output, Kubota Diesel, CrossLinc Enabled, 27 in Width, 65 in Length

The Dual Maverick® 200/200X is an advanced engine driven welder with dual welding outputs. This best-in-class arc welding machine provides substantial power to multiple welding arcs, runs quietly, and promotes fuel savings with variable engine RPM and auto start/stop capabilities. In addition, the machine boasts an advanced user interface on two heavy-duty 4.3 in. weatherproof LCD screens. These easy setup screens host intuitive user functionalities to keep things simple. Lastly, the machine is enabled with CrossLinc® technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality.

Features

• Fuel Savings – Help to increase fuel savings with variable engine RPM based on welding output level and auto stop/start functionality to avoid excessive idling.
• Advanced User Interface – Features two 4.3 in. weatherproof LCD screens with an intuitive interface to provide easy setup and increased functionality, and automatically notifies operators of upcoming maintenance needs to help keep the machine running at peak performance.
• Rent-Ready Package – Product comes in one preassembled package from the factory. Ready-Pak® 3 option includes the welder, trailer, fender and light kit, and cable rack.
• Quiet Operation – Designed to run at lower noise levels to allow for vital directions or control-related communication near the welding machine to help promote a safer and more ideal welding environment by reducing worksite noise.
• Optimized Operations – Utilizes a single engine to offer two welding arcs with up to 200 amps of output or choose single operator mode for one arc up to 450 amps of output to promote a more efficient welding environment. Save space and make transportation easier moving one machine instead of two!
• CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
• Industrial Diesel Engine – Powered by a 24.8 HP, naturally aspirated Kubota® diesel engine. Runs smooth and quiet while meeting EPA Tier 4 Final compliance.

• Engine Power: 24.8 HP
• Engine Type: Kubota diesel, naturally aspirated, Tier 4 Final compliant
• Output Current Single Mode: 50-450 Amps
• Output Current Dual Mode: 30-225 Amps per arc
• Output Voltage Range: 13-40 Volts
• Arc Gouging Amperage Single Mode: 100-450 Amps
• Arc Gouging Amperage Dual Mode: 100-250 Amps
• Touch Start TIG Amperage Single Mode: 20-255 Amps
• Touch Start TIG Amperage Dual Mode: 20-250 Amps
• Max Output Rating Single Mode: 450A/24.5V/60%
• Max Output Rating Dual Mode: 225A/24.5V/60%
• Rated Output IEC Single Mode: 335A/33.4V/60%
• Rated Output IEC Dual Mode: 200A/28V/60%
• 100% Duty Cycle Output Single Mode: 290A/31.6V
• 100% Duty Cycle Output Dual Mode: 170A/26.8V
• Open Circuit Voltage: 60 V max
• AC Generator Auxiliary Power: 10 kW @ 60 Hz single phase
• Auxiliary Receptacles: NEMA 5-20R (120V/20A), NEMA 14-50R (240V/42A)
• Height: 36.1 in
• Width: 27.0 in
• Length: 65.0 in
• Height to Top of Exhaust Pipe: 44.4 in (1147.5 mm)
• Weight: 1160 lb (526 kg)
