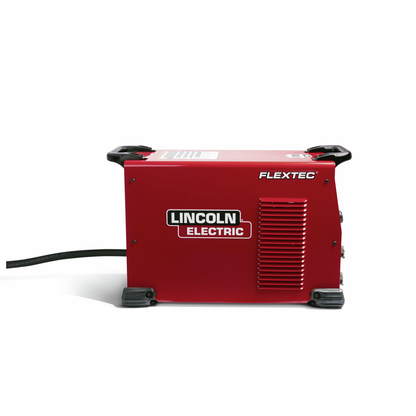

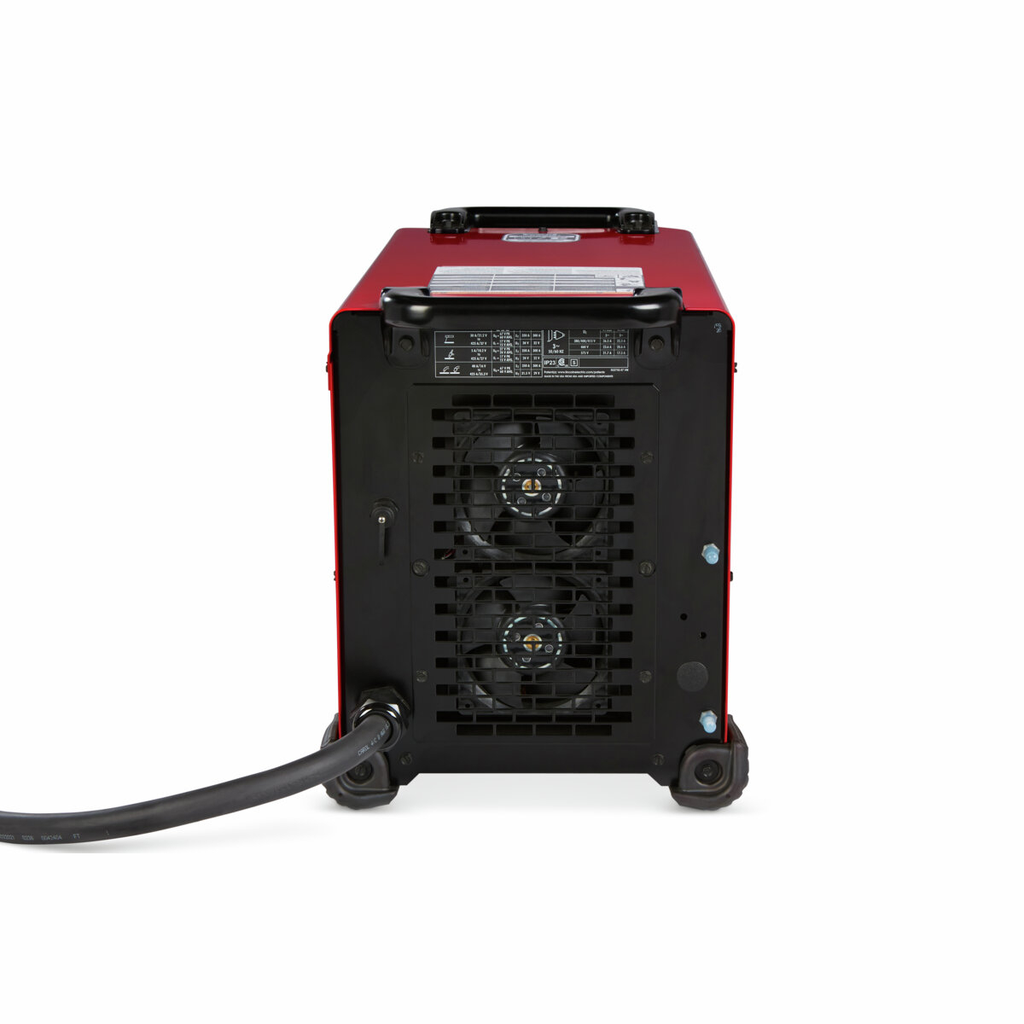

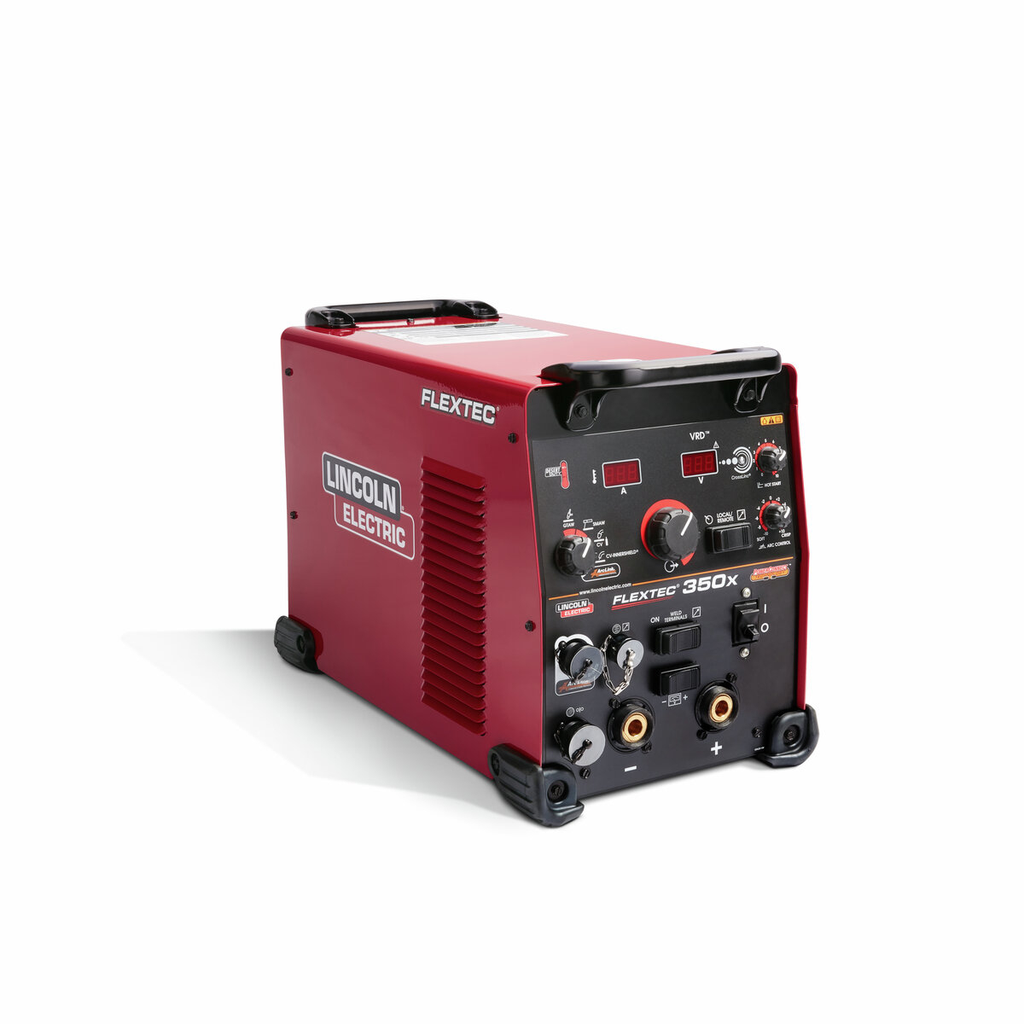

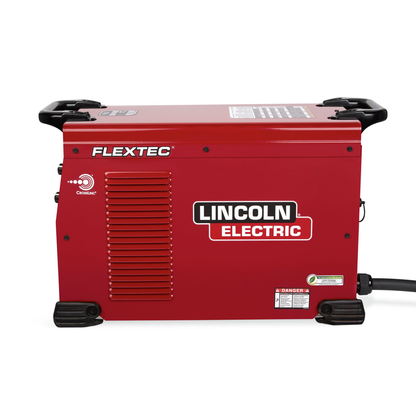

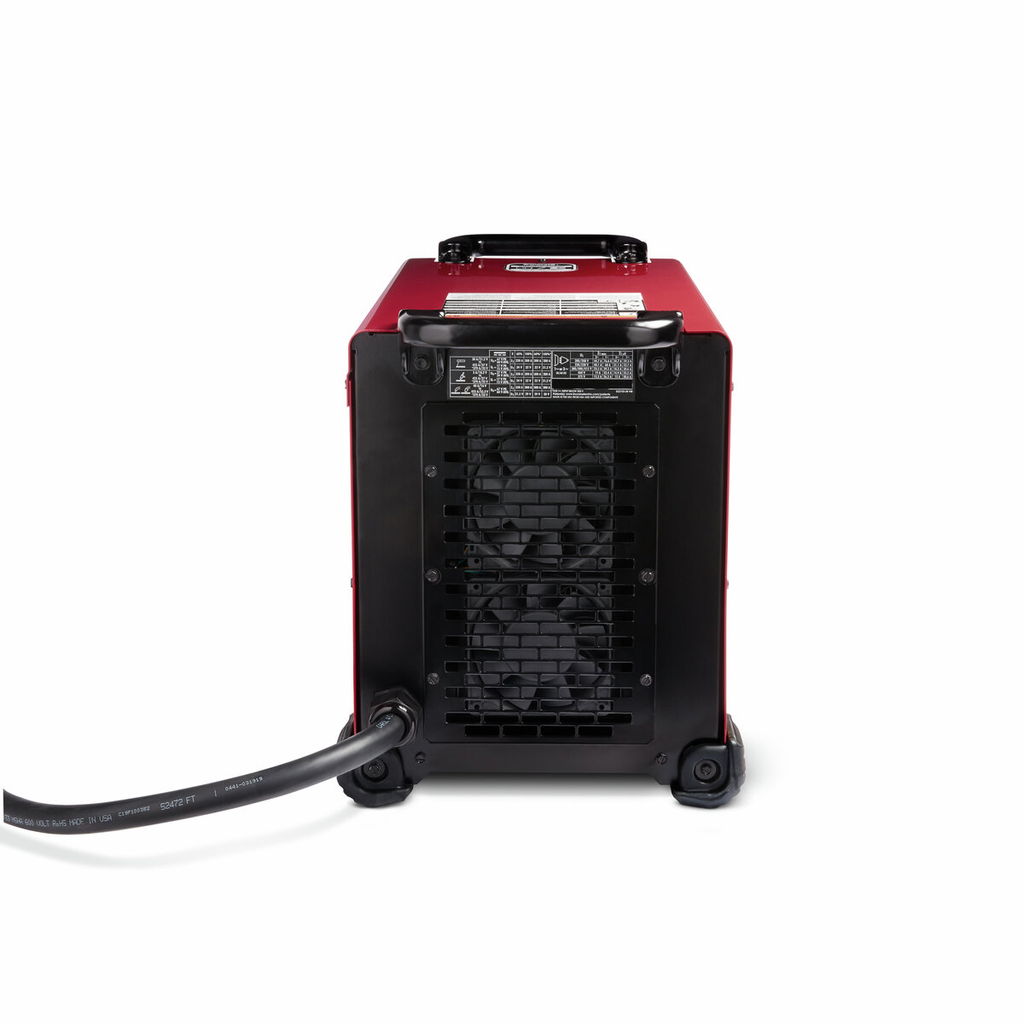

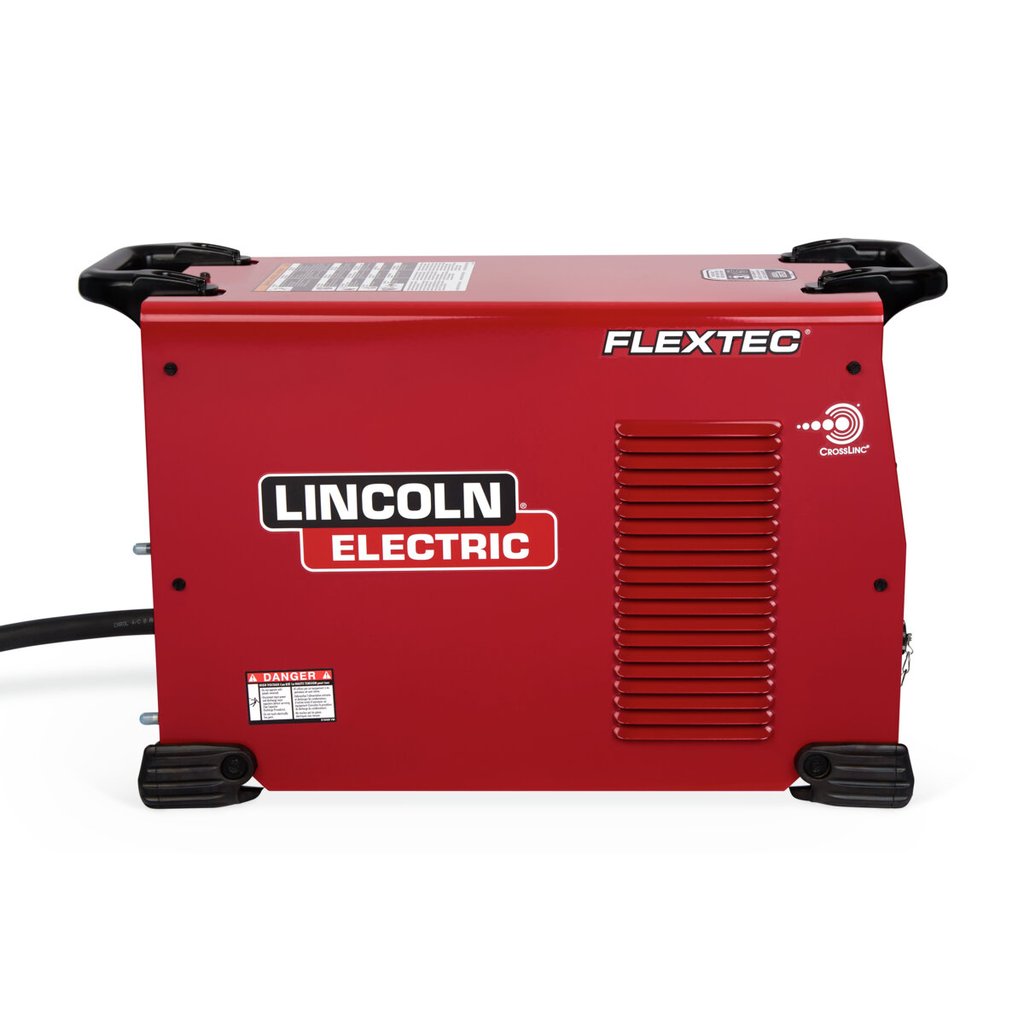

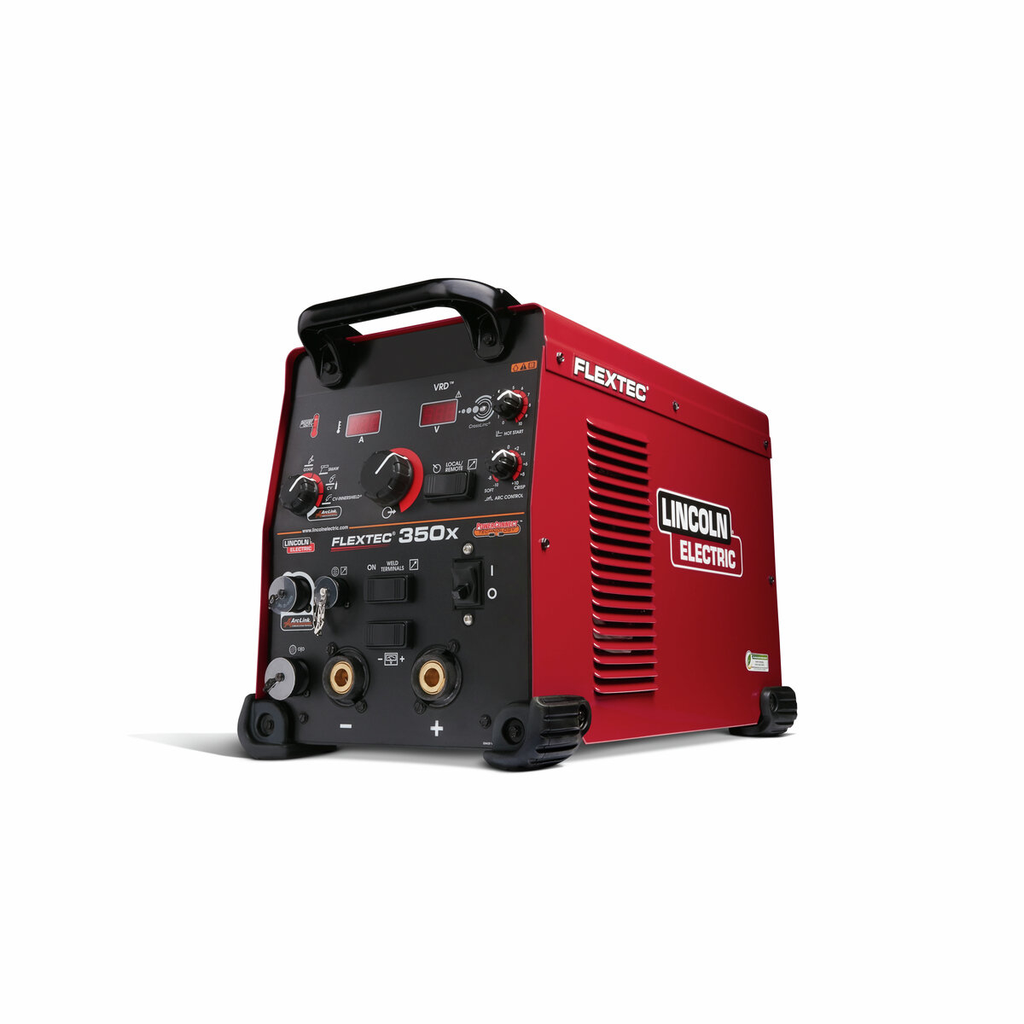

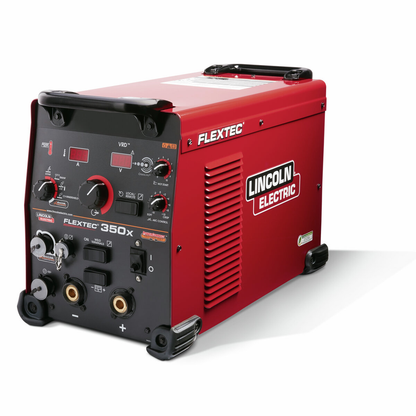

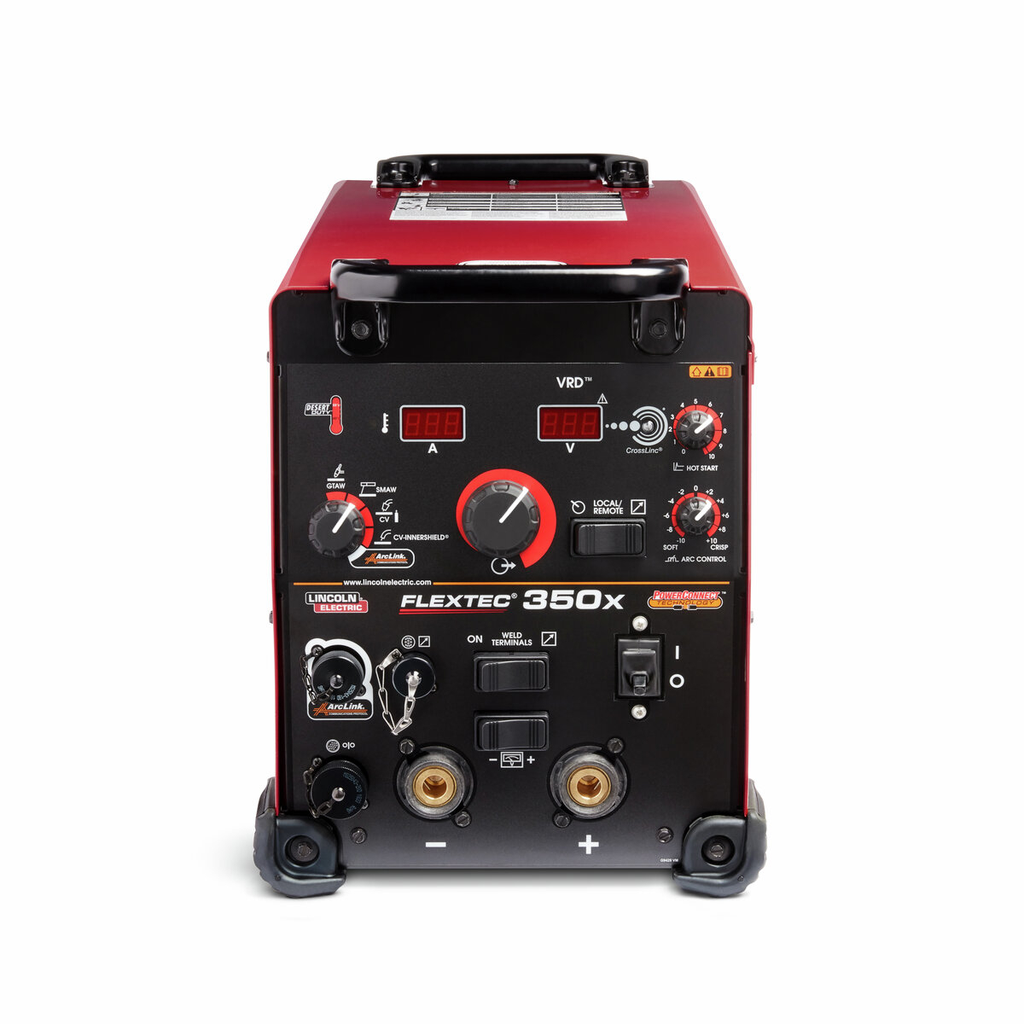

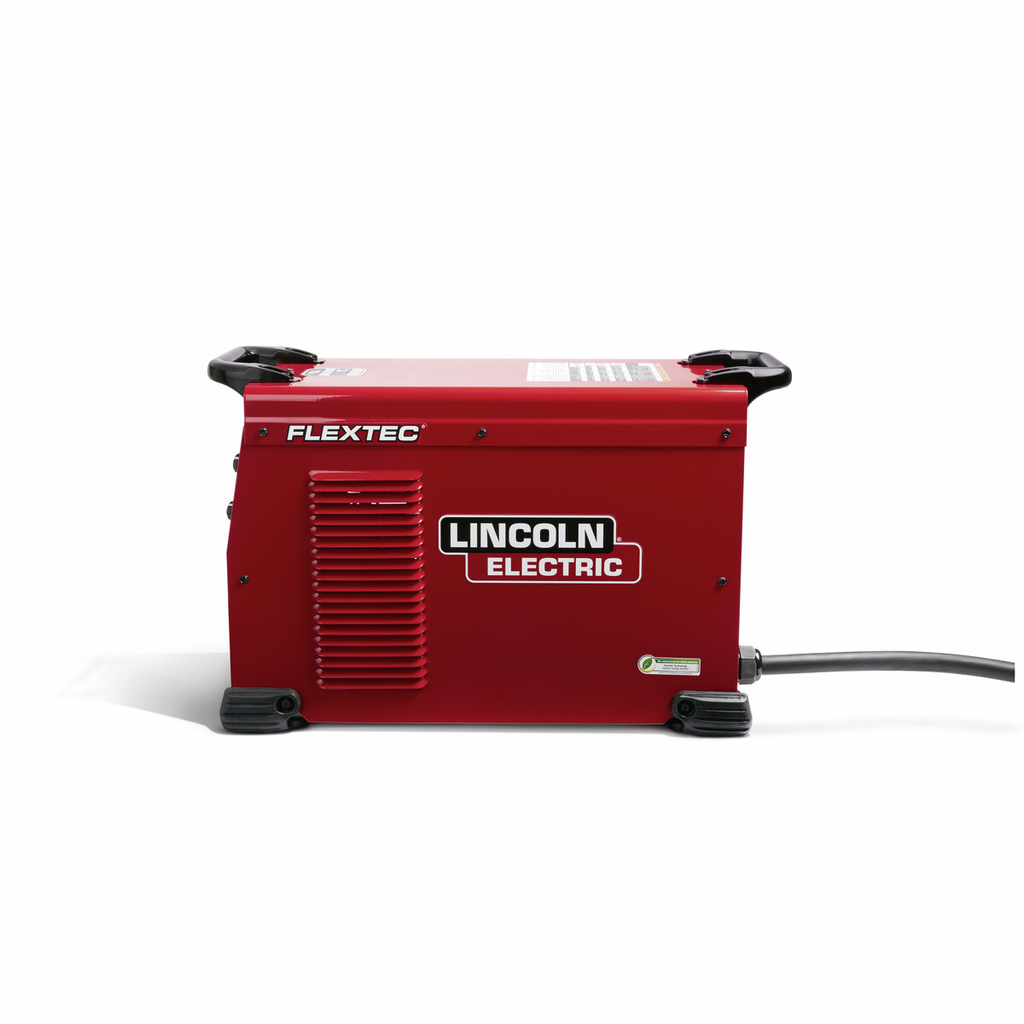

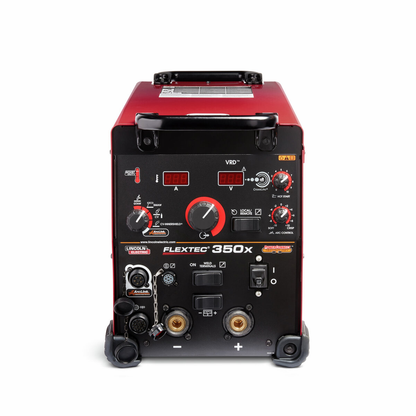

Lincoln Electric, K4273-1, Welding Power Source, Multi-Process; 200-575VAC; Supports MIG, TIG, Stick, Arc Gouging

The Flextec 350X PowerConnect is capable of supporting multiple welding processes like the other 350X models. It is capable of Stick, TIG, pulsed and CV MIG as well as arc gouging. The PowerConect model also supports multiple input voltages from 200V up to 600V, single or 3-phase. This gives the power source the ultimate in versitiltiy allowing easy transport from one jobsite to another without ever needing to worry about what input voltage might be available. In addition, PowerConnect can see the incoming voltage and adjust itself as needed. There is no additional need for manually reconnecting for the available input voltage. As with the other Flextecs, CrossLinc Technology is included as a standard feature and can be used with all Lincoln CrossLinc accessories.

Features

• Ultimate Process Flexibility - Supports MIG, TIG, Stick, FluxCored and Carbon Gouging
• Ultimate Feeder Flexibility - Supports CrossLinc wire feeders, 14-pin analog wire feeders, 5-pin ArcLink digital wire feeders
• Supports 14-pin and 5-pin (ArcLink) wire feeders as well as CrossLinc and Across-the-Arc
• (1) Flextec® 350X, (1) Input Power Cable 8.5 ft 4 Conductor/ 8 AWG
• Built in pulse programs for carbon steel stainless steel, metal core and aluminum. Requires use of a Power Feed ArcLink wire feeder.
• PowerConnect allows for Automatic connecting to any incoming voltage 200-575VAC, single or three-phase, 50 or 60Hz.
• Proven Reliability - Based on the same proven platform as the previous Flextec machines and lab and field tested to perform in extreme environments.

• Output Range: 5-350A
• Voltage: 34V
• Duty Cycle: 60%
• Max Open Circuit Voltage: 67V DC
• Input Voltage: 200-600V AC, single or three-phase, 50/60 Hz
• Processes: Stick, TIG, MIG (pulsed and CV), FluxCored, Carbon Gouging
• Dimensions: 24 x 13 x 17 in (L x W x H)
• Weight: 84 lb (38.1 kg)
• Feeder Compatibility: CrossLinc, 14-pin analog, 5-pin ArcLink digital
• Pulse Programs: Carbon steel, stainless steel, metal core, aluminum
• Compliance: Desert Duty Certified, IP23-rated
• Country of Origin: United States
