Lincoln Electric, K4260-4, X-Tractor, 1 Fume Gun, 120 V, Automatic Start/Stop Sensor, 15 A

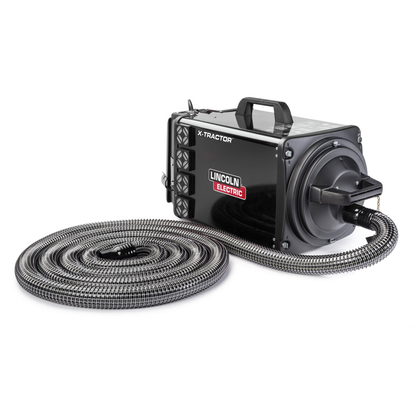

PORTABLE WELDING FUME EXTRACTOR Lincoln Electric’s X-Tractor® 1GC is a high vacuum extraction system designed for the removal and filtration of welding fume. The 1GC is a great choice for fume removal on the light duty welding applications typically found in shops or companies with a small number of welding stations. The compact size and light weight of the X-Tractor® 1GC make the unit easy to move to where it’s needed. Economical fume movement and ventilation option. Easily disassemble the unit for cleaning and maintenance. Maximum extraction distance up to 33 ft. (10 m). Quiet operation.

Features

• One-Pak® Package - Includes Base Unit and SHM-300 Nozzle
• Quiet Operation
• Automatic Start/Stop Sensor
• Two fan speeds
• Manually-operated Filter Cleaning System

What's Included?

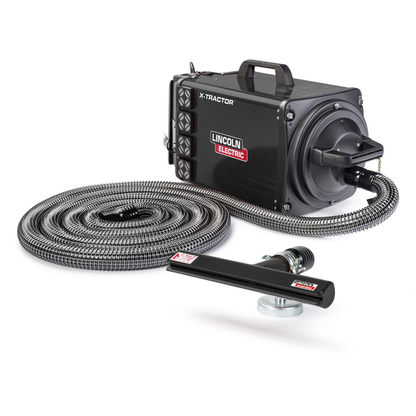

• Order a Lincoln Electric One-Pak® and get everything you need to complete a weld fume control package — all with one order number. (Packages are unassembled.) K652-1 X-Tractor 1GC . K639-1 SHM Aluminum Suction Nozzle with magnetic mounting stand .

• Input Voltage: 120V
• Input Current: 15A
• Input Phase: 1 Phase
• Input Frequency: 50/60 Hz
• Dimensions: 13.4 x 26.8 x 15.8 in (H x W x D)
• Weight: 37 lbs
• Maximum Extraction Distance: 33 ft
• Noise Level: 74 dBA @ 3.3 ft
• Filter Cleaning System: Manual rotary air jet
• Fan Speeds: Two
• Sensor Type: Automatic Start/Stop
• Country of Origin: Multi Country
• Warranty Length: 3 Years
• Product Type: X-Tractor
• Base Number: K4260
