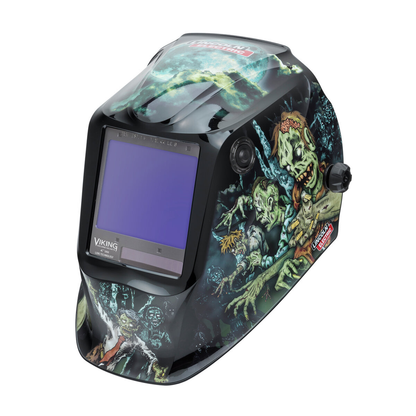

Lincoln Electric, K4158-4, Welding Helmet, 12.5 sq in Viewing Area; 5-13 Shade; X6 Headgear; Auto-Darkening

The VIKING 3350, our top-of-the line helmet series, is the ultimate blend of optics, comfort & versatility. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 5-13 shade range, low profile external grind control, and large 12.5 sq. in. viewing area. The innovative X6 Headgear™ distributes weight, reduces pressure and optimizes balance.

Features

• External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.
• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
• X6 Headgear features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.
• Replaceable CR2450 batteries ensure increased battery life.
• 12.5 sq. inch (3.74 x 3.34 in.) wide viewing area
• Variable 5-13 shade range and low profile, external grind control provides an expanded versatility and consistent indoor & outdoor performance.
• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.

What's Included?

• (1) Welding Helmet, (1) Helmet Bag, (1) Bandana, (5) KP2898-1 Outside Cover Lenses, (2) KP3044-1 Inside Cover Lenses, (1) Decal Sheet

• Lens Shade Rating: 5 - 13
• TIG Rating: AC/DC 2 Amp
• Light to Dark Switch Time: 1/25,000 seconds
• Grind Mode: Yes
• Cut Mode: Yes
• Viewing Area: 3.74 x 3.34 in (12.5 sq. in.)
• Headgear Type: X6 Headgear
• Hard Hat Compatible: Yes
• Cheater Lens Compatible: Yes
• Number of Sensors: 4
• Control Type: Analog
• Power Supply: 1 CR2450 Battery with Solar Assist
• Weight: 21 oz (595 g)
• Operating Temperature Range: -10 to +55 C (14 to 131 F)
• Storage Temperature Range: -20 to +70 C (-4 to 158 F)
• Quick Adjust Ratchet: Yes
• External Controls: Grind Button
• Magnifying Lens Holder: Yes
• Shell Type: Graphic
• Manufacturer Color/Finish: Zombie
• Compliance: ANSI Z87.1
• Warranty Length: 3 Years
• Country of Origin: China
