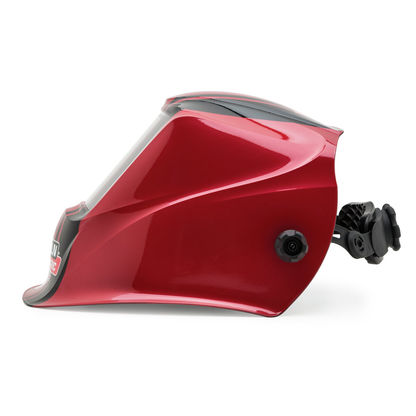

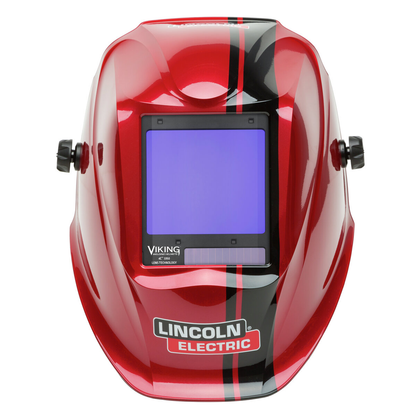

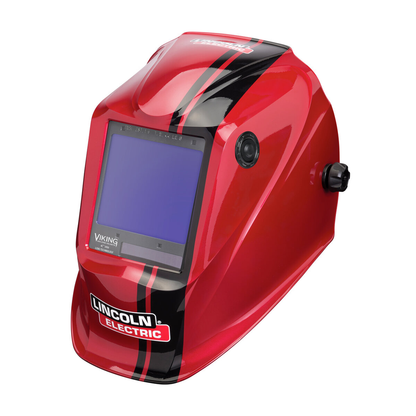

Lincoln Electric, K4034-4, Welding Helmet, VIKING 3350 Series, 12.5 sq. in Viewing Area, Shade 5-13, X6 Headgear

The VIKING 3350, our top-of-the line helmet series, is the ultimate blend of optics, comfort & versatility. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 5-13 shade range, low profile external grind control, and large 12.5 sq. in. viewing area. The innovative X6 Headgear™ distributes weight, reduces pressure and optimizes balance.

Features

• 12.5 sq. inch (3.74 x 3.34 in.) wide viewing area

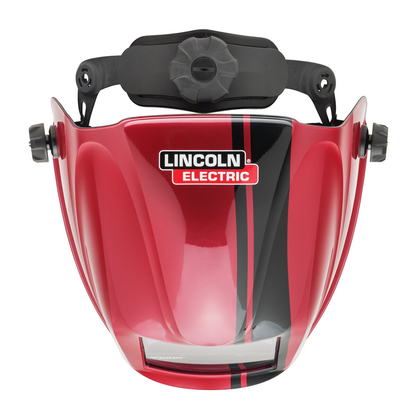

• X6 Headgear features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.
• Replaceable CR2450 batteries ensure increased battery life.
• External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.
• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.
• Variable 5-13 shade range and low profile, external grind control provides an expanded versatility and consistent indoor & outdoor performance.

What's Included?

• (1) Welding Helmet, (1) Helmet Bag, (1) Bandana, (5) KP2898-1 Outside Cover Lenses, (2) KP3044-1 Inside Cover Lenses, (1) Decal Sheet

• Shade Range: 5 - 13 variable
• TIG Amp Rating: AC/DC 2 Amp
• Switching Speed: 1/25,000 s
• Auto Darkening: Yes
• Light Sensitivity Control: Continuous
• Delay Control Dark to Light: 0.1-1.0 seconds, fully adjustable
• Viewing Area: 3.74 x 3.34 in (95 x 85 mm)
• Number of Sensors: 4
• Headgear Type: X6 Headgear, adjustable, form-fitting
• Weight: 21 oz (595 g)
• Battery Type: 1 CR 2450 Battery with Solar Assist, replaceable
• Hard Hat Capable: Yes
• Grind Mode: Yes, external low profile control
• Material: Graphic shell
• Compliance: ANSI Z87.1
• Country of Origin: China
