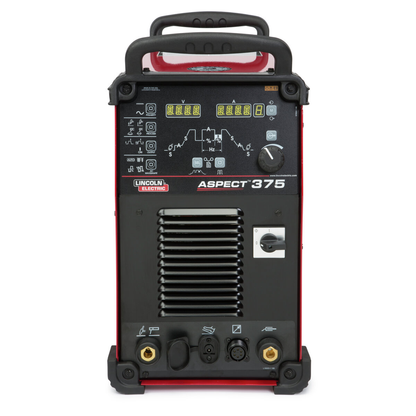

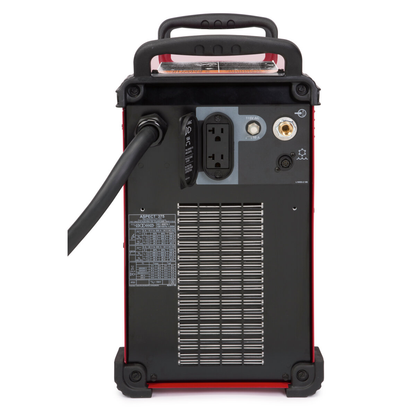

Lincoln Electric, K3946-2, TIG Welder, 375 A, AC/DC, Inverter/Chopper, Water-Cooled

ADVANCED TECHNOLOGY MADE SIMPLE. A quality weld is always important. Choose a TIG welding machine that meets the demanding quality standards of the aerospace, motorsports, shipbuilding, education and fabrication industries. The Aspect® 375 is the perfect choice for mission critical welds, especially on applications that must stand up to the most rigorous testing requirements.

Features

• AC Wave Shape Control - Enables you to customize the arc for critical aluminum welding requiring: a higher degree of penetration on thicker materials, increased cleaning action in breaking through heavy oxide layers, or narrower arc profile enhancing control around corners and other tight configurations.
• Customization When You need it. - Manage AC frequency, balance and offset to modify arc profile, cleaning action or penetration
• Simplicity When You Want It - Activate Intellistart™ technology to automatically provide for softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials.
• Effortless Arc Control - Extremely fast arc response and stability for the smoothest and most efficient weld possible.
• Optional AC Auto Balance® Technology - Offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.

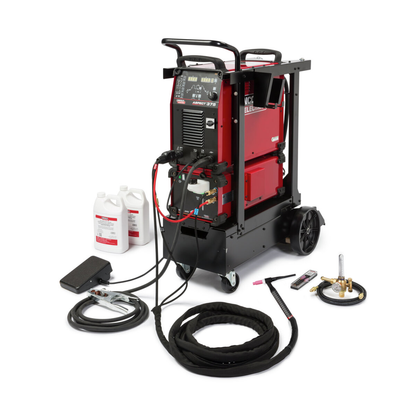

• Ready-Pak ships fully assembled with the CoolArc 47 water cooling system, cart, TIG torch, cable cover, expendables kits, coolant, Foot Amptrol™, regulator and hose kit, and necessary adapters and connectors.

What's Included?

• (1) Aspect 375 AC/DC TIG Welder, (1) 10 ft (3m) Input Power Cord, (1) K3950-1 CoolArc 47 Water Cooling System, (1) K3949-1 Inverter Cart, (1) K4843-18F-2 Caliber® 18 Series TIG Torch - Flexible 25 ft (7.6 m), (1) K918-2 Zippered Cable Cover 22 ft (6.7 m), (1) K1622-5 Twist Mate™ Torch Adapter, (1) KP4760-HD Caliber 17/18/26 Series TIG Torch Expendables Kit 1/16 - 1/8 in, (2) KP4159-1 Low Conductivity Coolant (1 gal), (1) K870 Foot Amptrol™ with 25 ft (7.6 m) Cable Assembly, (1) 3100211 Gas Regulator/Flowmeter and 10 ft (3.0 m) Hose Kit, (1) K1803-3 15 ft Work Lead Assembly, (1) 9ST14557-27 Quick Connect Fitting

• Input Voltage: 200-600V, 1 & 3 Phase, 50/60 Hz
• Rated Output Current: 3 Phase: 330A/40%, 300A/60%; 1 Phase: 240A/40%, 225A/60%
• Output Range: 3 Phase: 2-375A, 1 Phase: 2-250A
• Input Current: 3 Phase: 29/26/15/12/10A (60% duty), 27/24/14/11/9A (40% duty); 1 Phase: 34/31A (60% duty), 32/29A (40% duty)
• Input Frequency: 50/60 Hz
• Polarity: AC/DC
• Output Polarity: AC/DC
• Welding Technology: Inverter/Chopper
• Output Mode: CC
• Cooling: Water
• Dimensions (HxWxD): 47 x 23 x 45 in (1194 x 584 x 1143 mm)
• Weight: 235 lb (106.6 kg)
• Input Power: 200-600V, 1 & 3 Phase, 50/60 Hz
• AC Frequency Range: 40-400 Hz
• AC Balance Range: 35-99% Electrode Negative (EN%)
• Electrode Positive Current Range: 2-375 Amps
• Electrode Negative Current Range: 2-375 Amps
• AC Pulse Frequency Range: 0.1-25% of AC output frequency (pulses/sec)
• DC Pulse Frequency Range: 0.1-2000 pulses per second
• AC Waveform Options: Soft Square, Sine, Square, Triangular
• Polarity: AC/DC
• Processes: Stick, TIG (GTAW)
• Country of Origin: United States
