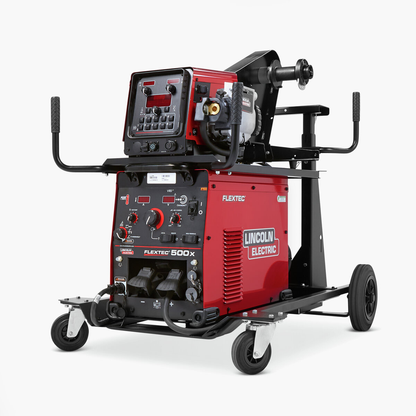

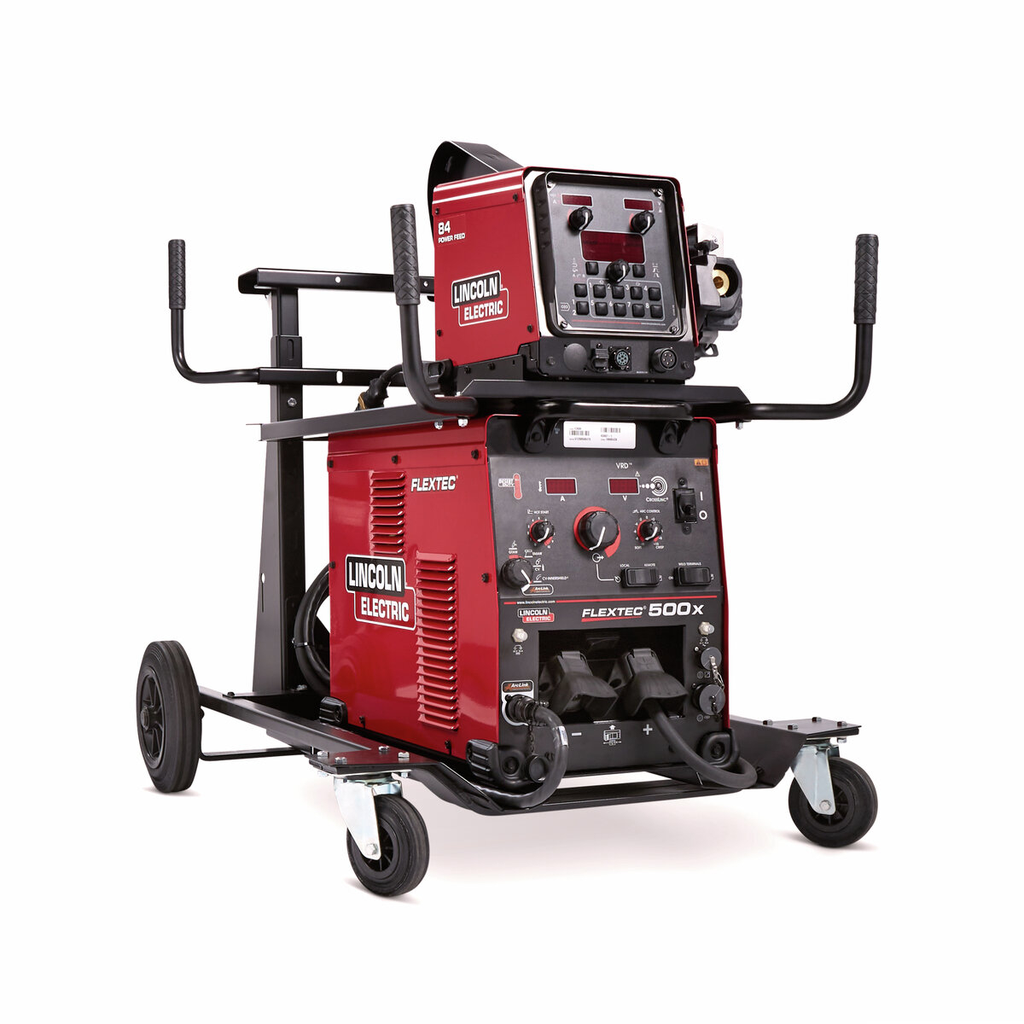

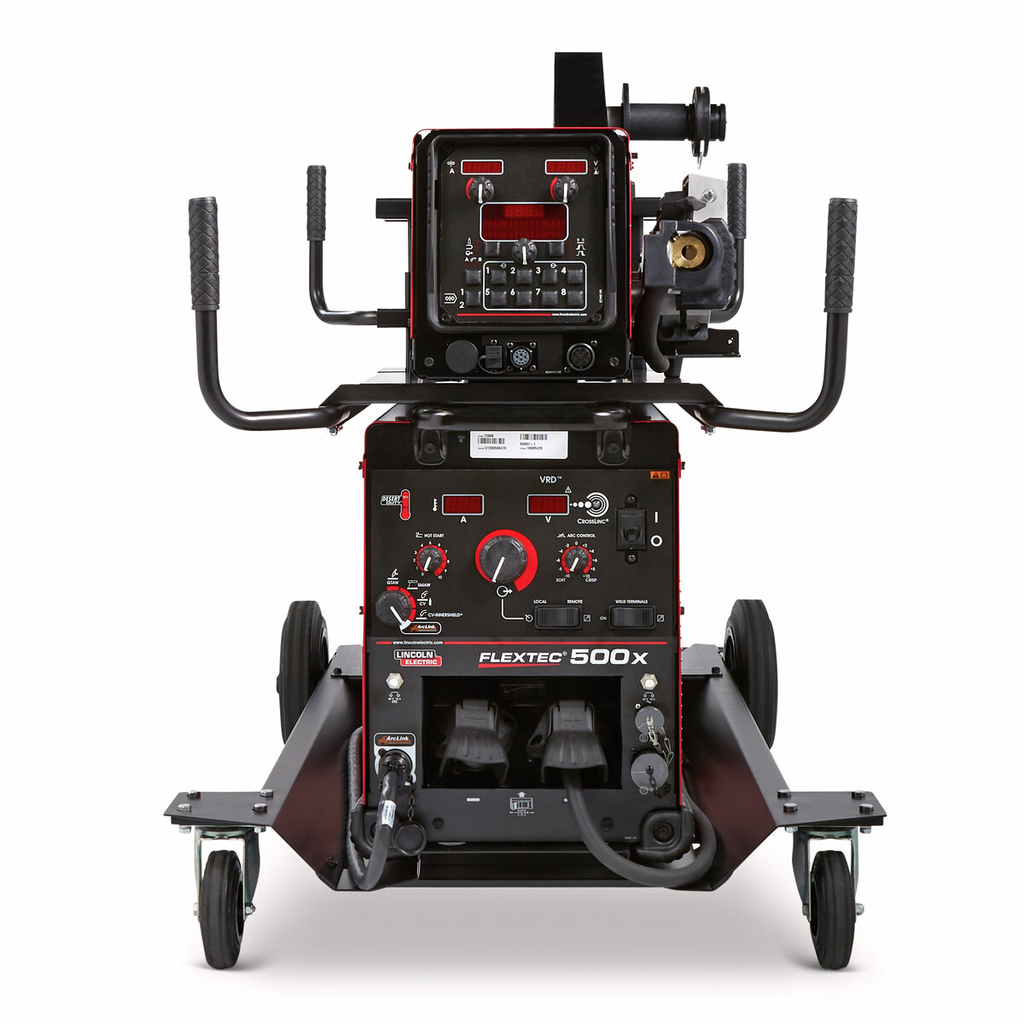

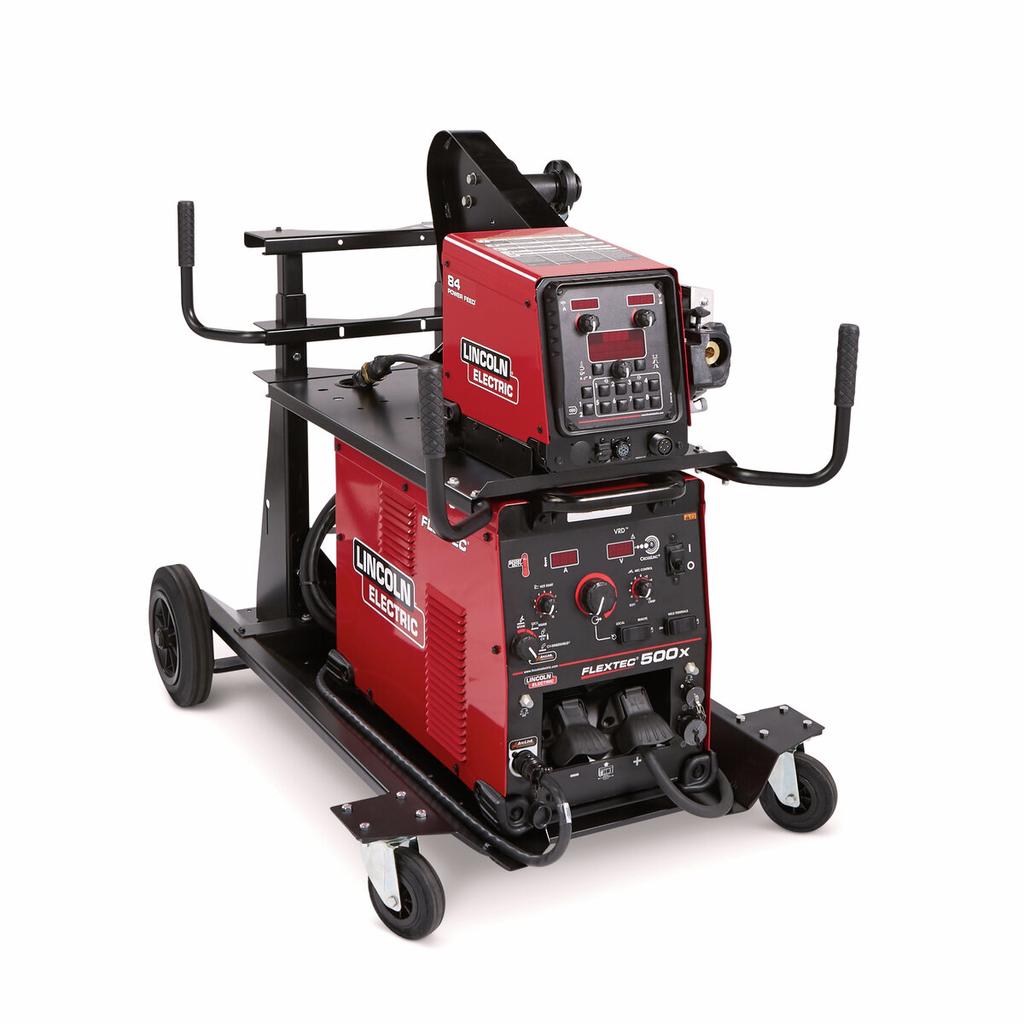

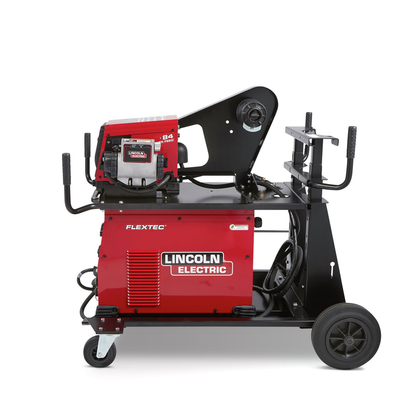

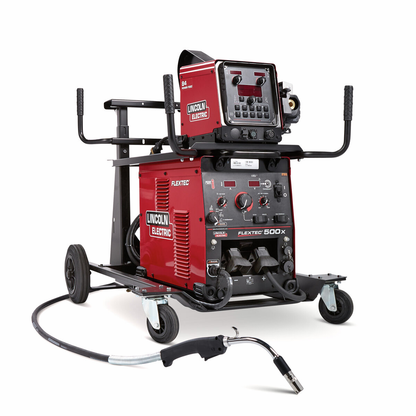

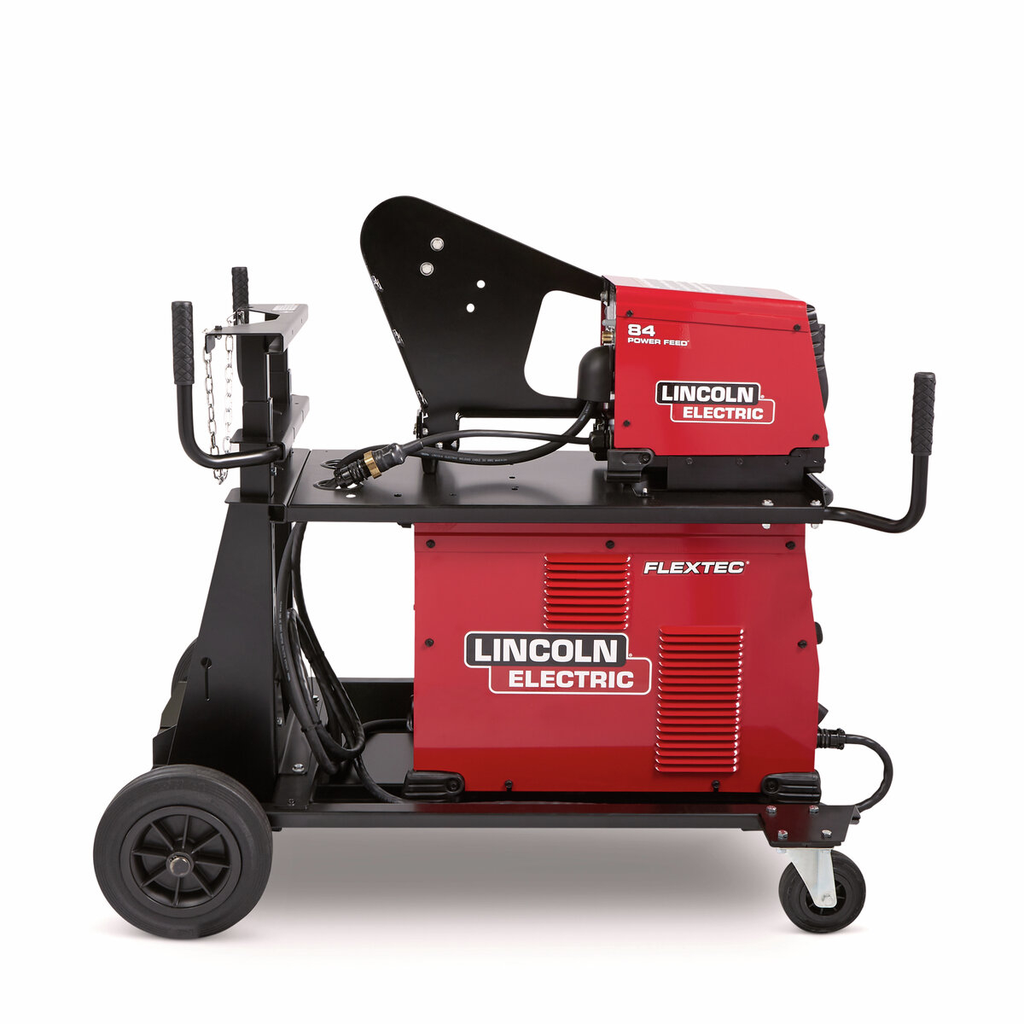

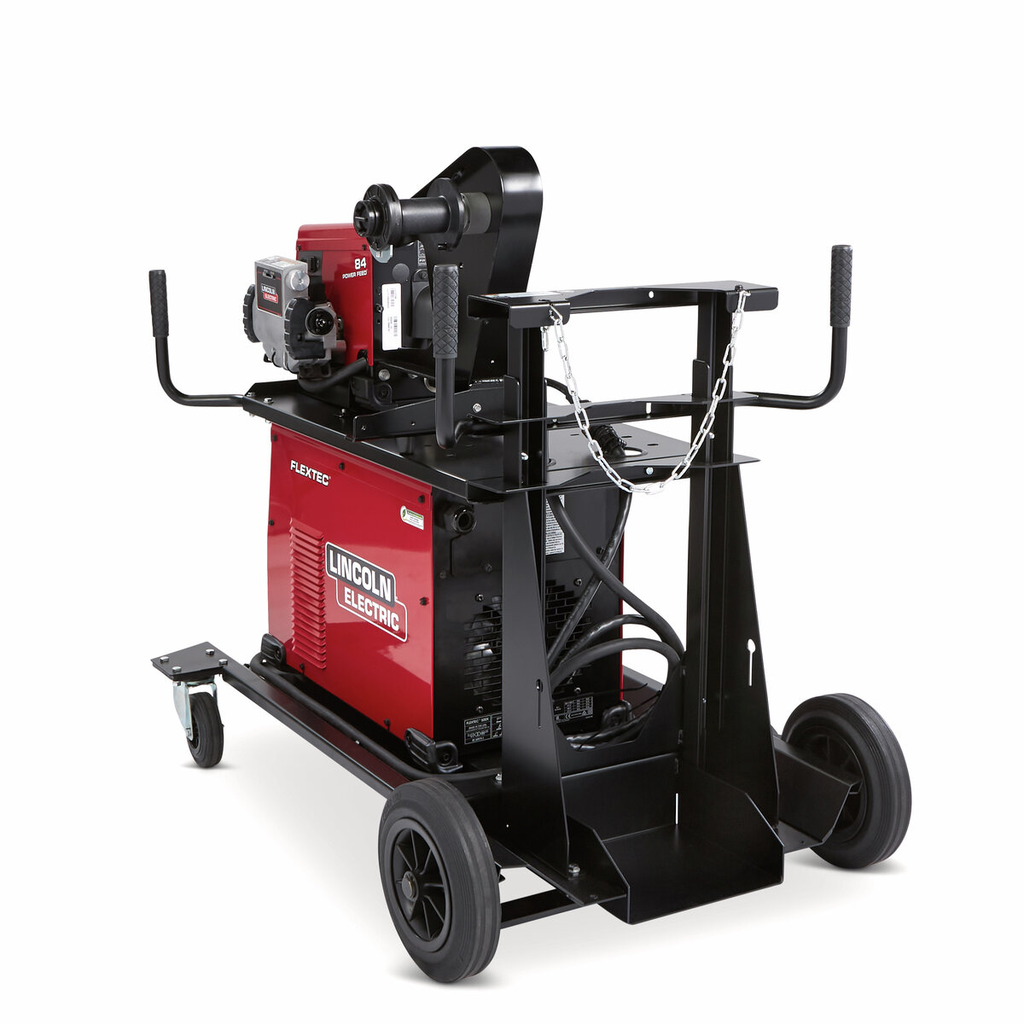

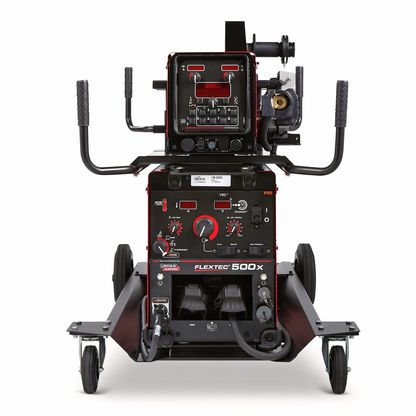

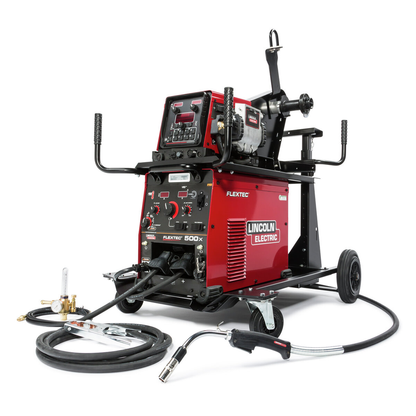

Powerful Performance From the Ground Up. Out in the shipyards, construction sites and fabrication shops, it pays to keep it simple. The Flextec 500X multi-process welder is easy to set up and operate, yet rugged enough to stand up to heavy-duty indoor and outdoor applications. Basic pulse MIG capability is standard on the Flextec 500X , including weld modes for carbon steel, stainless steel, aluminum and metalcore electrodes. The Flextec 500X welder is also equipped with CrossLinc® technology giving you the flexibility to control the machine from hundreds of feet away without a control cable. Ready-Pak ships fully assembled and comes with the Power Feed 84 wire feeder that features a modular platform with an advanced interface. This bundle also includes the Magnum PRO Curve 400 welding gun, inverter and feeder cart, flowmeter regulator and hose, and the necessary cables and connectors.
Features
- Flextec power sources support multiple weld processes: MIG, TIG, Stick, Gouging and FCAW. Flextec welders can be used with nearly all Lincoln Electric wire feeders due to available feeder communication connections.
- CrossLinc Technology communicates through a standard weld cable to enable voltage or current control at the arc without a control cable.
- Compatible with all 42VAC wire feeders for MIG and Flux-Cored welding
- Arclink® enabled power source provides synergic pulse modes.
- IP 23 rating means the Flextec 500X welder will excel in outdoor environments, such as construction sites and shipyards.
- Ready-Pak ships fully assembled and comes with the Power Feed 84 Semiautomatic wire feeder with auto settings and advanced interface that provides full weld sequence control including run-in, start, weld, burnback, and crater parameters.
- Durable trayed and potted PC boards for electronics environmental protection
What's Included?
- (1) K3607-1 Flextec 500X Welder, (1) K3328-13 Power Feed 84 Wire Feeder, (1) KP1505-1 4 Roll Drive and Wire Guide Kit 0.035-0.045 in, (1) K2952-2-10-45 Magnum PRO Curve 400 Gun and Cable Ready-Pak, (1) 3100211 Harris Flowmeter Regulator and Hose, (1) K1543-8 Arclink Control Cable 8 ft, (1) K1842-10 3/0 Welding Cable 10 ft, (1) K2149-1 Work Lead Package 15 ft, (1) K4068-1 Inverter Cart Mounting Bracket Kit, (1) K3056-2 Flextec 500 Locking Foot Kit, (1) K3059-4 Inverter and Wire Feeder Cart
-
Rated Output Current/Voltage/Duty Cycle: 500A/40V/60%, 450A/38V/100%
-
Output Range: 5-500A
-
Max Rated Output Capable: 600A
-
Input Power: 380/460/575V, 3-phase, 50/60 Hz
-
Input Current at Rated Output: 39/31/31A, 33/27/27A
-
Temperature Rating at Rated Output: 55 C
-
Weld Processes: Stick (SMAW), Gouging (CAC-A), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
-
Pulse MIG Capability: Standard for carbon steel, stainless, aluminum, metalcore
-
CrossLinc Technology: Voltage and current control at arc without control cable
-
Compatible Wire Feeders: All 42VAC wire feeders for MIG and Flux-Cored welding
-
Synergic Pulse Modes: Enabled via ArcLink power source
-
Max Spool Size: 60 lb (30 kg)
-
Max Spool Diameter: Drum
-
Max Wire Diameter (Solid): 1/16 in (1.6 mm)
-
Max Wire Diameter (Cored): 5/64 in (2 mm)
-
Length: 27.5 in (699 mm)
-
Width: 14 in (356 mm)
-
Height: 18.8 in (477 mm)
-
Weight: 352 lb (160 kg)
-
Power Source to Feeder Communication Connector Type: 5-pin
-
Accessories Communication Connector Type: 12-pin
-
Work Lead Connector Type: Lug
-
Amphenol Pins (Connector Types): 5, 12, 14
-
Gun Bushing: Tweco #2-#4
-
Feedhead Configuration: Single
-
Configuration: Single
-
Input Voltage Type: Multiple; 380/460/575V, 3-phase, 50/60 Hz
-
Input Phase: 3-phase
-
Input Icon: 3 Phase; 50/60 Hz
-
Output Icon: DC; CC/CV
-
Welding Technology: Inverter/Chopper
-
IEC Amperage Class: 500A
-
Max WFS: 1200 IPM
-
Wire Feeders Processes: MIG; Pulsed MIG
-
Wire Feeder Supply Voltage: 42 VAC
-
Feeder Type: Bench
-
Equipment Technologies: ArcLink; CrossLinc
-
Machines Communication Technology: Analog; Digital; CrossLinc; ArcLink
-
Input Current: 39/31/31A, 33/27/27A
-
Arclink Connector: Yes
-
Environmental Protection: Durable trayed and potted PC boards
-
Compliance: IP23 Rated
-
Country of Origin: United States
-
Warranty Length: 3 Years
