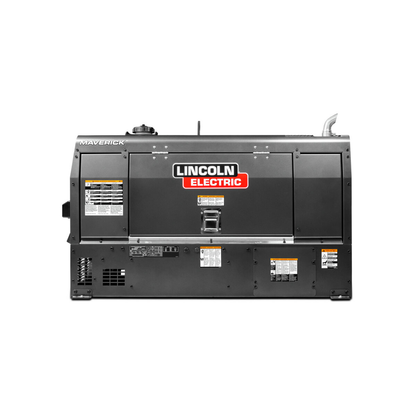

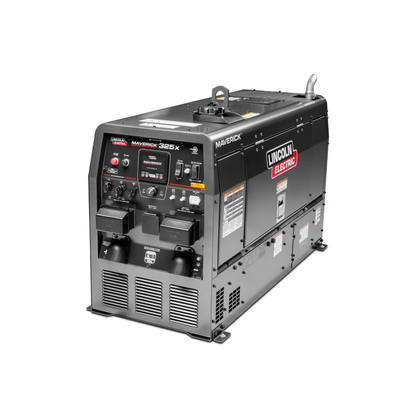

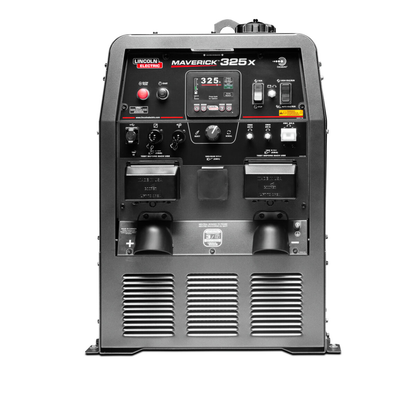

Lincoln Electric, K3581-1, Engine-Driven Welder, 325A / 33V / 100% @ 104 F, 10 kW Auxiliary Power, Kubota Diesel Engine

The Maverick® 325X is an advanced engine-driven welder with the perfect combination of size, performance, and innovation. This best-in-class arc welding machine provides substantial power and promotes fuel savings with variable engine RPM and auto start/stop capabilities. In addition, the machine boasts an advanced user interface on a heavy-duty 4.6 in. weatherproof LCD screen. The machine also features CrossLinc® technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality.

Features

• Compact Power – Plenty of jobsite power with 325A of welding output and 10 kW of clean, single-phase power.
• Greater Machine Control – Durable, 4.6 inch digital display for full machine control - including process setup, maintenance reminders, and PIN authorization.
• Auto-Stop/Start Technology – Save on fuel, avoid excess idling and reduce engine wear.
• Optimized Performance – A multi-process workhorse with specialized stick, wire welding, and direct-connect spool gun capabilities for all your jobsite needs.
• CrossLinc® Enabled – Change welding parameters at the art without an additional control cable - helping to increase productivity, promote safety, and improve weld quality.
• Variable Engine RPM – Automatically adjusts engine speed to reduce fuel consumption and engine noise.

What's Included?

• (1) Engine Driven Welder

• Amperage: 325 A IEC Rating, 300 Class, Max 400 A / 29 V / 60% @ 104 F (40 C)
• Power Output: 10,000 W Continuous (10 kW) Auxiliary Output
• Engine RPM: Low Idle 2500 RPM; High Idle 3600 RPM; Variable
• Engine Horsepower: 24.8 hp (18.5 kW)
• Welding Processes: Stick (SMAW), Wire (GMAW), Spool Gun, TIG (GTAW), Gouging (CAC-A), Flux-Cored (FCAW-S & FCAW-G)
• Length: 54.29 in (1379 mm)
• Width: 21.25 in (540 mm)
• Height: 34.23 in (867 mm)
• Weight: 770 lb (340.2 kg)
• Engine Type: Kubota D902 3 Cylinder Naturally Aspirated Water Cooled Diesel Engine
• Fuel Type: Diesel
• Fuel Tank Capacity: 11.5 US gal (50 L)
• Oil Capacity: 3.9 qts (3.7 - 3.9 L)
• Coolant Capacity: 0.9 US gal (3.3 L)
• Input Voltage Type: Engine
• Welding Technology: Inverter/Chopper
• Output Polarity: DC
• Auxiliary Output Voltage: 120/240 V Single Phase
• Auxiliary Output Frequency: 60 Hz
• Output Mode: CC/CV
• Display Type: Digital LCD Display Screen
• Display Size: 4.6 in
• User Interface Type: Single Knob Control with Screen
• Remote Control Options: CrossLinc; Wired
• Engine Starting: Manual Glow Plugs; Auto-Stop/Start
• Engine Controller: ECU
• Engine Cooling: Water Cooling
• Engine Protections: High Temperature Shutdown
• Tap or Continuous Control: Continuous
• Ingress Protection Rating: IP23
• Emission Rating: US EPA Tier 4 Final
• VRD: Yes
• Sound Rating @ 23 ft (7 m): Idle: 73.5 dB; Max Load: 79.6 dB
• Case Type: Painted
• Country of Origin: Canada
