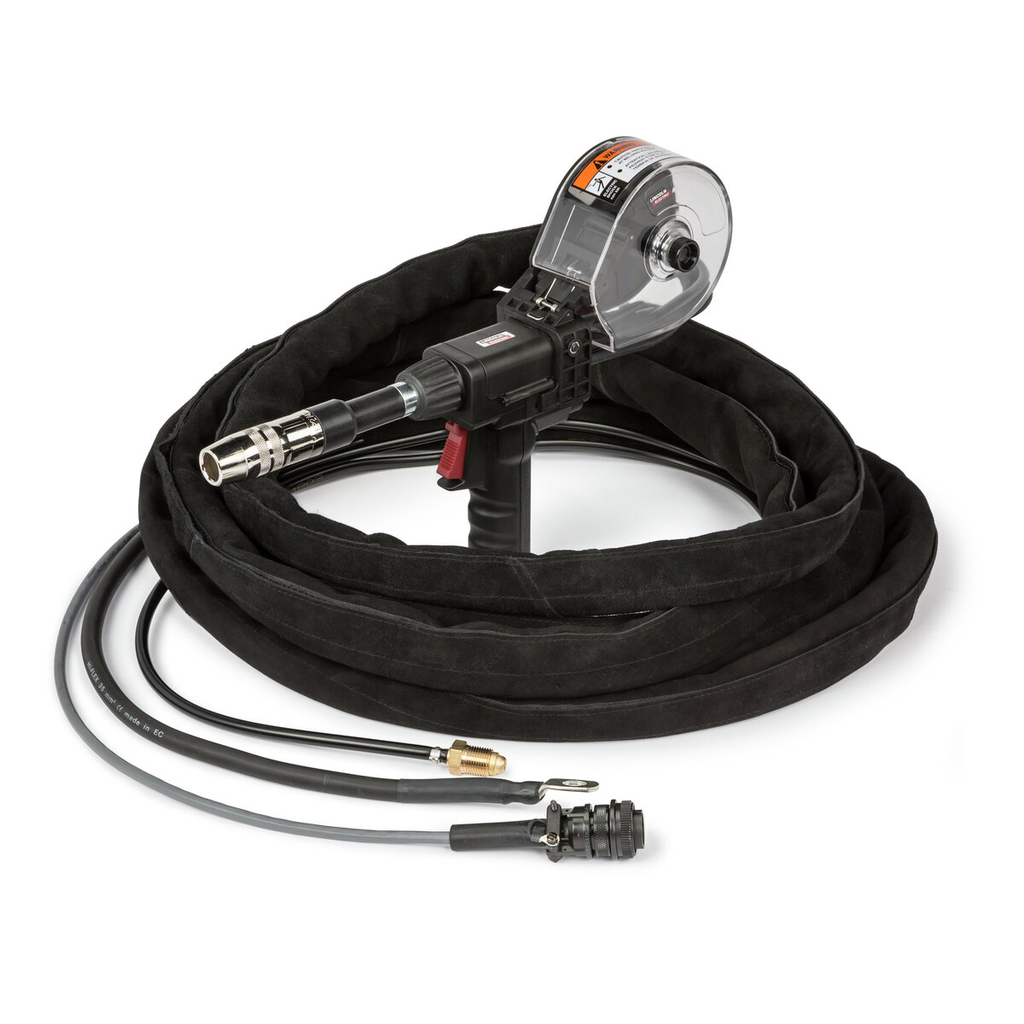

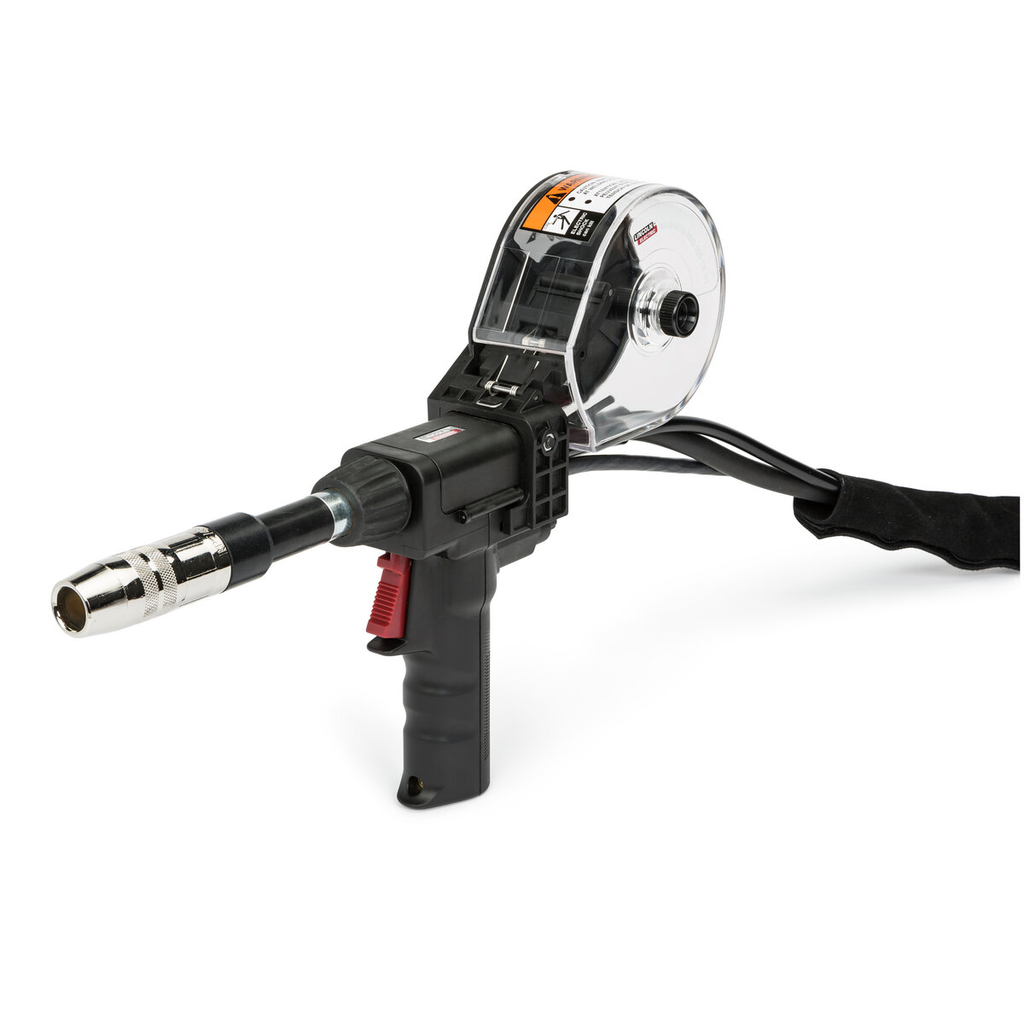

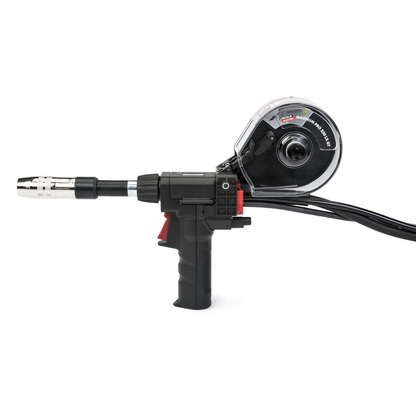

Lincoln Electric, K3569-2, Spool Gun, 250 A, 25 ft Cable, Air-Cooled

PRODUCTIVITY WITHOUT HASSLE. With longer-lasting Magnum PRO Expendables and direct connect functionality, the Magnum PRO 250LX GT spool gun results in less downtime and hassle-free setup. The Magnum PRO 250LX GT spool gun connects easily to the Ranger 330 MPX without the need for additional adapters or control boxes. Competitive spool gun setups are complex and expensive, with control boxes adding up to $1,500 in extra costs. With only 3 easy steps, the Magnum PRO 250LX GT adds functionality without adding costs or hassle.

Features

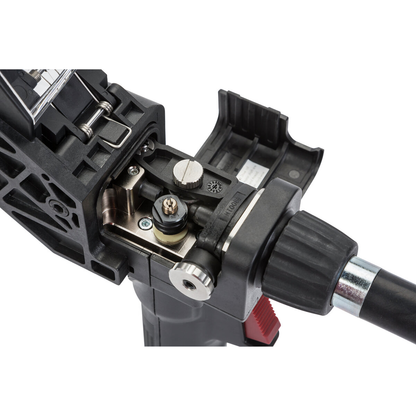

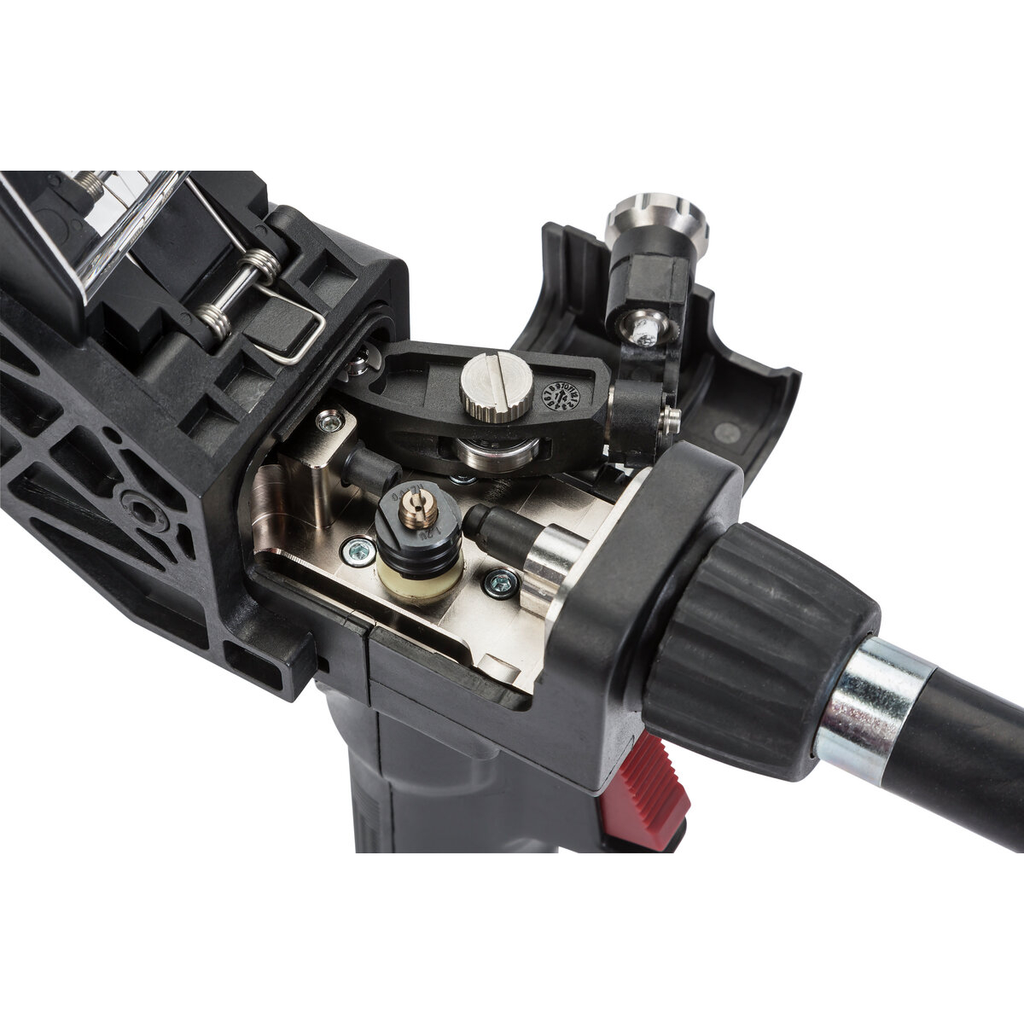

• Tool-less Drive Roll Tension - Large thumbscrew makes fine adjustment of drive roll pressure effortless. Setscrew allows for coarser adjustment if needed for steel.
• Magnum PRO Expendables - Utilizes premium Magnum PRO expendables for extended contact tip life, increasing the amount of arc-on time.

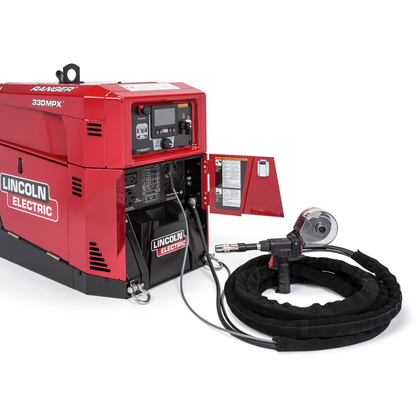

• Connects Easily and Effectively - Plugs directly into the Ranger® 330MPX® without the need for an additional adapter, making setup easy.
• Synergic Wire Speed Adjustment - Adjusts wire speed remotely at the gun with fine resolution, while synergistically adjusting the voltage on a Ranger 330MPX. This dials in desired welding parameters without the need to travel back to the power source.
• Internal Gas Valve - The built-in gas valve allows gas flow to be controlled at the trigger, making the gun compatible with machines that do not have internal solenoids.

What's Included?

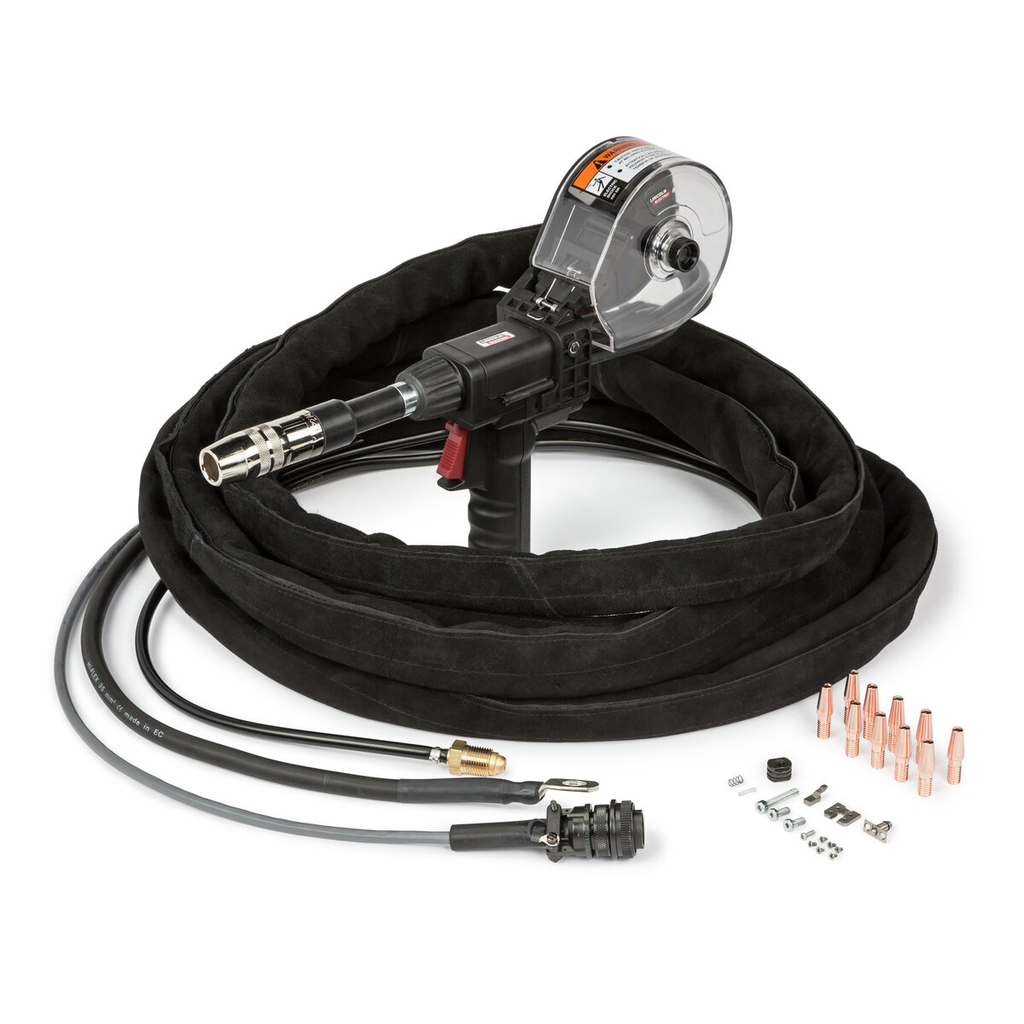

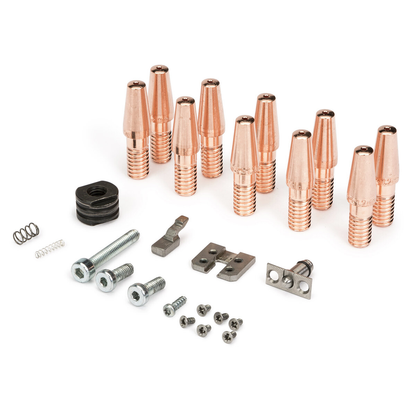

• (1) Spool Gun with 25 ft Cable, (1) KP2747-1A Aluminum Thread-on 550A Diffuser, (1) KP2743-1-62RA Aluminum Recessed Gas Nozzle Assembly 5/8 in, (1) KP2745-364AT Aluminum Tapered Contact Tip 3/64 in, (1) KP2518-2 Aluminum Drive Roll .035 - 3/64 in, (1) KP2879-5 180° Barrel Liner, (1) KP2773-1 550A Insulator

• Rated Amperage: 250 A (Mixed Gas)
• Duty Cycle: 60% at 250 A (Mixed Gas)
• Length: 25 ft
• Accessory Type: Spool Gun
• Cooling: Air
• Contact Tip Size: 3/64 in
• Contact Tip Material: Aluminum
• Drive Roll Size: .035 - 3/64 in
• Drive Roll Adjustment: Tool-less thumbscrew and setscrew
• Gas Nozzle Size: 5/8 in
• Internal Gas Valve: Yes
• Liner Bend Angle: 180
• Expendables Type: Magnum PRO
• Insulator Amperage: 550 A
• Country of Origin: Multi Country
