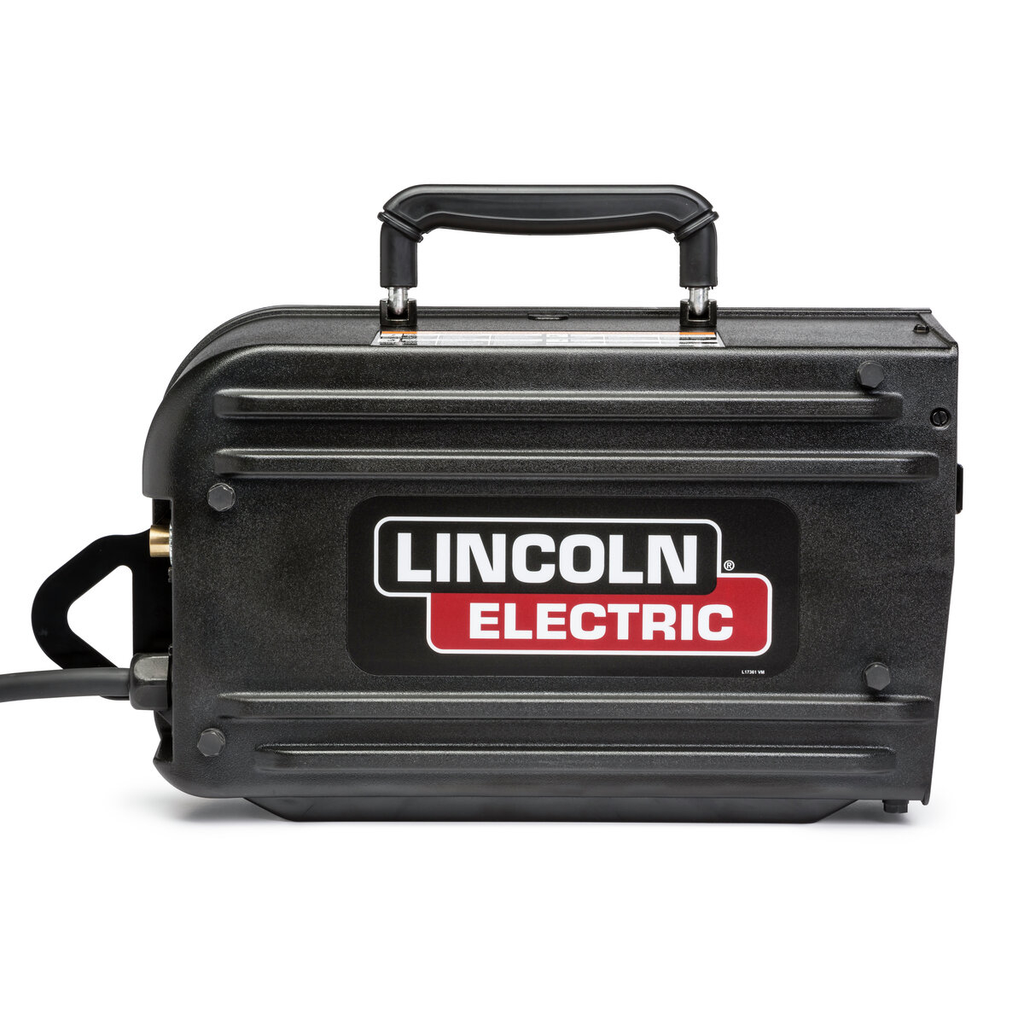

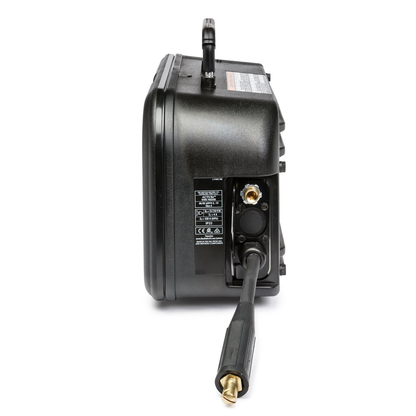

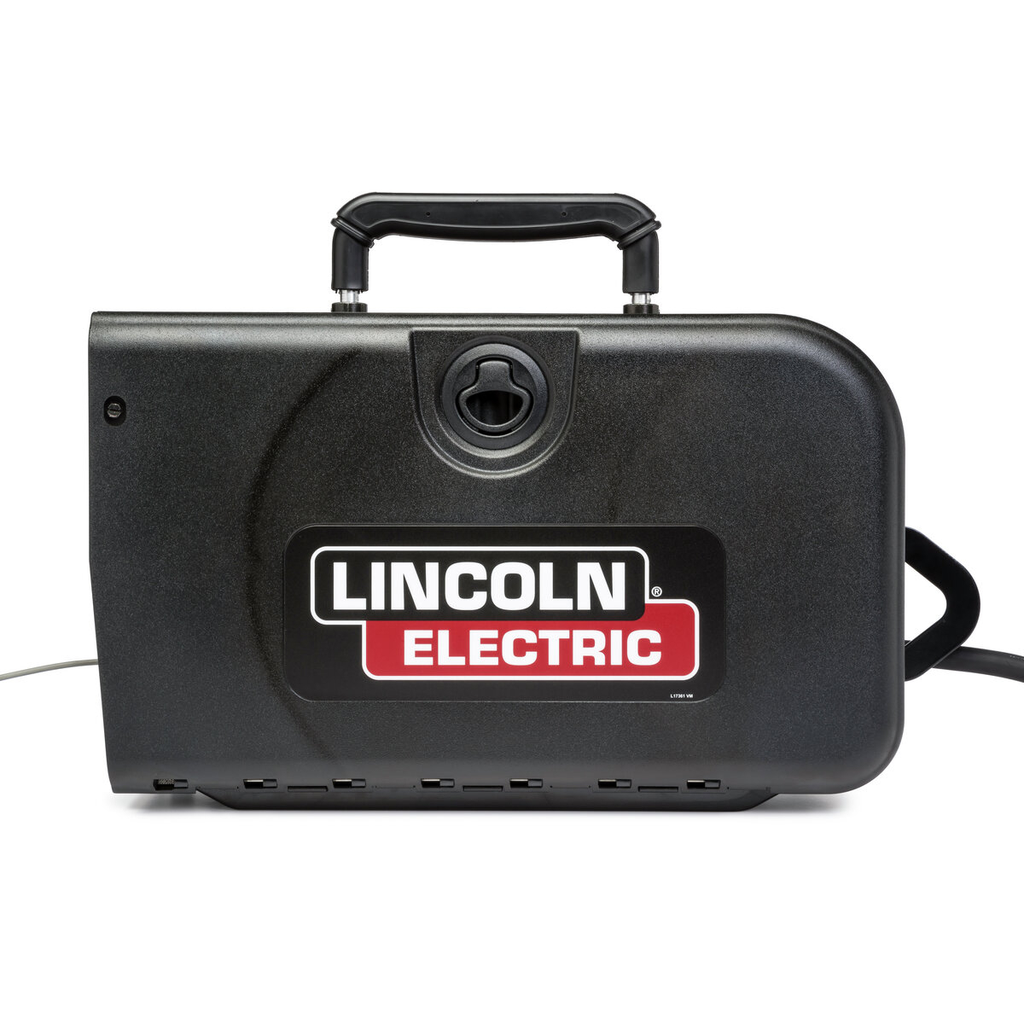

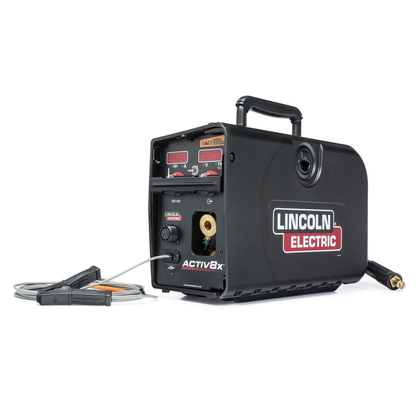

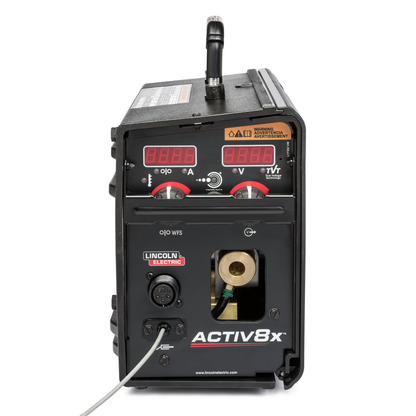

Lincoln Electric, K3519-1, Portable Wire Feeder, 50-700 IPM; 15-110 VDC Input; 5/64 in Max Wire Diameter

PORTABLE, SEMIAUTOMATIC WIRE FEEDER. Activate your shipbuilding, offshore, or construction operations with the Activ8X portable wire feeder with CrossLinc Technology. Small enough to fit through manways and light enough to carry around the site, the Activ8X wire feeder also allows remote control of the power source without the need for control cables via CrossLinc Technology. This includes True Voltage Technology™ (TVT™) which ensures you get the voltage you set at the arc, even when you are hundreds of feet away from the power source.

Features

• True Voltage Technology (TVT) - Automatically compensates for voltage drops across long welding cables.
• Accepts up to 8 in. (203 mm) diameter wire spools.
• Impact resistant, flame retardant case provides rugged durability for tough conditions.

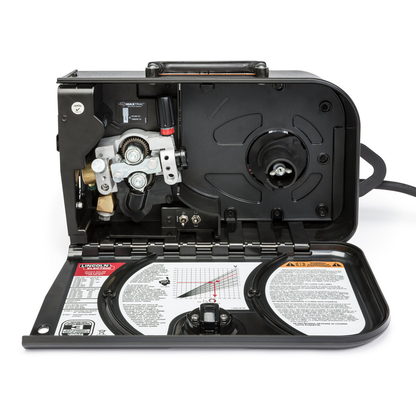

• Maxtrac® Wire Drive System – Heavy-duty cast aluminum wire drive system provides reliable feeding and durability.
• Tachometer feedback delivers accurate wire feed speed.
• Compact - Lightest construction feeder on the market today.
• CrossLinc Technology – Enables voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter.
• Potted PC Boards for moisture and corrosion protection.

What's Included?

• (1) Activ8X Wire Feeder

• Rated Output Current: 330 A @ 60%
• Max Rating: 330 A
• Output Mode: CV
• Input Voltage: 15-110 VDC
• Wire Feed Speed Range: 50-700 ipm (1.3-17.8 m/min)
• Max Spool Diameter: 8 in (203 mm)
• Dimensions (H x W x D): 11.8 x 7.4 x 18.7 in (298 x 188 x 475 mm)
• Weight: 27.5 lb (12.5 kg)
• Gun Bushing: Tweco #2-#4
• Max Wire Diameter (Solid): 0.052 in (1.3 mm)
• Max Wire Diameter (Cored): 5/64 in (2 mm)
• Wire Size Range (GMAW): .023-.052 in (0.6-1.3 mm)
• Wire Size Range (FCAW): .035-5/64 in (0.9-2.0 mm)
• Number of Driven Rolls: 2 rolls
• Wire Feeders Processes: MIG; Flux Cored
• Feedhead Configuration: Single
• Wire Configuration: Single
• Feed Speed Feedback: Tachometer
• Communication Technology: CrossLinc Technology (remote voltage/current control without control cable)
• Material: Cast Aluminum
• Case Material: Impact Resistant, Flame Retardant
• Ingress Protection Rating: IP23
• Country of Origin: United States
• Warranty Length: 3 Years
