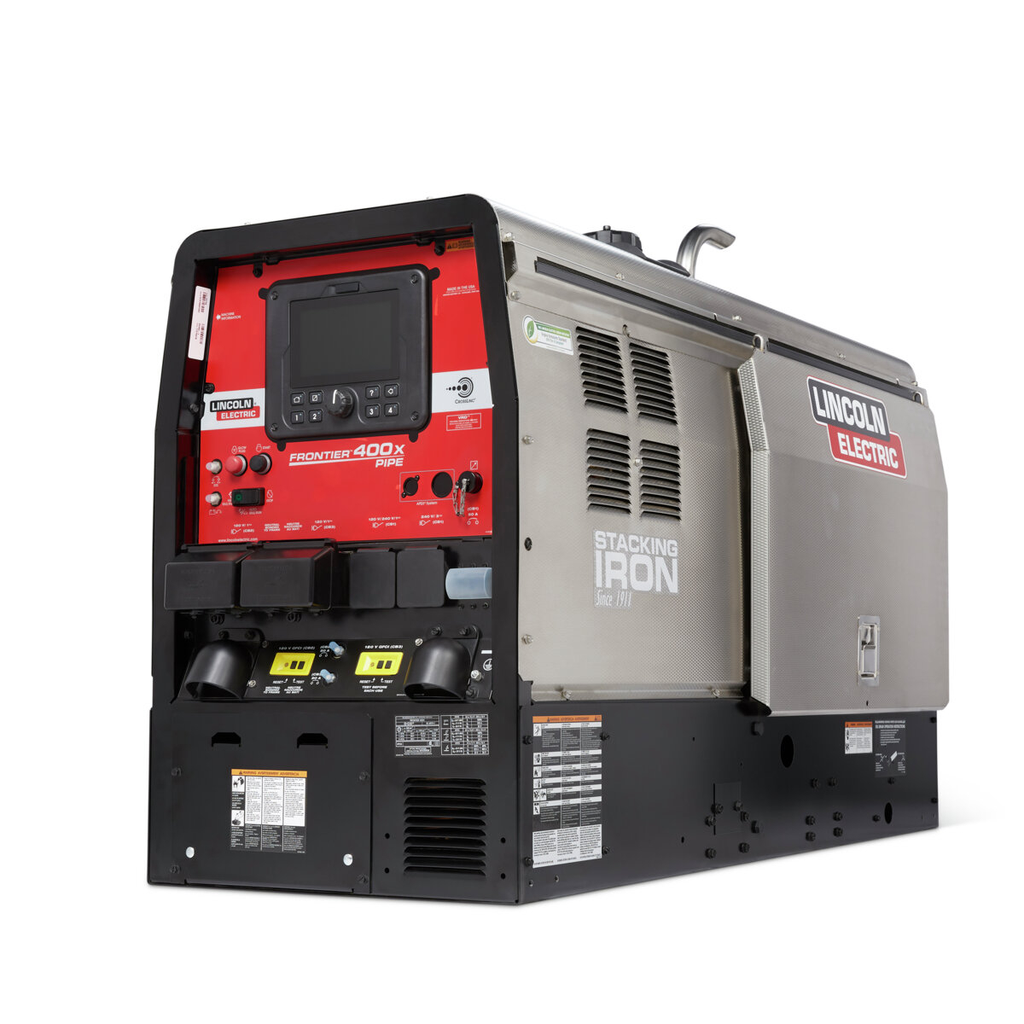

The Frontier® 400X Pipe is an advanced engine-driven welder/generator offering best-in-class arc performance, coupled with the latest welding innovation for maximum versatility on the jobsite. The machine’s multi-process capability provides optimized CC and CV modes, plus specialized modes to support mechanized equipment and advanced GMAW applications including STT® and pulse welding. Included only in the Frontier 400X Pipe is a new, specialized Pipe mode made to produce the classic DC-style arc for downhill pipe applications. , , The machine features an industry-first, next-gen display with enhanced operator-focused features, such as save and recall weld parameter memories, maintenance reminders, and optional PIN user authorization. Additional features include Auto-Stop/Start technology to help reduce engine idling, save on fuel costs, and avoid excessive wear on the engine, along with CrossLinc® Technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality. Experience the latest in welding innovation!
Features
- All Day Auxiliary Power – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
- Full Job-Site Versatility – Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Features optimized CC and CV modes, specialized modes to support mechanized and pulse welding, and a dedicated Pipe mode with DigFX™ technology to produce the iconic, smooth DC-style arc for downhill pipe welding.
- Trusted Reliability – Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty.
- Run Longer and More Efficient – Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance.

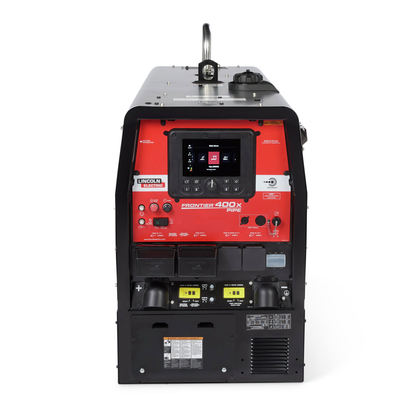

- Next-Gen Display – Bright, durable 7 in. digital user interface for unmatched machine control - Save and recall memories, receive maintenance reminders, and enable PIN authorization.
- CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.

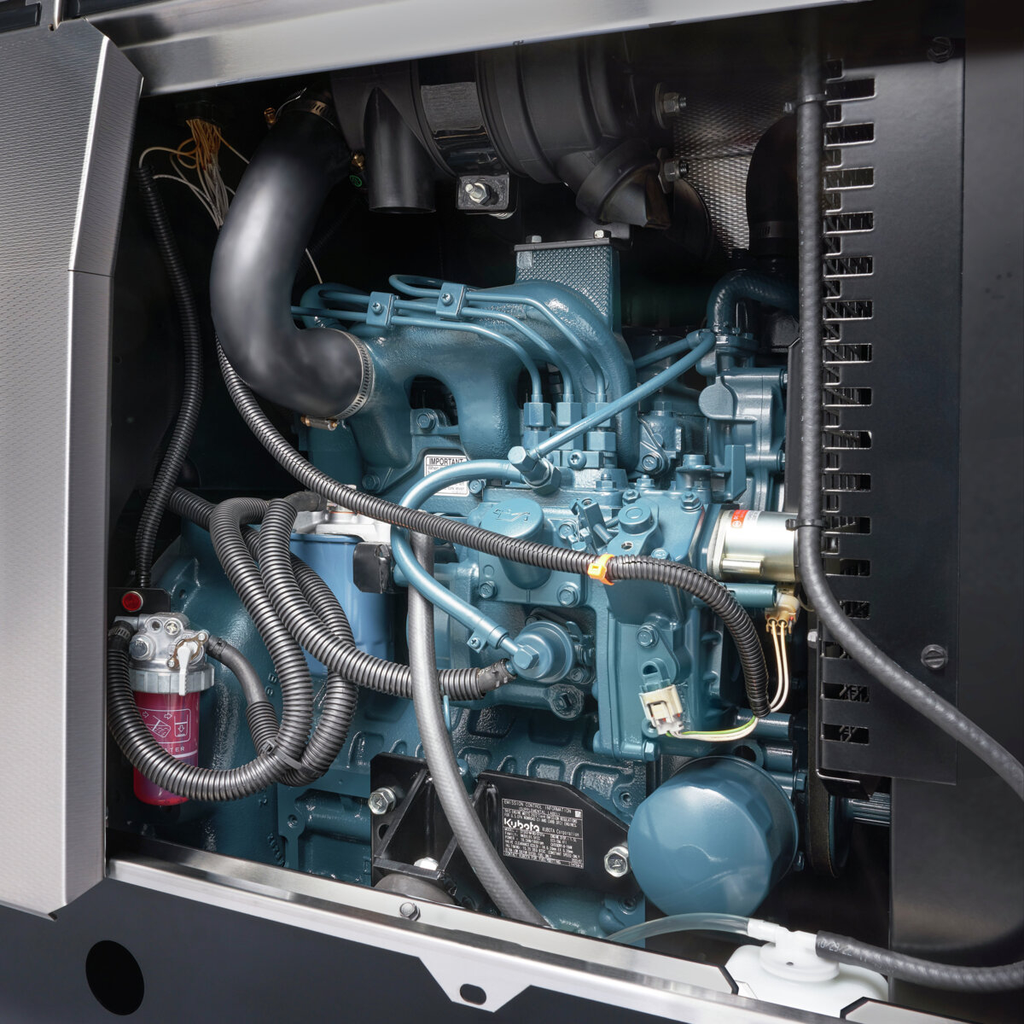

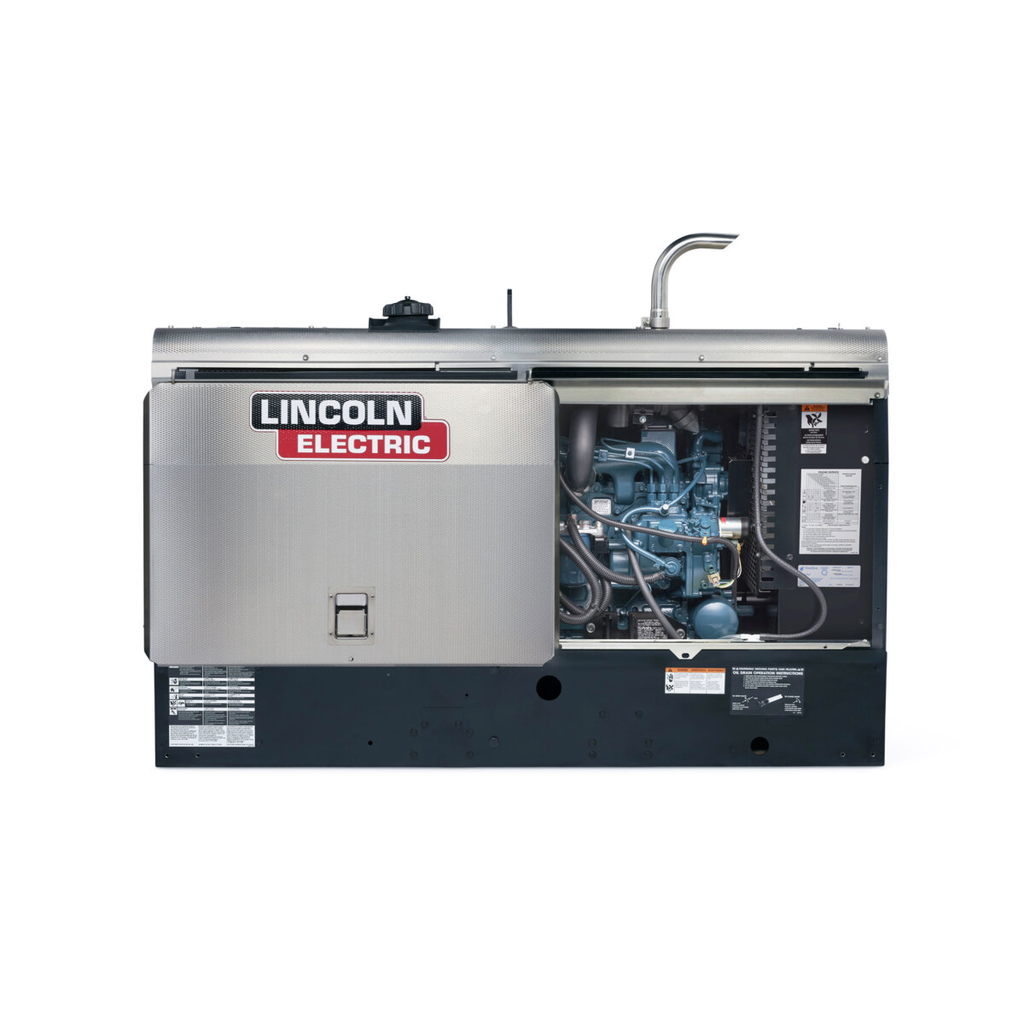

- Field-Proven Diesel Engine – Powered by a 24.8 hp, naturally aspirated Kubota® diesel engine to provide extremely smooth and quiet operation while meeting EPA Tier 4 Final compliance.
What's Included?
-
Amperage: 400A Max, 325A IEC Rated
-
Welding Current Range: 30 400 Amps Stick/Pipe
-
DC TIG Current Range: 5 400 Amps
-
Voltage Range: 10 45 Volts MIG/FCAW
-
Arc Gouging Current Range: 60 400 Amps
-
Open Circuit Voltage: 71V Peak @ 1800 RPM
-
AC Generator Power: Single Phase: 10 kW Continuous, 11.5 kW Peak; Three Phase: 11 kW Continuous, 12.5 kW Peak
-
Auxiliary Power Voltage & Current: 120V/20A (NEMA 5-20R); 120/240V/50A (NEMA 14-50R); 240V/50A 3-Phase (NEMA 15-50R)
-
High Idle Operating Speed @ Rated Output: 1800 RPM
-
Low Idle Operating Speed: 1400 RPM
-
Dimensions (H x W x L): 35.9 in x 25.3 in x 60.0 in (913 mm x 643 mm x 1524 mm)
-
Height to Exhaust Pipe: 43.8 in
-
Weight: 1035 lb (469 kg)
-
Engine Model: Kubota D1503-M
-
Engine Power: 24.8 hp (18.5 kW)
-
Engine Type: 3 Cylinder Naturally Aspirated Water Cooled Diesel
-
EPA Compliance: US EPA Tier 4 Final
-
Displacement: 91.4 cu. in (1.5 L)
-
Bore x Stroke: 3.27 in x 3.64 in (83 mm x 92.4 mm)
-
Fuel Capacity: 20 US gal (75.7 L)
-
Oil Capacity: 6.0 L (6.4 qts)
-
Cooling System Capacity: 1.8 US gal (6.8 L)
-
Output Meters: Screen Display
-
Remote Control Options: Wireless; CrossLinc; Wired
-
Warranty Length: 3 Years Parts and Labor; Engine warranted separately
-
Case Type: Stainless
-
Country of Origin: United States
-
Receptacle Types: NEMA 5-20R; NEMA 14-50R; NEMA 15-50R
-
Machines Processes: Stick; Gouging; TIG; MIG; Pulsed MIG; Flux-Cored Self-Shielded; Flux-Cored Gas-Shielded; Orbital MIG
-
Engine Protections: High Temp Shutdown
-
Engine Cooling: Water
-
Engine Controller: ECU
-
Output Polarity: DC
-
Tap or Continuous Control: Continuous
-
Fuel Consumption (High Idle): 0.56 gal/hr (2.11 L/hr)
-
Fuel Consumption (IEC Rating): 1.31 gal/hr (4.96 L/hr)
-
Fuel Consumption (Low Idle): 0.34 gal/hr (1.28 L/hr)
-
Sound Rating @23 ft. (7m): 67 dBA Low Idle, 71 dBA High Idle
-
Ingress Protection Rating: IP23
-
Auxiliary Output Frequency: 60 Hz
-
Auxiliary Output Type (Phase): Single & Three Phase
-
Engine Starting: Manual Glow Plugs; Auto-Stop/Start
-
# of Control Knobs: Single Knob
-
VRD: Yes
-
Welding Controls: Chopper
-
Fuel Type: Diesel
-
Spark Arrestor: Built-in
-
Machines Communication Technology: CrossLinc; USB; Auto-Stop/Start; Digital UI; Wireless Remote
