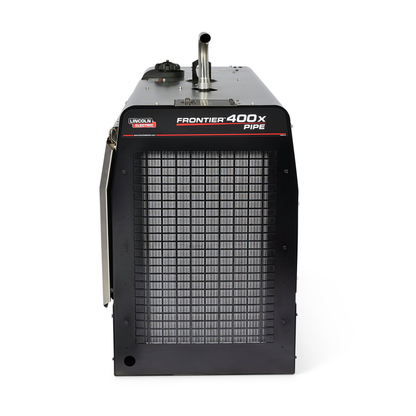

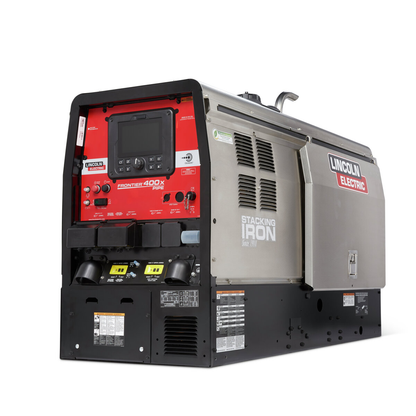

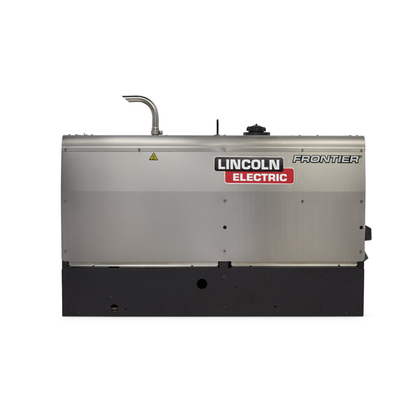

The Frontier® 400X Pipe is an advanced engine-driven welder/generator offering best-in-class arc performance, coupled with the latest welding innovation for maximum versatility on the jobsite. The machine’s multi-process capability provides optimized CC and CV modes, plus specialized modes to support mechanized equipment and advanced GMAW applications including STT® and pulse welding. Included only in the Frontier 400X Pipe is a new, specialized Pipe mode made to produce the classic DC-style arc for downhill pipe applications. The machine features an industry-first, next-gen display with enhanced operator-focused features, such as save and recall weld parameter memories, maintenance reminders, and optional PIN user authorization. Additional features include Auto-Stop/Start technology to help reduce engine idling, save on fuel costs, and avoid excessive wear on the engine, along with CrossLinc® Technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality. Experience the latest in welding innovation!
Features
- All Day Auxiliary Power – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
- CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
- Full Job-Site Versatility – Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Features optimized CC and CV modes, specialized modes to support mechanized and pulse welding, and a dedicated Pipe mode with DigFX™ technology to produce the iconic, smooth DC-style arc for downhill pipe welding.
- Run Longer and More Efficient – Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance.
- Field-Proven Diesel Engine – Powered by a 24.7 hp, turbocharged Perkins® diesel engine to provide extremely smooth and quiet operation with excellent cold-weather starting and high altitude performance while meeting EPA Tier 4 Final compliance.
- Trusted Reliability – Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty.
- Machine Only

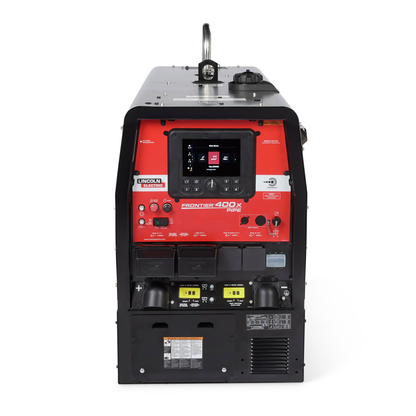

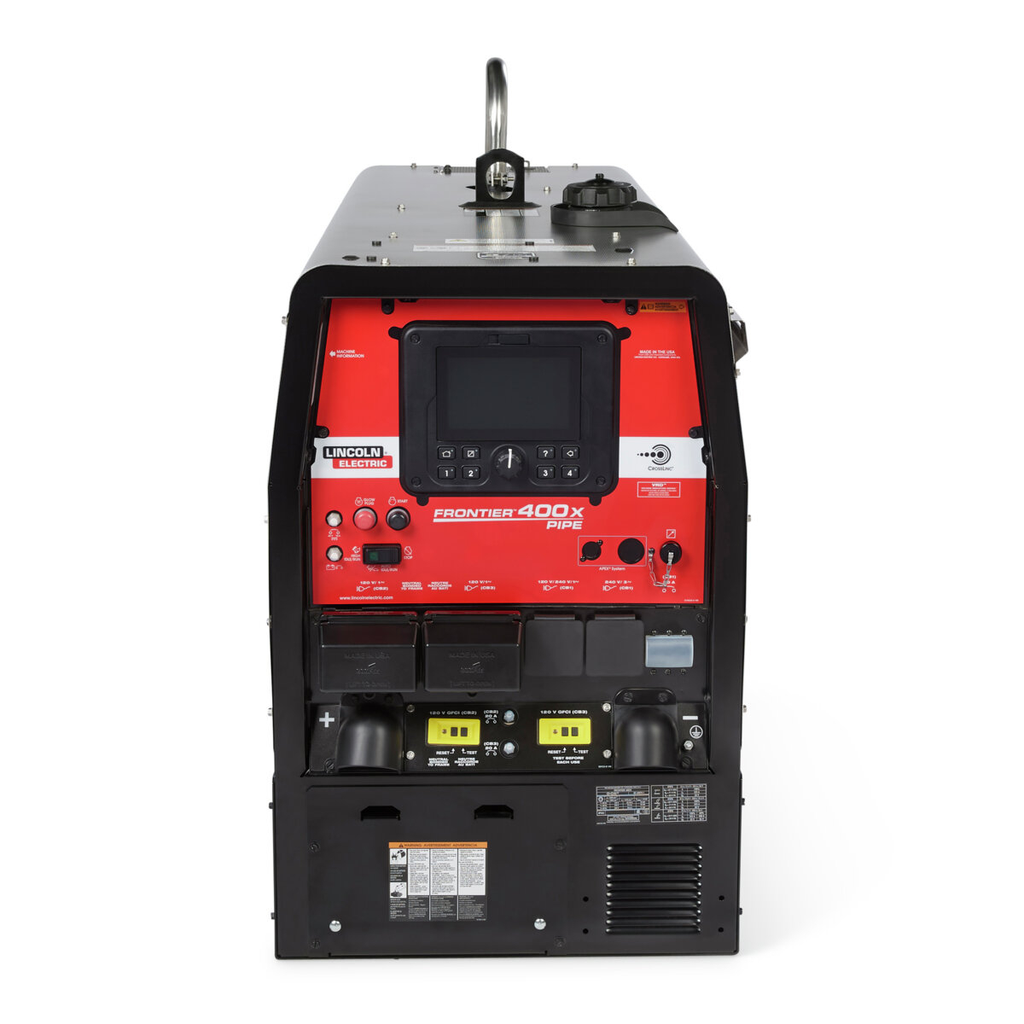

- Next-Gen Display – Bright, durable 7 in. digital user interface for unmatched machine control - Save and recall memories, receive maintenance reminders, and enable PIN authorization.
-
Welding Output Current: 30 - 400 Amps
-
Output Voltage Range MIG/FCAW: 10 - 45 Volts
-
Output Current Range DC TIG: 5 - 400 Amps
-
Output Current Range Arc Gouging: 60 - 400 Amps
-
Open Circuit Voltage: 71 V Peak
-
AC Generator Power Single Phase: 10 kW Continuous, 11.5 kW Peak
-
AC Generator Power Three Phase: 11 kW Continuous, 12.5 kW Peak
-
Auxiliary Power Voltage and Current: 120V/20A, 120/240V/50A, 240V/50A
-
Engine Power: 24.7 hp (18.5 kW)
-
Engine Type: Turbocharged Perkins diesel
-
Engine Cylinders: 3 Cylinder
-
Engine Displacement: 91 cu. in (1.5 L)
-
Fuel Capacity: 20 US gal (75.7 L)
-
Oil Capacity: 5.9 qts (5.6 L)
-
Cooling System Capacity: 1.8 US gal (6.8 L)
-
Operating Speed: High Idle 1800 RPM, Low Idle 1440 RPM
-
Height: 35.9 in
-
Width: 25.3 in
-
Length: 60 in
-
Height to Exhaust Pipe: 43.8 in (1113 mm)
-
Weight: 1035 lbs
-
Compliance: EPA Tier 4 Final
-
Display Size: 7 in digital user interface
-
Welding Modes: Optimized CC and CV, pulse welding, dedicated Pipe mode with DigFX technology
-
Country of Origin: United States
