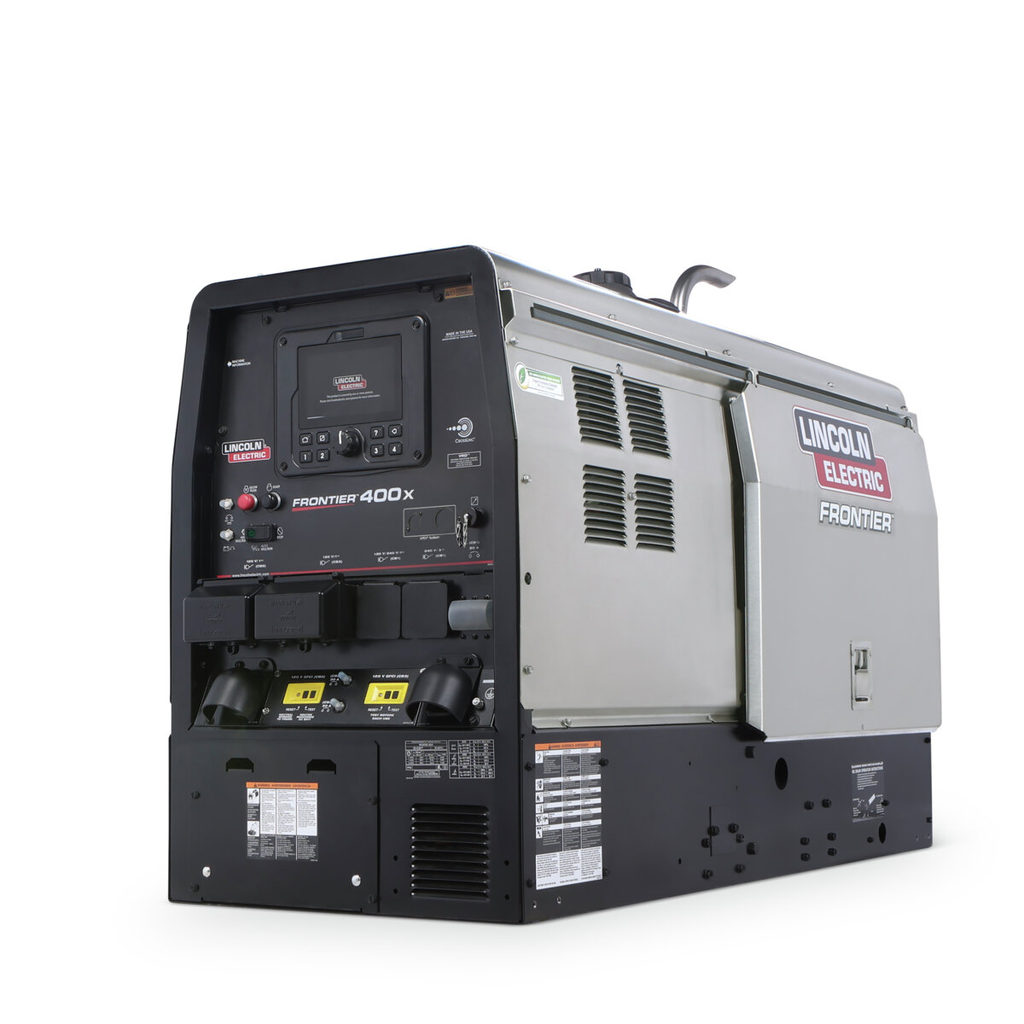

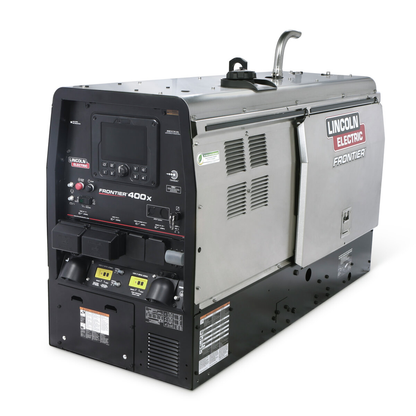

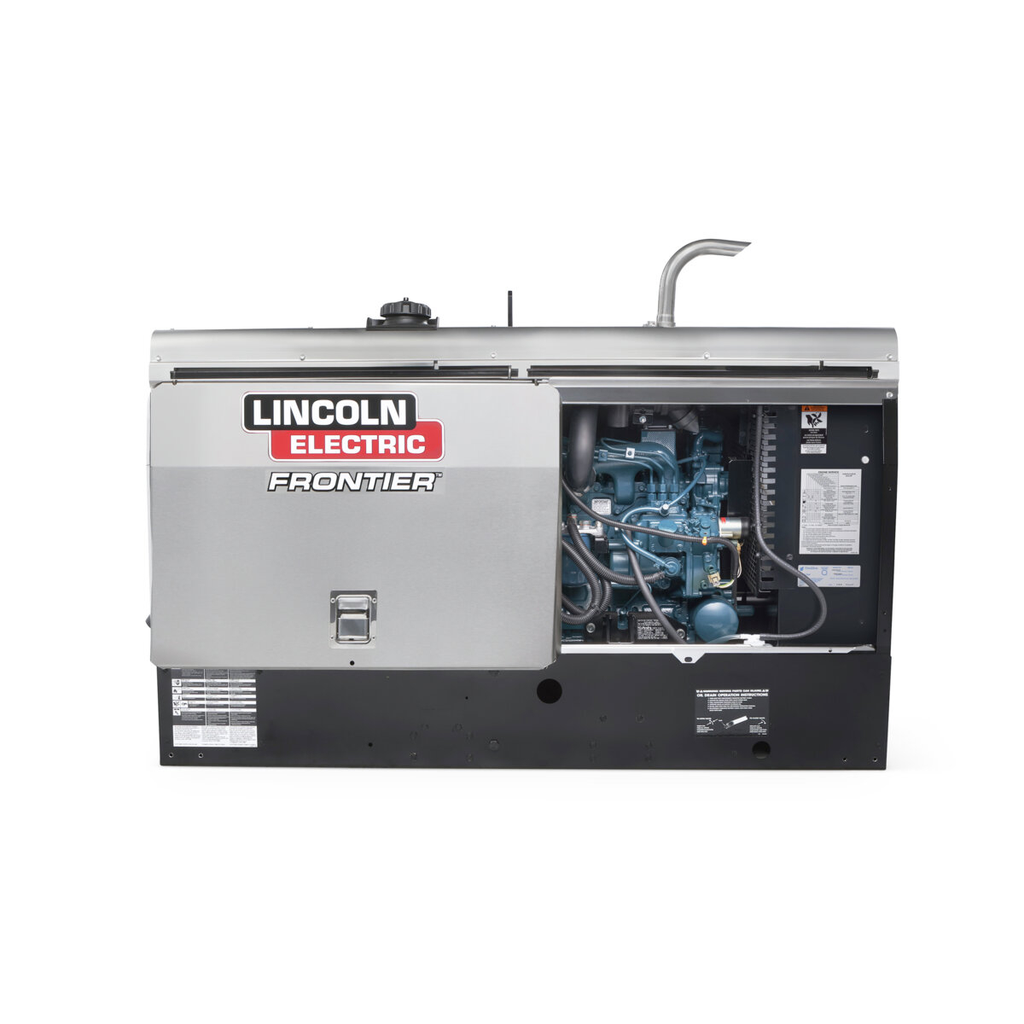

The Frontier® 400X is an advanced engine-driven welder/generator offering best-in-class arc performance, coupled with the latest welding innovation for maximum versatility on the jobsite. The machine’s multi-process capability provides optimized CC and CV modes, plus specialized modes to support mechanized equipment and advanced GMAW applications including STT® and pulse welding. The machine features an industry-first, next-gen display with enhanced operator-focused features, such as save and recall weld parameter memories, maintenance reminders, and optional PIN user authorization. , , Additional features include Auto-Stop/Start technology to help reduce engine idling, save on fuel costs, and avoid excessive wear on the engine, along with CrossLinc® Technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality. Experience the latest in welding innovation!
Features
- Run Longer and More Efficient – Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance.

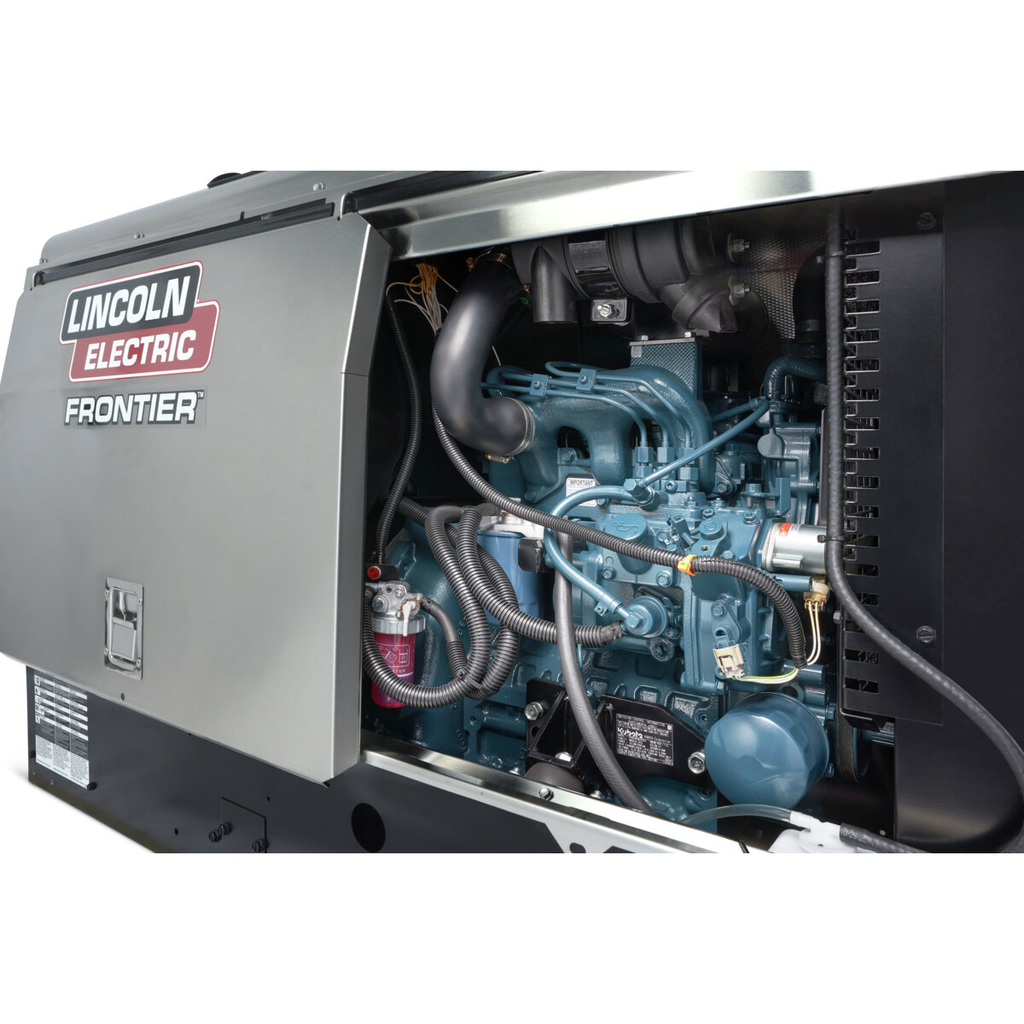

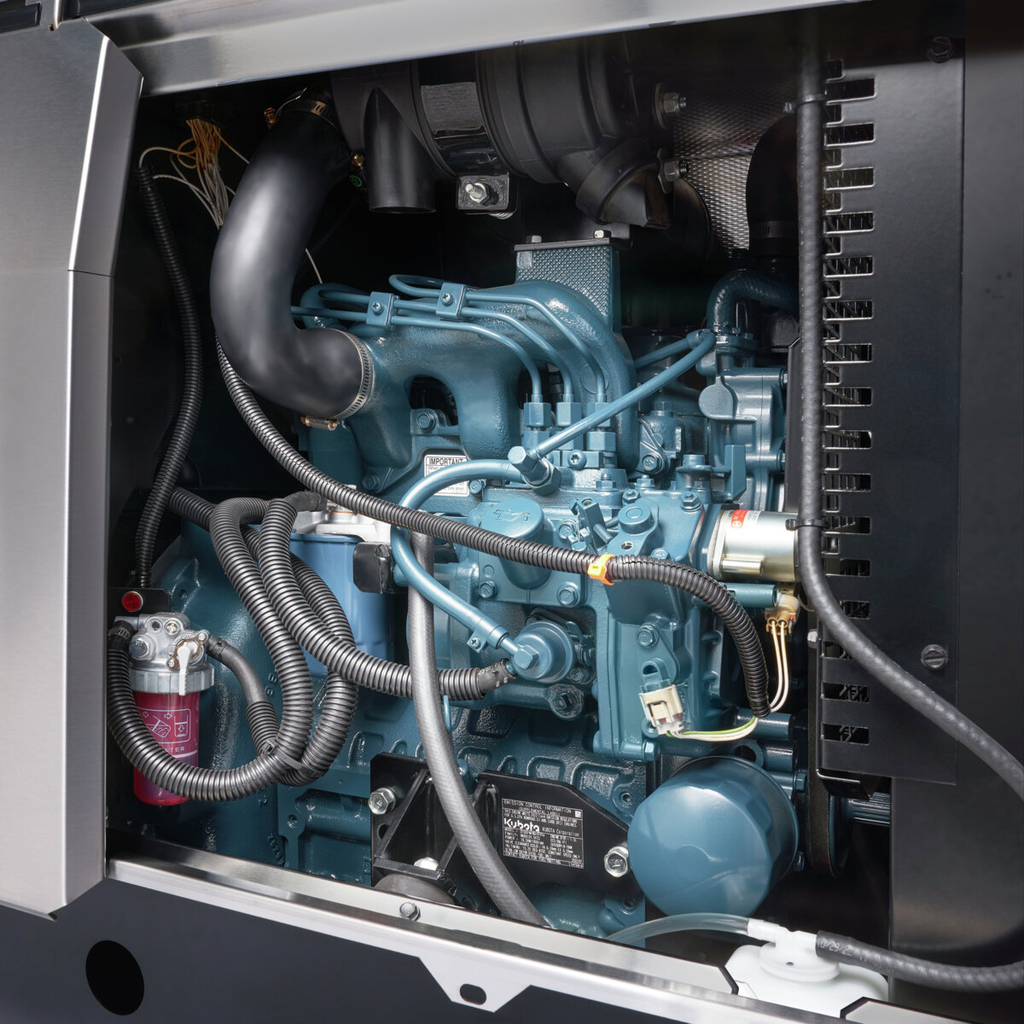

- Field-Proven Diesel Engine – Powered by a 24.8 hp, naturally aspirated Kubota® diesel engine to provide extremely smooth and quiet operation while meeting EPA Tier 4 Final compliance.
- Trusted Reliability – Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty.
- CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
- Full Job-Site Versatility – Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Includes six optimized CC and CV modes, plus advanced modes to support pulsed TIG, pulsed MIG, STT®, and mechanized equipment.
- All Day Auxiliary Power – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.

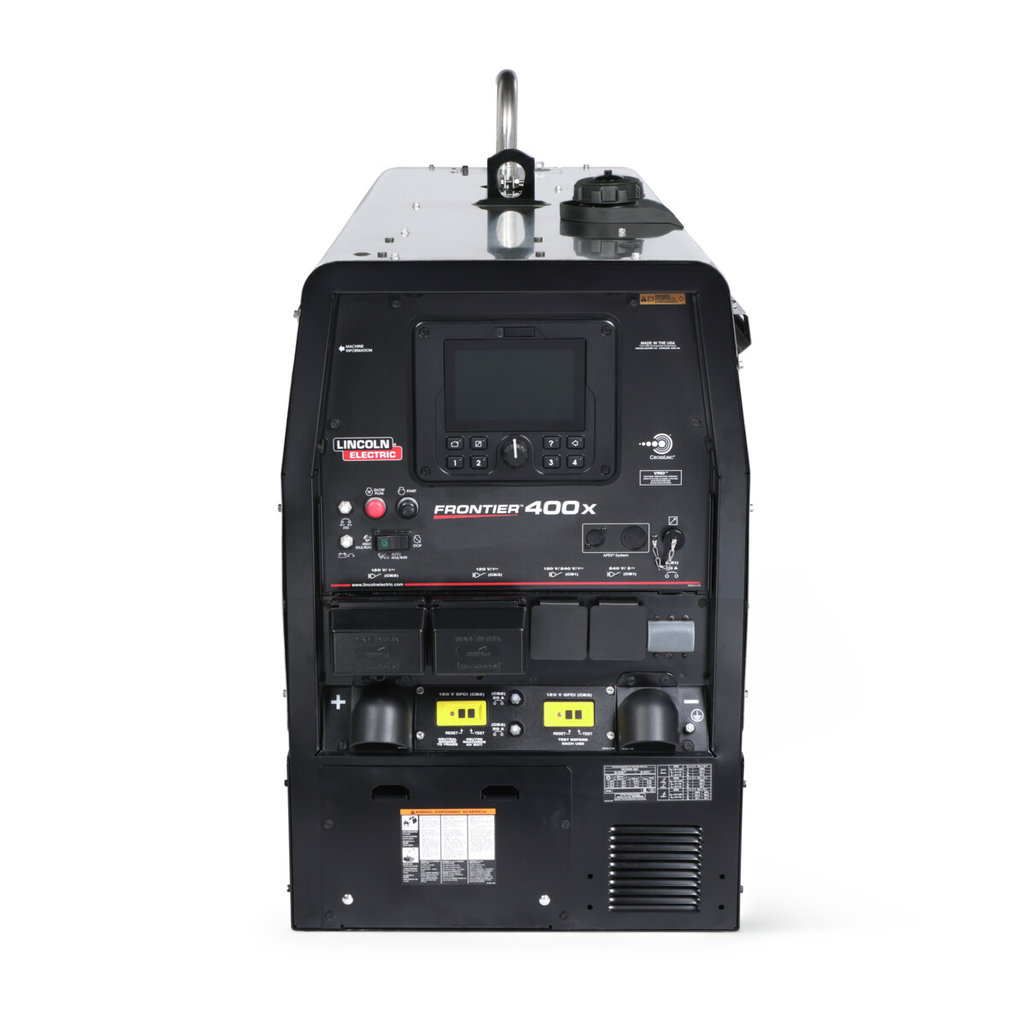

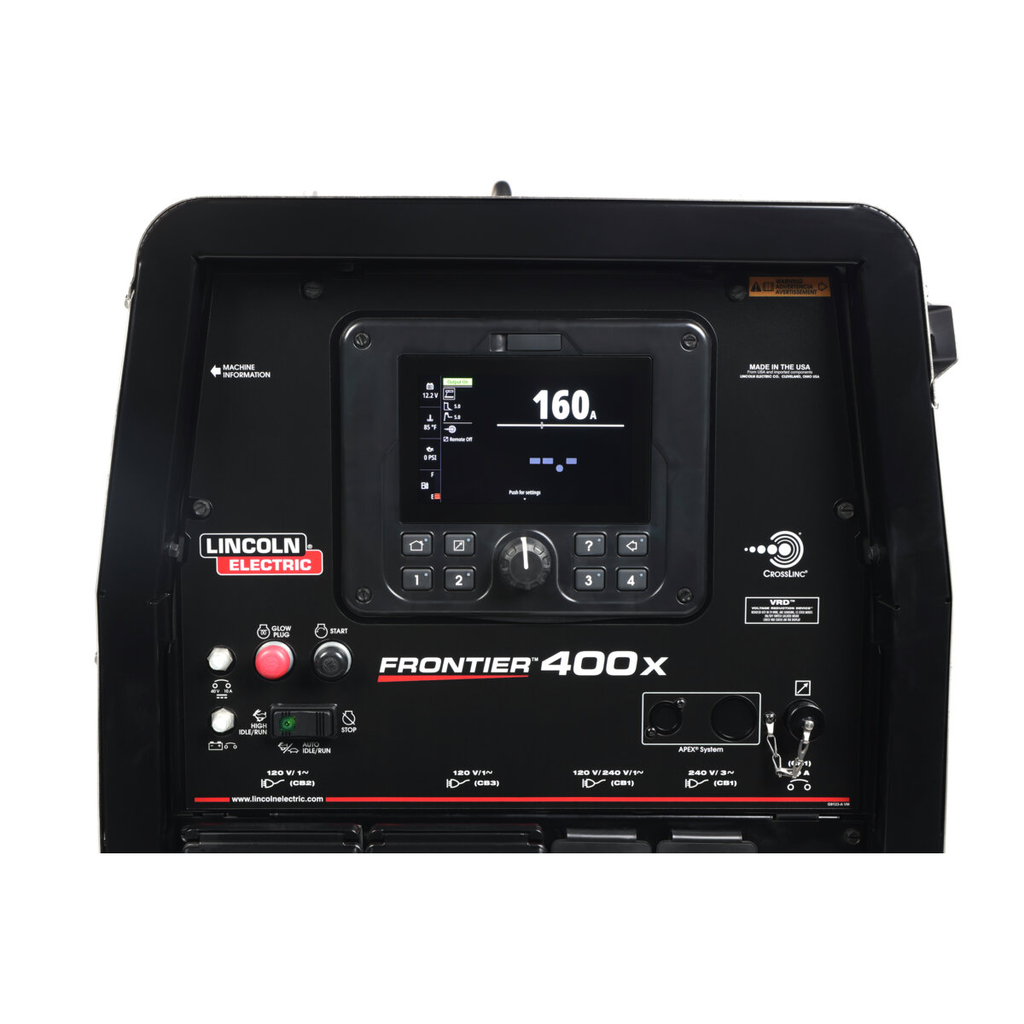

- Next-Gen Display – Bright, durable 7 in. digital user interface for unmatched machine control - Save and recall memories, receive maintenance reminders, and enable PIN authorization.
What's Included?
-
Amperage: 400A Max, 325A IEC rated
-
Welding Current Range: Stick/Pipe: 30-400 A, DC TIG: 5-400 A, MIG/FCAW: 10-45 V, Arc Gouging: 60-400 A
-
Open Circuit Voltage: 71 V Peak at 1800 RPM
-
Auxiliary Power: 11 kW Continuous / 12.5 kW Peak, 240V 3-Phase; 10 kW Continuous / 11.5 kW Peak, 120/240V Single Phase @ 60 Hz
-
Engine Model: Kubota D1503-M
-
Engine Type: 3 Cylinder Naturally Aspirated Water Cooled Diesel
-
Engine Power: 24.8 hp (18.5 kW)
-
High Idle Operating Speed: 1800 RPM
-
Low Idle Operating Speed: 1440 RPM
-
Fuel Capacity: 20 US gal (75.7 L)
-
Fuel Consumption (High Idle): 0.56 gal/hr (2.11 L/hr)
-
Fuel Consumption (IEC Rating): 1.31 gal/hr (4.96 L/hr)
-
Fuel Consumption (Low Idle): 0.34 gal/hr (1.28 L/hr)
-
Oil Capacity: 6.4 qts (6.0 L)
-
Cooling System Capacity: 1.8 US gal (6.8 L)
-
Dimensions (L x W x H): 35.9 x 25.3 x 60.0 in (913 x 643 x 1524 mm)
-
Height to Top of Exhaust Pipe: 43.8 in (1113 mm)
-
Weight: 1035 lb (469 kg)
-
Ingress Protection Rating: IP23
-
Compliance: EPA Tier 4 Final
-
VRD: Yes
-
Output Meters: Screen Display
-
Jumper Terminals: No
-
Tap or Continuous Control: Continuous
-
Machines Communication Technology: CrossLinc
-

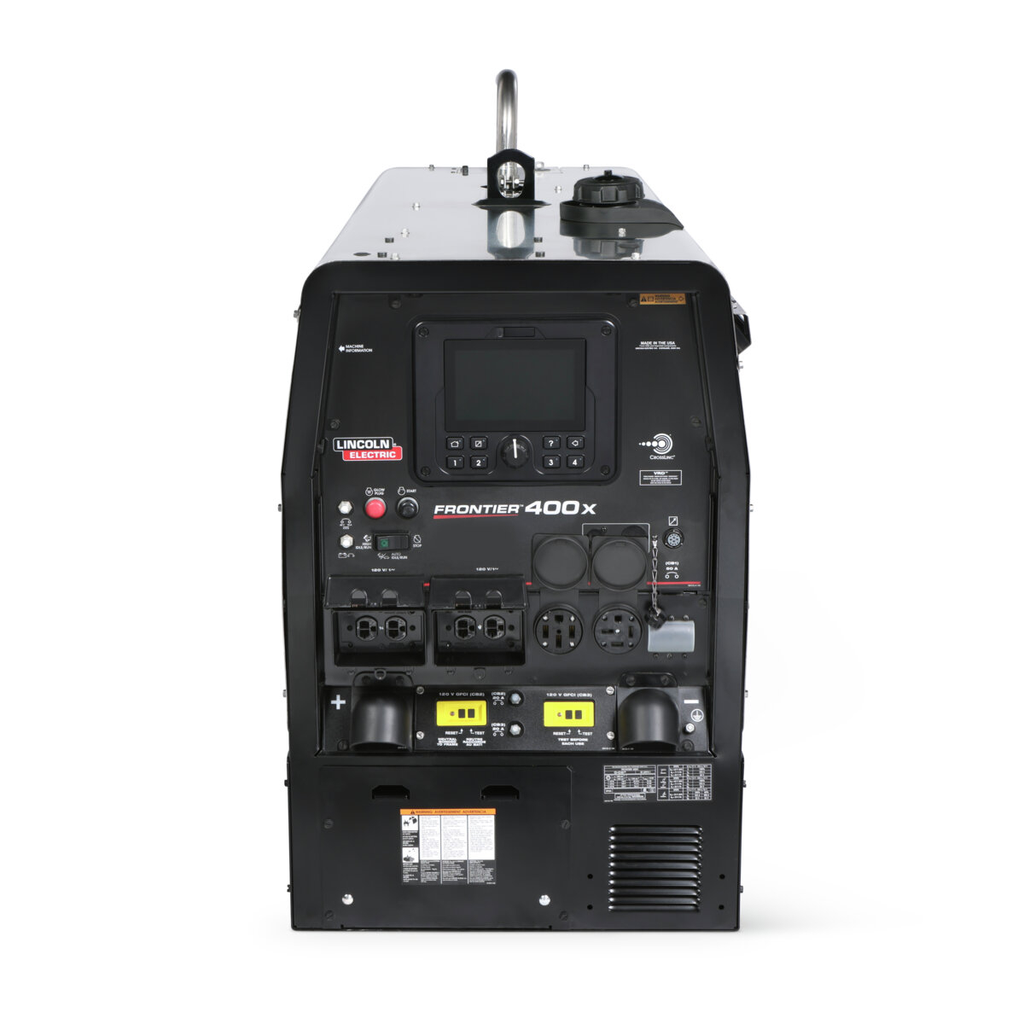

Receptacle Types: NEMA 5-20R; NEMA 14-50R; NEMA 15-50R
-
Output Polarity: DC
-
Output Icon: DC; CC/CV
-
Engine Cooling: Water
-
Remote Control Options: Wireless; CrossLinc; Wired
-
Welding Technology: Inverter/Chopper
-
Rated Gouging Carbon Diameter: 5/16 in (8.0 mm)
-
Engine Description: 3 Cylinder Naturally Aspirated Water Cooled Diesel
-
Fuel Type: Diesel
-
Equipment Technologies: CrossLinc; USB; Auto-Stop/Start; Digital UI; Wireless Remote
-
Max Rating: 400A / 26V / 60% Duty Cycle @ 104 F (40 C)
-
Sound Rating: 67 dBA at Low Idle, 71 dBA at High Idle @ 23 ft (7m)
-
Emissions Rating: US EPA Tier 4 Final
-
Engine Protections: High Temp Shutdown
-
Engine Starting: Manual Glow Plugs; Auto-Stop/Start
-
Engine Cylinders: 3
-
Auxiliary Output Type (Phase): Single and Three Phase
-
Single Phase Auxiliary Output: 10,000 W Continuous / 11,500 W Peak, 120/240V
-
Three Phase Auxiliary Output: 11,000 W Continuous / 12,500 W Peak, 240V
-
Case Type: Stainless
-
Country of Origin: United States
-
User Interface Type: Display Screen
-
Output Mode: CC/CV
