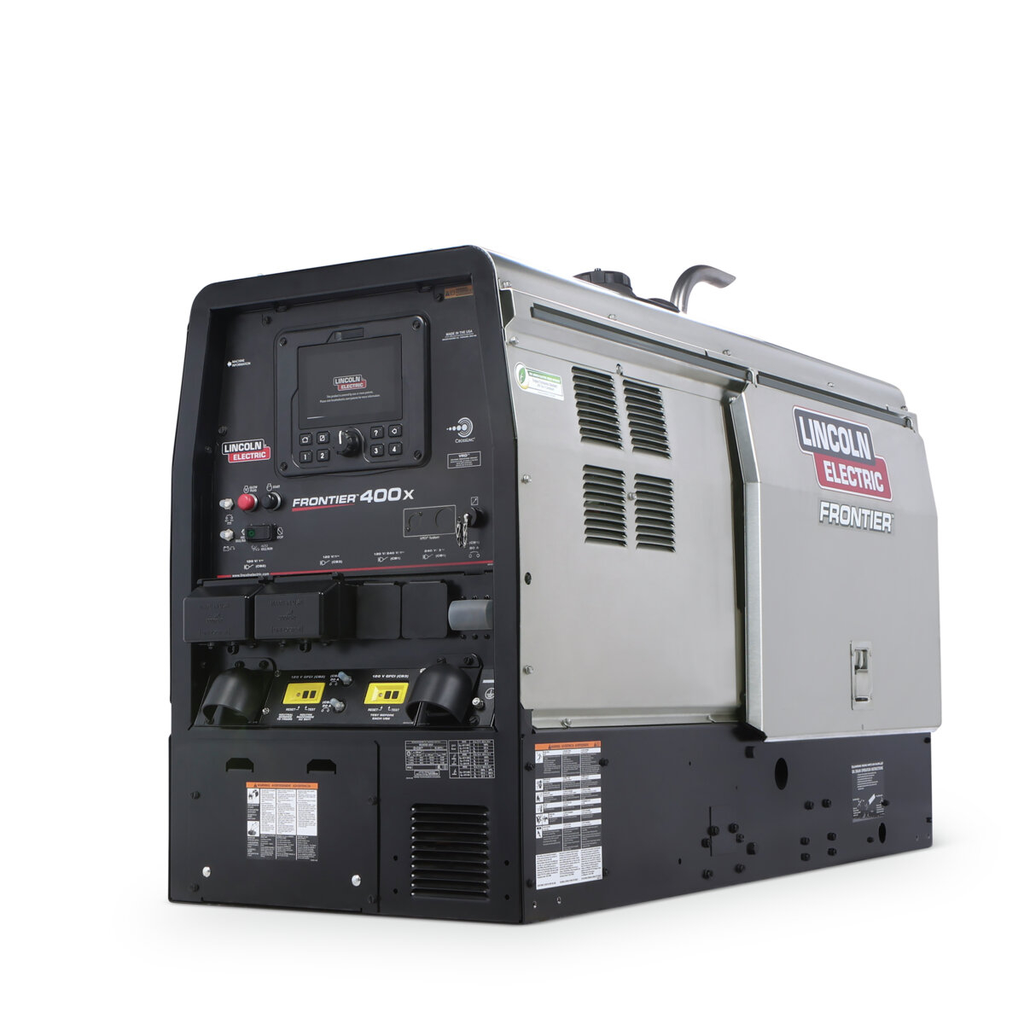

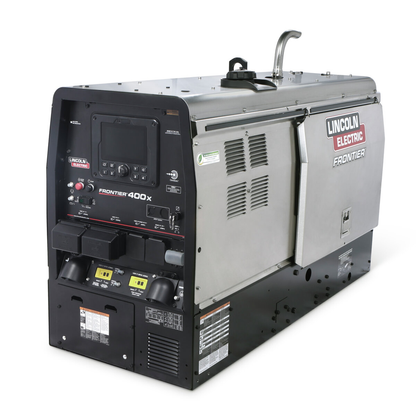

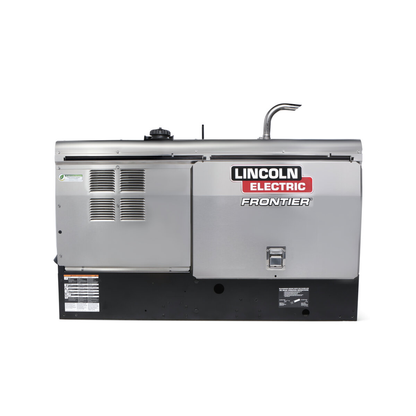

The Frontier® 400X is an advanced engine-driven welder/generator offering best-in-class arc performance, coupled with the latest welding innovation for maximum versatility on the jobsite. The machine’s multi-process capability provides optimized CC and CV modes, plus specialized modes to support mechanized equipment and advanced GMAW applications including STT® and pulse welding. The machine features an industry-first, next-gen display with enhanced operator-focused features, such as save and recall weld parameter memories, maintenance reminders, and optional PIN user authorization. Additional features include Auto-Stop/Start technology to help reduce engine idling, save on fuel costs, and avoid excessive wear on the engine, along with CrossLinc® Technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality. Experience the latest in welding innovation!
Features

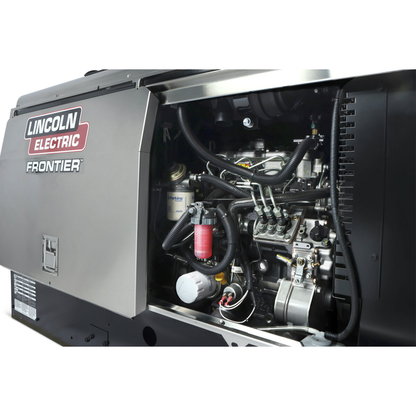

- Field-Proven Diesel Engine – Powered by a 24.7 hp, turbocharged Perkins® diesel engine to provide extremely smooth and quiet operation with excellent cold-weather starting and high altitude performance while meeting EPA Tier 4 Final compliance.
- All Day Auxiliary Power – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
- Machine Only
- Full Job-Site Versatility – Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Includes six optimized CC and CV modes, plus advanced modes to support pulsed TIG, pulsed MIG, STT®, and mechanized equipment.
- CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.

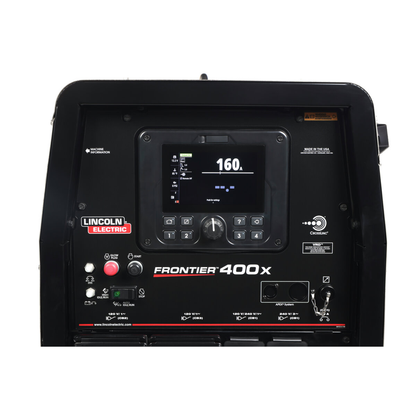

- Next-Gen Display – Bright, durable 7 in. digital user interface for unmatched machine control - Save and recall memories, receive maintenance reminders, and enable PIN authorization.
- Trusted Reliability – Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty.
- Run Longer and More Efficient – Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance.
-
Amperage: 400A (Max), 325A (IEC Rated)
-
Engine Power: 24.7 hp, turbocharged Perkins Diesel
-
Auxiliary Power: 11 kW three-phase continuous
-
Voltage Range: 10-45 V (MIG/FCAW), 71 V open circuit
-
Welding Output Range: 5-400 Amps (TIG), 30-400 Amps (Stick/Pipe)
-
Operating Modes: CC, CV, pulsed TIG, pulsed MIG, STT , mechanized
-
Fuel Tank Capacity: 20 US gal (75.7 L)
-
Length: 60 in
-
Width: 25.3 in
-
Height: 35.9 in
-
Weight: 1035 lb
-
Display Size: 7 in digital
-
Country of Origin: United States
-
Compliance: EPA Tier 4 Final
-
Auto-Stop/Start: Yes
-
CrossLinc Technology: Voltage/current control at arc without control cable
-
Warranty: 3 years
