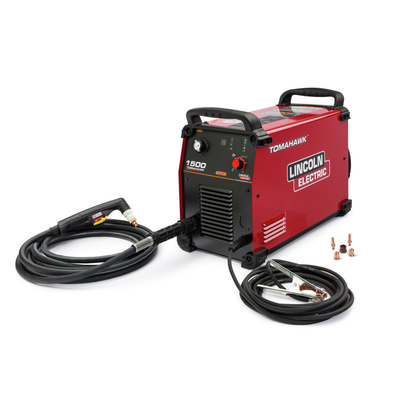

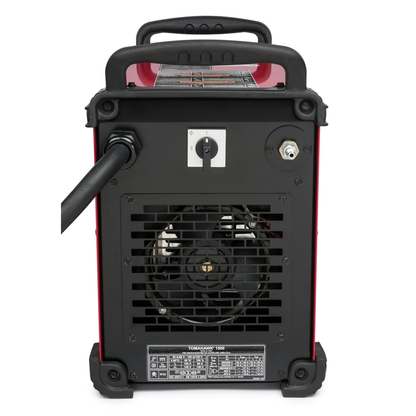

Lincoln Electric, K3477-1, Plasma Cutter, 100 A, DC Output, Hand Torch Included, 25 ft

Heavy-Duty, 100 Amps - If you’re cutting fine artwork or fabricating steel parts in a production setting, you will need a plasma machine that will give you the cleanest and fastest cuts possible. Heavy duty at 100 amps, 60% Duty Cycle, the Tomahawk® 1500 plasma cutting power source brings power and flexibility to hand-held torch cutting applications.

Features

• IP23 rating makes Tomahawk 1500 rugged enough for use outdoors as well as indoors.
• Built-on a proven inverter platform, the Tomahawk 1500 is a constant current, plasma cutting power source that delivers faster cut speeds, optimal cut performance, and durability.
• Tomahawk 1500 is designed to deliver. When you’re cutting up to 1 1/4 in. (31.8 mm) material in a hand-held application, you can count on excellent cut quality with faster cutting speeds as compared to oxy-fuel cutting.
• The air regulator and pressure gauge are standard features, and the accompanying hand-held torch and consumable starter kit enables the user to get started right out of the box.
• Tomahawk initiates the plasma arc with a simple yet reliable touch-start mechanism that eliminates many of the failure problems associated with high-frequency start systems.
• The control system includes a Parts-in-Place™ feature to ensure that the consumables are in place before the cutting or gouging process can be initiated.

What's Included?

• (1) K2809-1 Tomahawk 1500 Plasma Cutter, (1) K2849-1 LC105 Hand Torch - 25 ft, (1) KP4141-1 Electrode, (1) KP4141-7 Nozzle 100A, (1) KP4141-9 Swirl Ring, (1) KP4141-8 Retaining Cap (Contact), (1) KP4141-16 Drag Shield Cap 100A, (1) Air Regulator and Pressure Gauge, (1) Internal Water Separator, (1) Work Clamp and 25 ft Cable, (1) Input Power Cord, (1) KP4141-20 LC105 Torch Consumable Starter Kit

• Amperage: 100A
• Input Voltage: Engine
• Input Phase: 1Ph; 3Ph; 1Ph/3Ph
• Input Frequency: 50/60 Hz
• Output Polarity: DC
• Cut Capacity: 1-1/4 in (31.8 mm)
• Severance Capacity: 1-1/2 in (38.1 mm)
• Gas Pressure Required: 87 to 109 PSI (6.0-7.5 Bar)
• Gas Flow Rate: 380 SCFH @ 80 PSI, 180 SLPM @ 5.5 Bar
• Height: 17.9 in (455 mm)
• Width: 11.8 in (301 mm)
• Length: 25.4 in (645 mm)
• Weight: 50.023 lb (22.7 kg)
• Torch Lead Length: 25 ft (7.6 m)
• Cooling: Air
• Torch Included: Yes
• Work Clamp Included: No
• Country of Origin: United States
