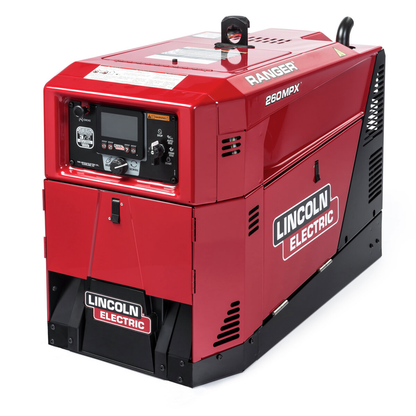

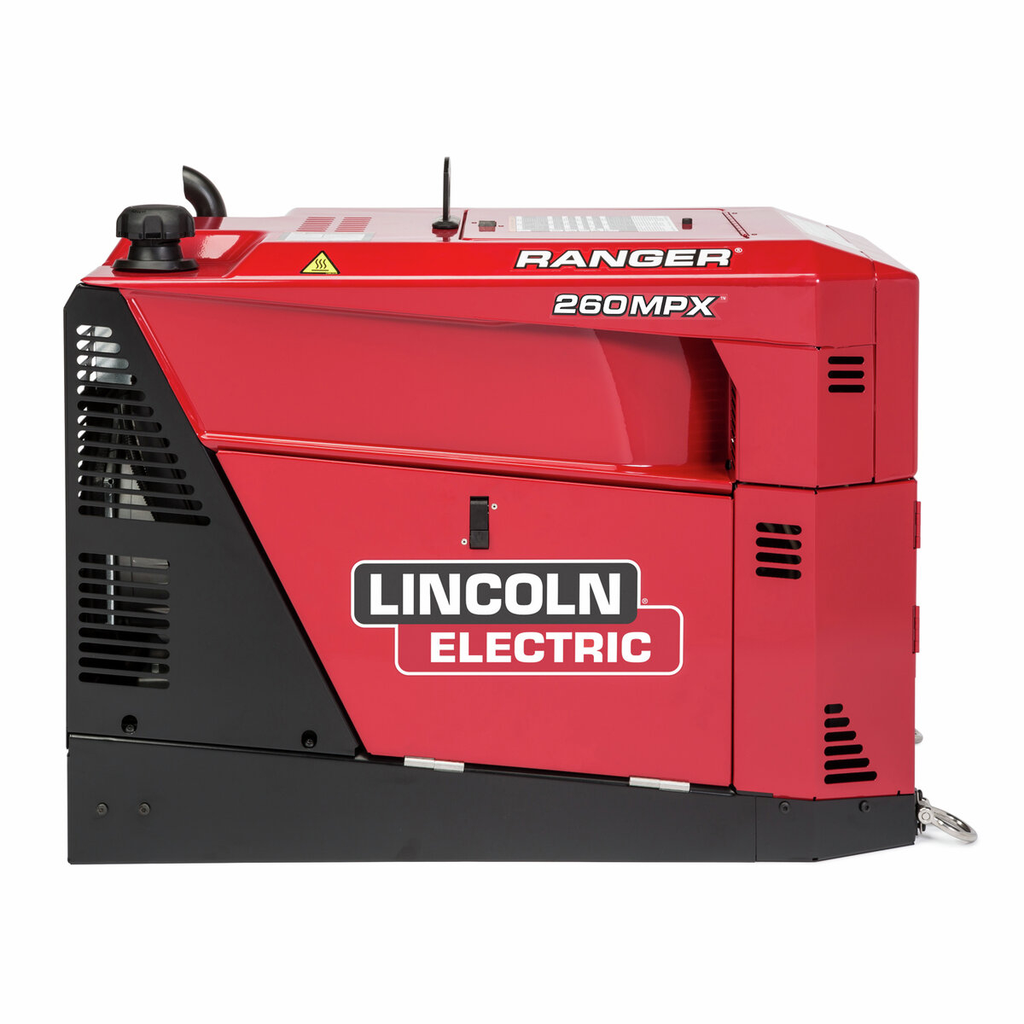

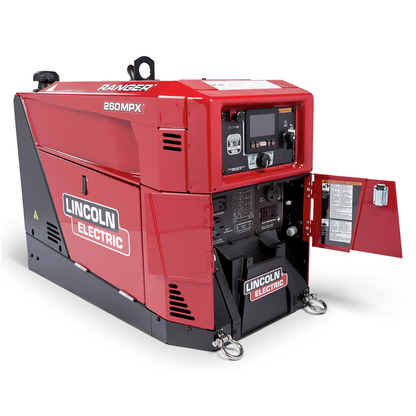

Lincoln Electric, K3458-1, Engine Driven Welder/Generator, Gas, 260A, 23.5 HP, 9.5kW AC Output

DO MORE WITH LESS. The Ranger® 260MPX™ engine driven welder/generator excels on the job. The unit’s industry-leading design makes it smaller, lighter and quieter than other machines in its class, while an intuitive user interface with advanced technology helps simplify operation and improve arc control. You can also count on a reliable source of clean generator power to run a variety of tools and sensitive equipment.

Features

• Industry-Leading Design - The Ranger 260MPX welder/generator is smaller and quieter compared to other machines in its class. Up to 20% smaller meaning more space for additional tools. Up to 25% lighter for easy maneuverability around the jobsite. And, up to 60% quieter for reduced noise level helps enhance safety and comfort.
• Clean AC Generator Power

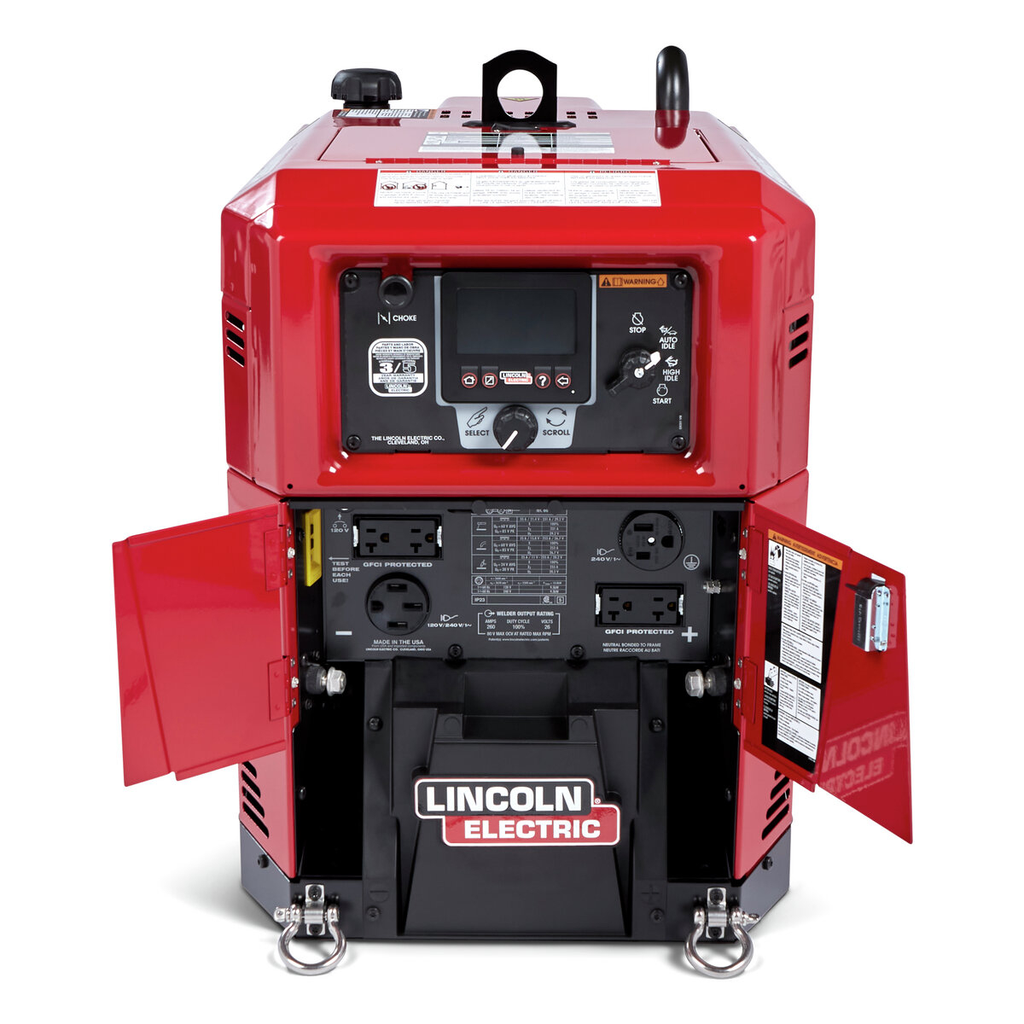

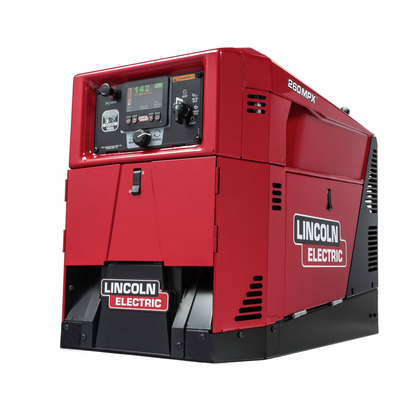

• Innovative User-Interface + Advanced Technology - Easy-to-read digital screen with simple push-and-turn controls. Ready.Set.Weld® technology simplifies setup with recommended settings. The Chopper Technology® feature helps improve arc control CrossLinc® remote technology allows for arc adjustments at the weld. Maintenance alerts keep you informed when service is needed.
• Clean Generator Power - 9.5kW of clean AC generator power accommodates a variety of tools and equipment. Operate sensitive electronics, like laptops, without concern - this unit delivers clean generator power with 5% Total Harmonic Distortion. Run generator power and weld at the same time, without interruption.

What's Included?

• (1) Ranger 260MPX Engine Driven Welder

• Output Current: 260A DC
• Output Voltage: 26V DC
• Duty Cycle: 100% @ 104 F (40 C)
• Generator Power Continuous: 9,500 Watts @ 120/240V
• Generator Power Peak: 10,000 Watts
• Engine Horsepower: 23.5 HP @ 3600 RPM

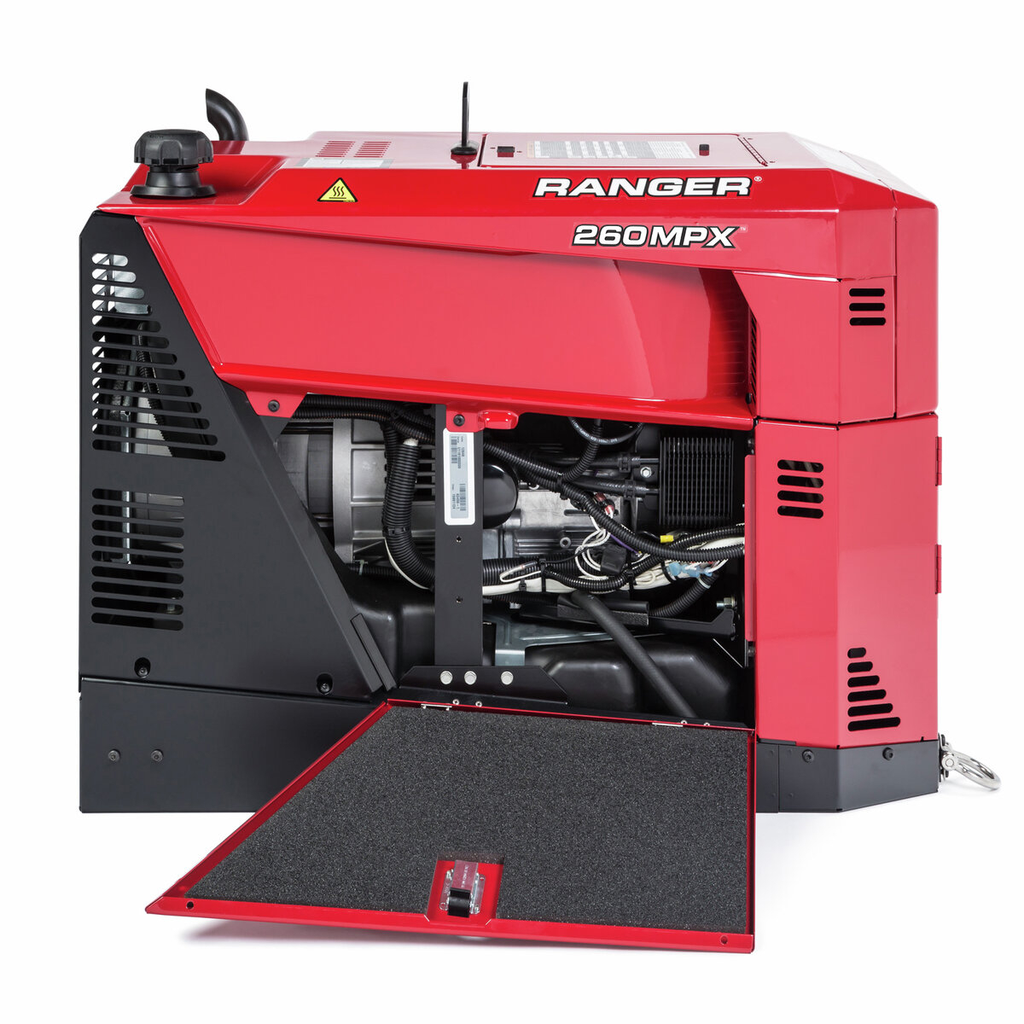

• Engine Model: Kohler OHV Command CH730 Gasoline, 2 Cylinder, Air-Cooled
• Fuel Type: Gasoline
• Fuel Capacity: 11 gal (41.6 L)
• Fuel Consumption Low Idle: 0.6 gal/hr (2.1 L/hr)
• Fuel Consumption High Idle: 0.8 gal/hr (3.1 L/hr)
• Fuel Consumption Full Load: 1.6 gal/hr (6.1 L/hr)
• Oil Capacity: 0.5 gal (1.9 L)
• Output Mode: CC; CV; CC/CV
• Welding Technology: Inverter/Chopper
• Weld Modes: Downhill Pipe; Touch Start TIG; CC-Stick; CV-Wire; Spool Gun

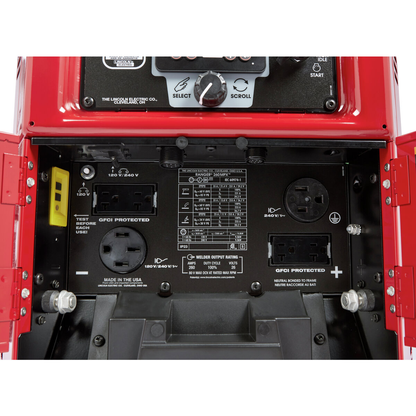

• Receptacle Types: NEMA 5-20R; NEMA 6-50R; NEMA 14-50R
• Dimensions: 36 x 20 x 26 in (914 x 508 x 660 mm)
• Weight: 446 lb (202 kg)
• Noise Level: 74.7 dBA
• Operating Speed: 3600 RPM full load
• Engine Controller: Mechanical
• Engine Type: Carburetor
• Cooling: Air
• IP Rating: IP23
• Welding Controls: Chopper
• Output Polarity: DC
• Auxiliary Output Voltage: 120V; 240V
• Auxiliary Output Frequency: 60 Hz
• Auxiliary Output Type (Phase): Single Phase (1)
• IEC Rating: 231A / 29.2V / 100% @ 104 F (40 C)
• Warranty Length: 3 Years Parts and Labor; Engine warranted separately
• Country of Origin: United States
