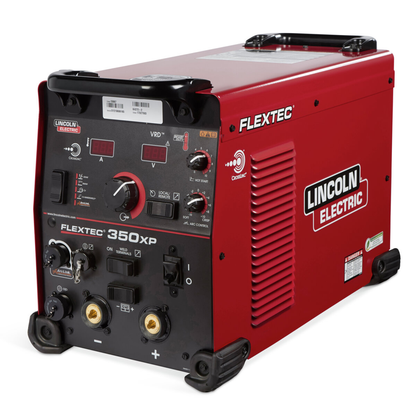

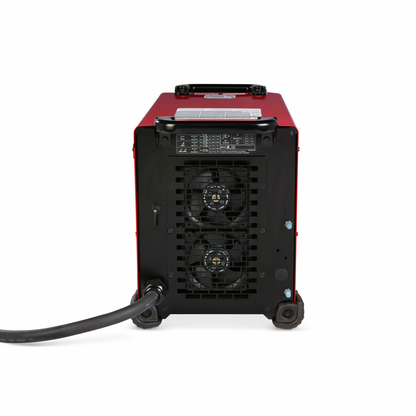

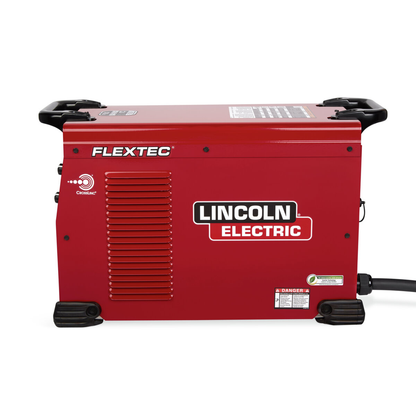

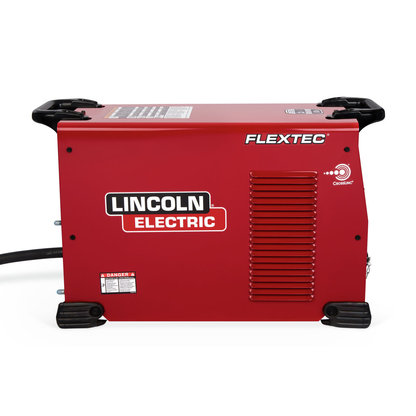

Lincoln Electric, K3442-2, Welding Machine, 350A; 3Ph; ArcLink/CrossLinc; Inverter/Chopper

The Flextec 350XP model is everything the 350X Construction model is and more. The 350XP model is not only portable and powerful, it is also even more flexible. With standard amphenol connections supporting most Lincoln Electric wire feeders, the Flextec 350XP is capable of supporting most arc welding processes. This new model 350XP now also suports Pulsed MIG welding processes when combined with a supporting Lincoln digital ArcLink wire feeder such as a Power Feed 84.

Features

• Supports 14-pin and 5-pin (ArcLink) wire feeders as well as CrossLinc and Across-the-Arc
• Includes CrossLinc Technology
• Twist Mate / Dinse welding output connections
• Reliable - Components designed to run cool for long life in high temperature environments
• Pulsed MIG modes unlocked when paired with a compatible Arclink capable feeder.
• Flexible - Compatible with across-the-arc, CrossLinc™, 14-pin analog and 5-pin digital wire feeders
• Simple - Streamlined operator panel minimizes setup time

What's Included?

• (1) Flextec 350XP (Twist Mate), (1) 8.5 ft (2.6 m) Input Power Cord

• Rated Output: 350A/34V/60%, 300A/32V/100%
• Output Range: 5-425A
• Duty Cycle: 100%
• Input Power: 380-575V, 3-Phase, 50/60 Hz
• Input Current @ Rated Output: 23/20/21A
• Input Phase: 3 Phase
• Input Hertz: 50/60 Hz
• Height: 17 in (432 mm)
• Width: 13 in (330 mm)
• Length: 24 in (609 mm)
• Weight: 82 lb (37.1 kg)
• Work Lead Connector Type: Dinse
• Wire Feeder Compatibility: 14-pin analog, 5-pin ArcLink, CrossLinc, Across-the-Arc
• Welding Processes Supported: Stick (SMAW), TIG (GTAW), MIG (GMAW), Pulsed MIG (with ArcLink feeder), Flux-cored, Gouging
• Data Technologies: USB
• Machines Communication Technology: CrossLinc; ArcLink
• Machines Processes: Stick, Flux-Cored, TIG, MIG, Pulsed MIG, Flux-Cored Self-Shielded, Flux-Cored Gas-Shielded
• Technology Features: CrossLinc Technology, Pulsed MIG modes (with compatible ArcLink feeder)
• Welding Technology: Inverter/Chopper
• Polarity: DC
• Output Polarity: DC
• Wire Feeder Supply Voltage: 40 VDC
• Maximum Open Circuit Voltage: 80 V DC
• Ingress Protection Rating: IP23
• Country of Origin: United States
• Temperature Rating at Rated Output: 55 C
• Tap or Continuous Control: Continuous
• Warranty Length: 3 Years
