Lincoln Electric, K3438-3, Welding System, 350A Rated Output, 3-Phase Input Power, MIG; TIG; Stick; Flux-Cored

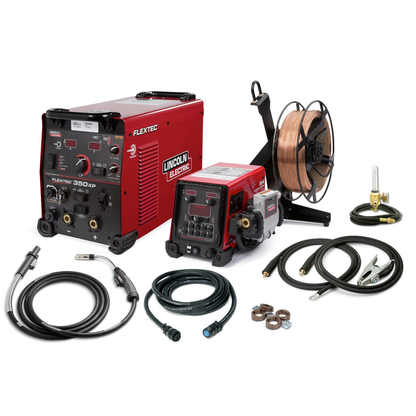

The Flextec 350XP and Power Feed 84 One-Pak includes all of the features of the 350XP power source and the Power Feed model wire feeder along with the needed work and power leads, shielding gas regulator and Lincoln Electric's most durable and ergonomic HDE weld gun. All of this in a single easy to order part number. The 350XP along with the digital ArcLink Power Feed 84 wire feeder makes a system capable of supporting Pulsed MIG wleding. This is the perfect solution when your needs are basic CV or Pulsed MIG in a fabrication shop setting.

What's Included?

• 8.5 ft. (2.6m) input power cord

Features

• Ultimate process flexibility. Supports MIG, TIG, Stick, Flux cored and Carbon Carbon Arc Gouging
• Includes memory storage locations.
• Power Feed 84 feeder system unlocks built in pulse programs for carbon steel stainless steel, metal core and aluminum
• Proven Reliability. Based on the same proven platform as the previous Flextec machines and lab and field tested to perform in extreme environments

• Rated Output: 350A/34V/60%, 300A/32V/100%
• Output Range: 5-425A
• Max Rated Output Capable: 500A
• Max Rating: 425A
• Input Voltage: 380-575V AC, 3 Phase, 50/60 Hz
• Input Current: 18/17/17, 26/23/18 A
• Input Power: 380/460/575V, 3 Phase
• Max Open Circuit Voltage: 80V DC
• Duty Cycle: 60%, 100%
• Dimensions: 17 x 13 x 23 in (432 x 330 x 584 mm)
• Weight: 82 lb (37 kg)
• Length: 23 in (584 mm)
• Width: 13 in (332 mm)
• Height: 17 in (432 mm)
• Cable Length: 8.5 ft (2.6 m)
• Wire Feeder Model: Power Feed 84
• Feeder Type: Bench
• Configuration: Single
• Feedhead Configuration: Single
• Polarity: DC
• Number of Driven Rolls: 4 rolls
• Gun Bushing: Tweco #2-#4
• Power Source to Feeder Communication Connector Type: 14-pin
• Communication Technology: ArcLink
• Machines Communication Technology: analog, digital, CrossLinc, ArcLink
• Input Phase: 3
• Input Hertz: 50/60 Hz
• Max Spool Diameter: 60 lb (30 kg)
• Country of Origin: United States
• Processes: Stick, Gouging, Flux-Cored, TIG, MIG, Pulsed MIG, Flux-Cored Self-Shielded, Flux-Cored Gas-Shielded
• Pulse Programs: Built-in for carbon steel, stainless steel, metal core, aluminum
• MIG Pulse: No
• Sample MIG Wire Included: No
• Sample Flux Wire Included: No
• Work Clamp Included: No
• Contact Tips Included: No
• Warranty Length: 3 Years
• Arclink Connector: Yes
• Work Lead Connector Type: Tweco
