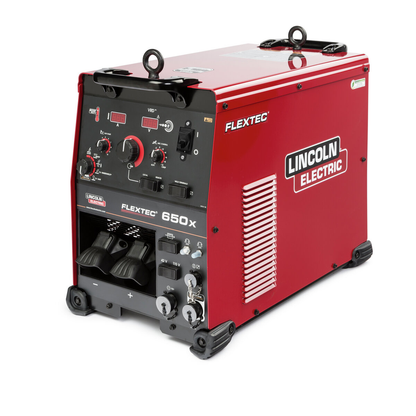

Lincoln Electric, K3425-1, Multi-Process Welder, 10-815A Output, 3 Ph Input, CrossLinc Technology, 750A Rated Output

SIMPLEUse with a wide range of available 3 phase input powerEasy one-knob process selectionFast arc response means smooth arc action and consistent bead appearanceUser weld schedule memory storage allows easy recall of your critical or often repeated weld procedures with applicable feeders (User weld schedule memory settings available only with Power Feed® and Flex Feed® 84 wire feeders) Synergic one knob control over wire feed speed and voltage with applicable feeders (Synergic control available only with Power Feed wire feeders) RELIABLEComponents designed to run cool for long life in high temperature environmentsEngineered for outdoor use and harsh environments (IP23 rated)Desert Duty® Rated for extreme temperatures up to 55⁰CFLEXIBLEIdeal for large diameter wire or stick welding on thick materialsCompatible with most Lincoln Electric® feeders, including common bench and boom models, portable across-the-arc models and CrossLinc™ or ArcLink®-equipped modelsPremium multi-process arc characteristics on all DC wire, stick and TIG processesCROSSLINC™ TECHNOLOGY COMPATIBILITYFull functionality without control cablesEnables remote procedure setting at the feeder to improve weld qualityIncreases arc time with fewer trips to the power source to adjust settingsImproves safety by reducing jobsite clutterCrossLinc compatible accessory required.

Features

• Easy one-knob process selection
• Up to 800A of output
• Ideal for large diameter wire or Stick welding on thick materials
• Components designed to run cool for long life in high temperature environments
• Use with a wide range of available 3 phase input power

What's Included?

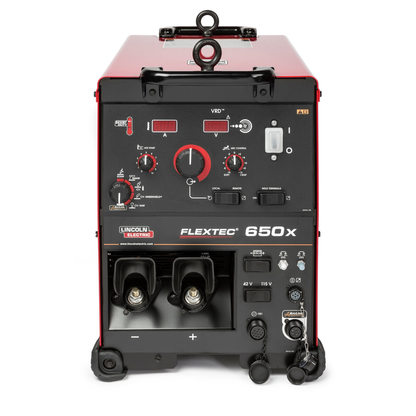

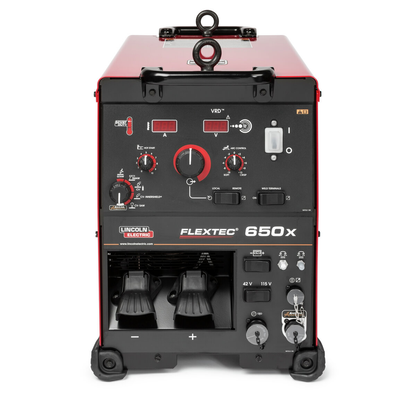

• Flextec 650X power source

• Amperage: 10-815A
• Input Voltage: 380/460/575V, 3 phase, 50/60 Hz
• Rated Output Current: 750A @ 60% duty cycle, 650A @ 100% duty cycle
• Output Voltage: 44V
• Output Range: 10-815A
• Dimensions: 21.8 x 16.1 x 29.3 in (554 x 410 x 745 mm)
• Weight: 165 lb (74.8 kg)
• Temperature Rating: 55 C
• Welding Processes: Stick (SMAW), Gouging (CAC-A), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G), Submerged Arc (SAW)
• Welding Technology: Inverter/Chopper
• Output Polarity: DC
• Output Mode: CC, CV, CC/CV
• Machines Communication Technology: Analog, Digital, CrossLinc, ArcLink
• Warranty Length: 3 Years
• Wire Feeder Supply Voltage: 115VAC, 42VAC
• Work Lead Connector Type: Lug
• Amphenol Pins (Connector Type): 5, 14, 12
• Arclink Connector: Yes
• Country of Origin: United States
