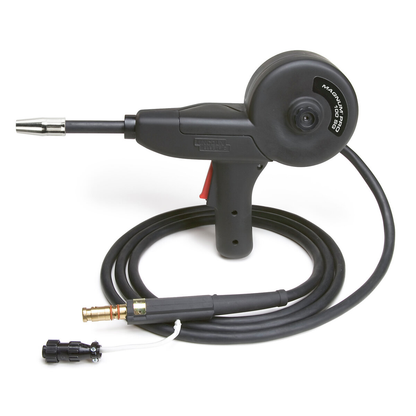

Lincoln Electric, K3269-1, Spool Gun, 10 ft, 0.035 in Aluminum Alloy Wire, 130 Amps, Air Cooled

LIGHT, COMPACT AND RELIABLE WELDING GUNS. The Magnum® PRO 100SG spool gun is the lowest cost way to add reliable and precise wire feeding performance for soft aluminum wire. It's easy to set up for occasional and experienced welders on Lincoln Electric compact wire feeder/welders.

What's Included?

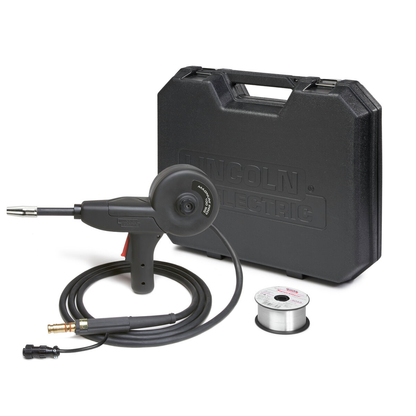

• (1) Spool Gun with 10 ft (3m) Cable, (1) ED030308 Spool of 0.035 in 4043 Aluminum Alloy Wire, (1) Drive Roll 0.030-0.035 in, (3) KP2744-035T Tapered Contact tips 0.035 in, (1) Sturdy carrying case

Features

• No expensive gun or bulky adapter module
• Sturdy carrying case - Protects the gun during transport and storage
• Ergonomic grip and balanced design.
• For all aluminum alloys - Recommended wire diameters can be fed with the same drive roll and liner assembly.
• 10 ft. (3.0 m) gun cable - Gun connector offers fast connections to the welding machine.
• Lightweight - Only 3.5 lbs. (1.6 kg).
• Full travel mechanical trigger - Excellent feedback even through a welding glove.
• Premium Magnum® PRO Expendables - Copper Plus - contact tips and long-life diffusers with Anti-Seize™ threads.

• Rated Amperage: 130 A (CO2)
• Duty Cycle: 30% at 130 A (CO2)
• Length: 10 ft (3 m)
• Weight: 3.5 lbs (1.6 kg)
• Material: 4043 Aluminum Alloy
• Cooling: Air
• Trigger Type: Full travel mechanical
• Contact Tip Size: 0.035 in
• Wire Size Range: 0.030-0.035 in (0.8-0.9 mm)
• Accessory Type: Spool Gun
• Country of Origin: Mexico
• Warranty Length: 90 Days
