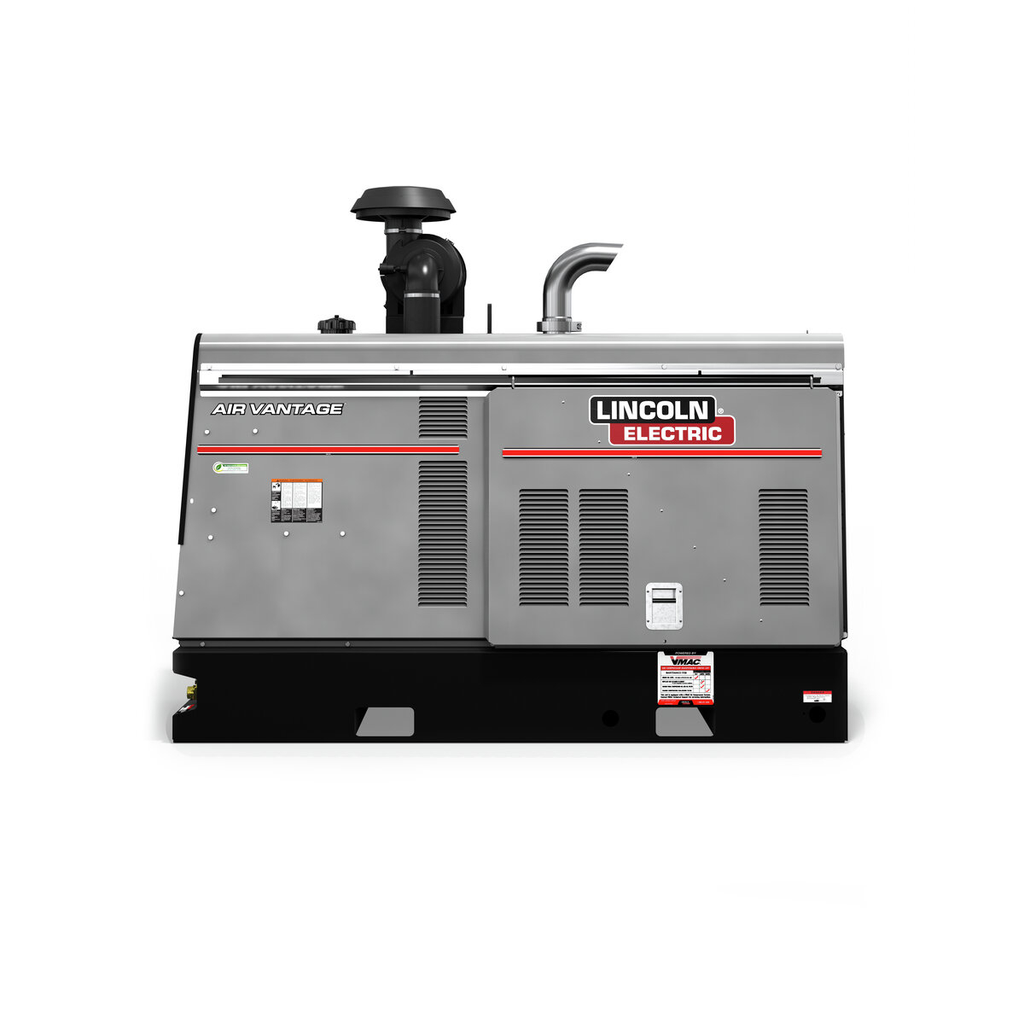

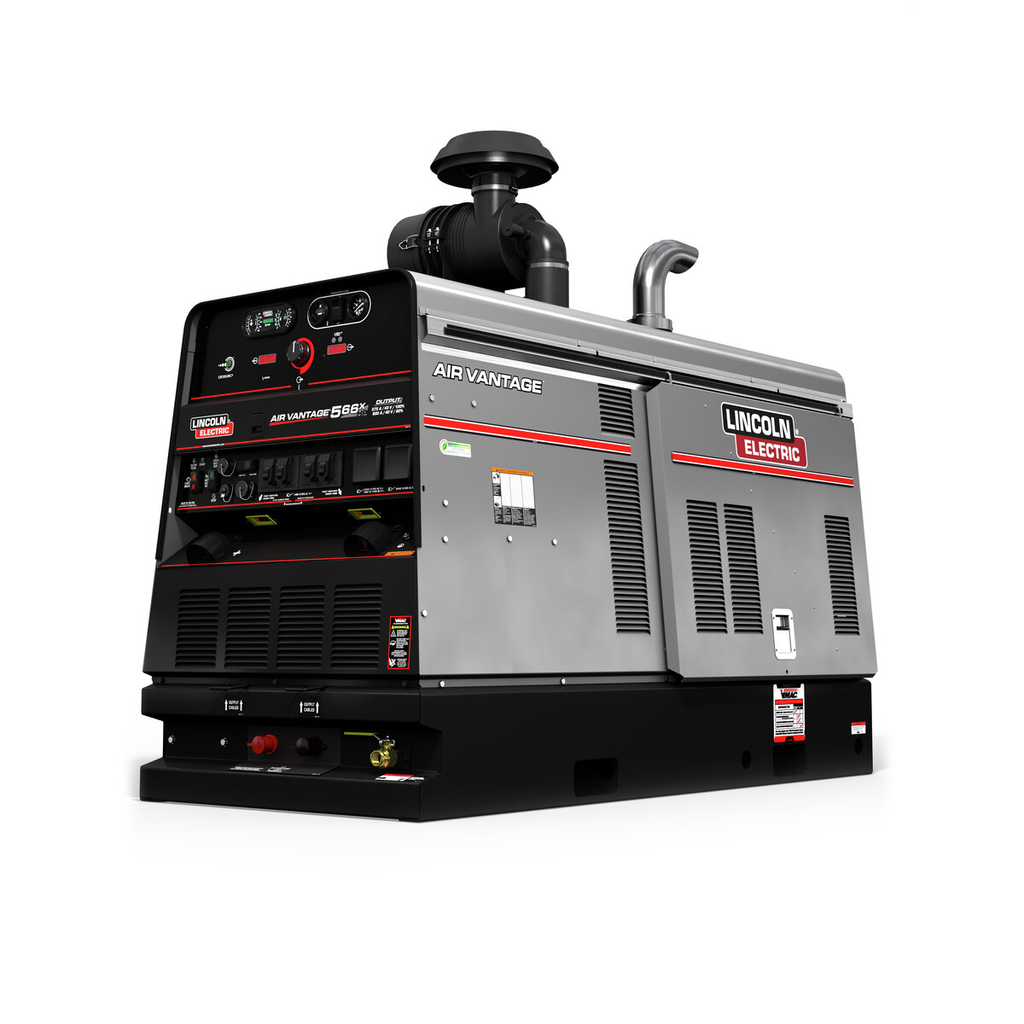

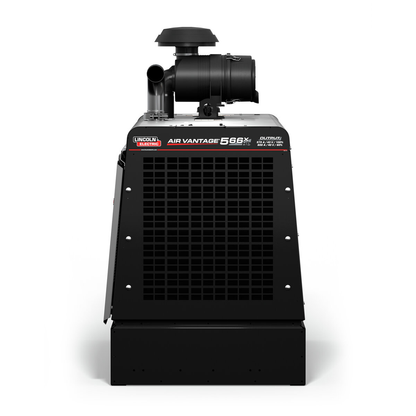

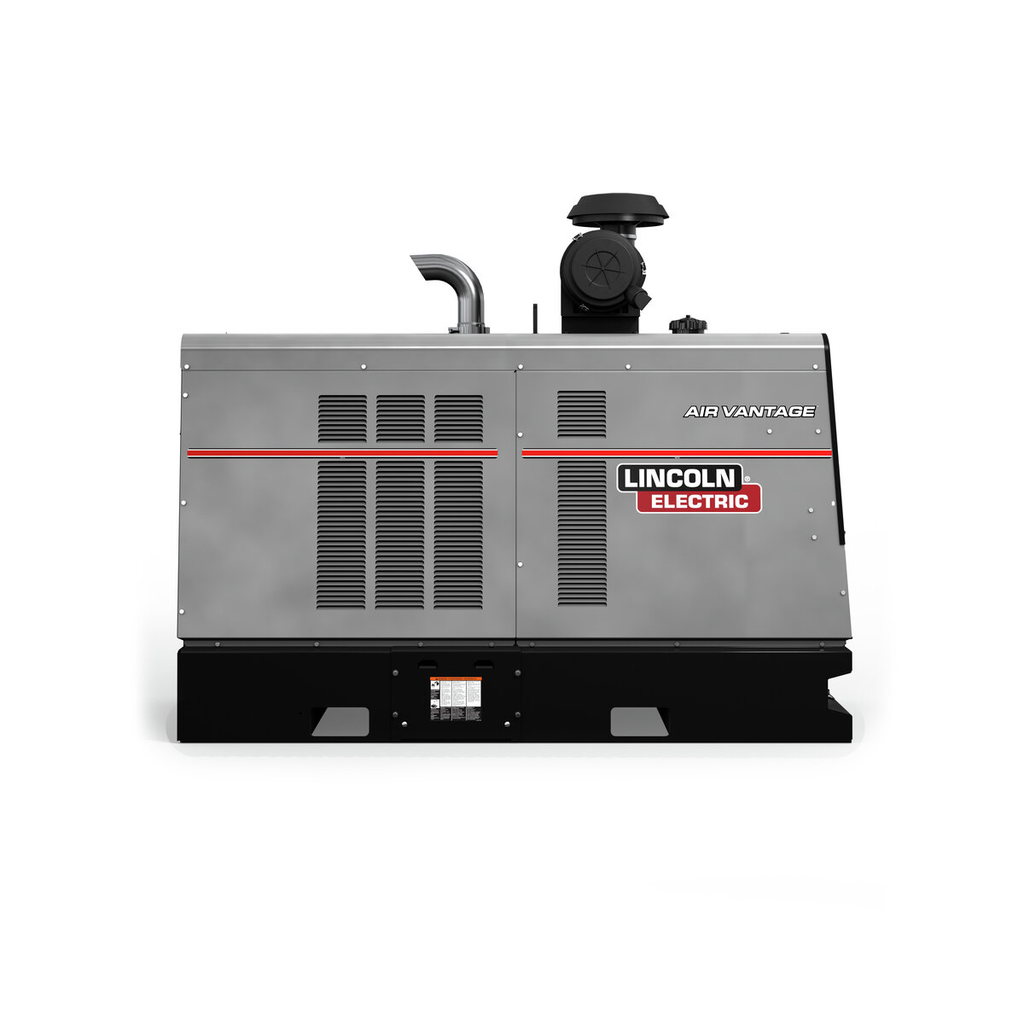

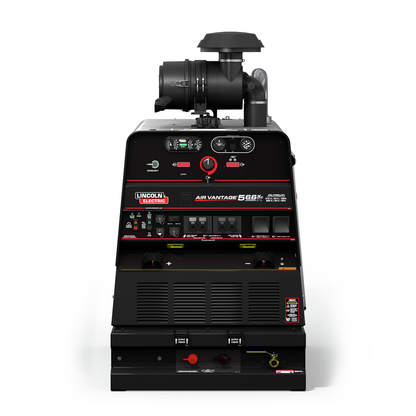

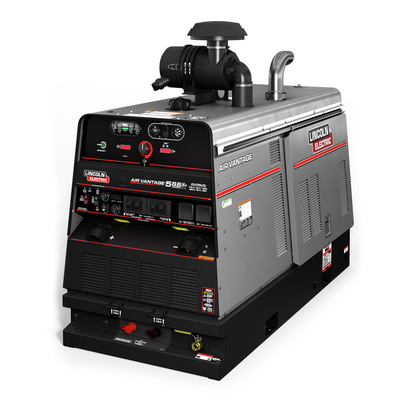

Lincoln Electric, K3242-3, Air Vantage 566X, 600A; 20 kW; Diesel Engine; CrossLinc Technology; 3-in-1 Multifunction

The Air Vantage® 566X is a powerful multifunction machine that offers up to 600 amps of IEC rated welding output, 20 kW of auxiliary power, and 60 cfm of compressed air in a single package. This 3-in-1 workhorse has been designed to meet the most challenging job site needs and environments. The rugged Air Vantage 566X can handle a challenging assortment of tasks from heavy-duty carbon arc gouging to pulse welding. Now better than ever, the machine features CrossLinc® Technology to provide welders with greater control at the arc to help improve safety, productivity, and weld quality.

Features

• Expanded Welding Capabilities – Utilize customized modes for stainless, aluminum, and steel as well as advanced SAW and orbital pipe modes. Features pulse welding capability for better arc control in out-of-position work and low heat input for critical welds.
• Generator Output – Provides up to 20 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
• CrossLinc® Enabled – Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter. Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations.
• On Demand Versatility – Offers up to 600 amps (IEC rated at 525 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which maximizes output for up to 3/8 in. (9.5 mm) carbon rods.
• Patented Chopper® Technology – Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal.
• Reliable Operations – Engineered tough and field proven for ruggedness and durability to meet the most challenging job site needs and harshest environments.
• Industrial Diesel Engine – Powered by a 65.7 hp, turbocharged Deutz® diesel engine. Runs smooth and quiet while meeting EPA Tier 4 Final compliance
• Integrated Air Compressor – 60 cfm @ 100 psi of compressed air powered by VMAC®

What's Included?

• (1) Air Vantage 566X (Deutz)

• Amperage: 600A Max, 525A IEC Rated, 525A / 41V / 100% @ 104 F (40 C) IEC Rating, 600A / 40V / 60% @ 104 F (40 C) Max Rating
• Welding Output Range: 30-600 Amps (CC-Stick), 40-350 Amps (Downhill Pipe), 20-350 Amps (Touch Start TIG), 10-45 Volts (CV-Wire), 60-600 Amps (Arc Gouging)
• Output Mode: CC; CV; CC/CV
• Machines Processes: Stick (SMAW); Gouging (CAC-A); TIG (GTAW); MIG (GMAW); Pulsed MIG (GMAW-P); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G); Submerged Arc (SAW)
• Engine Horsepower: 65.7 hp (49.0 kW)
• Engine Type: 4 Cylinder Turbocharged Water Cooled Diesel
• Engine Model: Deutz TD2.9L4
• Operating Speed: High Idle 1800 RPM, Low Idle 1525 RPM
• Output Polarity: DC
• VRD: Yes
• Open Circuit Voltage: 66 Peak OCV @ 1800 RPM
• Fuel Type: Diesel
• Fuel Capacity: 25 US gal (94.6 L)
• Fuel Consumption (High Idle): 0.79 gal/hr (3.01 L/hr)
• Fuel Consumption (Low Idle): 0.59 gal/hr (2.24 L/hr)
• Oil Capacity: 9.0 qts. / 8.5 L
• Coolant Capacity: 2.5 US gal (9.5 L)
• Air Compressor Delivery: 60 cfm @ 100 psi (1.7 cmm @ 6.9 bar)
• Maximum System Pressure: 150 psi (10.3 bar)
• Compressor Protection: Safety Relief Valve 200 psi (13.8 bar), Automatic High Temp Shutdown 290 F (143 C)
• Compressor Oil Capacity: 1.1 US gal (4.0 L)
• Welding Controls: Chopper
• Tap or Continuous Control: Continuous
• Jumper Terminals: Yes
• Output Icon: DC; CC/CV
• Input Icon: DULS
• Weld Modes: Downhill Pipe; Touch Start TIG; CC-Stick; CV-Wire; Arc Gouging; ArcLink
• Machines Communication Technology: CrossLinc; ArcLink
• User Interface Type: Continuous Knob
• # of Control Knobs: Single Knob
• Output Meters: Digital
• Engine Starting: Auto Glow Plugs
• Engine Controller: ECU
• Fuel Tank Size: 25 US gal (94.6 L)
• Air Compressor Model: VMAC S700162
• Air Compressor Type: Belt-Driven Rotary Screw
• Air Compressor Brand/Model: VMAC S700162
• Air Compressor Description: Belt; Rotary Screw
• Air Compressor Max System Pressure: 150 psi (10.3 bar)
• Air Compressor Oil Capacity: 1.1 US gal (4.0 L)
• Engine Block Size & Displacement: 178 cu. in. (2.9 L), Bore x Stroke - 3.62 in x 4.33 in (92 mm x 110 mm)
• Displacement: 178 cu. in (2.9 L)
• Bore x Stroke: 3.62 in x 4.33 in (92 mm x 110 mm)
• Engine Cylinders: 4
• Engine Cooling: Water
• Temperature Rating at Rated Output: 40 C
• Emissions Rating: US EPA Tier 4 Final
• Compliance: EPA Tier 4 Final, US EPA Tier 4 Final, EPA Certified
• Engine Protections: High Temp Shutdown
• Air Compressor Protections: Safety Relief Valve; High Temp Shutdown
• Rated Gouging Carbon Diameter: 3/8" (9.5 mm)
• Spark Arrestor: Optional
• Case Type: Stainless
• Equipment Technologies: ArcLink; CrossLinc
• Multifunctional Equipment: Welder; Generator; Air Compressor
• Auxiliary Power: Single Phase 12 kW, Three Phase 20 kW Continuous
• Auxiliary Output Voltage: 120; 240
• Auxiliary Output Frequency: 60 Hz
• Auxiliary Output Type (Phase): 1 & 3
• Auxiliary Receptacles: NEMA 5-20R (120V/20A/1~), NEMA 14-50R (120/240V/50A/1~), NEMA 15-50R (240V/50A/3~)
• Length: 69 in (1753 mm)
• Width: 32.9 in (836 mm)
• Height: 42.0 in (1067 mm)
• Height to Top of Air Intake: 58.1 in (1476 mm)
• Weight: 1737 lb (788 kg)
• Country of Origin: United States
