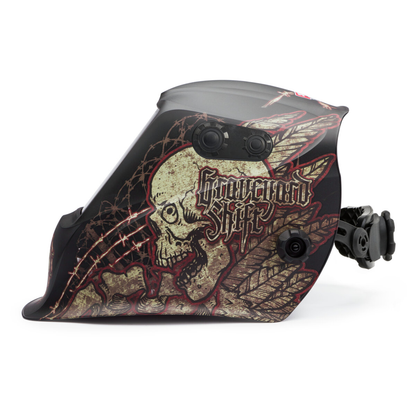

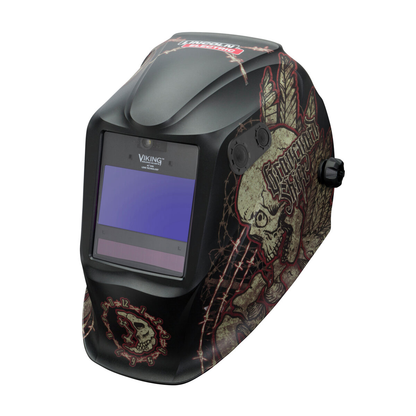

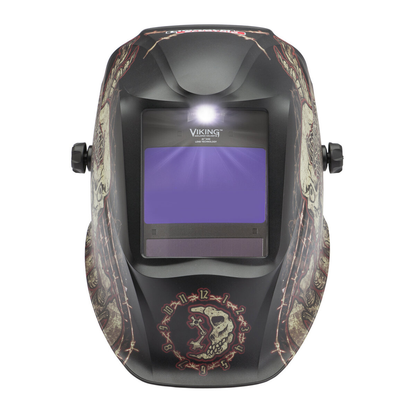

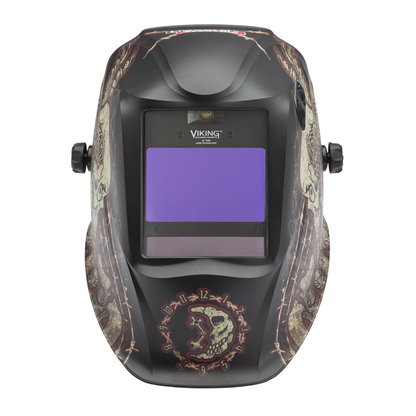

Lincoln Electric, K3099-5, Welding Helmet, VIKING 2450 Series, 4 Sensors, Auto-Darkening, 5-13 Shade, X6 Headgear, 9.3 sq. in. Viewing Area

The Lincoln Electric VIKING 2450, our lightweight premium helmet series, offers an excellent blend of industry leading optics, all-day comfort & versatility. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 5-13 shade range, low profile external grind control, and large 9.3 sq. in. viewing area. The digital user interface has moisture and abrasion resistant push button LED UI controls that allow for intuitive adjustments for precise performance. The innovative X6 Headgear™ distributes weight, reduces pressure and optimizes balance.

Features

• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
• X6 Headgear features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.
• Replaceable CR2450 batteries ensure increased battery life.
• Variable 5-13 shade range and low profile, external grind control provides an expanded versatility and consistent indoor & outdoor performance.
• External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.
• 9.3 sq. inch (3.82 x 2.44 in.) wide viewing area
• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.
• Digital User Interface with moisture and abrasion resistant push button LED UI controls that promote simple, intuitive adjustments for precise and consistent performance.

What's Included?

• (1) VIKING 2450ADV Welding Helmet, (1) Bandana, (5) KP2898-1 Outside Cover Lens, (2) KP2931-1 Inside Cover Lens, (1) Decal Sheet

• Shade Range: 5 - 13 Variable
• TIG Amp Rating: DC 2 Amp, AC 2 Amp
• Auto Darkening: Yes
• Number of Sensors: 4
• Light to Dark Switch Time: 1/25,000 sec
• Viewing Area: 3.82 x 2.44 in (9.3 sq. in)
• Battery Type: Replaceable CR2450 with Solar Assist and AA for LED
• Grind Mode: Yes, External Low Profile Grind Button
• Cut Mode: Yes
• Headgear Type: X6 Adjustable, Form Fitting
• Compatibility: Hard Hat Capable, Cheater Lens Compatible
• Operating Temperature Range: -10 C to +55 C (14 F to 131 F)
• Storage Temperature Range: -20 C to +70 C (-4 F to 158 F)
• Compliance: ANSI Z87.1
• Material / Finish: Graphic Shell, Graveyard Color/Finish
• Country of Origin: China
• Product Series: VIKING 2450 Series
