Lincoln Electric, K3086-1, Water Cooler, Under Power Source, 9 L, 4540 BTU/hr, 500 amps

Name: Lincoln Electric, K3086-1, Water Cooler, Under Power Source, 9 L, 4540 BTU/hr, 500 amps
Brand: Lincoln Electric
SKU: LNK3086-1
Availability: InStock

Product variants

Looking for a Quote?

Call our Sales Department! 773-384-7622

- or -

Email Us! - Sales@wiscoonline.com

Or Fill Out the Form Below.

Enhance Your Gear With Accessories

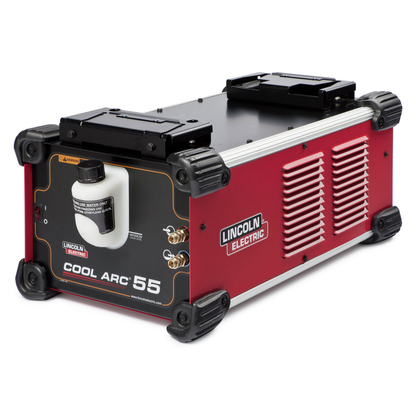

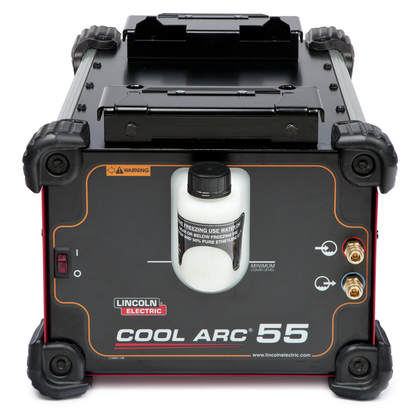

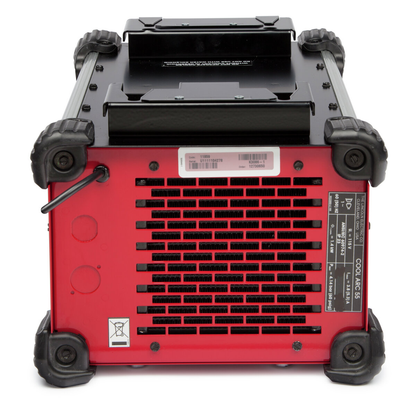

Designed to integrate directly with the Power Wave® S-Series power sources, the Cool Arc® 55 is a rugged, reliable water cooler capable of cooling torches rated up to 500 amps. It is recommended for robotic and hand-held MIG, TIG and plasma cutting applications.

Features

Designed to integrate directly with the Power Wave® S-Series power sources, the Cool Arc® 55 is a rugged, reliable water cooler capable of cooling torches rated up to 500 amps.
It is recommended for robotic and hand-held MIG, TIG and plasma cutting applications.
115/1/60.

Cooling Capacity: 4540 BTU/hr (1.33 kW) @ 1 L/min
Tank Capacity: 9 Liters (2.375 Gallons)
Input Voltage: 115V
Amperage: 500A
Phase: Single-Phase
Frequency: 50/60 Hz
Cooling Type: Water
Coolers Type: Under Power Source
Country of Origin: United States
Warranty Length: 1 Year
