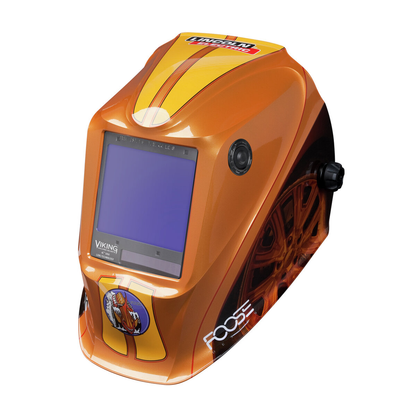

Lincoln Electric, K3039-4, Welding Helmet, 4C Lens Technology; Variable 5-13 Shade Range, 12.5 sq. in. Viewing Area, X6 HeadgearTM

The VIKING 3350, our top-of-the line helmet series, is the ultimate blend of optics, comfort & versatility. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 5-13 shade range, low profile external grind control, and large 12.5 sq. in. viewing area. The innovative X6 Headgear™ distributes weight, reduces pressure and optimizes balance.

Features

• Variable 5-13 shade range and low profile, external grind control provides an expanded versatility and consistent indoor & outdoor performance.
• External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.
• (1) Welding Helmet, (1) Helmet Bag, (1) Bandana, (5) KP2898-1 Outside Cover Lenses, (2) KP3044-1 Inside Cover Lenses, (1) Decal Sheet
• 12.5 sq. inch (3.74 x 3.34 in.) wide viewing area
• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.
• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
• X6 Headgear features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.
• Replaceable CR2450 batteries ensure increased battery life.
• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.

• Welding Modes: Stick, TIG, Pulsed TIG, MIG, Pulsed MIG, Flux-Cored, Gouging, Grinding
• TIG Amp Rating: AC/DC > 2 Amp
• Variable Shade Range: 5-13
• Light Sensitivity Control: Continuous
• Delay Control (Dark to Light): 0.1-1.0 seconds
• Arc Sensors: 4
• Viewing Area: 12.5 sq. in (3.74 x 3.34 in)
• Cartridge Size: 5.25 x 4.50 in (133 x 114 mm)
• Optical Clarity: 1/1/1/1
• Lens Technology: 4C Liquid Crystal Display (LCD)
• Grind Control: Low profile, external
• Battery Type: Replaceable CR2450
• Headgear: X6 adjustable with top supports, rotatable front headband, rear headband, orientation pin, forward/backward adjustments
• Operating Temperature Range: -10 to +55 C (14 to 131 F)
• Storage Temperature Range: -20 to +70 C (-4 to 158 F)
• Net Weight: 21 oz (595 g)
• Compatibility: Hard hat compatible, Cheater lens compatible
• Country of Origin: China
