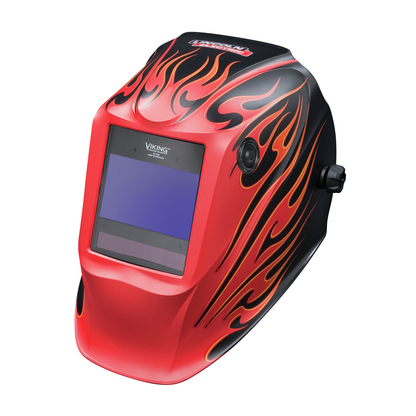

Lincoln Electric, K3035-4, Welding Helmet, 5-13 Shade Range, 3.82 x 2.44 in Viewing Area, X6 Headgear

The Lincoln Electric VIKING 2450, our lightweight premium helmet series, offers an excellent blend of industry leading optics, all-day comfort & versatility. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 5-13 shade range, low profile external grind control, and large 9.3 sq. in. viewing area. The innovative X6 Headgear™ distributes weight, reduces pressure and optimizes balance.

Features

• Variable 5-13 shade range and low profile, external grind control provides an expanded versatility and consistent indoor & outdoor performance.
• 9.3 sq. inch (3.82 x 2.44 in.) wide viewing area
• External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.
• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
• Replaceable CR2450 batteries ensure increased battery life.
• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.
• X6 Headgear features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.

What's Included?

• (1) Welding Helmet, (1) Helmet Bag, (1) Bandana, (5) KP2898-1 Outside Cover Lenses, (2) KP3044-1 Inside Cover Lenses, (1) Decal Sheet

• ADF Viewing Area: 3.82 x 2.44 in (9.3 sq. in)
• Lens Shade Rating: 5 - 13 variable
• Number of Sensors: 4
• TIG Amp Rating: DC 2 Amp; AC 2 Amp
• Light to Dark Switch Time: 1/25,000 sec
• Delay Control Dark to Light: 0.1 - 1.0 sec, fully adjustable
• Light Sensitivity Control: Continuous
• Battery Type: 2 CR2450 replaceable with solar assist
• Weight: 21 oz (595 g)
• Operating Temperature Range: -10 C to +55 C (14 F to 131 F)
• Storage Temperature Range: -20 C to +70 C (-4 F to 158 F)
• Headgear Type: X6 adjustable
• Grind Mode: Yes, grind button control
• Cheater Lens Compatible: Yes
• Hard Hat Compatible: Yes
• Compliance: ANSI Z87.1
• Product Series: VIKING 2450 Series
• Manufacturer Color/Finish: Street Rod graphic
• Country of Origin: China

Downloads
