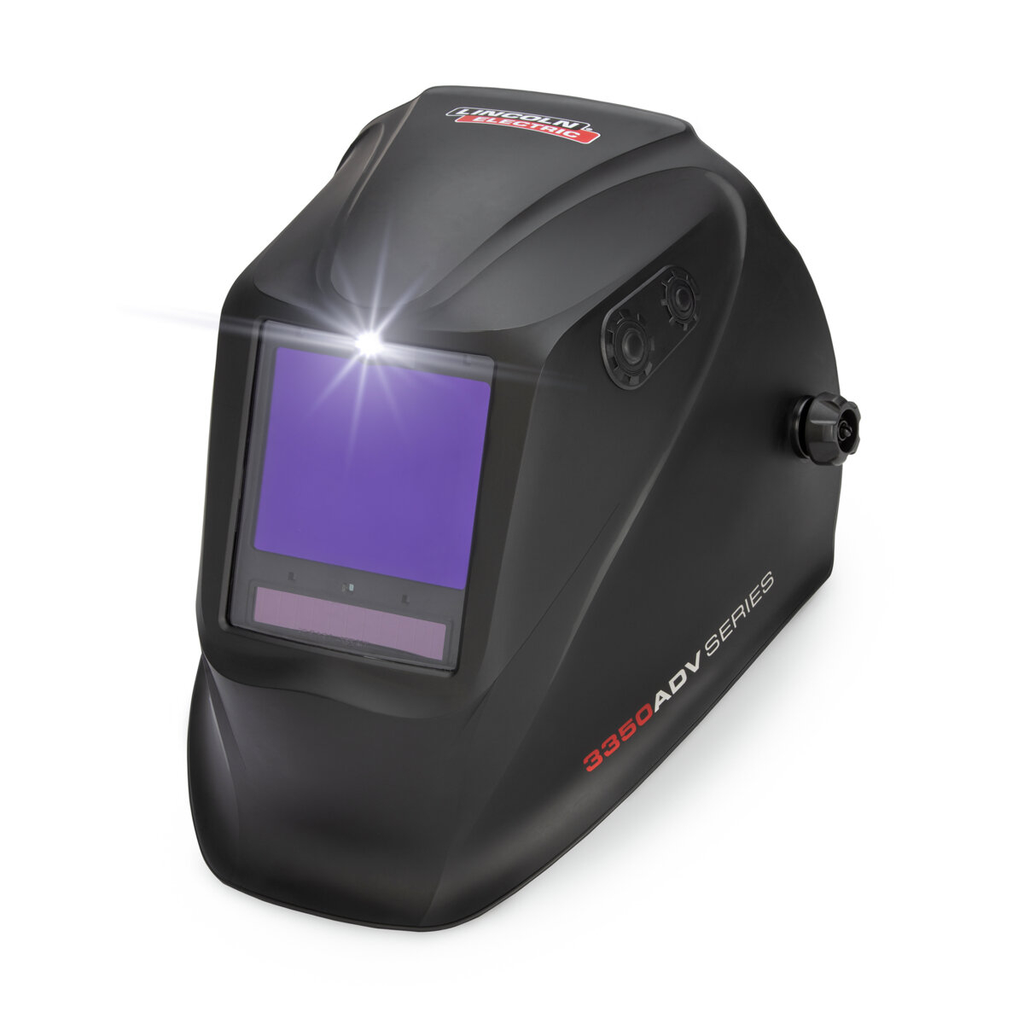

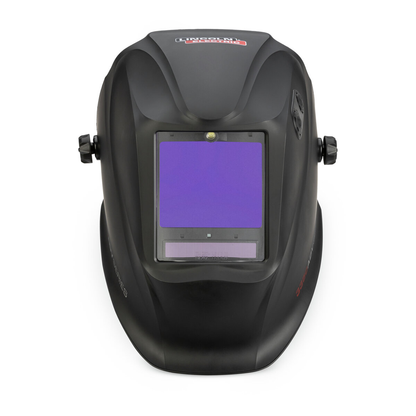

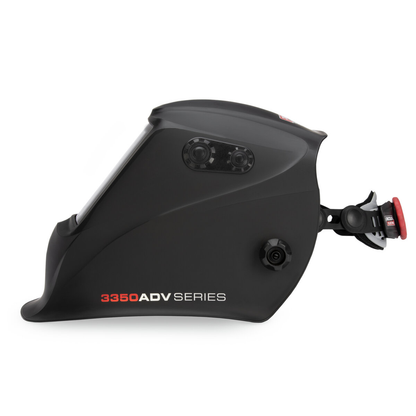

Lincoln Electric, K3034-5, Welding Helmet, Auto-Darkening, 5 - 13 Lens Shade, X6 Headgear, Bluetooth Connectivity, 11.8 sq. in. Viewing Area

Proven Protection. Game-Changing Performance. The new, industry defining evoluation of the VIKING 3350 Welding Helmet is here. The VIKING 3350ADV Series takes our proven, premium auto-darkening helmet series to a new level, pairing the exclusive 4C optics and X6 Headgear - now also featuring advanced digital controls, modular work-piece illumination, auto-shade technology, Bluetooth connectivity and more! It sets a new standard for the functionality and capabilities for a professionals' welding helmet.

Features

• Variable 5-13 shade range and low profile, external grind controls with three memory slots to save commonly used settings.
• X6 Headgear features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.
• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
• Digital User Interface features four dedicated helmet modes (weld, cut, grind & auto), innovative auto shade technology that continuously monitors your environment and automatically adjusts the lens shade, and an intuitive digital display that provides advance control and navigation of helmet settings.

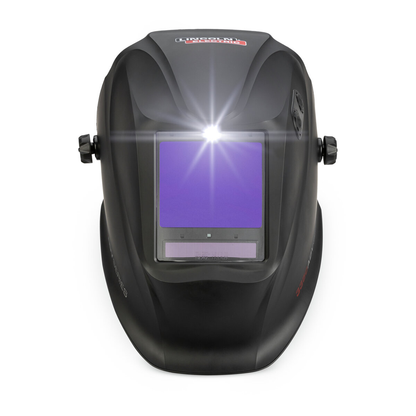

• Modular LED light improves visibility during arc-off time, while maintaining a low profile that's easily integrated into the shade cartridge
• Extra Large 11.8 sq. in. viewing area provides a large field of view to increase versatility and operator control
• Replaceable CR2450 batteries ensure increased battery life.
• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.
• Bluetooth connectivity to FREE GearPoint App to track productivity, predictive maintenance, welder resources and control settings.
• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.

What's Included?

• (1) VIKING™ 3350 ADV Welding Helmet, (1) Bandana, (1) Protective Drawstring Bag, (1) Helmet Sticker Sheet, (5) KP2898-1 Outside Cover Lenses, (2) KP5244-1 Inside Cover Lenses

• Shade Range: 5 - 13
• TIG Amp Rating: DC 2 Amp; AC 2 Amp
• Auto Darkening: Yes
• Number of Sensors: 5
• Lens Switching Speed: 1/25,000 sec
• Viewing Area: 3.74 x 3.15 in (95 x 80 mm)
• Weight: 23.6 oz (669 g), 25 oz (712 g) with LED module
• Cartridge Size: 4.50 x 5.25 x 0.36 in (114 x 133 x 9 mm)
• Headgear Type: X6 Headgear with adjustable, rotatable front headband, rear headband, orientation adjustment pin, forward/backward adjustments
• Memory Slots: 3 slots
• Battery Type: 1 CR 2450 Replaceable Battery with Solar Assist
• Power Supply: 1 CR 2450 Battery with Solar Assist
• Communication: Bluetooth (2 Way) to GearPoint App
• Light Sensitivity Control: 9 sensitivity settings
• Delay Control Dark to Light: 0.1-1.0 sec fully adjustable
• Grind Controls: Low profile, external grind button
• Cut Mode: Yes
• Grind Mode: Yes
• External Controls: Grind Button
• Lens Technology: 4C LCD
• Optical Clarity: 1/1/1/1
• Cover Lenses: KP2898-1 Outside, KP5244-1 Inside, S27978-206 Outside Seal
• Magnifying Lens Holder: Yes
• Cheater Lens Compatible: Yes
• Hard Hat Compatible: Yes
• Hard Hat Adapters: KP3047-1 Halo, KP3486-1 Slot Hard Hat Adapters
• Shell Type: Matte Black
• Replacement Shells: KP4561-2 VIKINGTM 3350 ADV Series Black
• Auto Shade Technology: Dynamic adjustment based on arc and user preferences
• LED Light: Modular, low profile work-piece illumination, auto-sense, external control, removable AA battery pack
• Digital User Interface: Full color industrial display with four modes (Weld, Cut, Grind, Auto)
• Warranty: 5 Years
• Compliance: ANSI Z87.1
• Product Series: VIKING 3350 Series
• Country of Origin: China
• Flip Up Lens: No
• Temperature Range: Operating -10 C to 55 C (14 F to 131 F), Storage -20 C to 70 C (-4 F to 158 F)
