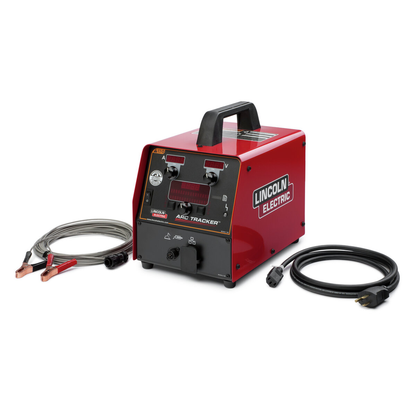

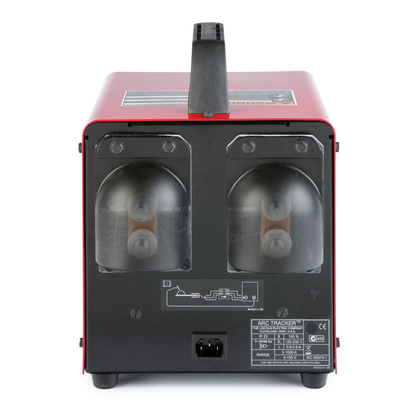

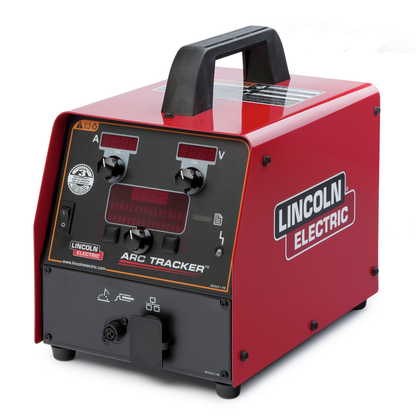

Lincoln Electric, K3019-1, Arc Tracker Data Monitor, DC, 120-230 V, 15 in, Inverter/Chopper

Connect the Arc Tracker between any DC welding power source and the work clamp to access a wide array of data monitoring information regarding your welding arc, including True Energy™.

Features

• Weld Data Monitoring – Arc Tracker software tools are available at www.powerwavesoftware.com including:Power Wave ManagerProduction Monitoring
• CheckPoint™ – A cloud-based system to view or analyze your welding data. Track equipment usage, store weld data, configure fault limits and more.
• Ethernet Connection – Communicates weld data status to your network via standard Ethernet.
• Broad Compatibility – The Arc Tracker is compatible with any DC welding process power source and wire feeder.
• Accurately Monitor Welding Parameters – Advanced digital controls sample the welding parameters at extremely high speeds.
• Simple Plug-n-Play Design – Connect to any DC welding circuit, attach voltage sense leads and begin monitoring weld performance immediately.
• Factory Quality System Integration – Easily calibrated for use in factory quality systems.
• Variable Input Voltage – The Arc Tracker auto-senses any input voltage between 120 – 230 volts AC.

What's Included?

• (1) Arc Tracker® Data Monitor,(1) Detachable Input Cord 6 ft with NEMA 5-15P Plug,(1) IEC 60320 Plug Receptacle,(2) Polarity Specific Arc/Voltage Remote Sense Leads 15 ft

• Input Voltage: 110-120V, 220-240V AC, 1 Phase, 50/60 Hz
• Input Current: 0.8A at 120V AC
• Rated Operating Range: 10-1000A at 100% Duty Cycle, 1-44V DC
• Polarity: DC
• Welding Technology: Inverter/Chopper
• Output Mode: CV
• Mode Icon: CV
• Output Icon: DC, CV
• Height: 12 in (305 mm)
• Width: 220 mm (8.7 in)
• Length: 15 in (380 mm)
• Weight: 9.072 lb (4.12 kg)
• Cable Length: 6 ft (detachable input cord)
• Remote Sense Leads Length: 15 ft (polarity specific arc/voltage)
• Input Phase: 1 Ph
• Input Hertz: 50/60 Hz
• Compliance: NEMA EW1, IEC60974-1, ISO 9001:2000, ISO 14001:2004
• Ingress Protection: IP23 Rated
• Country of Origin: United States
• Warranty Length: 3 Years
• Equipment Technologies: Data Export Capable
