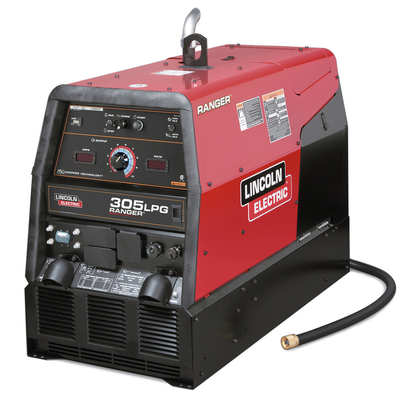

Lincoln Electric, K2937-1, Engine Driven Welder, 25 HP, LPG, 10,000 Watts Peak, Multi-Process

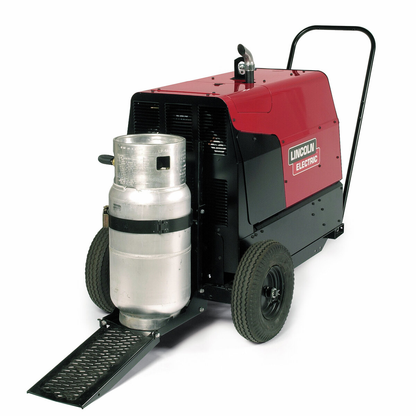

FOR SPECIALIZED ENVIRONMENTS. Choose the Ranger 305 LPG for those environments where gasoline and diesel emissions are not acceptable. Includes a liquid propane gas supply hose with coupler for easy connection to the liquid draw outlet of an LP-gas cylinder. The 10,000-watt peak single-phase AC generator powers motor starting, tools and inverter welders for extended range and process capability.

Features

• Top-of-the-line Kohler® overhead valve (OHV) 25 HP Command® - LPG (Liquid Propane Gas) engine has plenty of horsepower.
• Superior Arc Performance - Lincoln Electric Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance.
• Skewed Rotor Design - Provides AC power suitable for operating Lincoln Electric inverter power sources.
• Multi-Process Welding - Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas). It's the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding. CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.

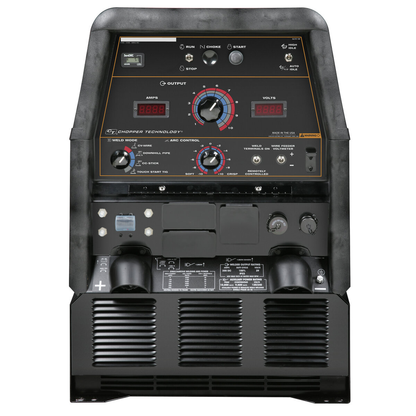

• Digital Weld Meters - Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
• Rugged Reliability - Welding and AC Generator Outputs rated at 104⁰F (40⁰C).
• 10,000 Watts Peak Single-Phase AC Generator Power - 10,000 watts peak for motor starting. 9,000 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec® inverter welder. Also can be used for lights, a grinder or other power tools. AC generator voltage is constant at 120V or 240V at any weld dial setting.
• Built-In “Hot” Start - Provides easier starts and restrikes.

What's Included?

• (1) Ranger 305 LPG Engine Driven Welder

• Welding Output Current: 300A DC CC, 300A DC CV
• Welding Output Voltage: 25V DC
• Welding Duty Cycle: 100% @ 104 F (40 C)
• Welding Output Range: 20-300A DC, 40-300A Pipe, 20-250A DC TIG, 14-29V CV
• Rated Gouging Carbon Diameter: 5/32 in (4.0 mm)
• AC Generator Continuous Power: 9,000 watts
• AC Generator Peak Power: 10,000 watts
• AC Generator Voltage: 120V, 240V
• AC Generator Frequency: 60 Hz Single Phase
• Engine Type: Kohler OHV Command CH730 LP Carburetor
• Engine Horsepower: 25 HP
• Engine Cylinders: 2
• Engine Speed: 3600 RPM
• Fuel Type: Liquid Propane Gas (LPG)
• Fuel Consumption High Idle: 4.6 lb/hr LPG
• Fuel Consumption Low Idle: 2.6 lb/hr LPG
• Oil Capacity: 2.0 qts (1.9 L)
• Length: 42.3 in (1073 mm)
• Width: 21.5 in (546 mm)
• Height: 29.9 in (762 mm)
• Weight: 480 lb (218 kg)
• Receptacle Types: NEMA 5-20R, NEMA 14-50R
• Welding Controls: Continuous Knob (Chopper)
• Output Polarity: DC
• Output Mode: CC, CV, CC/CV
• Spark Arrestor: Optional
• Engine Starting: Choke
• Input Voltage Type: Engine
• Engine Cooling: Air
• Case Type: Painted
• Compliance: CSA Certified, ISO 9001, ISO 14001, IP23
• Country of Origin: United States
• Sound Level at Rated Load: 76.7 dBA at 23 ft (7 m)
• Sound Power Level: 101.3 dB (Lwa)
• Warranty: 3 Years Parts and Labor; Engine warranted separately
