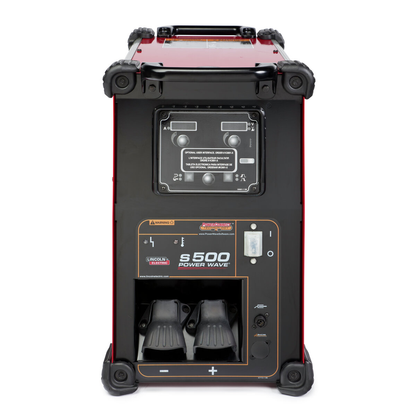

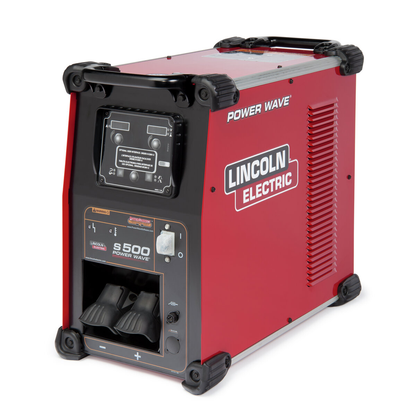

Lincoln Electric, K2904-1, Advanced Process Welder, 500 A Max Output, 3 Ph, 200-600 V Input Voltage, Inverter/Chopper

PORTABLE, POWERFUL, MULTI-PROCESSThe multi-process Power Wave® S500 is packed with Lincoln Electric performance technology and innovation. Built to be the best in class advanced process welding machine, the Power Wave® S500 features advanced welding waveforms optimized to provide the highest quality arc for nearly any application.

Features

• Compact and Durable - IP23 rated to withstand harsh environments.
• Advanced Connectivity and Control - All Power Wave®systems come standard with access to Lincoln Electric Power Wave®Manager and Lincoln Electric Checkpoint®Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
• Smart Fan Operation - Only runs when needed to minimize noise and energy consumption.
• Advanced Connectivity - All Power Wave®systems come standard with access to Lincoln Electric Power Wave®Manager and Lincoln Electric Checkpoint®Production Monitoring allowing for advanced remote configuration, process control, and quality assurance.
• Modular Platform - Allows for system customization to your welding needs. Modules can be stacked directly beneath power source for clean and convenient configuration whether stationary or on a cart.
• Patented PowerConnect®Technology - Automatically adjusts to input power from 200-600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range.Tribrid®Power Module - Exceptional welding performance with high power factor and efficiency.115V (10A) AC Duplex Auxiliary Power Receptacle - Features patent-pending Surge Blocker™Technology to ensure simultaneous welding performance is not compromised by high starting current devices such as grinders (typically requiring 60A or more peak surge current).
• For a full list of available welding processes and waveforms as well as software update details for Power Wave®advanced process welding systems, please visit: www.PowerWaveSoftware.com
• Industry Leading 5 Year Warranty

What's Included?

• Power Wave®S500 Advanced Process Welder

• Input Voltage: 200/208,220/230/240,380/400/415,460,575 V, 50/60 Hz, 3 Phase, Single or Three Phase
• Output Range: 5-550A DC
• Rated Output: 550A / 41.5 V / 40%
• Duty Cycle: 40% at 550A, 100% at 450A
• Output Mode: CC; CV; CC/CV
• Output Polarity: DC
• Welding Processes: Stick, DC TIG, Pulsed DC TIG, MIG, Pulsed MIG, Flux-Cored
• Width: 14.0 in (355 mm)
• Height: 22.5 in (571 mm)
• Length: 24.8 in (630 mm)
• Weight: 150 lb (68 kg)
• Ingress Protection Rating: IP23
• Amphenol Pins (Connector Type): 5
• Machines Communication Technology: ArcLink
• Data Technologies: Ethernet
• Equipment Technologies: ArcLink; Data Export Capable
• Welding Technology: Inverter/Chopper
• Country of Origin: United States
• Warranty: 5 Years
