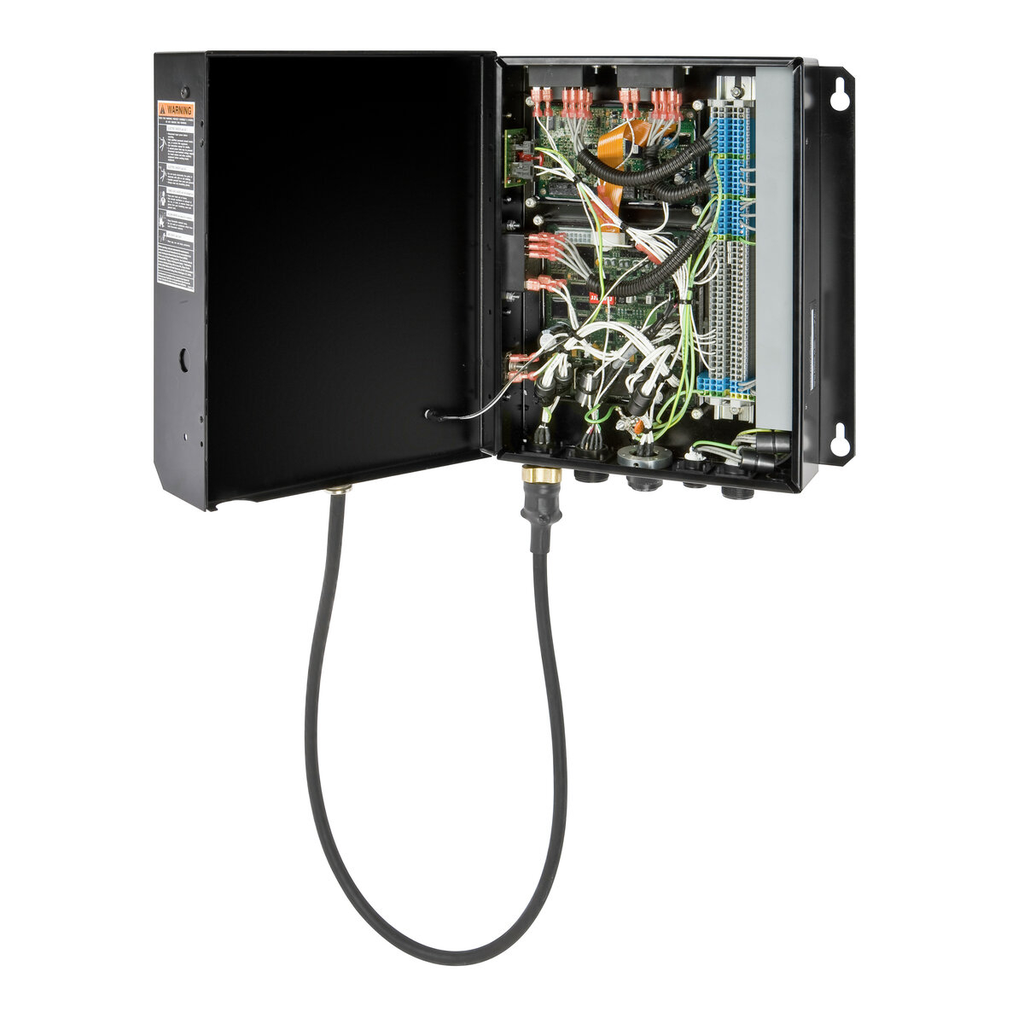

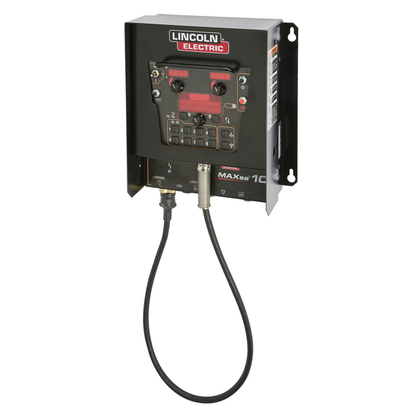

Lincoln Electric, K2814-4, Welding Controller, 40V, Inverter/Chopper, IP23, ArcLink

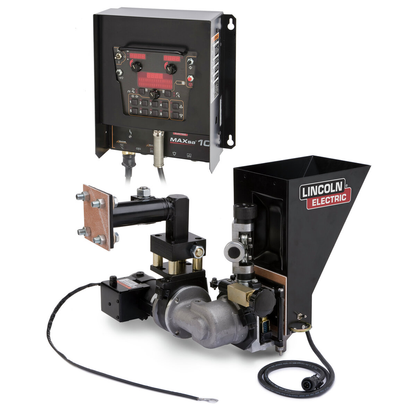

The MAXsa® 10 controller offers a single monitoring and control point for the entire hard automation welding system. Operators have full control over AC and DC welding parameters and easy PLC interfacing to control fixture travel, timers and other system commands.

Features

• Waveform Control Technology® – Allows the user to choose from a library of pre-programmed weld modes. Parameters for each mode can be adjusted within a limited range to achieve optimal balance between deposition rate and penetration.
• Severe Duty Ready - The controller is IP23 rated and ready for operation in harsh environments.
• Limit Control Apply operator procedure limits or lockout on any or all parameters.

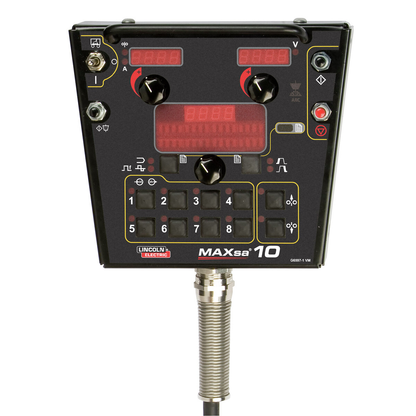

• User-Friendly Controls - Clear digital display and controls make it easy to set.

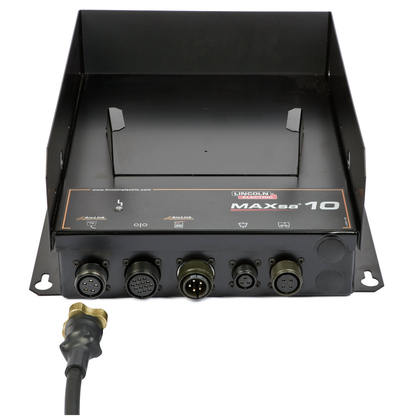

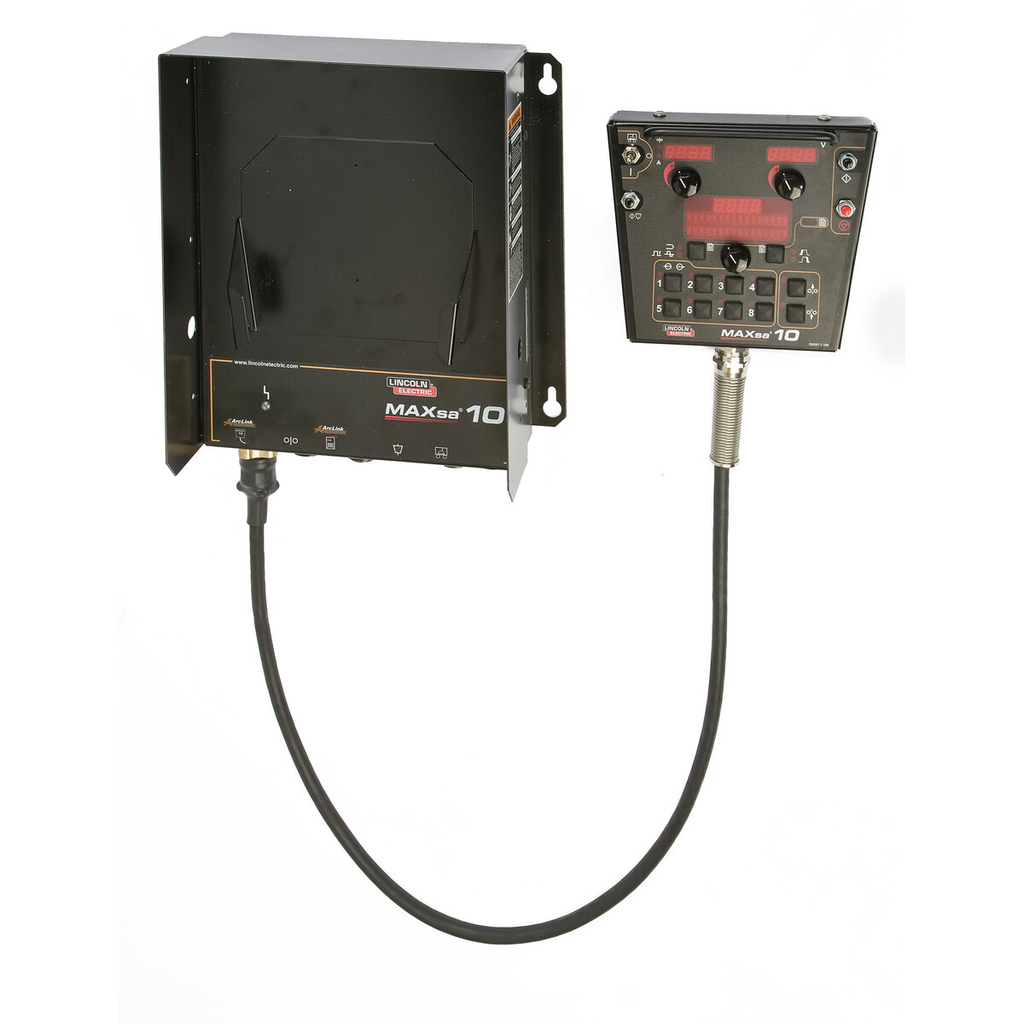

• Pendant Box - Mount the controller in the standard protective box or remove the pendant for hand-held operation.
• Eight Procedure Memories - Pre-set and save your optimal welding parameters for repeating applications and recall later for fast changeovers.

What's Included?

• Operators Manual

• Input Voltage: 40 VDC
• Input Current: 1 A
• Temperature Rating: 40 C
• Width: 259 mm
• Height: 381 mm
• Length: 102 mm
• Weight: 11.3 kg
• Material: Arclink
• Welding Technology: Inverter/Chopper
• Ingress Protection Rating: IP23
• Country of Origin: United States
