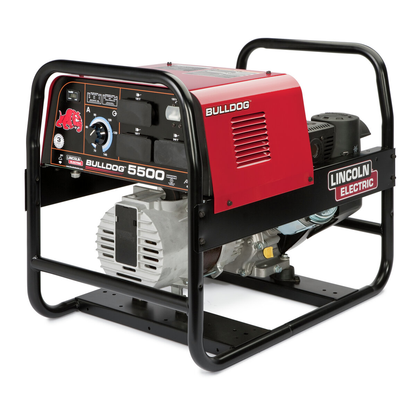

Lincoln Electric, K2708-2, Engine Driven Welder, 5500 Watts Surge, 140 Amps AC, Kohler Engine, 1 Cylinder Air Cooled

Portable AC Welder/AC Generator - It’s great for hobbyists and anyone who needs portable AC stick welding and AC generator power! Dependability and long life aided by all-copper windings in rotor and stator with high quality insulation. Red and black powder paint finish offers increased durability with added protection from rust and corrosion. Also ultraviolet resistant to better retain color and gloss. Manufactured under a quality system certified to ISO 9001 requirements and meets U.S. EPA EVAP standards for reduced emissions of gasoline vapor.

What's Included?

• (1) Bulldog 550 Engine Drive Welder

Features

• Single, full range calibrated welding output dial makes it simple to dial in the ideal amperage for your repair, maintenance or fabrication project. Dial also includes operating ranges for 3/32 in. (2.4 mm) and 1/8 in. (3.2 mm) electrode.
• Up to 140 amps of AC welding output for welding steel, stainless steel, cast iron or hardfacing projects with up to 1/8 in. (3.2 mm) stick electrode. Suggested electrodes are Lincoln Electric 7018AC (AWS E7018) and Fleetweld®180 (AWS E6011).
• 1-1/4 in. (32 mm) Diameter Rugged Tube Frame - Largest diameter tube frame in its class provides all-around sturdy protection.
• Low-Lift™ Grab Bars - Provides more leverage for lifting unit on and off truck beds and extra protection against product damage.
• 5,500 Watts Surge (4,000 Watts Continuous) AC Generator - Powers your grinder, work lights, pump, motor starting, or emergency power or plug in a Lincoln® POWER MIG® 140C for wire welding.
• Delivers up to 16.7 amps continuous power from the 240V AC receptacle, and up to 33.3 amps continuous power from the two 120V AC duplex receptacles. All outlets are circuit breaker protected

• Welding Amperage: up to 140A AC
• Surge Power: 5500 W
• Continuous Power: 4000 W
• Max Rating: 125A / 20V / 30% @ 104 F (40 C)
• Output Mode: CC
• Output Polarity: AC
• Auxiliary Output Voltage: 120; 240 V
• Auxiliary Output Type (Phase): Single Phase (1)
• Auxiliary Output Frequency: 60 Hz
• Continuous Current 240V Outlet: 16.7 A
• Continuous Current 120V Outlets: 33.3 A
• Electrode Size: up to 1/8 in (3.2 mm)
• Electrode Compatibility: AWS E7018, AWS E6011
• Weld Modes: CC-Stick
• Welding Technology: Conventional
• Max Output: 100-199 A

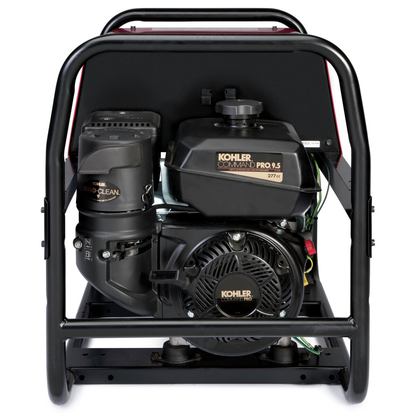

• Engine Brand & Model: Kohler CH395
• Engine Description: 1 Cylinder Air Cooled Gasoline Engine
• Engine Cooling: Air
• Engine Horsepower: 8.9 HP
• Engine Type: Carburetor
• Fuel Type: Gasoline
• Fuel Tank Size: 7.2 L (1.9 gal)
• Fuel Consumption (High Idle): 0.3 gal/h (1.2 L/h)
• Oil Capacity: 1.1 L (1.2 qts)
• Length: 31.5 in (800 mm)
• Width: 21.8 in (553 mm)
• Height: 25.6 in (651 mm)
• Weight: 198 lb (89.8 kg)
• Tube Frame Diameter: 1-1/4 in (32 mm)
• Receptacle Types: NEMA 5-20R
• Case Type: Painted (Powder, rust and UV resistant finish)
• Welding Controls: Reactor
• # of Control Knobs: Single Knob (Continuous Knob interface)
• Output Meters: Analog
• Input Voltage Type: Engine
• Input Icon: G
• Output Icon: AC; CC
• Jumper Terminals: No
• User Interface Type: Continuous Knob
• Multifunctional Equipment: Welder; Generator
• Compliance: ISO 9001, U.S. EPA EVAP
• Country of Origin: United States
