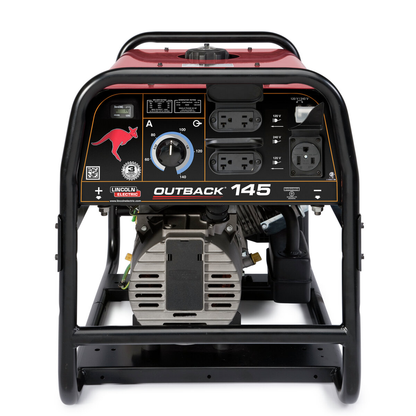

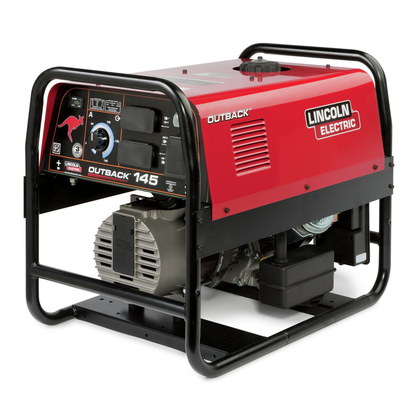

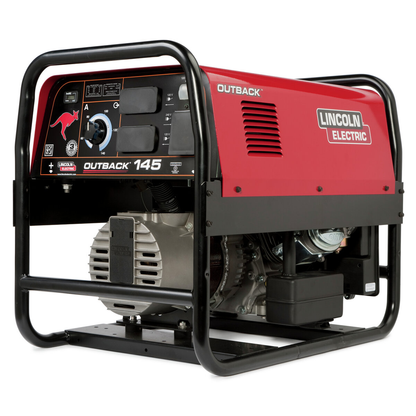

Lincoln Electric, K2707-2, Engine Driven Welder, 145 A, Kohler Engine, 6.8 Gal Fuel Tank, DC; CC Output

Built For The Outdoors!™ It’s great for service trucks, fence contractors, maintenance crews, farmers, ranchers and anyone who needs portable DC stick welding and AC generator power!

Features

• 4,750 Watts Peak (4,250 Watts Continuous) AC Generator Power - Use for your grinder, work lights, pump, motor starting, or emergency power. Plug in a Lincoln POWER MIG® 140C or POWER MIG® 180C for wire welding!
• Low-Lift™ Grab Bars - Provides more leverage for lifting unit on and off truck beds and extra protection against product damage.
• 1-1/4 in. (32 mm) Diameter Rugged Tube Frame - Great for all-around sturdy protection. Largest diameter tube frame in its class!
• 6.8 Gallon (25.7 Liter) Fuel Tank - For extended run times, less frequent re-fueling. Large fuel fill opening for easy re-fueling too.
• DC Welding with up to 1/8 in. (3.2 mm) Stick Electrode - Up to 145 amps of DC output for many applications.

What's Included?

• (1) Outback 145 Engine Driven Welder

• AC Generator Power Continuous: 4,250 Watts
• AC Generator Power Peak: 4,750 Watts
• DC Output Amperage: 125A / 25V / 30% @ 40 C
• Stick Electrode Capacity: 1/8 in (3.2 mm)
• Fuel Tank Capacity: 6.8 gal (25.7 L)
• Engine Horsepower: 8.9 HP
• Fuel Type: Gas
• Engine Brand & Model: Kohler CH395
• Engine Type: Carburetor
• Cooling: Air
• Length: 31.5 in (800 mm)
• Width: 21.2 in (537 mm)
• Height: 25.5 in (647 mm)
• Weight: 234 lb (106 kg)
• Auxiliary Output Voltage: 120 / 240 V
• Auxiliary Output Frequency: 60 Hz
• Receptacle Types: NEMA 5-20R; NEMA 6-50R
• Weld Modes: CC-Stick (SMAW)
• Operating Temperature: 40 C rated output
• Oil Capacity: 1.1 L (1.2 qts)
• Input Voltage Type: Engine
• Output Polarity: DC
• Output Mode: CC
• Engine Cylinders: 1
• Engine Controller: Mechanical
• Case Type: Painted
• Country of Origin: United States
• VRD: No
• Jumper Terminals: No
• Work Clamp Included: No
• Tap or Continuous Control: Continuous
• User Interface Type: Continuous Knob
