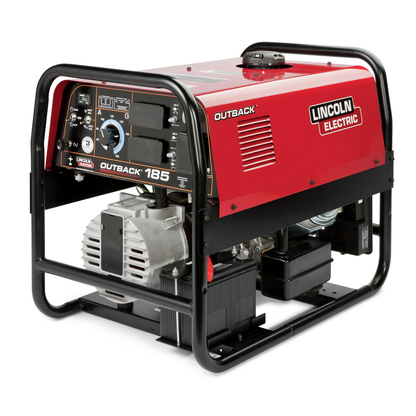

Lincoln Electric, K2706-2, Engine Driven Welder, 185 A DC Output; 6.8 gal Fuel Tank; Air-Cooled, Kohler Engine

Built for the Outdoors!™ Great for anyone who needs portable DC stick welding and AC generator power! The Low-Lift™ grab bars on both ends make lifting the Outback® 185 on and off truck beds easy. The compact Outback® 185 is easy to start with all engine controls on the front of the machine, and it’s easy to use for welding. Use the AC generator power for a variety of applications described below with the large 6.8 gallon (25.7 liter) fuel tank! Plug in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding too.

Features

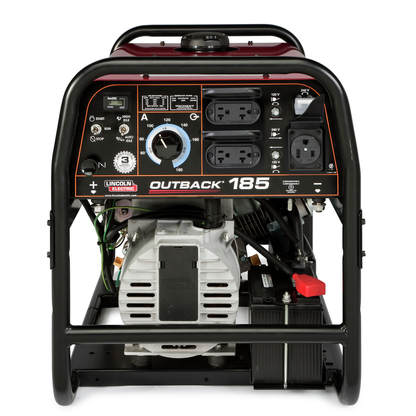

• All Engine Controls on Front Control Panel - Front panel includes electric start switch and engine choke control, which allows for easy access for starting, especially when mounted on truck beds.
• 1-1/4 in. (32 mm) Diameter Rugged Tube Frame - Great for all-around sturdy protection and has holes in base cross members for easy truck mounting.
• Weld with up to 5/32 in. (4 mm) Stick Electrode - Up to 185 amps of DC output for many applications.
• 5,700 Watts Peak AC Generator Power (5,200 Watts Continuous) - Plug in work lights, grinder, pump, motor starting, or use for emergency power. Expand your capabilities by plugging in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding or a Lincoln Electric Tomahawk® 375 Air to cut metal.
• 6.8 Gallon (25.7 Liter) Fuel Tank - Less frequent re-fueling, for extended run times. Large fuel fill opening for easy re-fueling too!
• Low-Lift™ Grab Bars - Provide more leverage for lifting unit on and off truck beds and extra protection against product damage.
• Combination Muffler/Spark Arrestor - Virtually eliminates spark emissions.
• Automatic Engine Idler - Improves fuel economy and engine life and reduces noise.

What's Included?

• (1) Outback 185 Engine Driven Welder

• Output Range: 50-185A DC
• Voltage: 25V DC
• Duty Cycle: 100% at 100A, 60% at 130A, 20% at 150A
• Peak AC Generator Power: 5,700 Watts
• Continuous AC Generator Power: 5,200 Watts
• Engine Horsepower: 14 HP @ 3,600 RPM
• Engine Cylinders: 1
• Fuel Consumption (High Idle): 0.5 gallons / hour (1.7 L/hour)
• Fuel Consumption (Full Load): 1.09 gallons/hour @ 3,400 RPM
• Fuel Consumption (Low Idle): 0.2 gallons / hour (0.8 L/hour)
• Operating Speeds: Full Load 3,400 RPM, High Idle 3,750 RPM, Low Idle 2,275 RPM
• Length: 31.5 in (800 mm)
• Width: 21.8 in (553 mm)
• Height: 25.6 in (651 mm)
• Weight: 295 lbs (134 kg)
• Fuel Tank Capacity: 6.8 gallons (25.7 L)
• Stick Electrode Maximum Size: 5/32 in (4 mm)
• Frame Diameter: 1-1/4 in (32 mm)

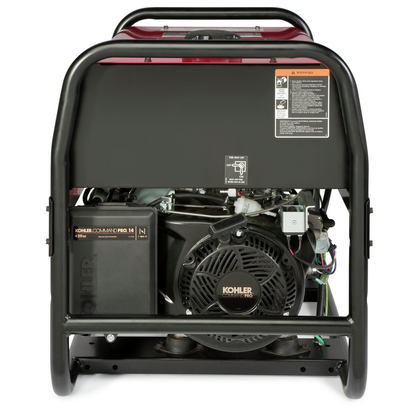

• Engine Model: Kohler CH440
• Engine Cooling: Air
• Fuel Type: Gas
• Output Polarity: DC
• Tap or Continuous Control: Continuous
• Multifunctional Equipment: Welder; Generator
• Weld Modes: CC-Stick
• Auxiliary Output Voltage: 120; 240 V
• Single Phase Auxiliary Output: 5,200 Watts Continuous, 120/240V
• Auxiliary Output Frequency: 60 Hz
• Receptacle Types: NEMA 5-20R; NEMA 6-50R
• Welding Controls: Reactor
• VRD: No
• Jumper Terminals: No
• Oil Capacity: 1.1 L (1.2 qts)
• Temperature Rating at Rated Output: 40 C
• Engine Controller: Mechanical
• Engine Type: Carburetor
• Output Mode: CC
• Max Rating: 150A / 25V / 20% @ 40 C
• User Interface Type: Continuous Knob
• Auxiliary Output Type (Phase): Single Phase
• Country of Origin: United States
• Engine Description: 1 Cylinder Air Cooled Gasoline Engine
• Case Type: Powder Painted Steel Frame
