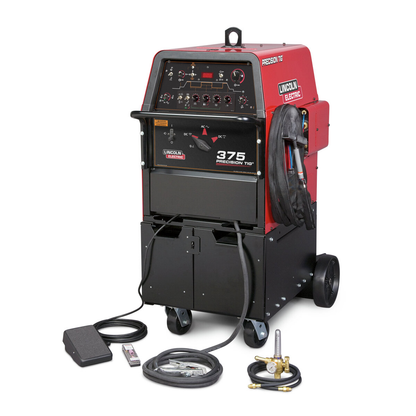

Lincoln Electric, K2624-1, TIG Welder, 375A; 2-420A Output Range; AC/DC; Micro-StartTM II Technology

When it’s time for thicker materials and heavier jobs, choose the Precision TIG® 375, which provides for the highest duty cycle in its class. The Precision TIG 375 also features a built-in TIG pulser, that can be activated to help control heat input in the weld and reduce distortion and burn-through on thin materials. The Precision TIG 375 features the patented Micro-Start™ II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills.

Features

• AC Auto-Balance® automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum.
• Tackle either end of the material thickness spectrum with the widest operating range in its class from 2 to 420 amps
• Ready-Pak ships fully assembled with water cooler, Foot Amptrol™, regulator and hose kit, TIG torch, torch cover, parts kit, water hoses, work cable and clamp, and adapter.
• Standard pulse functions enable better control over heat input, resulting in less warping and distortion on thin metals
• The Precision TIG 375 features the patented Micro-Start™ II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills.
• Or, take full control - adjust the AC Balance® to increase or decrease cleaning action or penetration on aluminum.

What's Included?

• (1) K2622-1 Precision TIG 375 Welder, (1) K2621-1 Advanced Control Panel, (1) K1828-1 Under-Cooler Cart Water Cooler, (1) K870 Foot Amptrol™ with 25 ft (7.6 m) Cable Assembly, (1) 3100211 Harris Gas Regulator/Flowmeter and 10 ft Hose Kit, (1) K1784-4 PTW-20 250A Water Cooled TIG Torch with 25 ft Cable, (1) K918-2 Zippered Torch Cover with 25 ft Cable Assembly, (1) KP510 Parts Kit for PTW-20 Series Torches, (2) S19558-4 Water Hoses, (1) K2150-1 2/0 Work Cable and Clamp 15 ft

• Output Range: 2-420A, Max OCV: 80V
• Rated Output: 375A/40%, 350A/60%
• Input Voltage: 208/230/460 V
• Input Phase: 1
• Input Frequency: 60 Hz
• Input Current: 40% Duty Cycle with PFC: 112/102/51A, 60% Duty Cycle: 102/92/46A
• Welding Technology: Conventional
• Cooling: Water
• Length: 41 in (1041 mm)
• Width: 28 in (711 mm)
• Height: 49.7 in (1262 mm)
• Weight: 755 lb (342.5 kg)
• Polarity: AC/DC
• Output Mode: CC
• Output Polarity: AC; DC; AC/DC
• Input Voltage Type: Multiple
• Torch Cable Length: 25 ft
• Work Cable Length: 15 ft
• Country of Origin: United States
• Warranty Length: 3 Years
