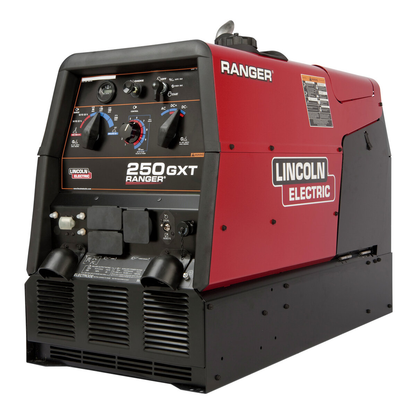

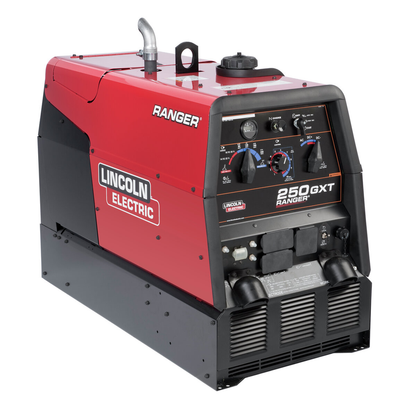

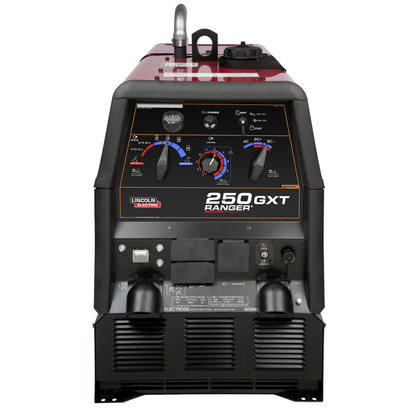

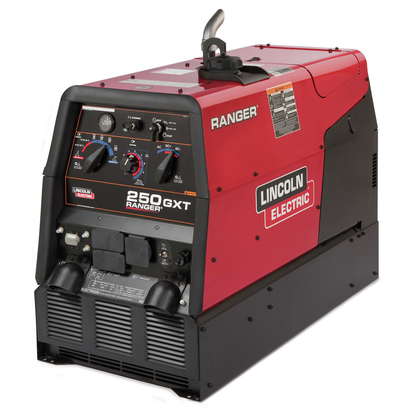

Lincoln Electric, K2382-4, Engine Driven Welder, 250 Amps, AC/DC, 11,000 Watts Peak, 23 HP Kohler Engine

EXTRA POWER, EXTRA PERFORMANCE. Get all of the XTras needed for construction and maintenance work. That's XTra welding performance with 250 amps for AC or DC stick and DC wire welding and XTra power with up to 11,000 watts peak for lights, grinders or high amperage equipment. You also get XTra protection and quiet operation with the Lincoln enclosed case.

Features

• Totally Enclosed - Case Engine is fully protected with 3 service access doors. Low Noise - 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
• (1) Ranger 250 GXT Engine Driven Welder
• 11,000 Watts Peak Single-Phase AC Generator Power - 10,000 watts continuous power for generator output, plasma cutter or inverter welder. Power-up lights, grinder, and power tools.
• Versatile AC/DC Welding - AC/DC welding output for a broad range of stick electrode types. Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol™ for aluminum and other alloy welding. MIG and Flux-Cored capable (with optional equipment). Remote ready! 6-pin connector and local/remote switch for remote control operation.
• 23 HP Kohler® Gasoline Engine - 2 cylinder, 4 cycle overhead valve air-cooled design. Electric fuel pump avoids vapor lock. Oil drain extension for easy oil changes. 12 gallon tank for extended run times. Electric fuel gauge located on control panel makes it easy to check the fuel level during operation and refueling.
• Rugged Reliability - Welding and AC Generator Outputs Rated at 104⁰F (40⁰C).

• Amperage: 250A AC/DC
• Output Voltage: 25V
• Duty Cycle: 100% at 250A
• AC Generator Power Peak: 11,000 Watts
• AC Generator Power Continuous: 10,000 Watts
• Engine Horsepower: 23 HP
• Engine Cylinders: 2 Cylinder
• Engine Type: 4 cycle overhead valve air-cooled gasoline
• Fuel Tank Capacity: 12 gal (45 L)
• Oil Capacity: 2.0 qts (1.9 L)
• Operating Speed: 3,500 RPM full load, 3,700 RPM high idle, 2,400 RPM low idle
• Fuel Consumption: 1.7 gal/hr full load
• Noise Level: 76.4 dBA at 23 ft, 100.7 dB sound power at rated output
• Height: 30 in
• Length: 42.3 in
• Width: 21.5 in
• Weight: 602 lb
• Material: Totally enclosed case
• Compliance: CSA Certified
• Country of Origin: United States
