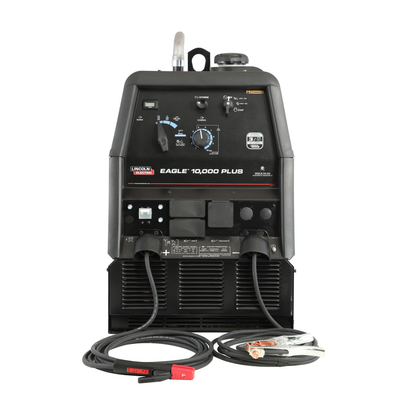

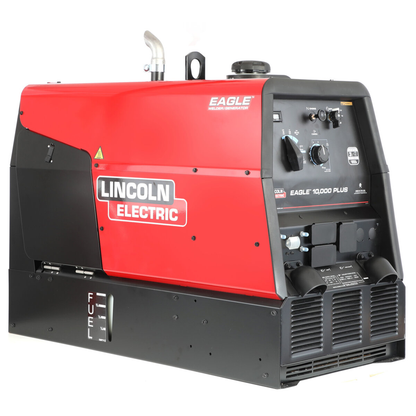

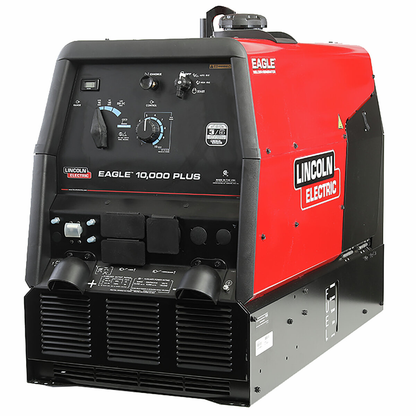

Lincoln Electric Eagle 10,000 with Lincoln Electric engine is great choice for getting the job done. Built for construction contractors, maintenance crews, farmers or ranchers, the Eagle 10,000 Plus does a variety of basic welding jobs. With additional AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric welders, plasma cutters or emergency power simultaneous while welding.
Features
- Versatile, smooth DC welding output allowing the use of a broad range of stick electrodes
- Totally enclosed case that protects the engine and lowers the sound level

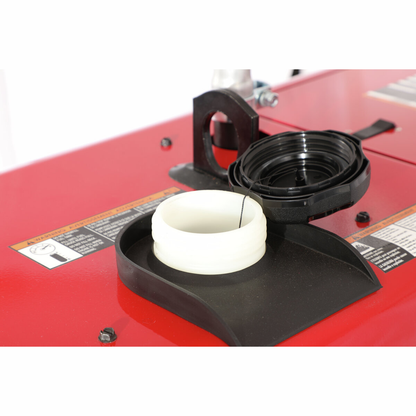

- 12 gallon gasoline tank for extended run time with a visual fuel level gauge on both sides of unit
- Fine adjustment control allows you to dial in just the right welding output for each application
- Convenient truck or trailer mounting with front and rear hole in base
- 10,500 watt surge and 9,000 watt continuous AC generator
- MIG, flux-cored and TIG capabilities with optional equipment
What's Included?
- (1) Eagle 10,000 Plus Engine Drive, (1) #2 Electrode Cable and Holder 20 ft (6.0 m), (1) #2 Work Cable and Ground Clamp 15 ft (4.5 m)
-
Wattage: 10,500 Watts Surge; 9,000 Watts Continuous
-
Rated Output: DC Constant Current 225A/25V/40%; 210A/25V/100%
-
Output Range: 220-225A; 70-145A; 50-90A
-
Voltage: AC 120/240V
-
Engine Horsepower: 22 HP @ 3600 RPM
-
Fuel Tank Capacity: 12 gallon (45 L)
-
Oil Capacity: 1.6 qts (1.5 L)
-
Dimensions: 42.3 in L x 21.5 in W x 29.9 in H (1074 mm x 546 mm x 759 mm)
-
Weight: 514 lb (233 kg)
-
Polarity: DC
-
Output Icon: DC; CC
-
Machine Processes: Stick (SMAW); Gouging (CAC-A); Flux-Cored (FCAW); TIG (GTAW); MIG (GMAW)
-
Input Power: Gasoline
-
Electrode Cable Length: 20 ft
-
Work Cable Length: 15 ft
-
Engine Brand & Model: OHV Command CH730
-
Country of Origin: United States
