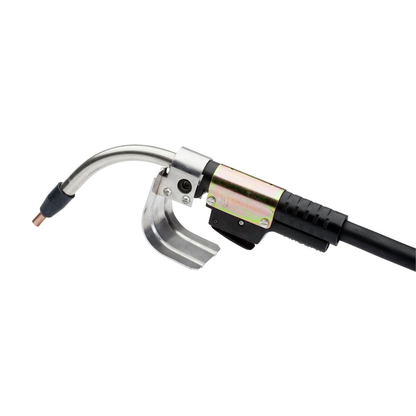

Lincoln Electric, K126-12, FCAW Welding Gun, 350A, 15 ft, Replaceable Liner, Magnum PRO Contact Tips

Semiautomatic Air-Cooled Self-Shielded Innershield® Guns Lincoln has been the leader in self-shielded wire, feeders and guns for more than 50 years. The new K126™ PRO guns feature replaceable liners, interchangeable backends, long life Magnum® PRO contact tips, improved heat resistant gun tubes and better trigger lead protection. Select the Lincoln K126™ PRO series for your construction welding applications. New replaceable liner system. Magnum® PRO Copper Plus™ Contact Tips. . Replaceable contact tip holder - Easily replaced without damage to the gun tube if the tip seizes or fuses. . Interchangeable gun connectors for use on a wide range of feeders. . Integrated trigger leads in coaxial cable rather than externally routed - Improved protection against abrasion. . Stainless steel gun tube jacket. , Spatter resistant for long life and electrical isolation. . Popular 62° non-reverse bend is standard on the gun. . Optional reverse and non-reverse bend gun tubes are available. . Reverse bend design is used to help take the cast out of stiffer flux-cored wire. . Rotatable for improved access in tight spaces. . . Extra trigger leads - Enable fast repairs. . Plated steel strain relief extends cable life.

Features

• New replaceable liner system.
• Integrated trigger leads in coaxial cable rather than externally routed.
• Replaceable contact tip holder.
• Magnum® PRO Copper Plus™ Contact Tips.
• Interchangeable gun connectors for use on a wide range of feeders.

What's Included?

• 5/64 in. (2.0 mm) Contact Tip (KP2745-564). Tip Holder (KP2908-1). Insulator (KP2907-1). 62° Non-Reverse Stainless Steel 6 in. (152 mm) Bend Gun Tube (KP2906-62). #4 size Gun Connector (K466-10). 5/64 in. (2.0 mm) Liner (KP44-564-15).

• Amperage: 350 A
• Duty Cycle at Rated Amperage (CO2): 60%
• Cable Length: 15 ft
• Wire Diameter Range: 1/16 - 5/64 in (1.6 - 2.0 mm)
• Gooseneck Angle: 62
• Gun Connector: #4 size (K466-10)
• Contact Tip Size: 5/64 in (2.0 mm)
• Gun Tube: 62 Non-Reverse Bend, Stainless Steel, 6 in (152 mm)
• Liner Size: 5/64 in (2.0 mm)
• Material: Stainless Steel (Gun Tube), Copper (Magnum PRO Contact Tips)
• Country of Origin: Mexico
