Lincoln Electric, K5772-1, Handheld Laser Welding System, 2000W, Ergonomic Design, 53.7 in Height, 45.5 in Length, 23 in Width

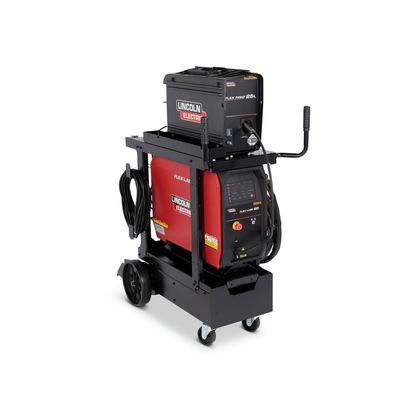

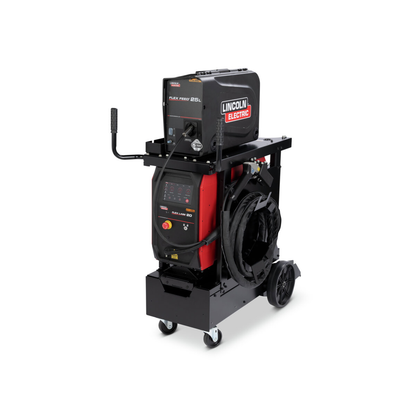

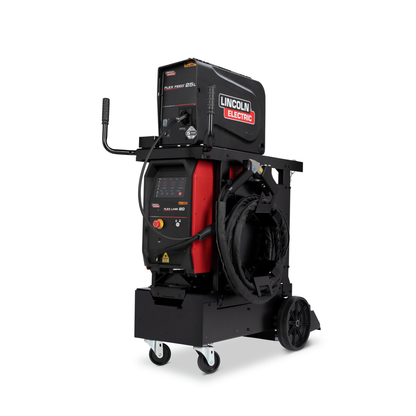

Fast. Easy. Precise. The easy-to-use Flex Lase handheld laser welding system puts power, speed and precision at your fingertips. With 2kW of laser output power and a robust package, operators can tackle high-precision welding applications with faster travel speeds - up to 4 times faster than TIG - helping to improve productivity without sacrificing quality. The Ready-Pak includes the Flex Lase 20 power source, Flex Feed 25L wire feeder, a factory-proven cart, laser-rated welding helmet and safety glasses, and accessories to start welding in minutes. Operators can maximize welding time with straightforward navigation that allows them to easily dial in the machine for the task at hand. The Flex Lase system has optimized weld modes for stainless steel, carbon steel and aluminum to deliver smooth, stable laser performance specifically tailored for your application. Achieve larger welds using Lincoln Electric's Hyperfill twin-wire process by purchasing the optional Accessory One-Pak to maximize productivity.

Features

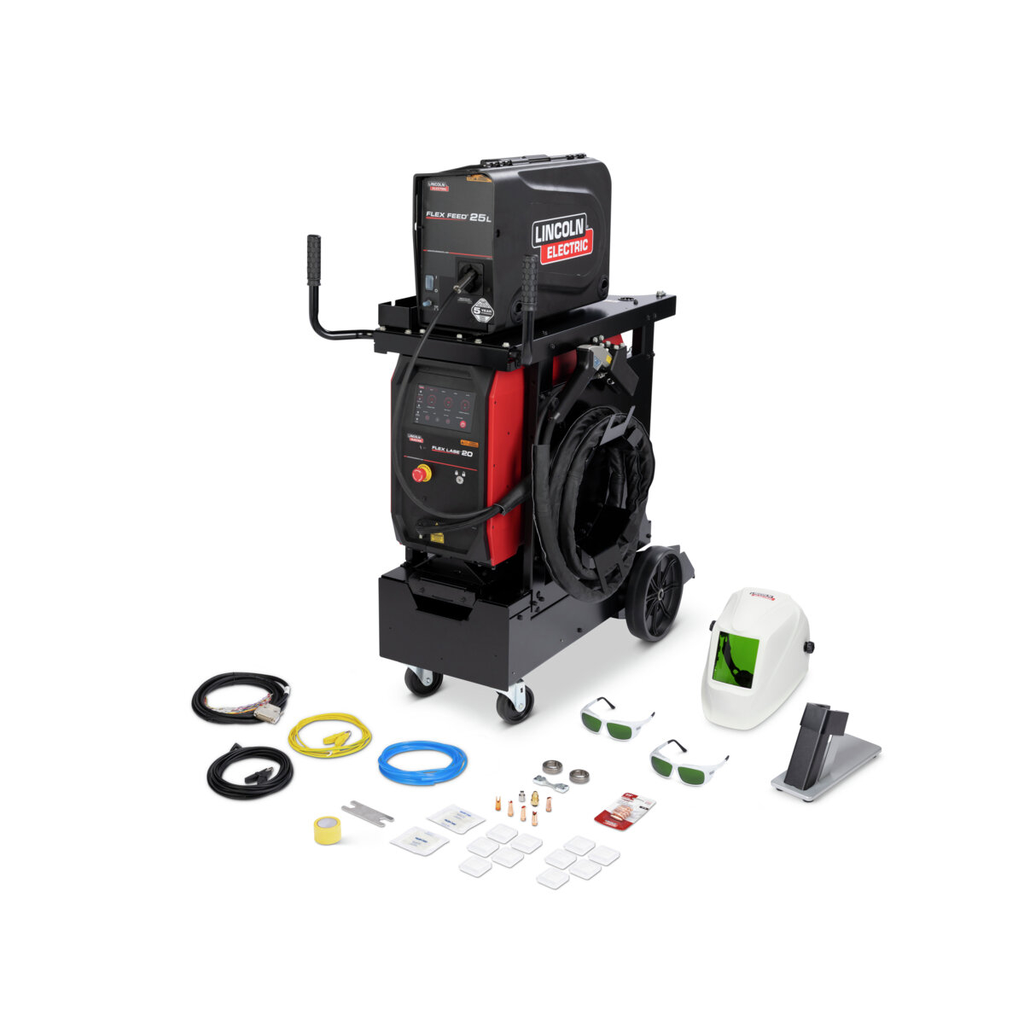

• Convenient Ready-Pak - Comes fully assembled, shipped on a pallet and ready to weld in minutes. Welding wire and shielding gas must be ordered separately.

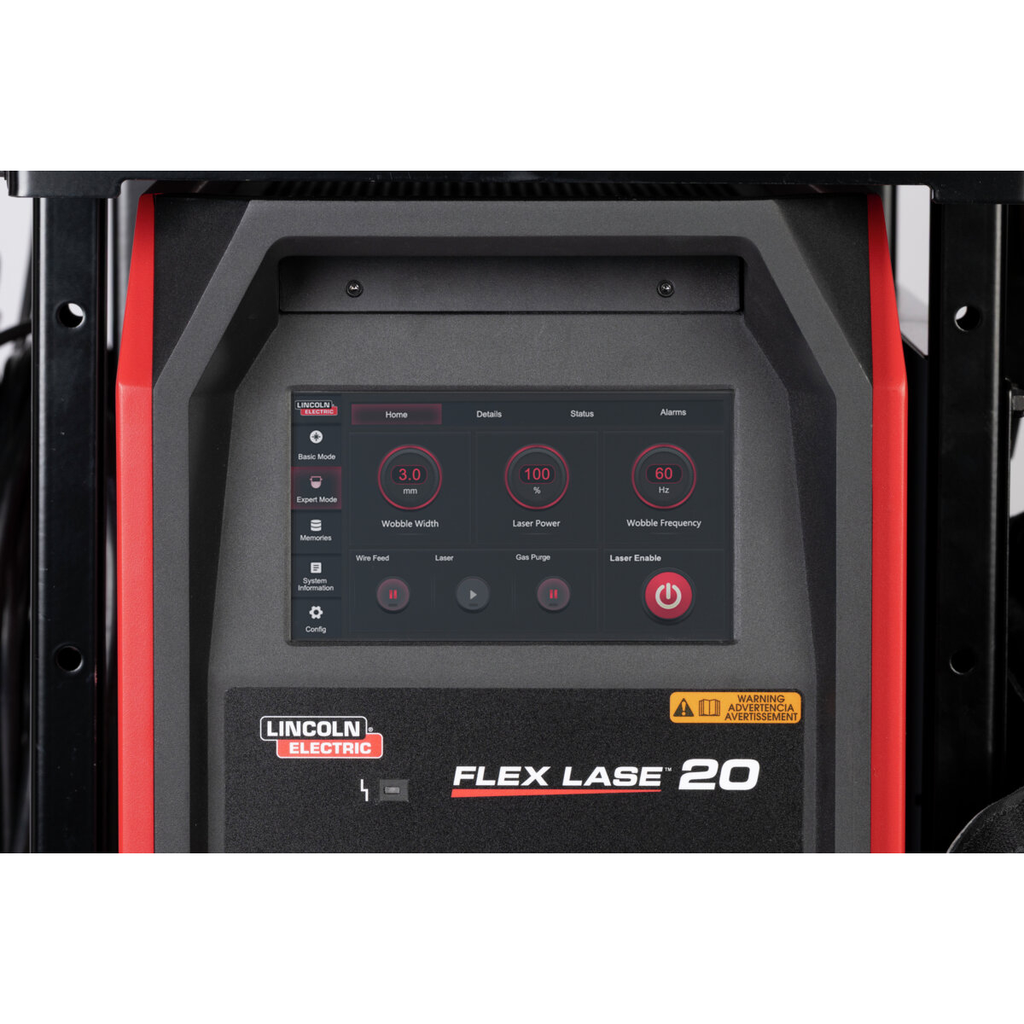

• Flex Lase 20 - A 2 kW (2000W) laser power source designed for high-precision welding, easy onboarding and fast travel speeds with a 2-year warranty. With a large 7-inch high-resolution display and straightforward navigation, operators can maximize welding time by easily dialing in the machine for the task at hand.

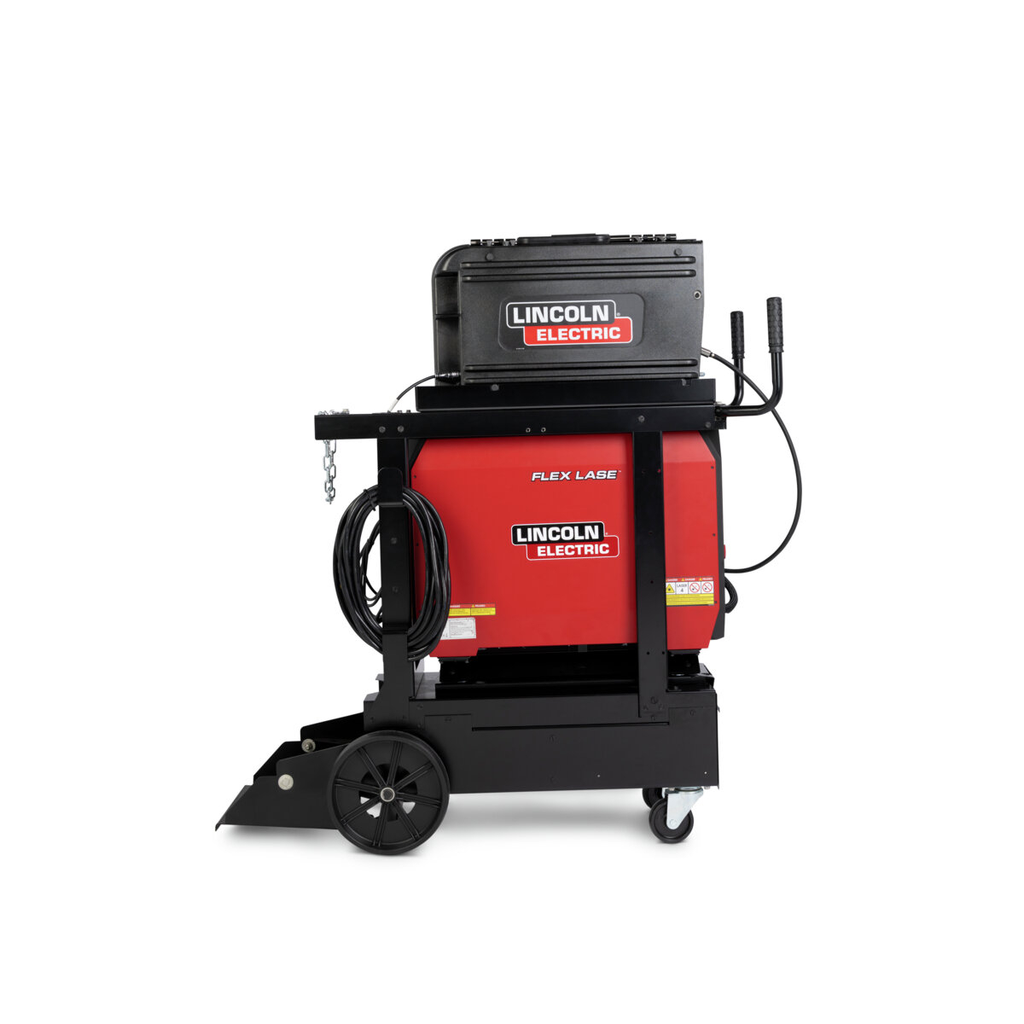

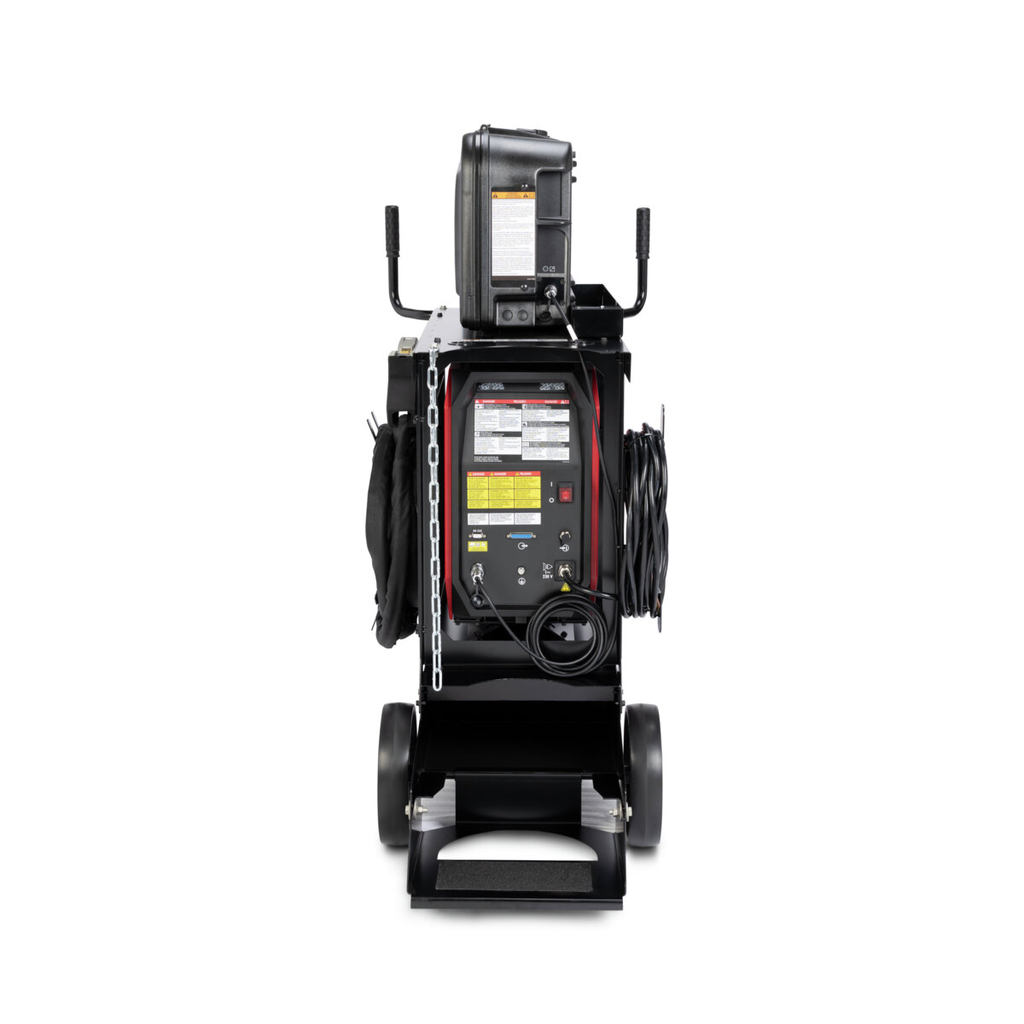

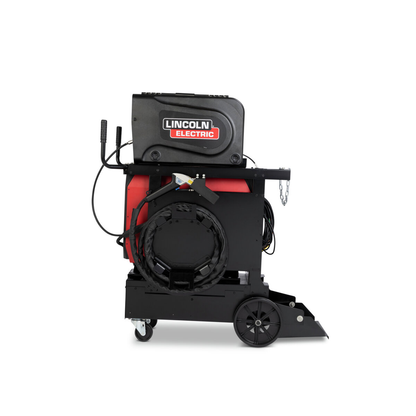

• Industry-Focused Cart Design - Includes a laser welding gun holster, cable management features for both the gun cable and input power cord, as well as multiple on-board storage features. This cart comes with its own 1-year warranty.
• Flex Feed 25L - Based on the industry-proven, rugged, reliable design of the Power Feed 25M, the wire feeder features internal lighting and two roll MAXTRAC® wire drive system that allows for easy access for inspection, cleaning or changing to different wire sizes. Covered by a market-leading 5-year warranty.
• Laser-Rated Welding Helmet & Safety Glasses - Designed for ergonomic fit, all-day comfort and full-coverage OD 7+ protection to minimize exposure to laser radiation.
• Customized User Interface - Allows for a single point of control for the wire feeder and power source that features a simple, visual process and can store up to 32 memory settings. Includes handheld laser welding parameters optimized by Lincoln Electric's premier Weld Development and Application Engineering teams.

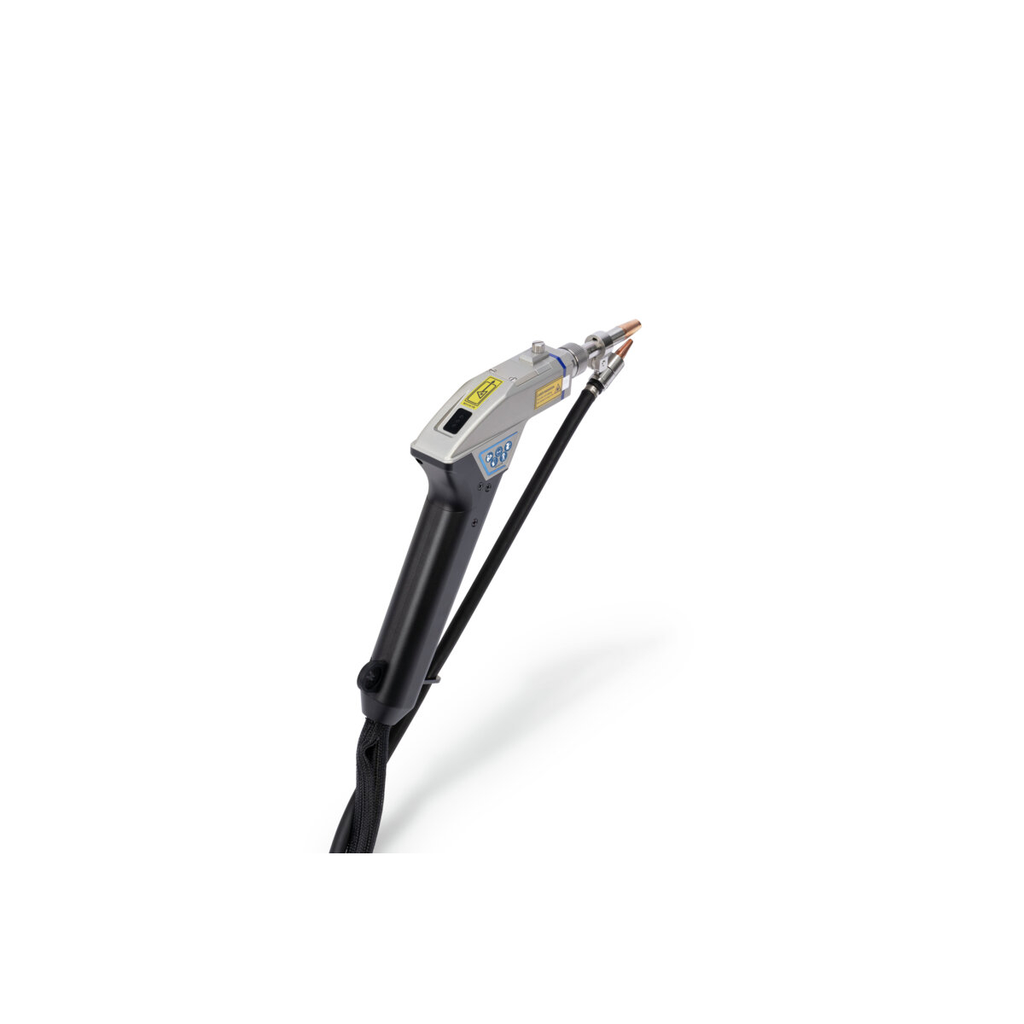

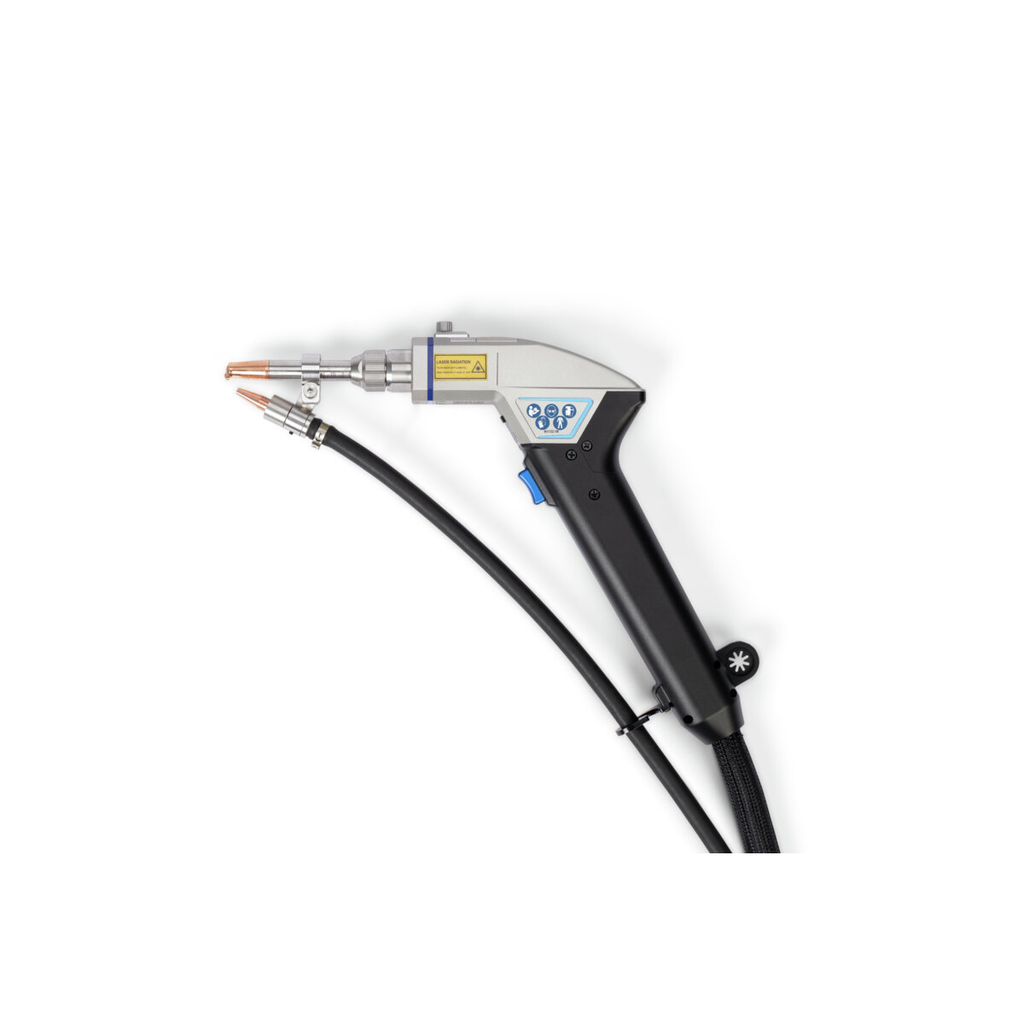

• Flex-Lase Laser Welding Gun - Operator-focused, lightweight and ergonomic design with LED indicator lights for output status, visible red guide light, and simple toggle switch to change from autogenous to wire-fed welding.

• Laser Power: 2000 W
• Input Voltage: 230 V AC
• Input Phase: Single Phase
• Input Frequency: 50/60 Hz
• Input Current: 26 A
• Dimensions (H x W x D): 53.7 x 23 x 45.5 in (1364 x 584 x 1156 mm)
• Weight: 50 lb (23 kg)
• Display Size: 7 in
• Wire Drive System: MAXTRAC dual roll
• Welding Helmet Protection: OD 7+
