Lincoln Electric, K3968-1, Connection Kit, VV-50 Valve; 3 inch, Hose Adapter 1.75 inch to 2.0 inch

The K3968-1 Connection Kit is used to attach extraction nozzles and/or fume guns to the X-Tractor 3A. The VV-50 valve is the main distribution valve and has three outlets; two with an outside diameter of 50 mm (2 inch) and one with an O.D. of 76 mm (3 inch). The S20591-8 Hose to Tube adapters included in the kit allow for the connection of 1-3/4 inch (45 mm) I.D. hoses to the two 50 mm (2 inch) outlets of VV-50 valve.

Features

• Easily connect one or more hoses to X-Tractor 3A

What's Included?

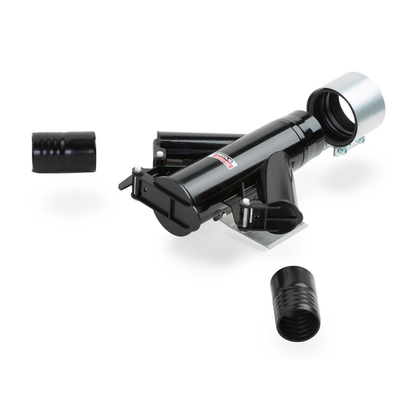

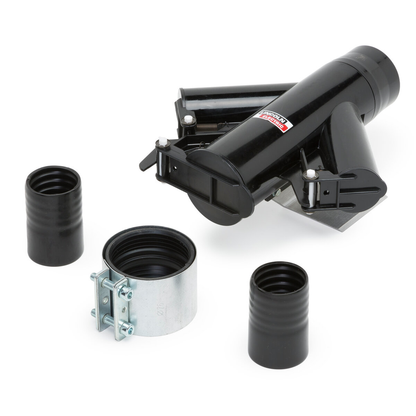

• VV-50 Valve (M17321-8). 3 inch Sleeve (S26767-41). Hose Adapter 1.75 inch to 2.0 inch (S20591-8, Qty 2).

• Valve Outlets Diameter: 2 in. (50 mm), 3 in. (76 mm)
• Hose Adapter Size: 1.75 in. to 2.0 in. (45 mm to 50 mm)
• Valve Model: VV-50
• Warranty Length: 3 Years
• Country of Origin: United States
