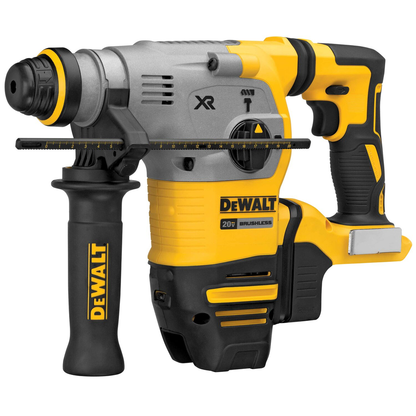

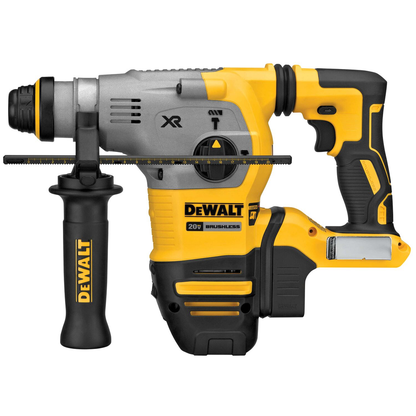

DEWALT, DCH293B, Rotary Hammer Drill, 20V MAX, 1-1/8 in Chuck Size, Brushless Motor, 3.5 J Impact Energy

Complete large-diameter hole drilling with the 20V MAX XR 1-1/8 in. L-shape rotary hammer powered by a brushless motor and a durable German-engineered mechanism. Featuring a balanced design, this high-performance hammer delivers 3.5 joules of impact energy. Built with safety in mind, this tool has the shocks Active Vibration Control System and the anti-rotation E-CLUTCH system. Get OSHA Table 1 compliance when used with the dwh304dh on board extractor.

Features

• Anti-Rotation E-CLUTCH System protects the user in bind up situations by stopping the rotation of the bit.
• 3.5 Joules of impact energy for fast drilling in concrete.
• Rotating Dial to set tool to a specific application mode - Drill, Hammer Drill, or Chip.
• Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
• Lightweight design makes this tool ideal for structural connections, beam & column anchorage, rod hanging, seismic & safety attachments, cable tray & strut mounting, and steel stanchion mounting
• Oshae table 1 compliant when paired with DWG304DH on board extractor.
• SHOCKS active vibration control system reduces vibration felt by the user at the handles, compared to rotary hammers without this feature.

Includes

• (1) 360° Side handle | (1) Depth rod | (1) DCH293 Rotary hammer

Disclaimer

• Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.

Prop 65

• Yes

• Voltage: 20V MAX
• Impact Energy: 3.5 J
• Maximum Speed: 1000 RPM
• Impacts Per Minute: 4480
• Maximum Chuck Size: 1-1/8 in
• Motor Type: Brushless
• Length: 15.5 in
• Height: 10.63 in
• Width: 4 in
• Weight: 9.15 lbs
• Battery Type: 20V MAX Lithium Ion
• Battery Amp Hours: 6 Ah
• Product Primary Material: Metal
• Housing Material: Plastic
• Handle Material: Plastic
• Chuck Type: SDS-Plus
• Keyless/Keyed: Keyless
• Variable Speed: Yes
• Forward And Reverse Switch Included: Yes
• Bare Tool: Yes
• Battery Required: Yes
• Number Of Batteries Required: 1
• Maximum Capacity Concrete: 0.875 in
• Country of Origin: Czechia
