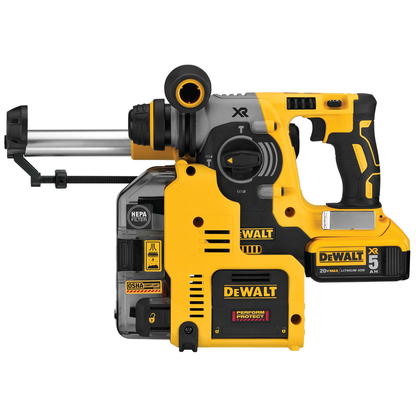

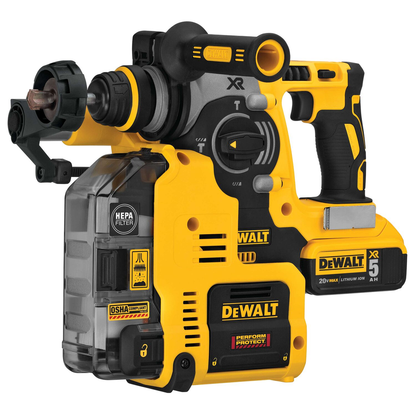

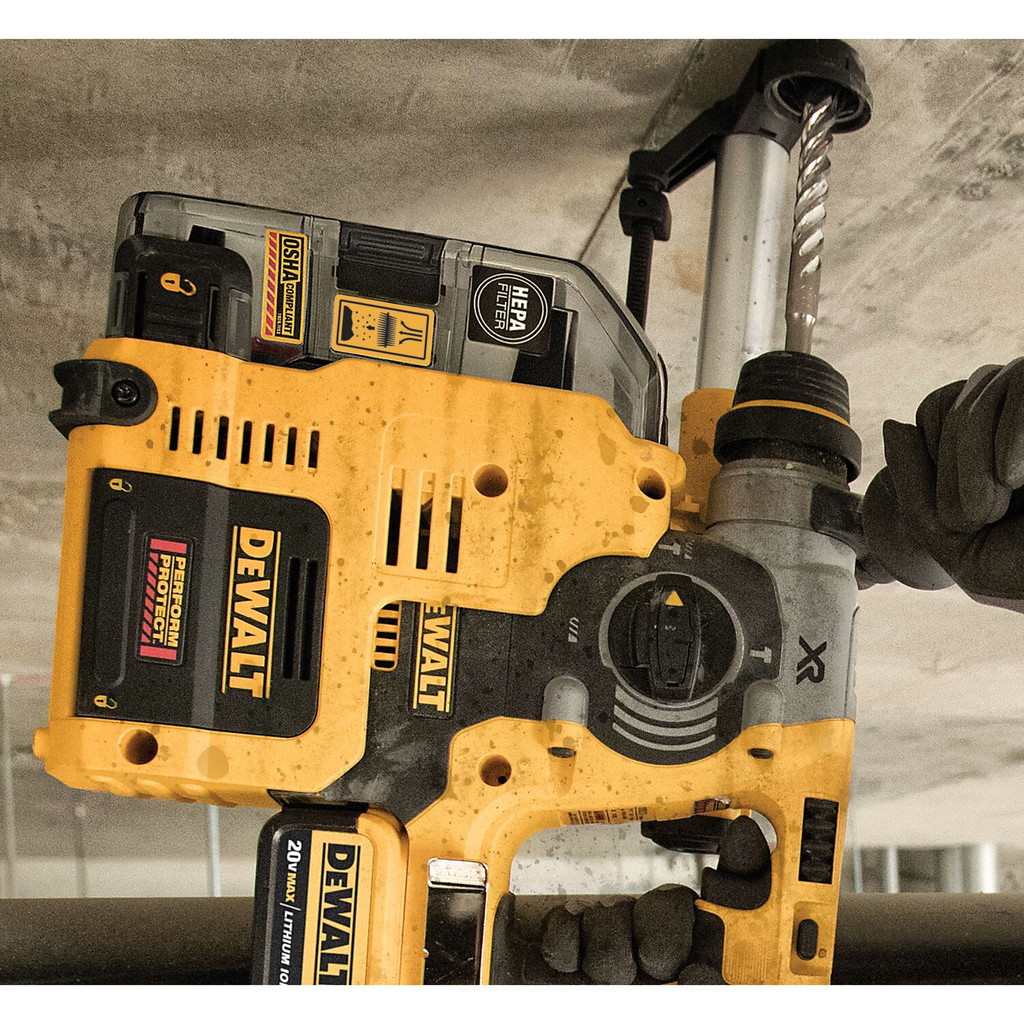

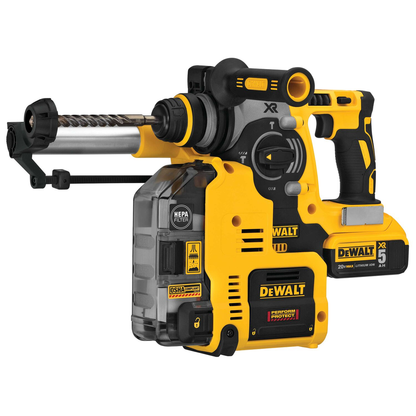

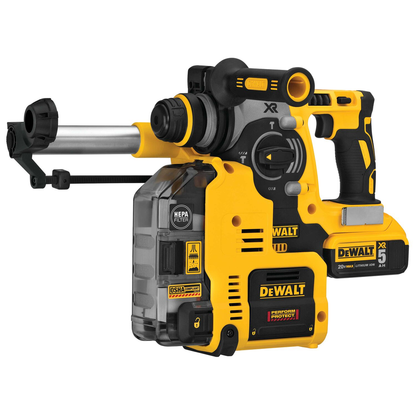

Take on overhead 1/2 in. Drop-in drilling and experience power with the lightweight 20V MAX XR brushless 1 in. Rotary hammer. Built with safety in mind, this hammer features the shocks Active Vibration Control System and can provide OSHA Table 1 compliance when paired with the dwh303dh on board extractor. For the total solution, this product is packaged with a dwh303dh on board extractor, (2) 20V MAX 5ah batteries, a charger, and a durable kit box for portability on the jobsite.

Features

  • 2.1 Joules impact energy for fast drilling in concrete
  • Brushless motor for efficient performance and runtime
  • Replaceable dust nozzle
  • Powerful dust extraction system with built-in motor for increased suction and high tool performance
  • Shocks ACTIVE VIBRATION CONTROL System reduces vibration felt by the user at the handles, compared to rotary hammers without this feature
  • 2-second power-off delay ensures dust extraction continues after drill is switched off
  • Adjustable depth stop for accurate anchor hole depths
  • Replaceable HEPA filter removes 99.97% of airborne particle 0.3 microns or greater

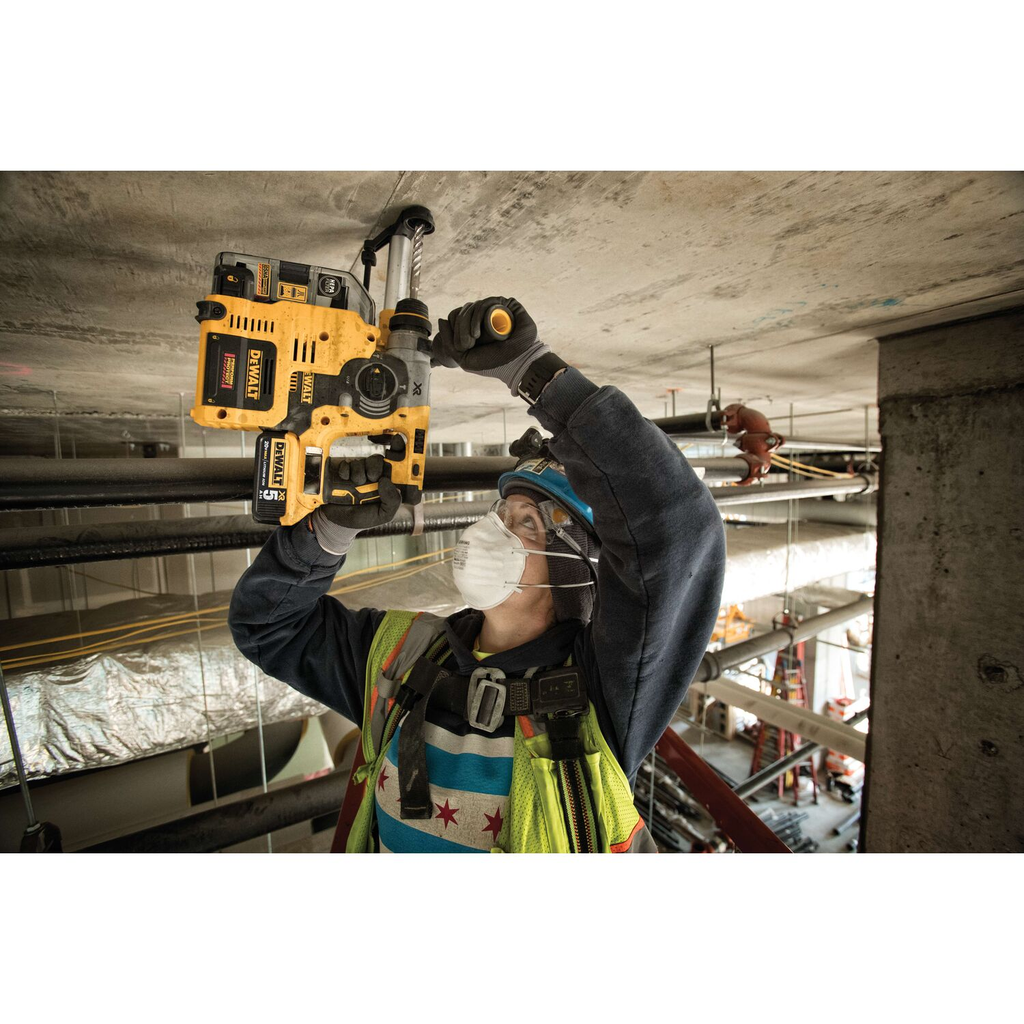

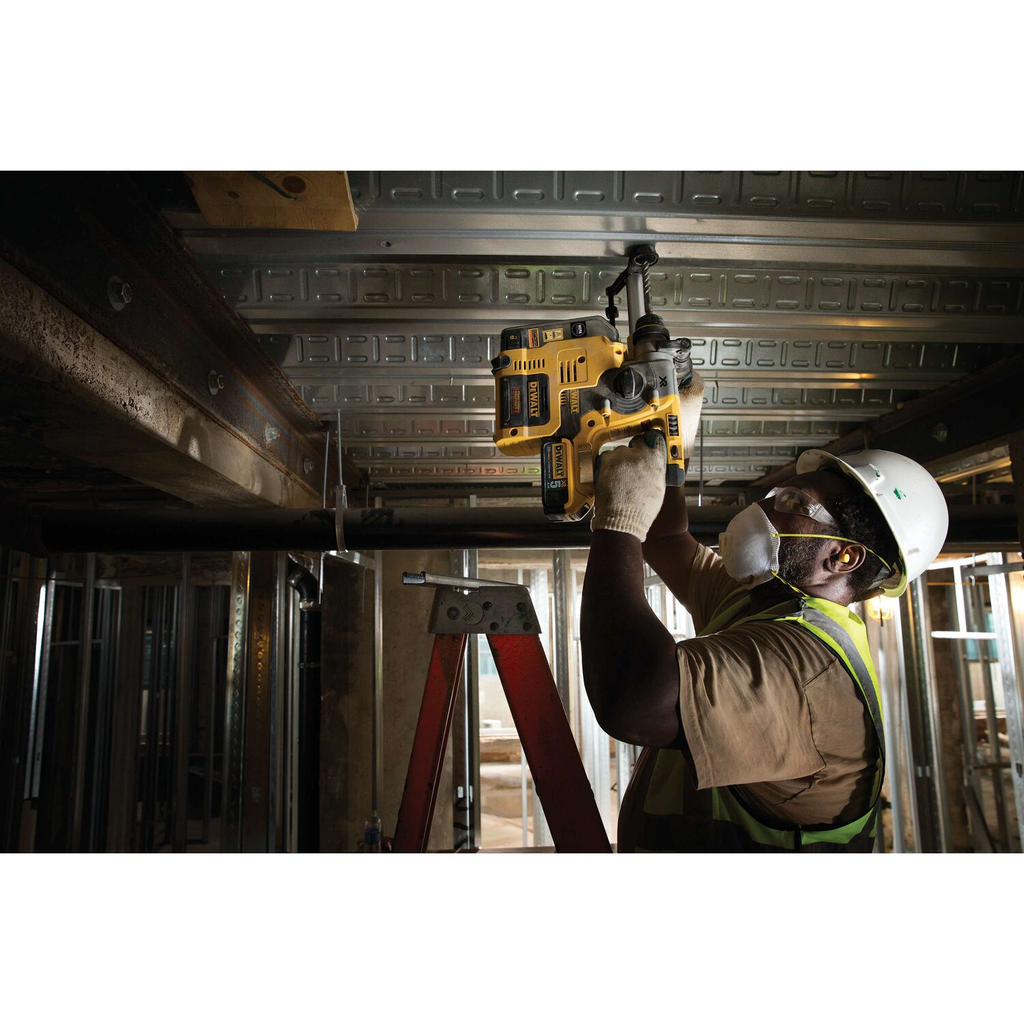

  • Lightweight design ideal for overhead applications
  • Durable, clear high capacity dust box

Prop 65

  • Yes

Includes

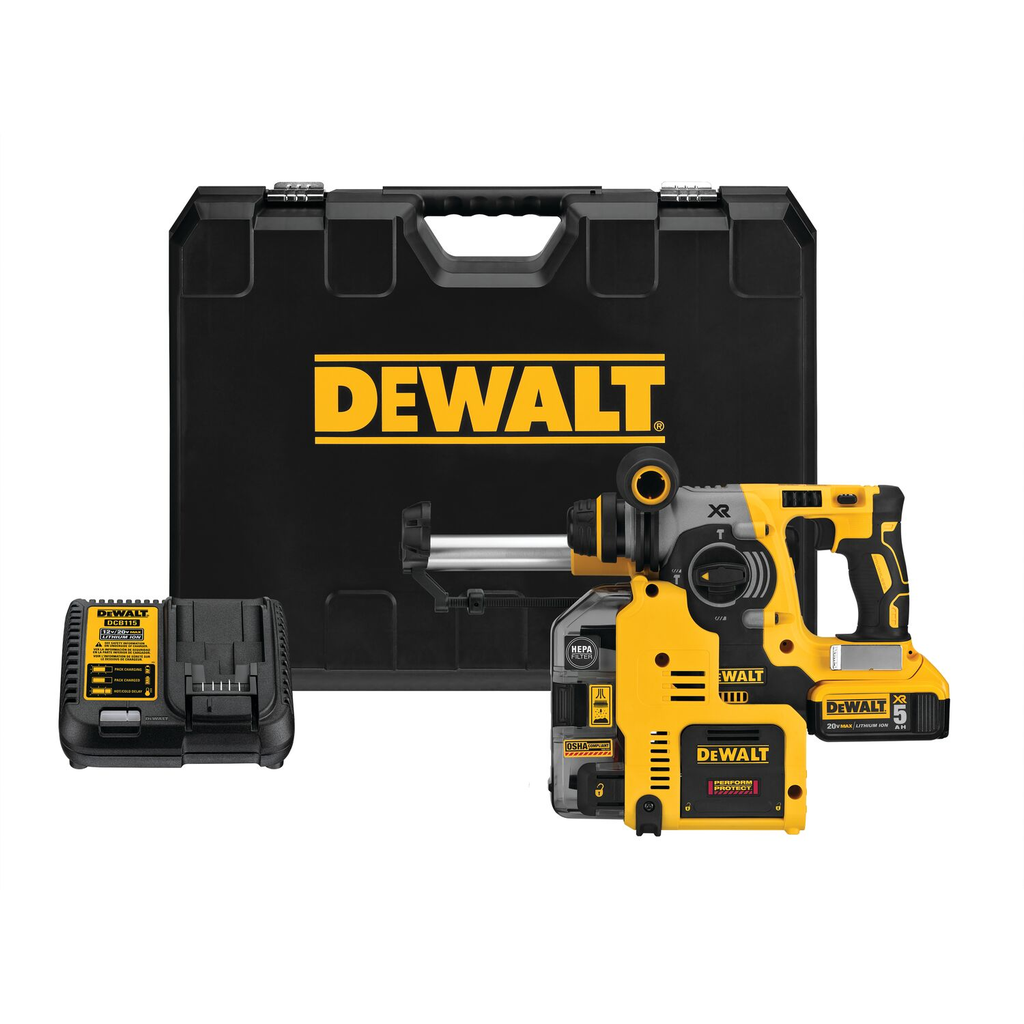

  • (1) DWH303DH On Board Extractor | (2) 20V MAX DCB205 Batteries (5.0Ah) | (1) Charger | (1) 360 Degree Side Handle | (1) Depth Rod | (1) Retractable Utility Hook | (1) Kit Box | (1) DCH273 Rotary Hammer

Disclaimer

  • Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
  • Voltage: 20 V
  • Battery Capacity: 5 Ah
  • Maximum Speed: 1100 RPM
  • Impacts per Minute: 4600
  • Impact Energy: 2.1 Joules
  • Size: 1 in
  • Chuck Size: 1 in
  • Chuck Type: Keyless
  • Drive Size: 1 in
  • Height: 8.1 in
  • Length: 20.2 in
  • Width: 18.6 in
  • Weight: 20.85 lbs
  • Motor Type: Brushless
  • Material: Plastic
  • Handle Type: D-Ring
  • Handle Material: Plastic
  • Battery Type: 20V MAX Lithium Ion
  • Number Of Batteries Required: 1
  • Battery Quantity: 2
  • Battery Included: Yes
  • Battery Required: Yes
  • Charger Type: Jack Plug
  • Charger Included: Yes
  • Case Type: Hard
  • Side Handle Included: Yes
  • Variable Speed: Yes
  • Reversible: No
  • Product Type: Rotary Hammer Drill
  • Product Finish: Yellow/Black
  • Country of Origin: China
  • Compliance: OSHA Table 1
